DATA SHEET
RD2.0F to RD82F
1 W PLANAR TYPE SILICON ZENER DIODES
ZENER DIODES
<R>
DESCRIPTION
These products are zener diodes with an allowable
dissipation of 1 W and a planar type glass sealed DHD
(Double Heatsink Diode) structure.
<R>
FEATURES
• The zener voltage series has a wide voltage range of 2 to
• The E24 series is employed for the zener voltage nominal
value.
<R>
ORDERING INFORMATION
Any of the B1 to B3 voltage classifications are available for
customers who request the B grade product of the RD2.0F to
RD39F.
<R>
APPLICATIONS
• Zener voltage and constant-current circuit
• Waveform clipper circuit and limiter circuit
• Surge absorption circuit
<R>
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C)
Parameter
Power dissipation
Junction temperature
Forward current
Storage temperature
Surge reverse power
P
T
j
I
F
T
stg
P
RSM
Symbol
<R>

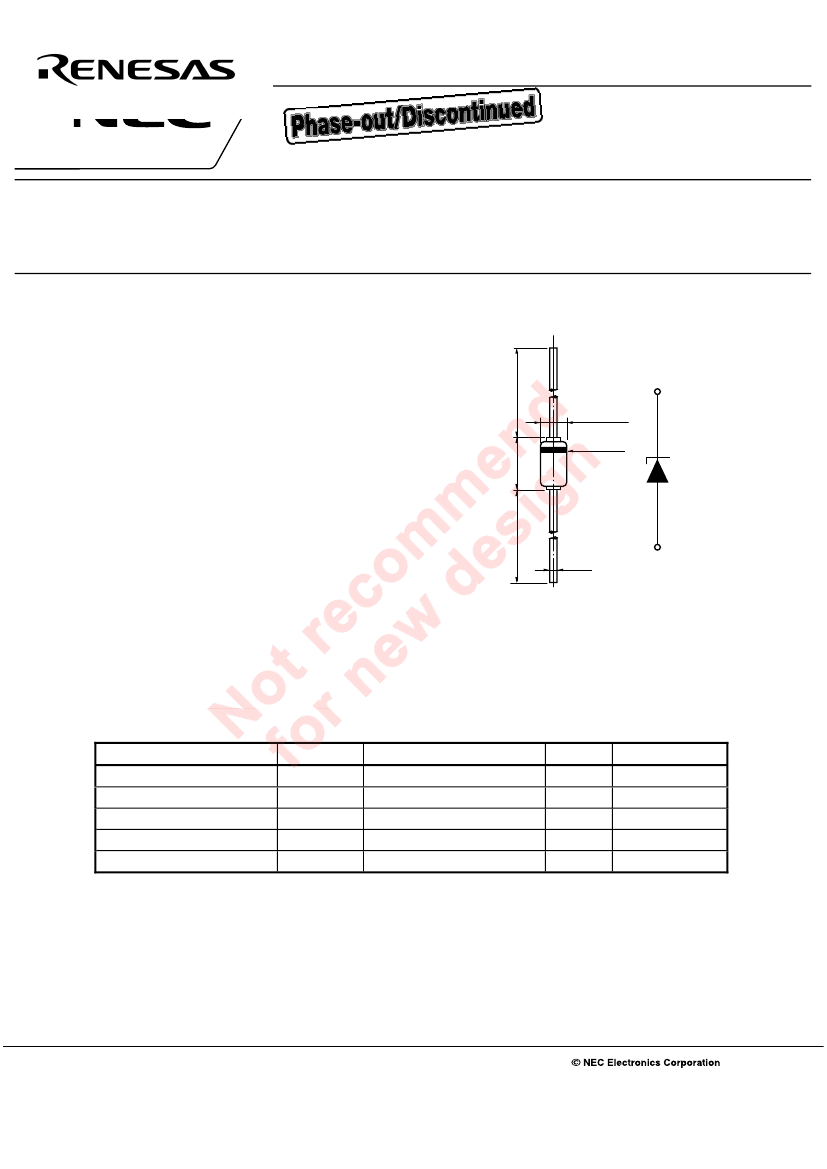

PACKAGE DRAWING (Unit: mm)
25 MIN.
φ
3.0 MAX.
Cathode
indication
25 MIN.
5 MAX.
82 V and is ideal for standardization.
φ
0.8
Marking color: Black
JEDEC: DO-41
Ratings
1.0
175
200
−65
to +175
400 (t = 10
μ
s)
Unit
W
°C
mA
°C
W
Remarks
Refer to Figure 1.
Refer to Figure 7.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D13936EJ5V0DS00 (5th edition)
Date Published September 2006 NS CP(K)
Printed in Japan
1982, 2006
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
