95615-722 datasheet, PDF - EEWORLD Datasheet

95615-722: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator,; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

95615-722 Overview

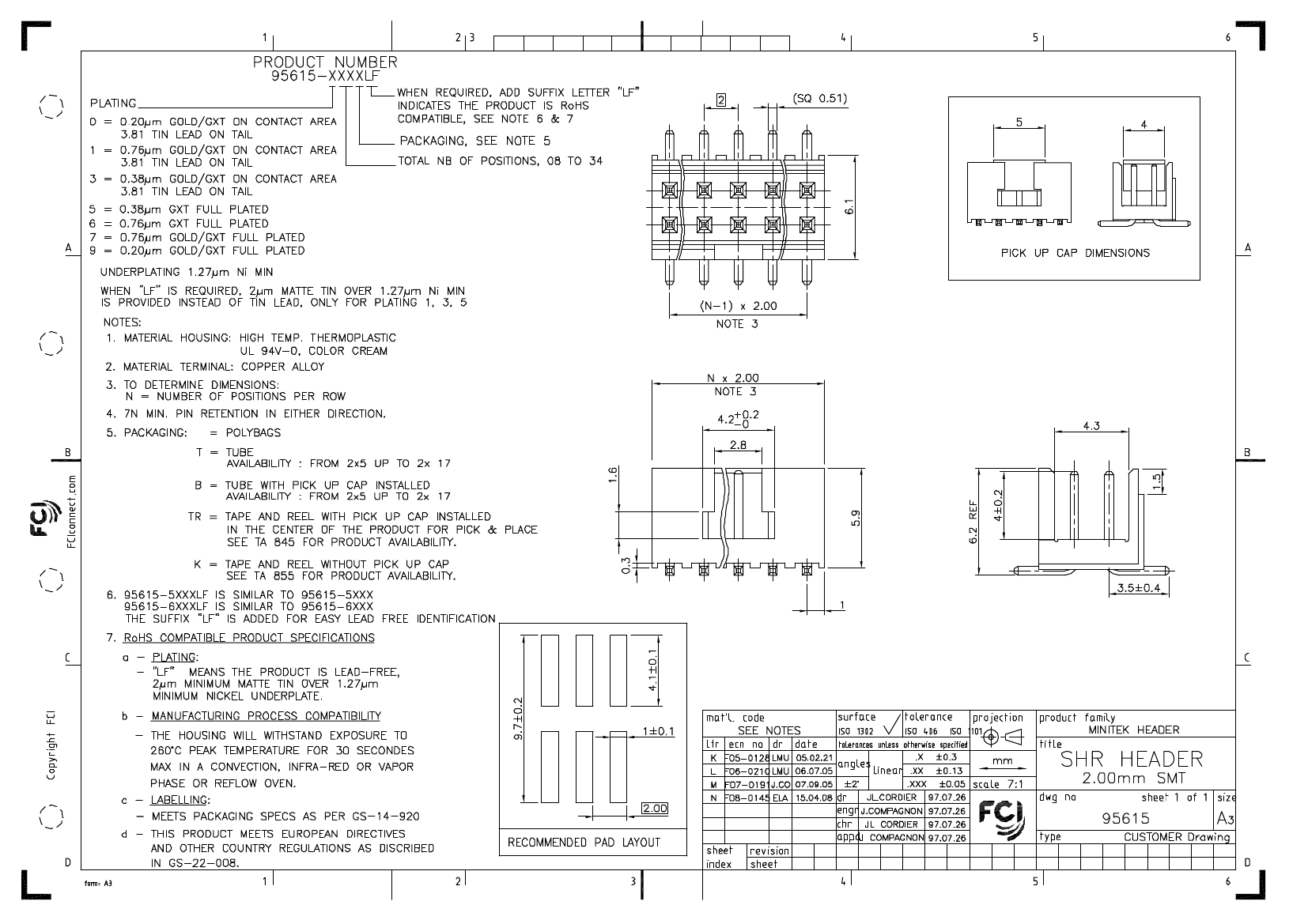

Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1808683275
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
body width	0.24 inch
subject depth	0.244 inch
body length	1.732 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	CREAM
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.588 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	22
UL Flammability Code	94V-0

PDM: Rev:N

STATUS:

Released

Printed: May 28, 2008
