Plug-Type (Male/Female) Attenuators
CBA series – Multimode
Description:

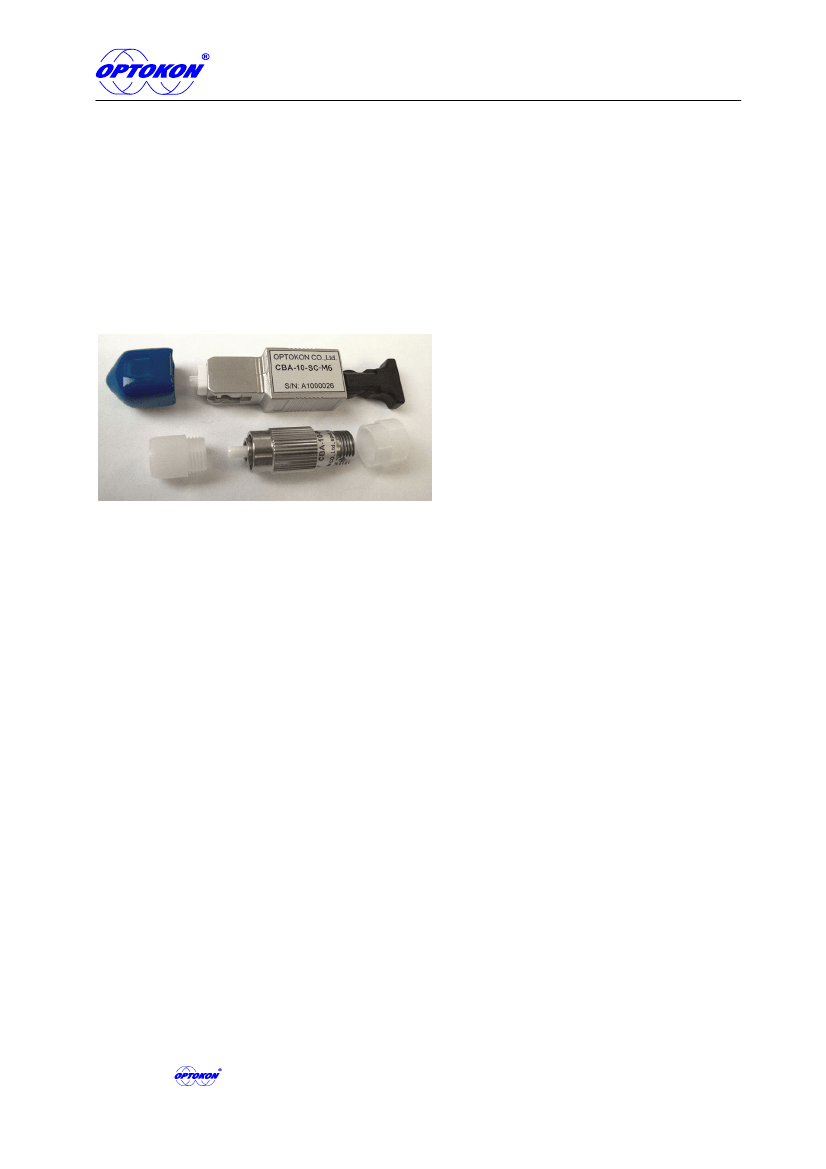

The plug-type CBA series multimodemode attenuators are used directly on the ends of fiberoptic
jumpers prior to installation in adapters. These attenuators provide a fixed level of attenuation made by
fiber core offset. The CBA series multimode attenuators are available for SC, FC, ST and LC connectors.
Operational wavelength range is 850 or 1300 nm.
Features:
•
•
•
•
•
•
Precise attenuation
Multimode performance
Operational wavelength 850 or 1300 nm
Attenuation range 2 – 10 dB
Easy installation
High power endurance
Application:
•
•
•
Fiberoptic systems
Receiver padding for optical receiver protection
Optical power equalization
Linearity and dynamic range testing in laboratory equipment
Optical margin testing
BER testing
•
•
•
is registered trademark of Optokon Co., Ltd. Other names and trademarks mentioned herein may be the trademarks of their respective owners.
Optokon Co., Ltd., Cerveny Kriz 250, 586 02 Jihlava, Czech Republic
tel. +420 567 211 196, fax +420 567 211 198, +420 567 311 292, www.optokon.com, info@optokon.cz
ATT_04-01_EN
21/07/2003
1
FIBER OPTIC TECHNOLOGY
CALIBRATION LABORATORY
Specifications:
Parameter
Attenuation range
Operational wavelength
Stability
attenuation range 2 to 5 dB
attenuation range 6 to 10 dB
Return loss
Power durability
Operating temperature
Storage temperature
±0.8 dB
±1.0 dB
>30 dB
150 mW
-25 to 70 °C
-40 to 80 °C
2 -10 dB
850 -1300 nm
Ordering Code:
CBA
attenuation
02
03
04
05
06
07
08
09
10
2 dB
3 dB
4 dB
5 dB
6 dB
7 dB
8 dB
9 dB
10 dB
-
XX
- XX - XX - XX
wavelength
50
00
850 nm
1300 nm
connector/
adapter type
SL
PC
SC
LC
ST/PC
FC/PC
SC/PC
LC/PC
fiber type
M5 MM 50/125 um
M6 MM 62.5/125 um

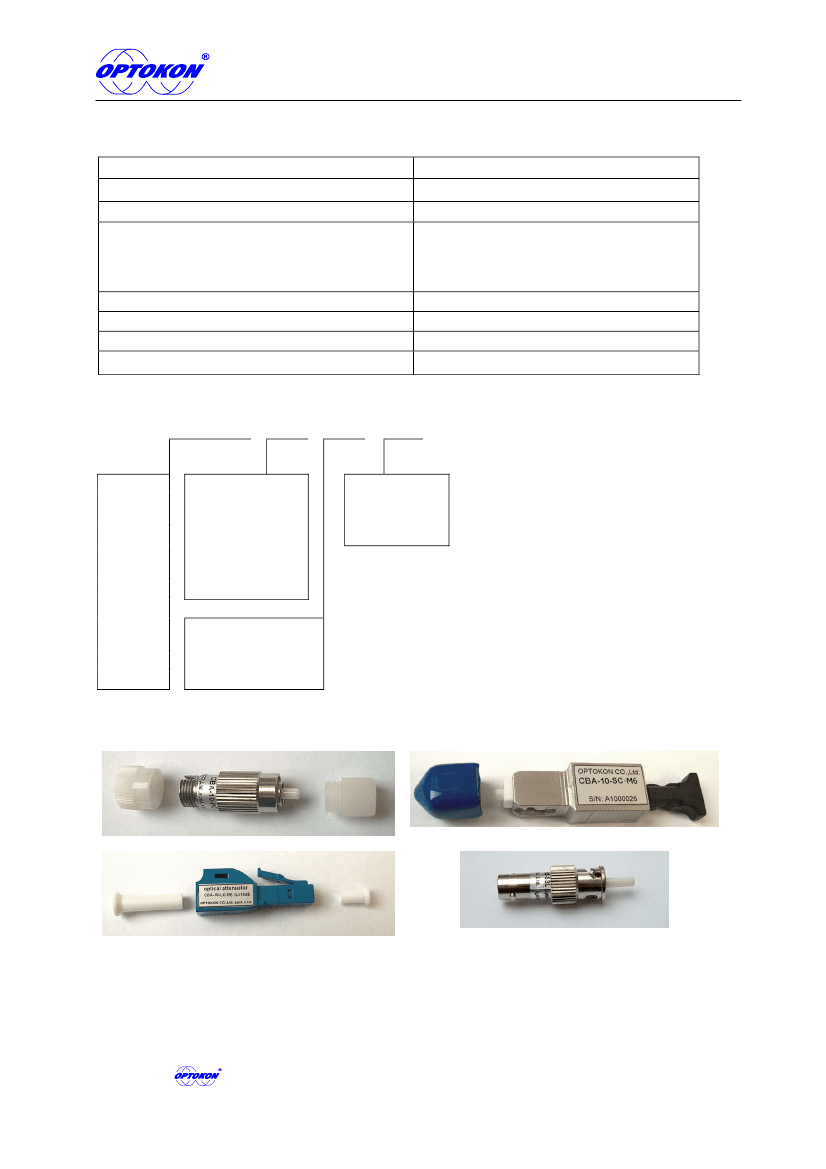

Samples of Attenuators
CBA-10-PC-M6-50
CBA-10-SC-M6-50
CBA-10-LC-M6-00
LC
®
and ST
®
are trademark of Lucent Technologies, Inc.
CBA-10-SL-M6-50
