Rectifier Diode, 1 Phase, 2 Element, 96A, 600V V(RRM), Silicon, ECOPAC-12

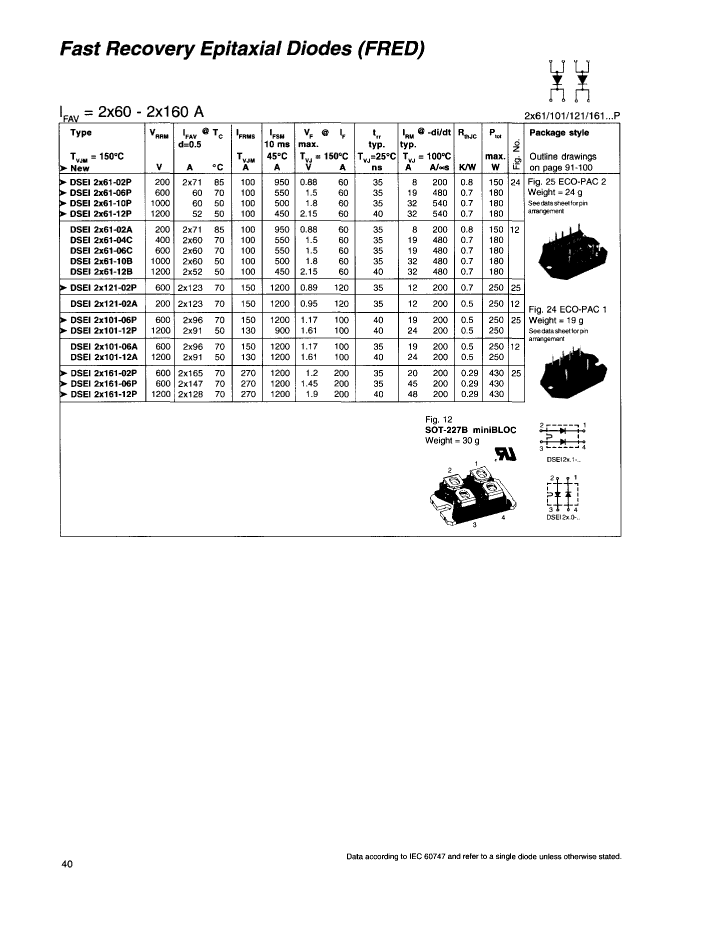

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Littelfuse |
| package instruction | R-XUFM-X12 |
| Reach Compliance Code | compliant |
| Other features | SNUBBER DIODE, FREE WHEELING DIODE, LOW NOISE |
| application | FAST RECOVERY |
| Shell connection | ISOLATED |
| Configuration | SEPARATE, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.25 V |
| JESD-30 code | R-XUFM-X12 |
| Maximum non-repetitive peak forward current | 1200 A |
| Number of components | 2 |
| Phase | 1 |
| Number of terminals | 12 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current | 96 A |
| Package body material | UNSPECIFIED |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Maximum power dissipation | 250 W |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 600 V |
| Maximum reverse current | 20000 µA |
| Maximum reverse recovery time | 0.04 µs |
| Reverse test voltage | 480 V |
| surface mount | NO |
| Terminal form | UNSPECIFIED |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| DSEI2X101-06P | DSEI2X61-12P | DSEI2X161-12P | DSEI2X61-06P | DSEI2X101-12P | DSEI2X161-02P | |
|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 2 Element, 96A, 600V V(RRM), Silicon, ECOPAC-12 | Rectifier Diode, 1 Phase, 2 Element, 52A, 1200V V(RRM), Silicon, ECOPAC-8 | Rectifier Diode, 1 Phase, 2 Element, 128A, 1200V V(RRM), Silicon, ECOPAC-12 | Rectifier Diode, 1 Phase, 2 Element, 60A, 600V V(RRM), Silicon, ECOPAC-8 | Rectifier Diode, 1 Phase, 2 Element, 91A, 1200V V(RRM), Silicon, ECOPAC-12 | Rectifier Diode, 1 Phase, 2 Element, 165A, 600V V(RRM), Silicon, ECOPAC-12 |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| package instruction | R-XUFM-X12 | R-XUFM-X8 | R-XUFM-X12 | ECOPAC-8 | ECOPAC-12 | ECOPAC-12 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | SNUBBER DIODE, FREE WHEELING DIODE, LOW NOISE | SNUBBER DIODE, FREE WHEELING DIODE, LOW NOISE | FREE WHEELING DIODE, SNUBBER DIODE | SNUBBER DIODE, FREE WHEELING DIODE, LOW NOISE | SNUBBER DIODE, FREE WHEELING DIODE, LOW NOISE | FREE WHEELING DIODE, SNUBBER DIODE |
| application | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SEPARATE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JESD-30 code | R-XUFM-X12 | R-XUFM-X8 | R-XUFM-X12 | R-XUFM-X8 | R-XUFM-X12 | R-XUFM-X12 |
| Maximum non-repetitive peak forward current | 1200 A | 450 A | 1200 A | 550 A | 900 A | 1200 A |
| Number of components | 2 | 2 | 2 | 2 | 2 | 2 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 12 | 8 | 12 | 8 | 12 | 12 |
| Maximum output current | 96 A | 52 A | 128 A | 60 A | 91 A | 165 A |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 600 V | 1200 V | 1200 V | 600 V | 1200 V | 600 V |
| Maximum reverse recovery time | 0.04 µs | 0.04 µs | 0.04 µs | 0.035 µs | 0.04 µs | 0.035 µs |
| surface mount | NO | NO | NO | NO | NO | NO |
| Terminal form | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maker | Littelfuse | - | - | Littelfuse | Littelfuse | Littelfuse |
