Ordering number : ENN7564
DL-3150-105
Infrared Laser Diode
DL-3150-105
Infrared Laser Diode (Frame Type)
Features
•
Wavelength : 790 nm (Typ.)
•
Frame type
•
Compact lightweight thin package
•
Straight leads
Package Dimensions
0.7±0.12
0.7
3.2
-C
2-
5
0.
1.9
1.6
8.0
--0.1
4.0±0.12
3.7±0.15
1
0
LD facet
3.0±0.1 1.4±0.12
R
0.
5
+
0
1.8
0 .1
2-
Absolute Maximum Ratings at Tc=25
°
C
(as per JISC 7032)
5.0±0.5
3.4
Parameter
Light Output
Laser
Reverse Voltage
PIN
Operating Temperature
Storage Temperature
Symbol Condition
Po
V
R
Topr
Tstg
Kink free
-
-
1)
1)
Ratings
5
2
30
- to +70
-10
- to +85
-40
Unit
mW
V
°C
°C
°C
2 -- 0.4
3 -- 0.4±0.1
(1.6)
Pin No.
3
2
1
Frame type(CD)
Pin Connection
LD
1.4
6.4
1.0
+0.1
0
1
Soldering Temperature Tsol
2)
260
1) Case temperature
2) Soldering Time≤3s, 1.6 mm from the root of a lead.
Electrical and Optical Characteristics
3) 4)
at Tc=25
°
C
Parameter
Threshold Current
Operating Current
Operating Voltage
Peak Lasing Wavelength 5)
Light Output Power
Beam 6)
Perpendicular
Divergence
Parallel
Off Axis
Perpendicular
Angle
Parallel
Differential Efficiency
Monitoring Output Current
Symbol
Ith
Iop
Vop
λ
p
Po
θ⊥
θ
//
∆θ⊥
∆ θ
//
dPo/dIop
Im
Condition
CW
Po=3mW
Po=3mW
Po=3mW
-
Po=3mW
Po=3mW
Po=3mW
Po=3mW
Po=3mW
Po=3mW
Min.
-
-
1.6
-
-
25
8
-
-
0.18
0.05
Typ.
35
45
1.8
790
3
35
10
-
-
0.35
0.20
Max.
50
60
2.3
800
-
45
14
±3
±2
-
0.40
2
Unit
mA
mA
V
nm
mW
°
°
°
°
mW/mA
mA
3) Initial values 4) All the above values are evaluated with Tottori Sanyo’s measuring apparatus
5) Wafer lot go/no-go decision criteria 6) Full angle at half maximum
Note : The above product specification are subject to change without notice.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
91003 YY IM No.7564 1/3
°
R0.
7
0
+ 0.
3.0±0.15
4.2
3
2--5
±
1
PD
DL-3150-105

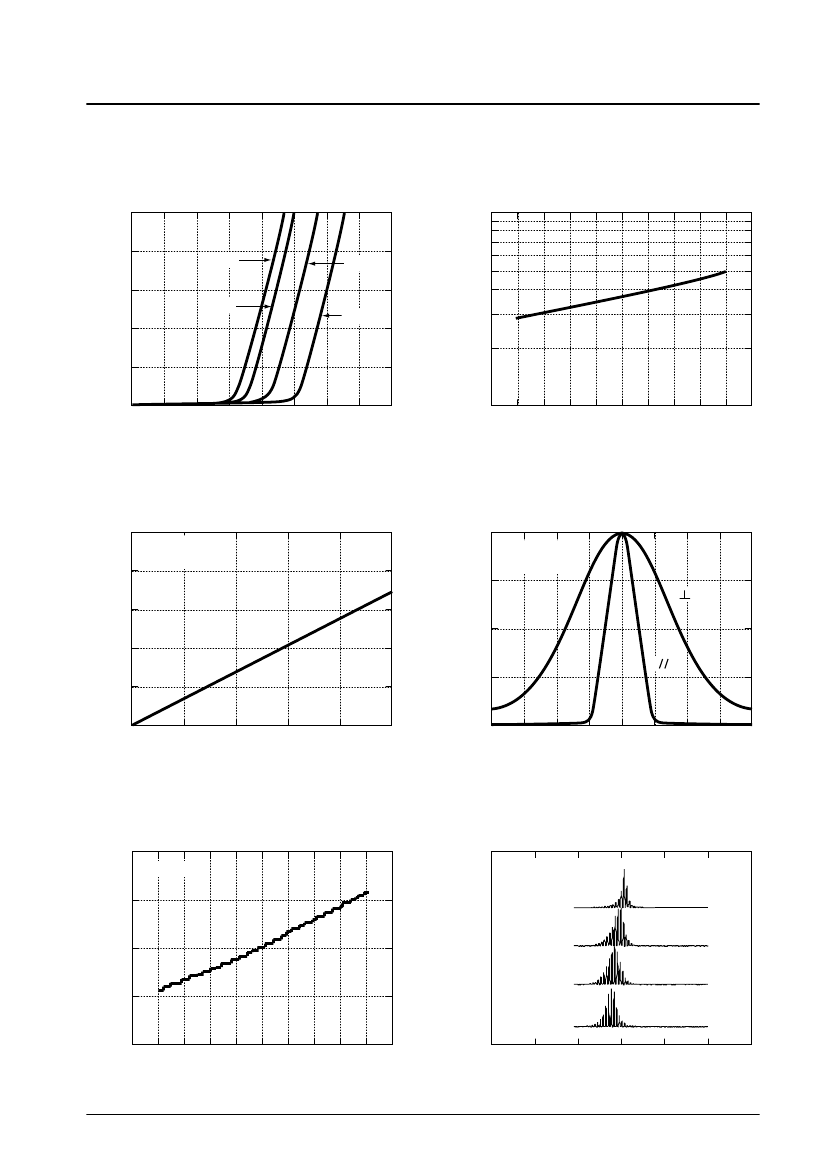

Characteristics
Output power vs. Forward current
5
4
3
25°C
2
1
0
0
70°C
Threshold current Ith (mA)
Output power Po (mW)
Threshold current vs. Temperature
100
80
60
40
10°C
50°C
20
10
20 30 40 50 60 70
Forward current IF (mA)
80
10
-20 -10 0
10 20 30 40 50 60 70 80
Temperature Tc (°C)
Monitoring current vs. Output power
0.5
Monitoring current Im (mA)
Beam divergence
1.0
Po=3mW
Tc=25°C
Relative intensity
0.4
0.3
0.2
0.1
0
0
Tc=25°C
Vr(PD)=5V
θ
0.5
θ
1
2
3
4
Output power Po (mW)
5
0
-40 -30 -20 -10 0
10
Angle
θ
(
°
)
20
30
40
Lasing wavelength vs. Temperature
810
Lasing wavelength
λp
(nm)
Lasing wavelength vs. Output power
Tc=25°C
Po=5mW
Relative intensity
Po=3mW
800
Po=4mW
Po=3mW
Po=2mW
790
780
770
-20 -10 0
10 20 30 40 50 60 70 80
Temperature Tc (°C)
775
780
785
790
795
800
805
Lasing wavelength
λp
(nm)
No.7564 2/3
DL-3150-105
CAUTION
1. No products described or contained herein are intended for use in surgical implants, life-support systems,
aerospace equipment, nuclear power control systems, vehicles, disaster / crime-prevention equipment or
the like, and the failure of which may directly or indirectly cause injury, death or property loss.
2. Anyone purchasing any products described or contained herein for an above-mentioned use shall:
1) Accept full responsibility and indemnify and defend SANYO ELECTRIC CO.,LTD., it’s affiliates,
subsidiaries and distributors or any of their officers and employees, jointly and severally, against any
and all claims and litigation and all damages, costs and expenses associated with such use.
2) Not impose any responsibility for any fault or negligence which may be cited in any such claim or
litigation on SANYO ELECTRIC CO., LTD., it’s affiliates, subsidiaries and distributors or any of
their officers and employees jointly or severally.
3. Information (including circuit diagrams and circuit parameters) disclosed herein is for example only; it is not
guaranteed for mass production, SANYO believes the information disclosed herein is accurate and reliable,
but no guarantees are made or implied regarding it’s use or any infringements of intellectual property rights
or other rights of third parties.
Precautionary instructions in handling gallium arsenic products
Special precautions must be taken in handling this product because it contains, gallium arsenic, which is
designated as a toxic substance by law. Be sure to adhere strictly to all applicable laws and regulations
enacted for this substance, particularly when it comes to disposal.
Manufactured by ;
Tottori SANYO Electric Co., Ltd.
LED Business Unit
5-318, Tachikawa-cho, Tottori City, 680-8634 Japan
TEL: +81-857-21-2137 FAX: +81-857-21-2161
PS No.7564 3/3
