FST16212MEAX

Description
Bus Exchanger, CBT/FST/QS/5C/B Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 0.300 INCH, MO-118, SSOP-56
Categorylogic    logic
File Size172KB，5 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

FST16212MEAX Overview

Bus Exchanger, CBT/FST/QS/5C/B Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 0.300 INCH, MO-118, SSOP-56

FST16212MEAX Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFairchild
Parts packaging codeSSOP
package instructionSSOP, SSOP56,.4
Contacts56
Reach Compliance Codecompliant
Other featuresTTL COMPATIBLE BUS SWITCH
seriesCBT/FST/QS/5C/B
JESD-30 codeR-PDSO-G56
length18.42 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS EXCHANGER
Number of digits12
Number of functions1
Number of ports4
Number of terminals56
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeSSOP
Encapsulate equivalent codeSSOP56,.4
Package shapeRECTANGULAR
Package formSMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
propagation delay (tpd)0.25 ns
Certification statusNot Qualified
Maximum seat height2.74 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4 V
Nominal supply voltage (Vsup)4.5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch0.635 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.5 mm

FST16212MEAX Preview

FST16212 24-Bit Bus Exchange Switch
July 1997
Revised April 2005
FST16212
24-Bit Bus Exchange Switch
General Description
The Fairchild Switch FST16212 provides 24-bits of high-
speed CMOS TTL-compatible bus switching or exchang-
ing. The low on resistance of the switch allows inputs to be
connected to outputs without adding propagation delay or
generating additional ground bounce noise.
The device operates as a 24-bit bus switch or a 12-bit bus
exchanger, which allows data exchange between the four
signal ports via the data-select terminals.
Features
s
4
:
switch connection between two ports.
s
Minimal propagation delay through the switch.
s
Low l
CC
.
s
Zero bounce in flow-through mode.
s
Control inputs compatible with TTL level.
Ordering Code:
Order Number
FST16212MEA
FST16212MTD
Package Number
MS56A
MTD56
Package Description
56-Lead Shrink Small Outline Package (SSOP), JEDEC MO-118, 0.300" Wide
56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

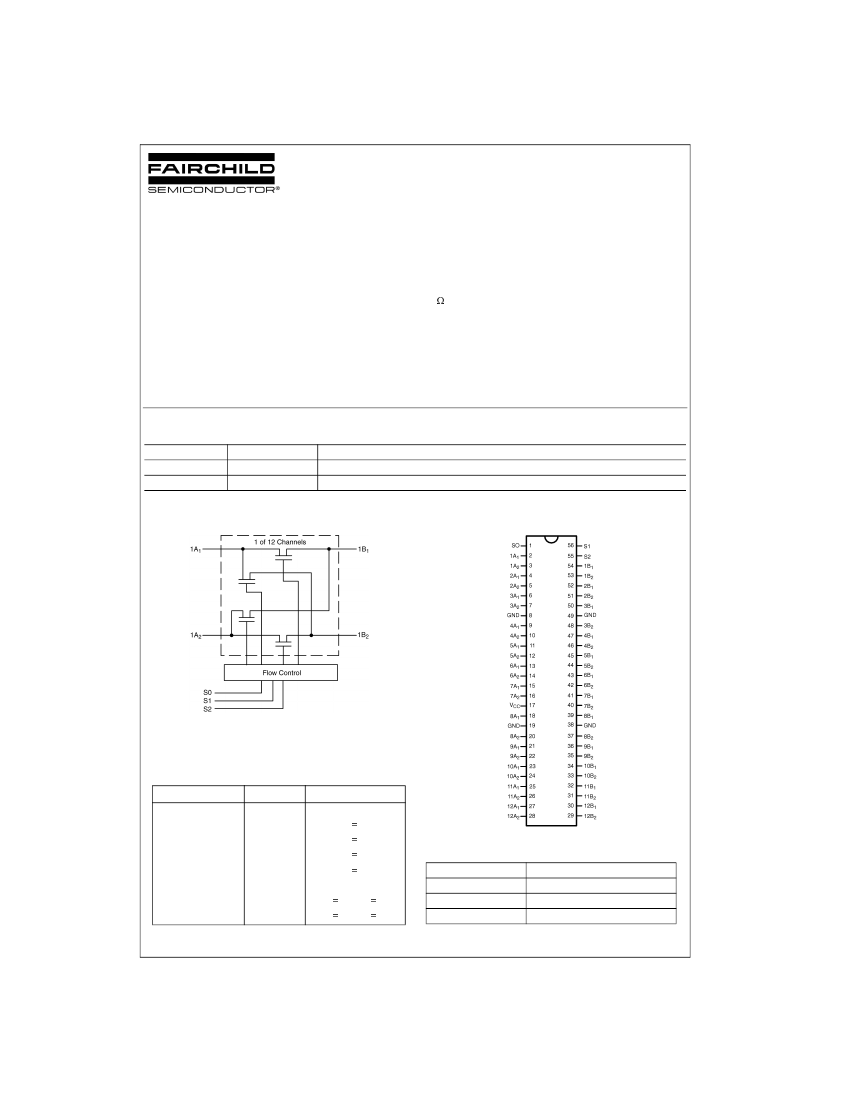

Logic Diagram
Connection Diagram
Truth Table
S2
L
L
L
L
H
H
H
H
S1
L
L
H
H
L
L
H
H
S0
L
H
L
H
L
H
L
H
A
1
Z
B
1
B
2
Z
Z
Z
B
1
B
2
A
2
Z
Z
Z
B
1
B
2
Z
B
2
B
1
A
1
A
1
Function
Disconnect
A
1
A
1
A
2
A
2
B
1
B
2
B
1
B
2
B
2
B
1
Pin Descriptions
Pin Name
S2, S1, S0
A
1
, A
2
B
1
, B
2
Description
Data-select inputs
Bus A
Bus B
Disconnect
B
1
, A
2
B
2
, A
2
© 2005 Fairchild Semiconductor Corporation
DS500038
www.fairchildsemi.com
FST16212
Absolute Maximum Ratings
(Note 1)
Supply Voltage (V
CC
)
DC Switch Voltage (V
S
)
DC Input Voltage (V
IN
) (Note 2)
DC Input Diode Current (l
IK
) V
IN

0V
DC Output (I
OUT
) Sink Current
DC V
CC
/GND Current (I
CC
/I
GND
)
Storage Temperature Range (T
STG
)

0.5V to

7.0V

0.5V to

7.0V

0.5V to

7.0V

50mA
128mA
Recommended Operating
Conditions
(Note 3)
Power Supply Operating (V
CC
)
Input Voltage (V
IN
)
Output Voltage (V
OUT
)
Input Rise and Fall Time (t
r
, t
f
)
Switch Control Input
Switch I/O
Free Air Operating Temperature (T
A
)
0nS/V to 5nS/V
0nS/V to DC
4.0V to 5.5V
0V to 5.5V
0V to 5.5V

/

100mA

65
q
C to

150
q
C

40
q
C to

85
q
C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum rating.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Note 2:
The input and output negative voltage ratings may be exceeded if
the input and output diode current ratings are observed.
Note 3:
Unused control inputs must be held high or low. They may not float.
DC Electrical Characteristics
Symbol
V
IK
V
IH
V
IL
I
I
I
OZ
R
ON
Parameter
Clamp Diode Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
Input Leakage Current
OFF-STATE Leakage Current
Switch On Resistance
(Note 5)
V
CC
(V)
4.5
4.0–5.5
4.0–5.5
5.5
0
5.5
4.5
4.5
4.5
4.0
I
CC
Quiescent Supply Current
Increase in I
CC
per Input
5.0V and T
A

25
q
C
T
A
Min

40
q
C to

85
q
C
Typ
(Note 4)
Max
Units
V
V
0.8
V
I
IN
Conditions

1.2
2.0

18mA
r
1.0
10
P
A
P
A
P
A
:
:
:
:
P
A
mA
0
d
V
IN
d
5.5V
V
IN
V
IN
V
IN
V
IN
V
IN
V
IN
5.5V
0V, I
IN
0V, I
IN
2.4V, I
IN
2.4V, I
IN
64mA
30mA
15mA
15mA
0
0
d
A, B
d
V
CC
r
1.0
4
4
8
14
7
7
12
20
3
2.5
5.5
5.5
V
CC
or GND, I
OUT
'
I
CC
One input at 3.4V
Other inputs at V
CC
or GND
Note 4:
Typical values are at V
CC
Note 5:
Measured by the voltage drop between A and B pins at the indicated current through the switch. On resistance is determined by the lower of the
voltages on the two (A or B) pins.
www.fairchildsemi.com
2
FST16212
AC Electrical Characteristics
T
A
Symbol
Parameter
V
CC
Min
t
PHL
,t
PLH
t
PHL
,t
PLH
t
PZH
, t
PZL
t
PHZ
, t
PLZ
BW
Prop Delay Bus to Bus (Note 6)
Prop Delay S to Bus
Output Enable Time, S to A or B
Output Disable Time S to A or B
1.5
1.5
1.0
250
C
L

40
q
C to

85
q
C,
RD
500
:
4.0V
Max
0.25
7.5
8.0
9.0
ns
ns
ns
ns
MHz
V
I
V
I
V
I
V
I
8.5
V
I
V
I
R
L
OPEN
OPEN
7V for t
PZL
OPEN for t
PZH
7V for t
PLZ
OPEN for t
PHZ
50
:
Figures
1, 2
Figures
1, 2
Figures
1, 2
Figures
1, 2
Units
Conditions
V
CC
Min
Figure
No.
50pF, RU
4.5 – 5.5V
Max
0.25
7.0
7.5

3dB Bandwidth
Note 6:
This parameter is guaranteed by design but is not tested. The bus switch contributes no propagation delay other than the RC delay of the typical On
resistance of the switch and the 50pF load capacitance, when driven by an ideal voltage source (zero output impedance).
Capacitance
Symbol
C
IN
C
I/O
Note 7:
T
A
(Note 7)
Parameter
Typ
3
10
Max
Units
pF
pF
V
CC
V
CC
5.0V
5.0V, S0, S1, or S2 GND
Conditions
Control pin Input Capacitance
Input/Output Capacitance

25
q
C, f
1 MHz, Capacitance is characterized but not tested.

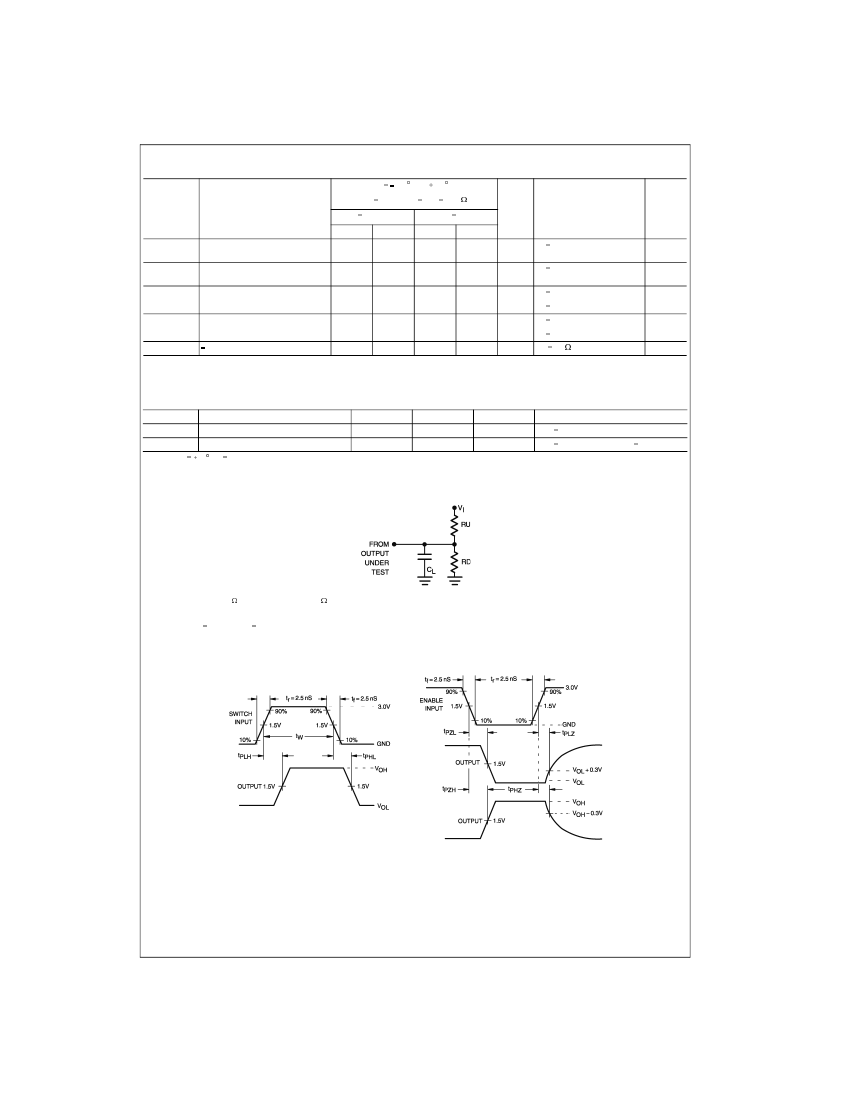

AC Loading and Waveforms
Note: Input driven by 50
:
source terminated in 50
:
Note: C
L
includes load and stray capacitance
Note Input PRR
1.0 MHz, t
W
500 ns
FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
3
www.fairchildsemi.com
FST16212
Physical Dimensions
inches (millimeters) unless otherwise noted

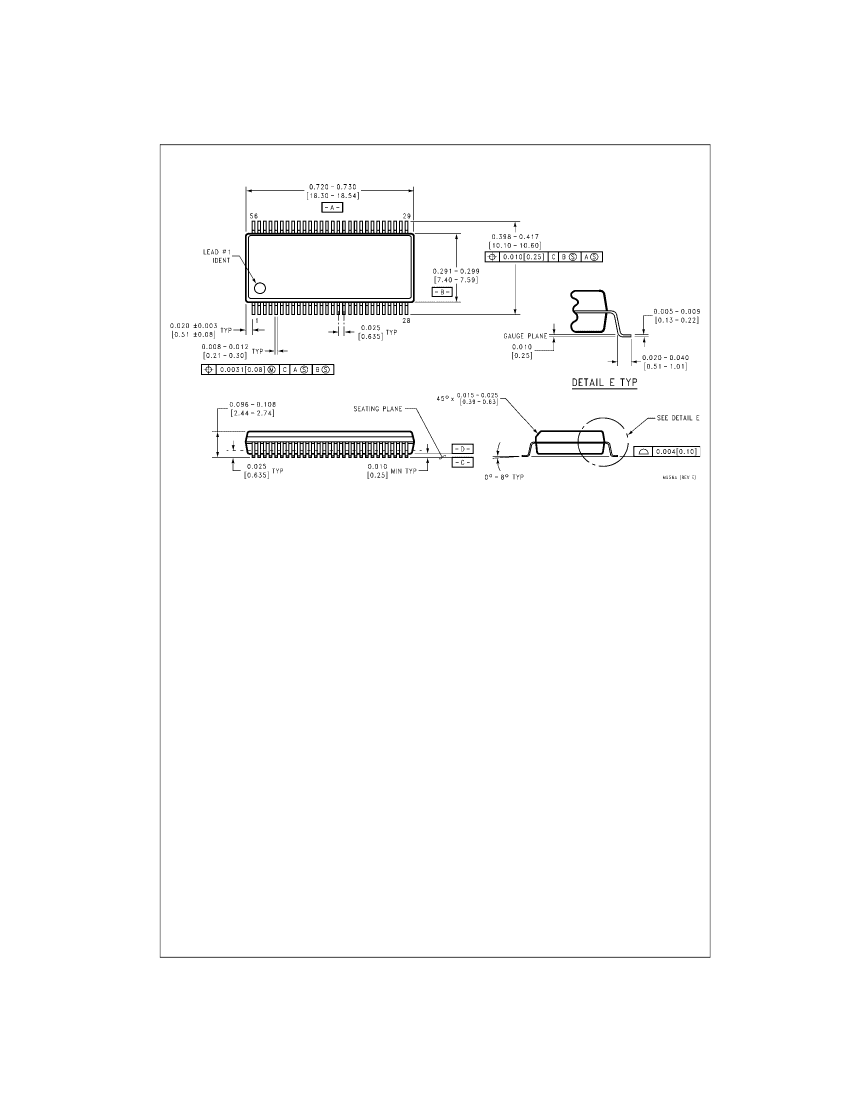

56-Lead Shrink Small Outline Package (SSOP), JEDEC MO-118, 0.300" Wide
Package Number MS56A
www.fairchildsemi.com
4
FST16212 24-Bit Bus Exchange Switch
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Package Number MTD56
Technology Description
The Fairchild Switch family derives from and embodies Fairchild’s proven switch technology used for several years in its
74LVX3L384 (FST3384) bus switch product.
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea-
sonably expected to result in a significant injury to the
user.
5
2. A critical component in any component of a life support
device or system whose failure to perform can be rea-
sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
www.fairchildsemi.com
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

FST16212MEAX Related Products

FST16212MEAX FST16212MTDX
Description Bus Exchanger, CBT/FST/QS/5C/B Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 0.300 INCH, MO-118, SSOP-56 Bus Exchanger, CBT/FST/QS/5C/B Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 6.10 MM, MO-153, TSSOP-56
Is it Rohs certified? conform to conform to
Maker Fairchild Fairchild
Parts packaging code SSOP TSSOP
package instruction SSOP, SSOP56,.4 6.10 MM, MO-153, TSSOP-56
Contacts 56 56
Reach Compliance Code compliant unknown
Other features TTL COMPATIBLE BUS SWITCH TTL COMPATIBLE BUS SWITCH
series CBT/FST/QS/5C/B CBT/FST/QS/5C/B
JESD-30 code R-PDSO-G56 R-PDSO-G56
length 18.42 mm 14 mm
Load capacitance (CL) 50 pF 50 pF
Logic integrated circuit type BUS EXCHANGER BUS EXCHANGER
Number of digits 12 12
Number of functions 1 1
Number of ports 4 4
Number of terminals 56 56
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Output characteristics 3-STATE 3-STATE
Output polarity TRUE TRUE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SSOP TSSOP
Encapsulate equivalent code SSOP56,.4 TSSOP56,.3,20
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V
propagation delay (tpd) 0.25 ns 0.25 ns
Certification status Not Qualified Not Qualified
Maximum seat height 2.74 mm 1.1 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4 V 4 V
Nominal supply voltage (Vsup) 4.5 V 4.5 V
surface mount YES YES
technology CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL
Terminal form GULL WING GULL WING
Terminal pitch 0.635 mm 0.5 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
width 7.5 mm 6.1 mm

Recommended Resources

Circuit diagram of using photoelectric coupler to make mobile phone call reminder

EL-700 (100Ω) platinum resistance temperature measurement circuit

Homemade 12V boost to 20,000V circuit diagram

TTL status probe circuit

PF24A type 3 1/2 digit digital multimeter circuit

Precision bridge sensing amplifier circuit

Seeking long-term cooperative lecturers for win-win cooperation
sysml,ea part-time lecturer,mbse part-time lecturer,ethernet part-time lecturer,canoe part-time lecturer Short-term training, available on weekends If you want to earn some extra money, accumulate res...
hg2628826 Recruitment
Plasma cleaning
During the LED packaging process, oxides and particulate contaminants on the chip surface will reduce product quality. If plasma cleaning is performed before dispensing, wire bonding, and packaging cu...
zzjjhh2009 LED Zone
Energy saving and digital control open a new chapter in power management for home consumer electronics
When people are talking about all kinds of portable electronic products with dazzling functions, please do not forget the traditional home appliances and emerging digital home appliances that are clos...
peregrine Power technology
A novice question about wdm
How could there be an error when I compile directly what the wizard generates? It says: cannot open input file 'ntstrsafe.lib' Why is it so difficult to get started with WDM?...
yjguanjian Embedded System
msp430f149 modbus rtu communication problem
[b]A novice asks for advice on msp430 modbus rtu communication[/b]Test environment: 1) The 485 chip used is max485, and the microcontroller used is TI's msp430F149. Question: Could you please look at ...
Domosday Microcontroller MCU
Modem
Modulation and demodulation principle introduction courseware...
吸铁石上 RF/Wirelessly
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. 40HFLR80S02
  2. T494B336M020AH
  3. 1060795
  4. GUS-QSCALF-009312-BC
  5. PCF0805P-25-57K6WT1
  6. 40-2162-139
  7. M83421/06-5155R
  8. CL21B393KBANNNE
  9. AME1084
  10. BZQ5253T/R7
  11. C3963HM-2x3P-GN
  12. TC212A336M010Y

Popular Articles

  1. How to splice the glass of the ultra-long range display panel of the magnetic flap level gauge
  2. B001-Atmega16-PORTA definition-(ques=1)
  3. At the juncture of technological change, what will be the trend of display panel technology and market?
  4. S3C2440 bare metal experiment (4) ----- IIC
  5. Oscilloscopes measure and calculate signal harmonic content
  6. [Second Generation Oscilloscope Tutorial] Chapter 11 Oscilloscope Design - Functional Module Division
  7. Toyota T-Pilot will be standard equipment on all series, and the emergency braking distance is ridiculously accurate.
  8. Mouser Electronics now sells Infineon EZ-PD PMG1-B1 USB Type-C high-voltage microcontroller for portable electronic applications
  9. vivo X Note is coming: it will use Snapdragon 8 custom chip

Technical ResourceMore

  1. EWB Electronics Lab Software Multimedia Video Tutorial
  2. Design of a sound signal acquisition and measurement instrument
  3. Internet Application Basics Electronic Lesson Plan Tutorial
  4. The principle and application of text-to-speech single-chip processor WTS701
  5. Shortened 3D corner reflector antenna
  6. Changhong PF2917DV color TV IIC bus EEPROM data
  7. Constant pressure water supply system circuit diagram
  8. LG CT-29H82 color TV drawing
  9. Development of Computer Test System Based on Gas Sensor
  10. MASTERCAM 9.0 complete Chinese patch package

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1075  9  2733  2060  387  22  1  56  42  8
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
