D15S80C6GL00LF datasheet, PDF - EEWORLD Datasheet

D15S80C6GL00LF: DescriptionD Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, M3, LEAD FREE; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

D15S80C6GL00LF Overview

D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, M3, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.496 inch
body length	1.541 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	D
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	M3
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Housing size	2/A
Terminal length	0.114 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	15
Evacuation force-minimum value	.3058 N

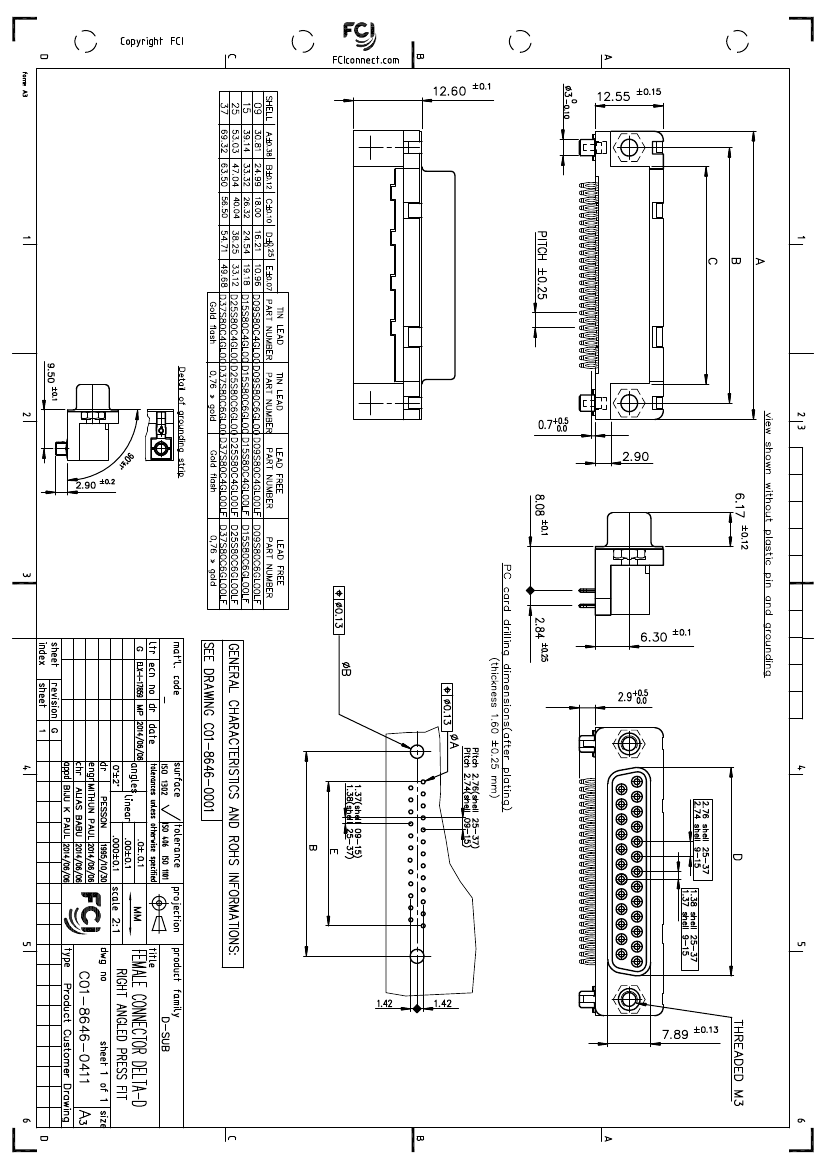

PDS: Rev :G

STATUS:Released

Printed: Jun 09, 2014
