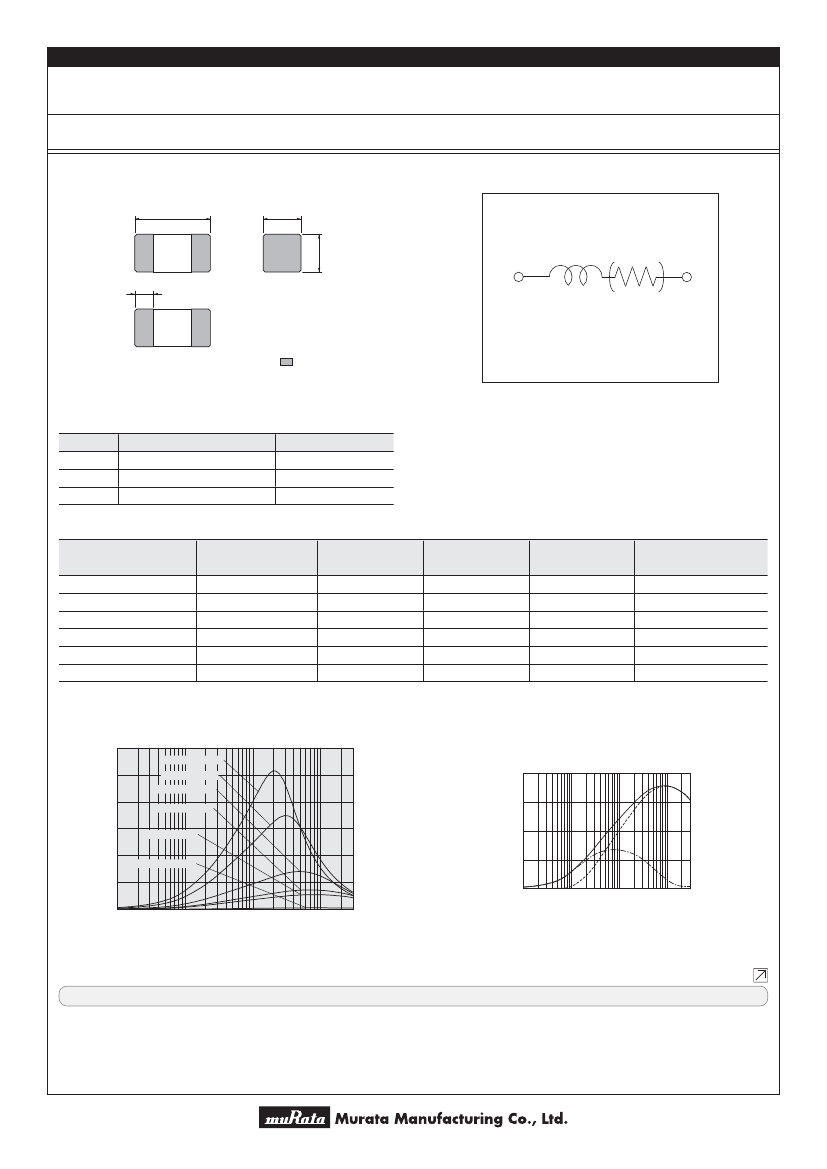

Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead

Data Sheet

1

EMIFIL

r

(Inductor type)

Chip Ferrite Bead

BLM03AX Series (0201 Size)

c

Dimensions

0.6±0.03

0.3±0.03

c

Equivalent Circuit

0.15±0.05

0.3±0.03

(Resistance element becomes dominant

at high frequencies.)

: Electrode

(in mm)

c

Packaging

Code

D

J

B

Packaging

180mm Paper Tape

330mm Paper Tape

Bulk(Bag)

Minimum Quantity

15000

50000

1000

c

Rated Value (p: packaging code)

Part Number

BLM03AX100SN1p

BLM03AX800SN1p

BLM03AX121SN1p

BLM03AX241SN1p

BLM03AX601SN1p

BLM03AX102SN1p

Number of Circuits: 1

Impedance

(at 100MHz/20°C)

10ohm (Typ.)

80ohm ±25%

120ohm ±25%

240ohm ±25%

600ohm ±25%

1000ohm ±25%

Impedance

(at 1GHz/20°C)

-

Rated Current

1000mA

500mA

450mA

350mA

250mA

200mA

DC Resistance

0.05ohm max.

0.18ohm max.

0.23ohm max.

0.38ohm max.

0.85ohm max.

1.25ohm max.

Operating

Temperature Range

-55 to +125°C

c

Impedance-Frequency Characteristics (Main Items)

1500

BLM03AX102SN1

1250

BLM03AX601SN1

BLM03AX241SN1

1000

Impedance (Ω)

c

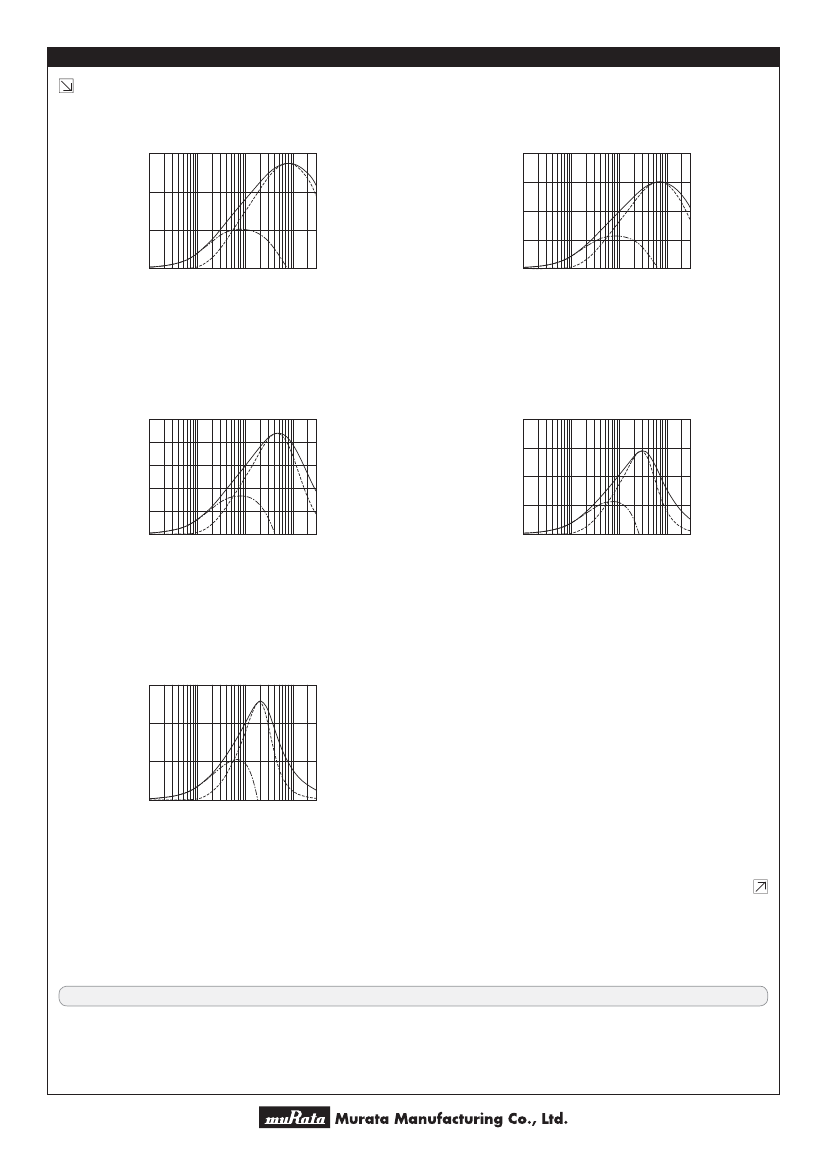

Impedance-Frequency Characteristics

BLM03AX100SN1

16

12

Impedance (Ω)

BLM03AX121SN1

Z

750

BLM03AX800SN1

8

R

X

500

BLM03AX100SN1

250

4

0

1

10

0

1

10

100

Frequency (MHz)

1000

3000

100

Frequency (MHz)

1000

3000

Continued on the following page.

oThis

data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.

!Note:

1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s speciﬁcations are subject to change or our products in it

may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.

2. This datasheet has only typical speciﬁcations because there is no space for detailed speciﬁcations. Therefore, please approve our product

speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

2012.9.6

http://www.murata.com/
