LPC9040LBK221K

Description
General Purpose Inductor, 220uH, 10%, 1 Element, Ferrite-Core, SMD, CHIP
CategoryPassive components    inductor
File Size205KB，2 Pages
ManufacturerKOA Speer
Websitehttp://www.koaspeer.com/
Download Datasheet Parametric Compare View All

LPC9040LBK221K Overview

General Purpose Inductor, 220uH, 10%, 1 Element, Ferrite-Core, SMD, CHIP

LPC9040LBK221K Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerKOA Speer
Reach Compliance Codecompliant
ECCN codeEAR99
core materialFERRITE
DC Resistance0.81 Ω
Nominal inductance(L)220 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee0
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum rated current0.5 A
self resonant frequency5 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal locationON CIRCLE
Terminal shapeONE SURFACE
Tolerance10%

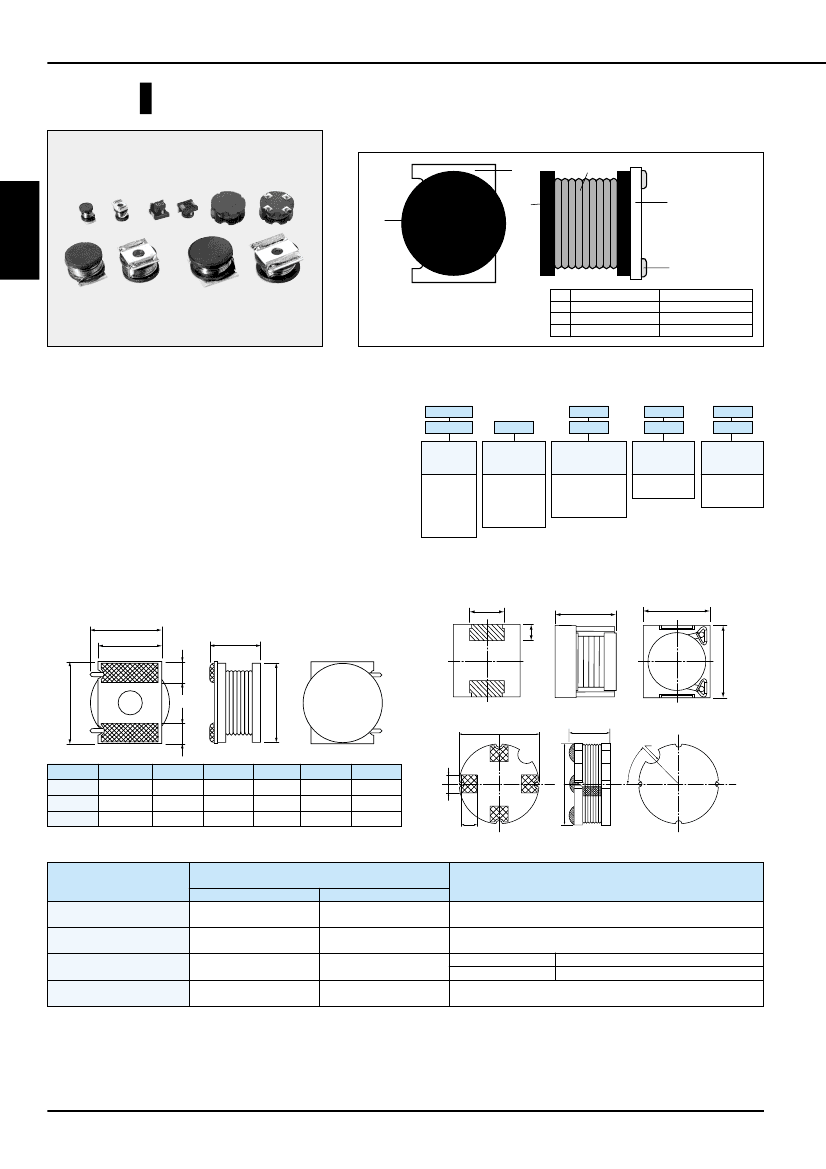

Preview

Download Datasheet
CHOKE
LPC
インダクタ
Inductor
パワーチップインダクタ
Power Chip Inductors
■構造図 Construction
②
①
①
③
②
④
① フェライトコア  
② セラミック
 
③ マグネットワイヤ 
④ 電極
 
Ferrite core
Ceramic substrate
Magnet wire
Electrode 
■特長 Features
独自の構造、巻線技術により、½直流抵抗、高許容電
流を実現しました。
●
面実装タイプで、自動搭載に対応します。
●
はんだ付け性、耐環境性に優れています。
●
リフローはんだ付けに対応します。
●
端子鉛フリー品は、RoHS対応品です。
●
Low DC resistance and high allowable current are realized by
the original construction and wiring technology.
●
Automatic surface mounting is applicable.
●
Excellent solderability and endurance environment.
●
Suitable for reflow soldering.
●
Products with lead free termination meet RoHS requirements.
●
■品名構成 Type Designation
例 Example
Old Type
LPC4045
A
TE
TE
二次加工
Taping
TE：テーピング
TE：Taping
BK：バルク
BK：Bulk
221
221
公称インダクタンス
Nominal
Inductance
3 digits
（Unit：μH）
K
K
許容差
Tolerance
K：±10%
M：±20%
N：±30%
New Type LPC4045
端子表面材質
品 名
Terminal
Product
Surface Material
Code
LPC4045
A：SnAg
LPC4235
T：Sn
LPC9040
（4235のみ）
LPC9040E （4235 only）
LPC10065
L：Sn/Pb
LPC12065
■外½寸法 Dimensions［mm½
LPC4045、LPC10065、LPC12065
E
D
B
端子表面材質は鉛フリーめっき品が標準となります。
テーピングの詳細については巻末のAPPENDIX Cを参照して下さい。
For further information on taping, please refer to APPENDIX C on the back pages.
LPC4235
2±0.2
1±0.2
3.5Max.
4.2±0.2
100
F
C
A
LPC9040, LPC9040E
10.2Max
F
4.9Max
R1
LPC4045
LPC10065
φ10.0±0.2 7.5 Max.
LPC12065
φ12.0±0.2 7.5 Max.
10.4
12.4
8
10
（9.0）
（11.0）
2.5±0.2
3.7±0.3
1.8±0.2
■性½ Performance
試験項目
Test Items
熱衝撃
Heat shock
½温放½
Low temperature exposure
高温放½
High temperature exposure
耐湿性
Moisture endurance
規格値 Performance Requirements
ΔL/L
保証値 Limit
代表値 Typical
±5％
±5％
±5％
±5％
±1.3％
±1.3％
±1.3％
±1.6％
試験方法
Test Methods
−40℃
（30min.）
/＋85℃
（30min.）
100 cycles
−40℃, 500h
85℃±2℃, 500h
125℃±2℃, 500h
LPC4045, LPC9040, LPC10065, LPC12065
LPC4235, LPC9040E
40℃±2℃, 90%∼95%RH, 500h
■½用上の注意 Precautions for Use
インダクタに強い力、過度の衝撃を加えると電気、磁気特性が変化することがありますので、搭載時及び搭載後に過度の衝撃が加わらないようにして下さい。
コイルボビンにフェライトを½用している½品のため、スイッチング周波数により、発熱量が異なるので½用温度が85℃以下になるようにご½用下さい。
●
Avoid strong pressure or excessive shock at mounting or after mounting because electric/magnetic characteristics may change if it is applied to the inductors.
●
Due to the products using ferrite for coil bobbins, use them 85 ℃ or under of inductor temperature because the volume of generating heat varies depending on
switching frequency.
●
●
本カタログに掲載の仕様は予告なく変更する場合があります。御注文及び御½用前に、納入仕様書などで内容を御確認下さい。
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
φ9±0.1
2.0±0.2
A
B
φ4.0±0.2 4.3±0.2
C±0.2
4.5
D±0.2
3
E
（3.5）
F
1.0±0.3
4.5
±6
www.koanet.co.jp
4.5±0.2
