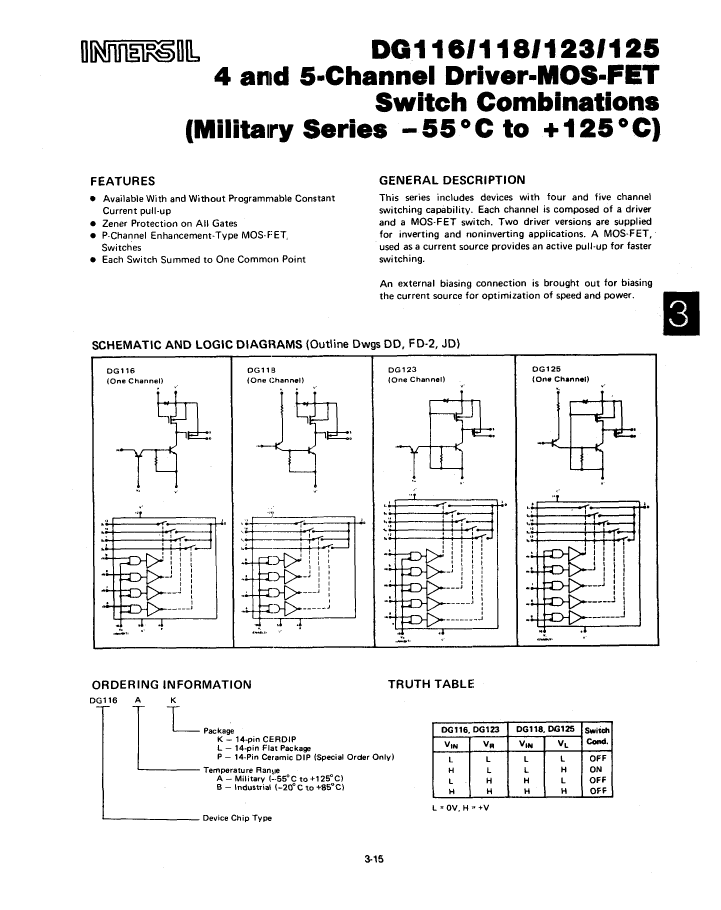

DG125AP/883B Overview

DG125AP/883B

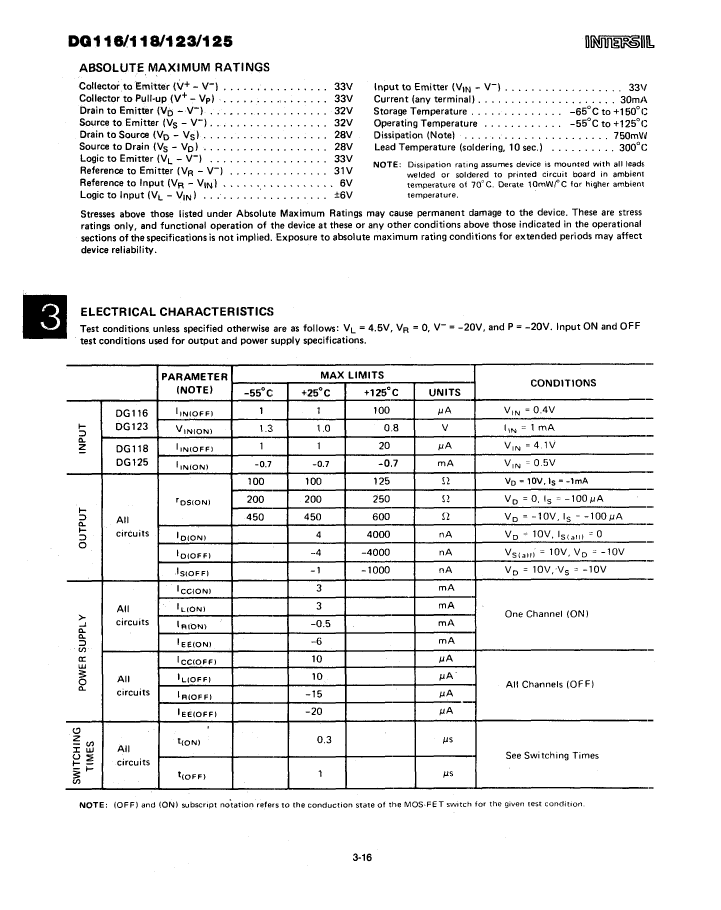

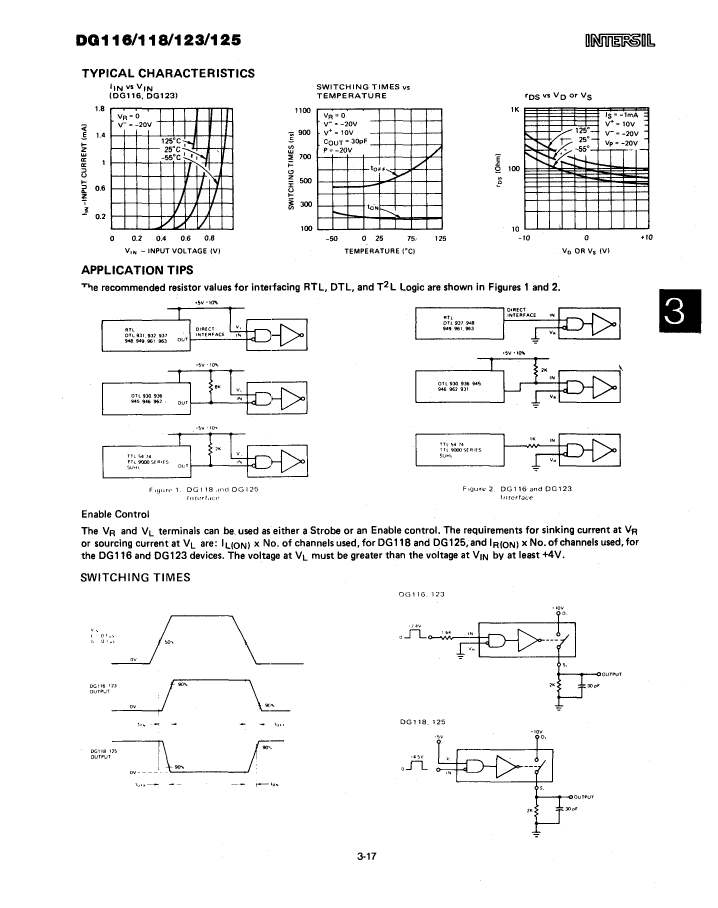

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	CERAMIC, DIP-14
Contacts	14
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
normal position	NC
Number of functions	5
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	COMMON OUTPUT
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
switch	MAKE-BEFORE-BREAK
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	DG125AP/883B	DG125AP
Description	DG125AP/883B	DG125AP
Is it Rohs certified?	incompatible	incompatible
package instruction	CERAMIC, DIP-14	DIP, DIP14,.3
Reach Compliance Code	not_compliant	unknown
Analog Integrated Circuits - Other Types	SPST	SPST
JESD-30 code	R-XDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0
normal position	NC	NC
Number of functions	5	5
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
output	COMMON OUTPUT	COMMON OUTPUT
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
switch	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
