KC7050S100.000C1AB00 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> KC7050S100.000C1AB00

KC7050S100.000C1AB00: DescriptionSAW Oscillator, 100MHz Nom, ROHS COMPLIANT, SMD; CategoryPassive components oscillator; File Size49KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

KC7050S100.000C1AB00 Overview

SAW Oscillator, 100MHz Nom, ROHS COMPLIANT, SMD

KC7050S100.000C1AB00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Other features	STANDBY FUNCTION; TAPE AND REEL
maximum descent time	2 ns
frequency tolerance	100 ppm
Installation features	SURFACE MOUNT
Nominal operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-5 °C
Oscillator type	SAW OSCILLATOR
Output compatibility	LVCMOS
physical size	7.0mm x 5.0mm x 2.0mm
longest rise time	2 ns
Maximum slew rate	80 mA
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

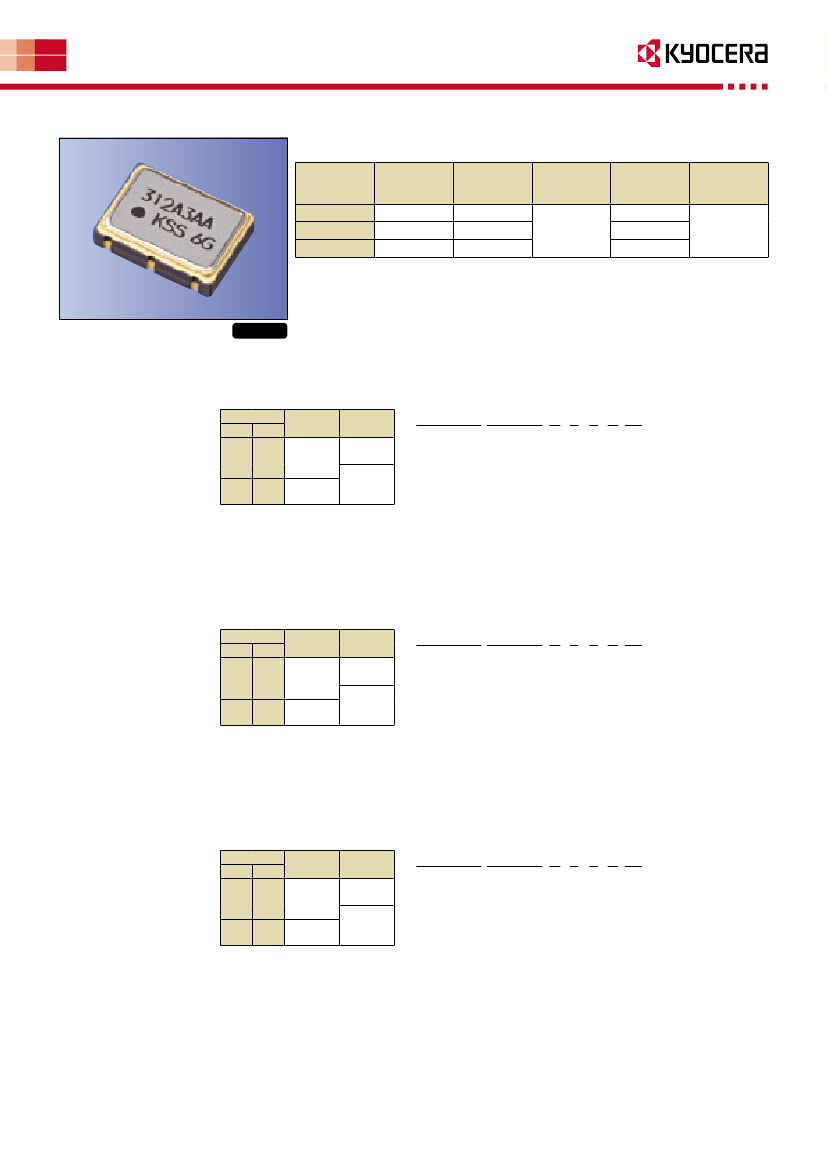

Clock Oscillators Surface Mount Type

KC7050S-C1 Series, KC7050S-C2 Series, KC7050S-C3 Series

CMOS/ 1.8V/ 2.5V/ 3.3V/ 7.0×5.0mm

Specifications

Type

KC7050S-C1

KC7050S-C2

KC7050S-C3

Output

Supply

Frequency

Voltage (Vcc)

Range (MHz)

100 to 170

100 to 220

1.8± to 5%

2.5± to 5%

3.3± to 5%

100

Frequency

Tolerance

Current

Output Load

Consumption

(pF)

(mA)

max. 80

Note: Please contact us for inquiry about operating temperature range, available frequencies and other conditions.

RoHS Compliant

KC7050S-C1 Series

Features

• Low voltage 1.8V

• Low jitter

• LV-CMOS output

• Operation at fundamental

high frequency

Table 1

Freq. Tol.

Code

Operating

Temperature

Range (°C)

Note

How to Order

KC7050S 155.520 C 1 1 B 00

①

②

③④⑤⑥ ⑦

①

Type (7.0×5.0mm SMD)

②

Output Frequency

③

Output Type (CMOS)

④

Supply Voltage (1.8V)

⑤

Frequency Tolerance (See Table 1)

⑥

ymmetry/ INH Function

(40/ 60%, Stand-by)

Customer Special Model Suffix

⑦

(STD Specification is “00”)

Standard

±100

0 to

+70

specifications

With only

certain

±100 -5

+85

frequencies

ackaging (Tape & Reel 1000 pcs./ reel)

KC7050S-C2 Series

Features

• Low voltage 2.5V

• Low jitter

• LV-CMOS output

• Operation at fundamental

high frequency

Table 1

Freq. Tol.

Code

Operating

Temperature

Range (°C)

Note

How to Order

KC7050S 155.520 C 2 1 B 00

①

②

③④⑤⑥ ⑦

①

Type (7.0×5.0mm SMD)

②

Output Frequency

③

Output Type (CMOS)

④

Supply Voltage (2.5V)

⑤

Frequency Tolerance (See Table 1)

⑥

ymmetry/ INH Function

(40/ 60%, Stand-by)

⑦

ustomer Special Model Suffix

(STD Specification is “00”)

Standard

±100

0 to

+70

specifications

With only

certain

±100 -5

+85

frequencies

Packaging (Tape & Reel 1000 pcs./ reel)

KC7050S-C3 Series

Features

• CMOS output 3.3V

• Low jitter

• Operation at fundamental

high frequency

Table 1

Freq. Tol.

Code

Operating

Temperature

Range (

Note

How to Order

KC7050S 155.520 C 3 1 B 00

①

②

③④⑤⑥ ⑦

①

Type (7.0×5.0mm SMD)

②

Output Frequency

③

Output Type (CMOS)

④

Supply Voltage (3.3V)

⑤

Frequency Tolerance (See Table 1)

⑥

ymmetry/ INH Function

(40/ 60%, Stand-by)

Customer Special Model Suffix

⑦

(STD Specification is “00”)

Standard

±100

0 to

+70

specifications

With only

certain

±100 -5

+85

frequencies

Packaging (Tape & Reel 1000 pcs./ reel)
