TFMCJ43CA-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> TFMCJ43CA-T

TFMCJ43CA-T: DescriptionTrans Voltage Suppressor Diode, 1500W, 43V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN; CategoryDiscrete semiconductor diode; File Size515KB，7 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/

Download Datasheet Parametric View All

TFMCJ43CA-T Overview

Trans Voltage Suppressor Diode, 1500W, 43V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN

TFMCJ43CA-T Parametric

Parameter Name	Attribute value
Maker	Rectron Semiconductor
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY, LOW ZENER IMPEDANCE, PRSM-MIN
Maximum breakdown voltage	52.8 V
Minimum breakdown voltage	47.8 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	BIDIRECTIONAL
Maximum power dissipation	5 W
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	43 V
surface mount	YES
technology	AVALANCHE
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

TVS

TFMCJ

SERIES

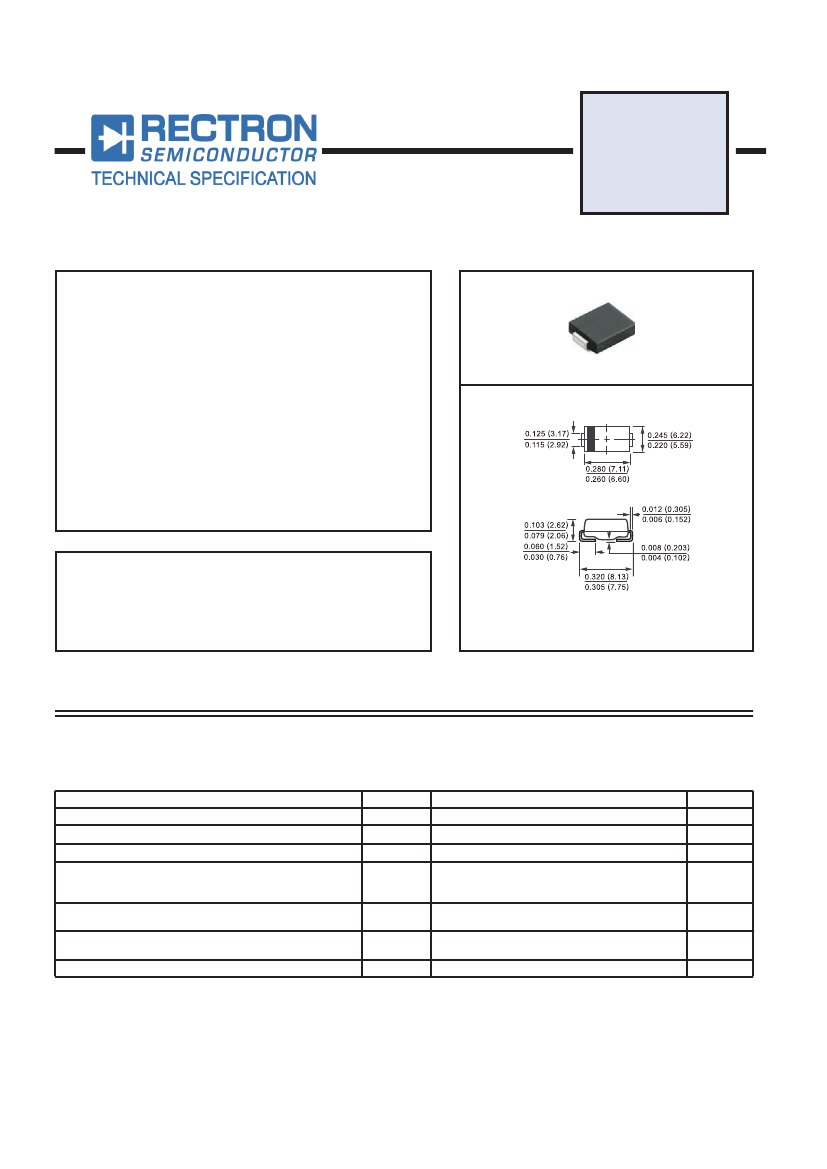

1500 WATT PEAK POWER 1.0 WATT STEADY STATE

FEATURES

Plastic package has underwriters laboratory

Glass passivated chip construction

1500 watt surage capability at 1ms

Excellent clamping capability

Low zener impedance

Fast response time

AEC-Q101 certificated (-AA1)

GPP TRANSIENT VOLTAGE SUPPRESSOR

DO-214AB

Ratings at 25 C ambient temperature unless otherwise specified.

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Dimensions in inches and (millimeters)

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use C or CA suffix for types TFMCJ5.0 thru TFMCJ170

Electrical characteristics apply in both direction

MAXIMUM RATINGS

(At T

= 25 C unless otherwise noted)

RATINGS

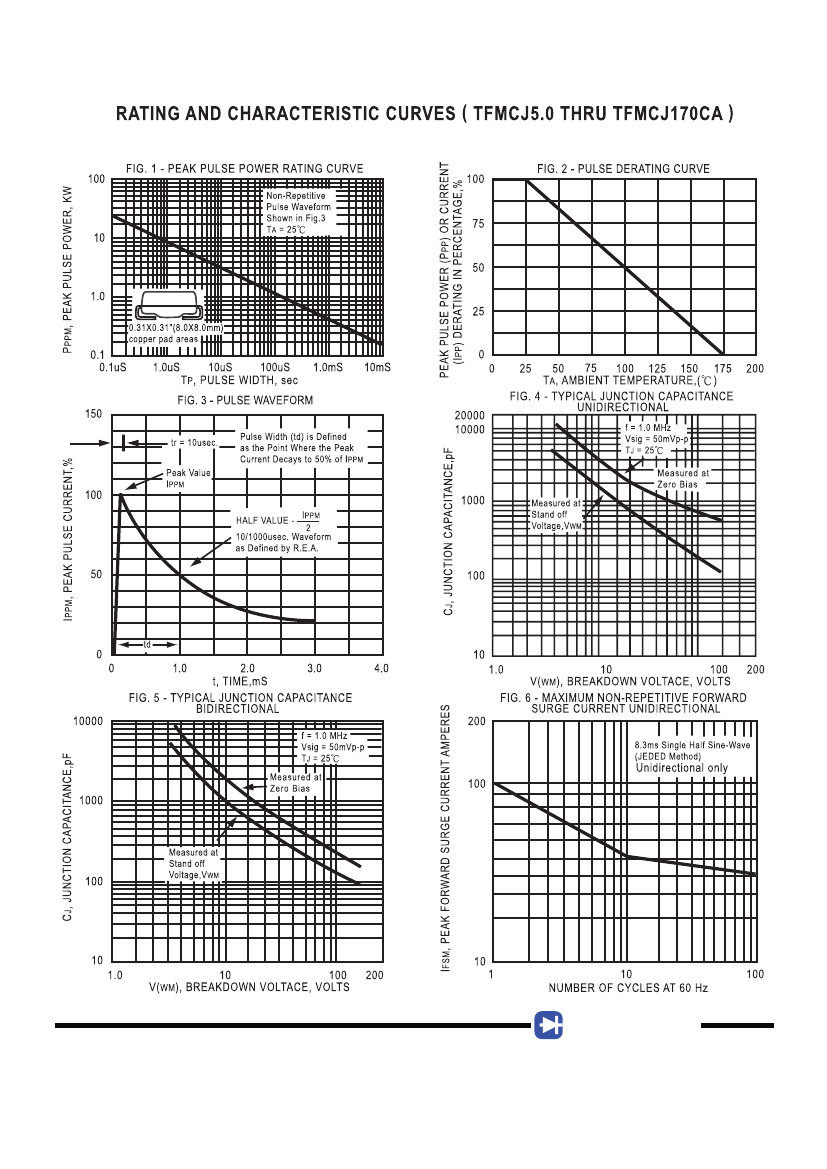

Peak Power Dissipation with a 10/1000uS (Note 1,2, Fig.1)

Peak Pulse Current with a 10/1000uS waveform ( Note 1, Fig.3 )

Steady State Power Dissipation at T

= 75 C (Note 2)

Peak Forward Surge Current 8.3mS single half sine-wave

superimposed on rated load (JEDEC method) (Note 2,3)

unidirectional only

Typical Current Squarad Time

SYMBOL

PPM

(

)

FSM

VALUE

Minimum 1500

SEE TABLE 1

5.0

100

UNITS

Watts

Amps

Watts

Amps

/Sec

41.5

Maximum Instantaneous Forward Voltage at 100A for unidirectional

only (Note 3,4)

Operating and Storage Temperature Range

, T

STG

SEE NOTE 3,4

-55 to + 150

Volts

NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T

= 25

C per Fig.2.

2. Mounted on 0.31 X 0.31”( 8.0 X 8.0mm) copper pad to each terminal.

3. Lead temperature at T

= 25 C

4. Measured on 8.3mS single half sine-wave duty cycle = 4 pules per minute maximum.

5. V

= 3.5V on TFMCJ-5.0 thru TFMCJ-90 devices and V

= 5.0V on TFMCJ-100 thru TFMCJ-170 devices.

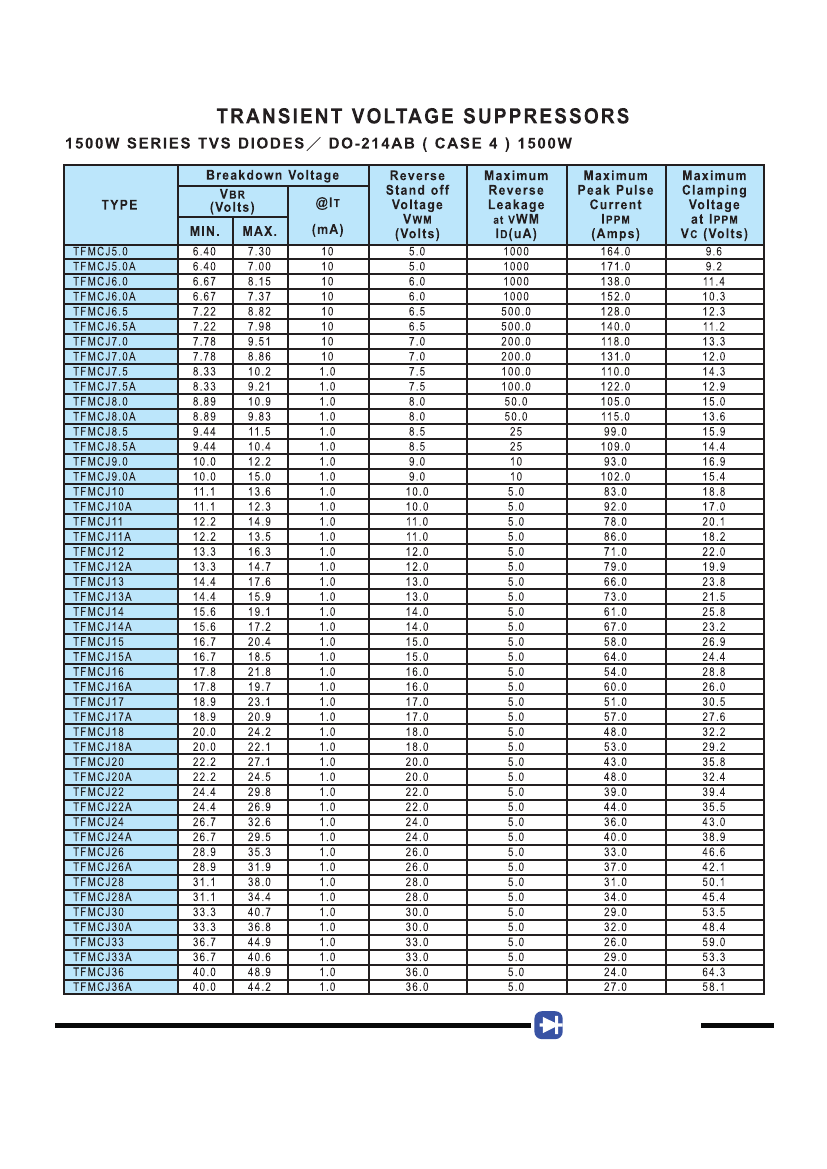

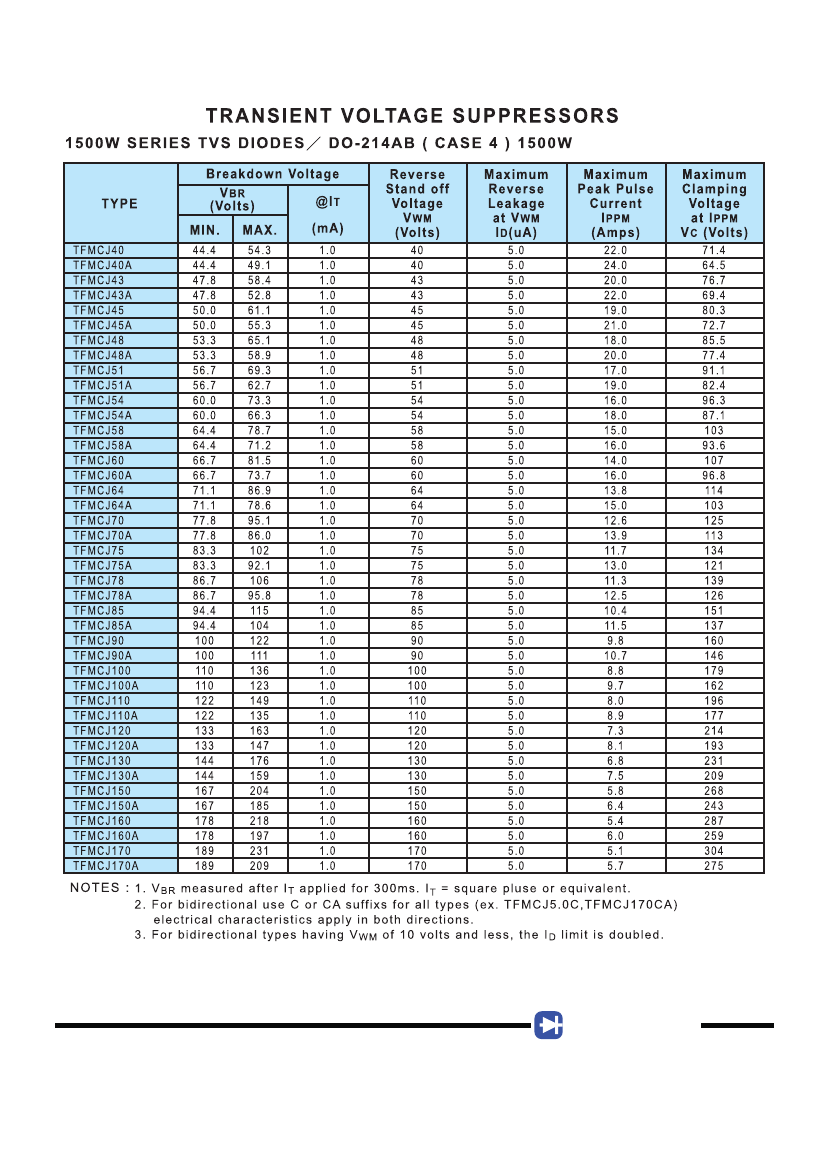

2016-11

REV:B
