＊1 T=40K rise at rated current. ＊2 Inductance drop 20% at rated current.

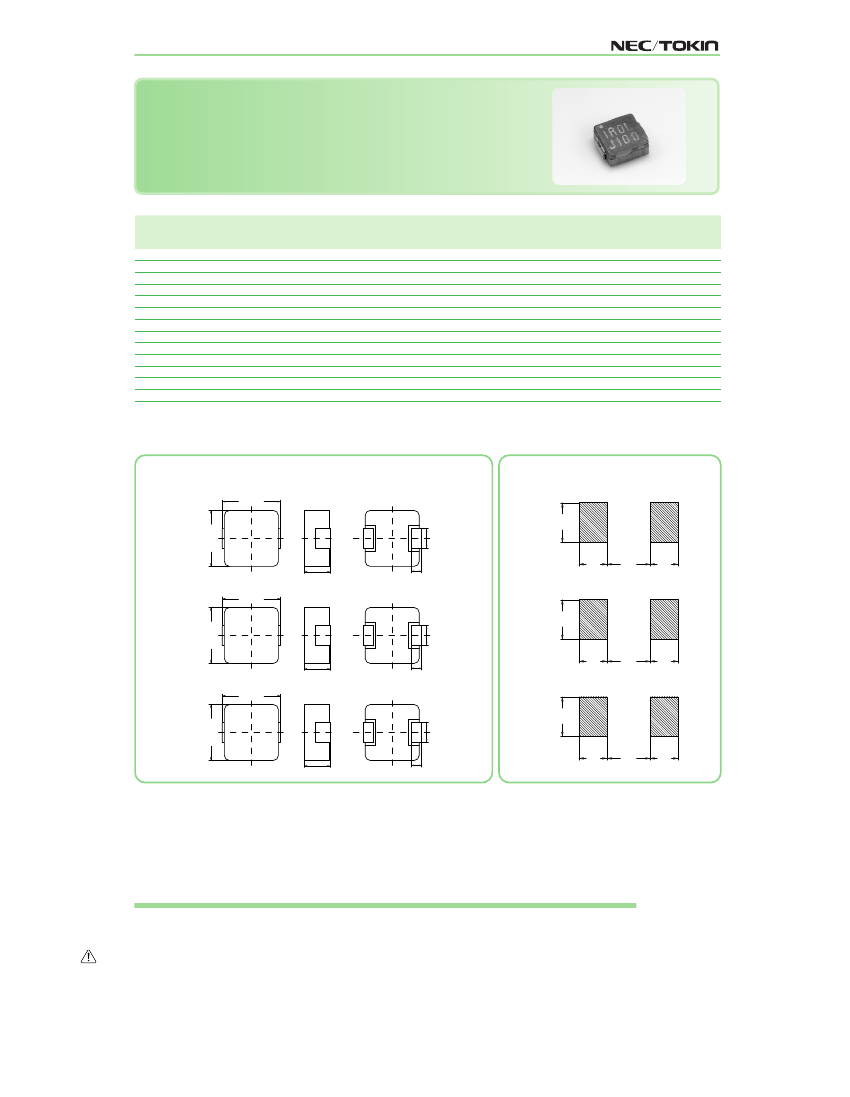

Shape and Dimensions
Recommended Land Pattern
●MPLC0525 Series
2.5±0.1
6.2 max
●MPLC0525 Series
2.8
5.2±0.2
2.5 max
(1.1)
1.8
3.0
1.8
●MPLC0730 Series
3.2±0.1
7.7 max
●MPLC0730 Series
3.5
6.7±0.2
3.0 max
(1.4)
2.0
3.9
2.0
●MPLC1040 Series
4.0±0.1
11.5 max
●MPLC1040 Series
4.6
10.0±0.2
4.0 max
(2.1)
[mm]
3.8
6.0
3.8
[mm]
Choke Coils VOL.08
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2008.08.29 P0936MCCC10VOL08E
SMD Type
DC-Superposed Characteristics
MPLC0525 Series
5.0
4.5
5.0
4.5
MPLC0730 Series
Inductance
（μH）
4.0
4R7
Inductance
（μH）
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
2R2
1R5
1R0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
3R3
2R2
1R5
1R0
0
5
10
15
0
5
10
15
DC.Current
（A）
DC.Current
（A）
MPLC1040 Series
5.0
4.5
Inductance
（μH）
4.0
4R7
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
3R3
2R2
1R5
1R0
0
5
10
15
20
DC.Current
（A）
MPLC0525 Series
（2000pcs./reel）
Dimensions of indented square hole plastic tape
P0
T
REEL
F
P2
E1
D0
W
±
0.3
12.0
W
F
±
0.1
5.5
E
1
±
0.1
1.75
P
1
±
0.1
8.0
P
2
±
0.1
2.0
P
0
±
0.1
4.0
øD
0
±
0.05
1.55
[mm]
T
±
0.05
0.4
1R0L
Lot No.
3°
REEL
P1
Reel dimensions
W2
A0
C
D
B
A
Ａ
±
1.0
ø330
B
±
0.5
ø100
C
±
0.5
ø13.5
D
±
0.8
ø21.0
A
0
±
0.5
3.0
r
R1.5
W
1
±
1.0
13.5
[mm]
W
2
±
3.0
18.5
W1
Choke Coils VOL.08
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2008.08.29 P0936MCCC10VOL08E
SMD Type
MPLC0730 Series
（1000pcs./reel）
Dimensions of indented square hole plastic tape
P0
T
REEL
F
P2
E1
D0
W
±
0.3
24.0
W
F
±
0.1
11.5
E
1
±
0.1
1.75
P
1
±
0.1
16.0
P
2
±
0.1
2.0
P
0
±
0.1
4.0
øD
0
±
0.05
1.55
[mm]
T
±
0.05
0.4
1R0L
Lot No.
3°
REEL
P1
Reel dimensions
W2
A0
C
D
B
A
Ａ
±
5.0
ø380
B
±
5.0
ø80
C
±
0.5
ø13.5
D
±
0.8
ø21.0
A
0
±
0.5
2.0
r
R1.0
W
1
±
0.5
25.5
[mm]
W
2
±
0.5
29.5
W1
MPLC1040 Series
（500pcs./reel）
Dimensions of indented square hole plastic tape
P0
T
REEL
F
P2
E1
D0
W
±
0.3
24.0
W
F
±
0.1
11.5
E
1
±
0.1
1.75
P
1
±
0.1
16.0
P
2
±
0.1
2.0
P
0
±
0.1
4.0
øD
0
±
0.05
1.55
[mm]
T
±
0.05
0.4
1R0L
Lot No.
3°
REEL
P1
Reel dimensions
W2
A0
C
D
B
A
Ａ
±
2.0
ø330
B
±
1.0
ø80
C
±
0.5
ø13.5
D
±
0.8
ø21.0
A
0
±
0.5
2.0
r
R1.0
W
1
±
2.0
24.4
[mm]
W
2
±
3.0
30.4
W1
Choke Coils VOL.08
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
