LPC-60MD2+S

Description
Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT
CategoryThe connector    The connector
File Size54KB,1 Pages
ManufacturerHonda Tsushin Kogyo Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

LPC-60MD2+S Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

LPC-60MD2+S Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHonda Tsushin Kogyo Co., Ltd.
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts60

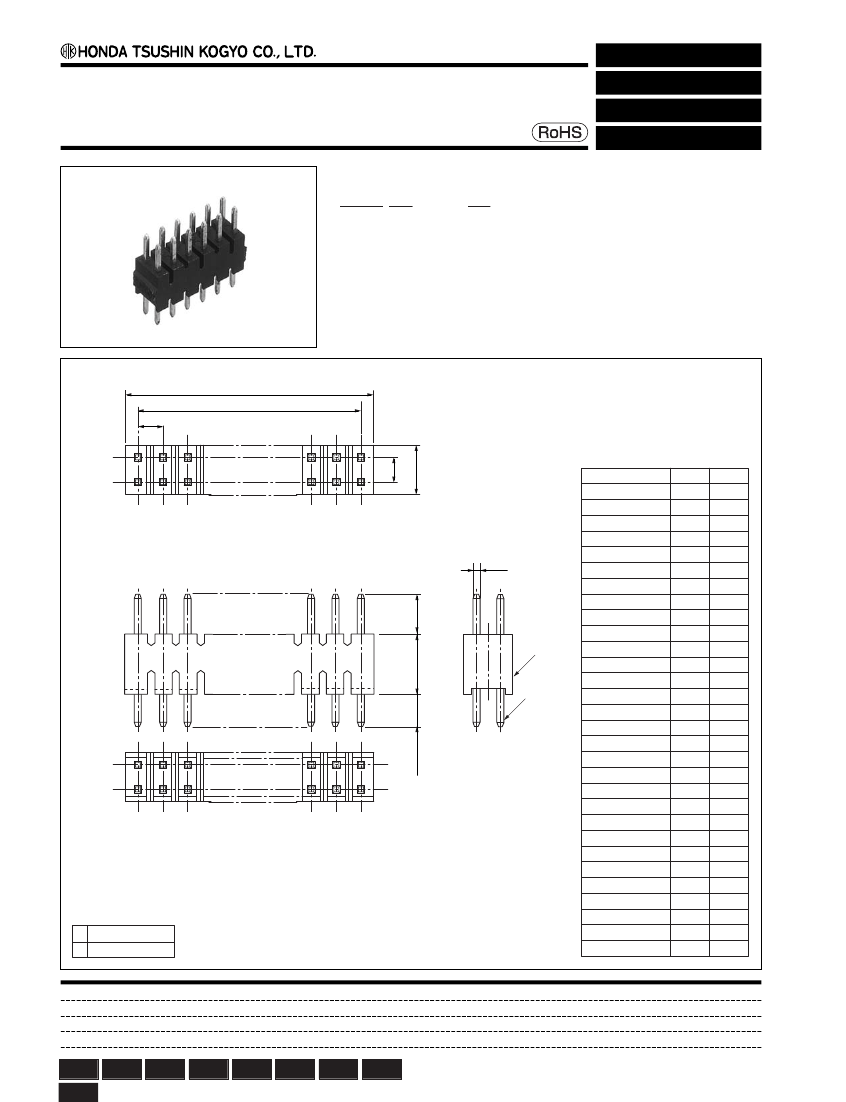

2 mm pitch connector
Straight through hole type male connector for PCB
LPC-( )MD2( )
Configuration of product Part No.
For PCB
Straight Through hole
LPC- ( ) MD2 ( )
Series name
No. of contacts: 2-60
Contact plating
+S : Tin plate
G : Gold plate
B
A
2
2
4
Dimensions
Part No.
LPC-2MD2( )
LPC-4MD2( )
LPC-6MD2( )
LPC-8MD2( )
LPC-10MD2( )
œ0.5
LPC-12MD2( )
LPC-14MD2( )
LPC-16MD2( )
LPC-18MD2( )
LPC-20MD2( )
A
-
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
B
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
3.6
4.8
¡
LPC-22MD2( )
LPC-24MD2( )
LPC-26MD2( )
2.6 REF.
LPC-28MD2( )
LPC-30MD2( )
LPC-32MD2( )
LPC-34MD2( )
LPC-36MD2( )
LPC-38MD2( )
LPC-40MD2( )
LPC-42MD2( )
LPC-44MD2( )
LPC-46MD2( )
LPC-48MD2( )
LPC-50MD2( )
LPC-52MD2( )
LPC-54MD2( )
Components
Insulator
Contacts
Because some combinations of “Configurations of
Product Part No.”, are under consideration for
development, please contact us for availability details.
LPC-56MD2( )
LPC-58MD2( )
LPC-60MD2( )
Mating connectors:
LPC series female connectors or shunt plugs
Through
hole
SMT
Press-in
IDC
Wire
Soldering Crimping wrapping
Others
