LPC-6FYG+

Description
Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT
CategoryThe connector    The connector
File Size54KB,1 Pages
ManufacturerHonda Tsushin Kogyo Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

LPC-6FYG+ Overview

Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

LPC-6FYG+ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHonda Tsushin Kogyo Co., Ltd.
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts6

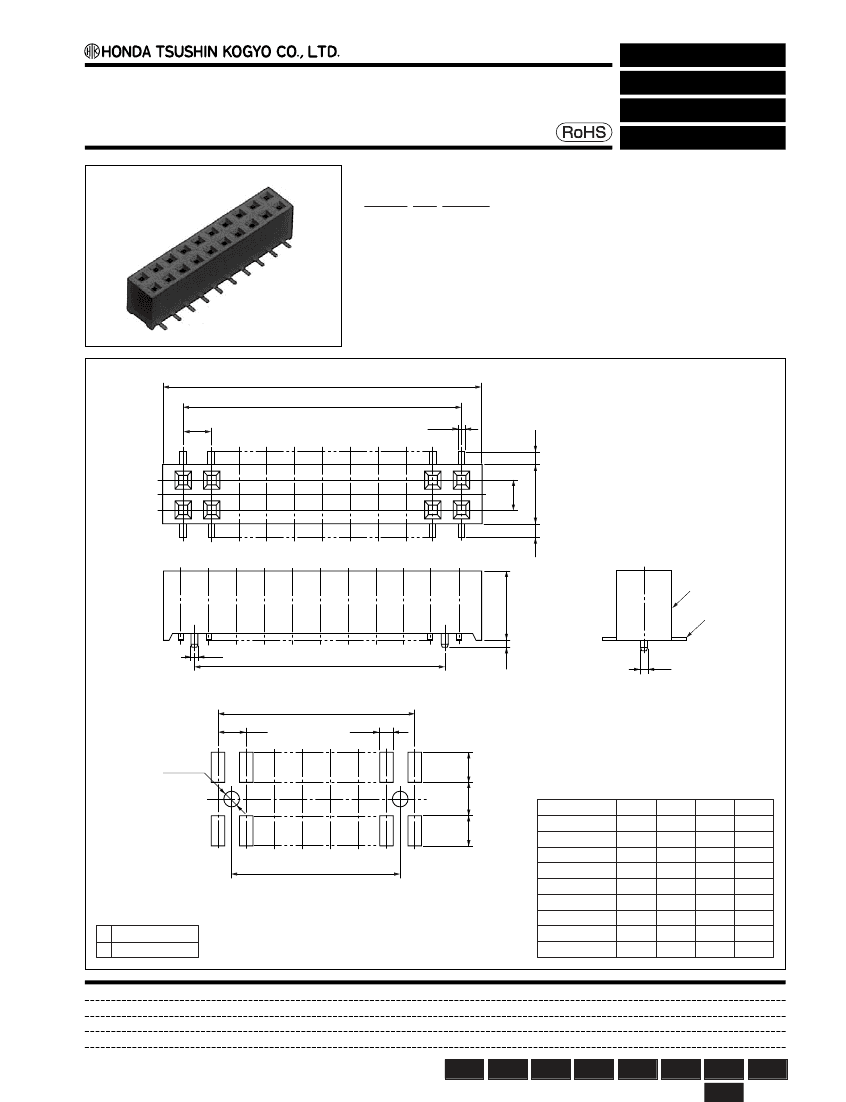

2 mm pitch connector
Straight SMT type female connector for PCB
LPC-( )FY( )
Configuration of product Part No.
For PCB
Straight SMT
LPC- ( ) FY( )
Series name
No. of contacts: 6-22
Contact plating
+C : Tin copper plate
G+: Gold plate
B
A
2
0.5
1
2
1
4
¡
5
0.7
D
1
0.7
2
±0.05
≈(n/2
-
1)=A
±0.1
2
±0.05
1
±0.05
2.1
±0.05
2.4
±0.1
2.1
±0.05
ø0.9
±0.05
Dimensions
Part No.
LPC-6FY( )
LPC-8FY( )
LPC-10FY( )
LPC-12FY( )
LPC-14FY( )
LPC-16FY( )
LPC-18FY( )
LPC-20FY( )
LPC-22FY( )
A
4
6
8
10
12
14
16
18
20
B
6.6
8.6
10.6
12.6
14.6
16.6
18.6
20.6
22.6
D
2
4
6
8
10
12
14
16
18
n
6
8
10
12
14
16
18
20
22
D
±0.05
Recommended PCB layout
Components
Insulator
Contacts
Note: A locating boss is incorporated.
Because some combinations of “Configurations of
Product Part No.”, are under consideration for
development, please contact us for availability details.
Mating connectors:
LPC series male connectors
Others
Wire
wrapping Crimping Soldering
IDC
Press-in
SMT
Through
hole
