D4C-4333-M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> D4C-4333-M

D4C-4333-M: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, 0.1A, 30VDC, 4.8mm, Wire Terminal, Sealed Crossroller Plunger Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size1MB，15 Pages; ManufacturerOMRON; Websitehttps://www.omron.com

Download Datasheet Parametric View All

D4C-4333-M Overview

Snap Acting/Limit Switch, SPDT, Momentary, 0.1A, 30VDC, 4.8mm, Wire Terminal, Sealed Crossroller Plunger Actuator, Panel Mount

D4C-4333-M Parametric

Parameter Name	Attribute value
Maker	OMRON
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator stroke	4.8 mm
Actuator type	SEALED CROSSROLLER PLUNGER
body width	16 mm
body height	49 mm
Body length or diameter	40 mm
Contact (AC) maximum rated R load	.1A@125VAC
Maximum contact current (AC)	0.1 A
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	30 V
Electrical life	200000 Cycle(s)
Manufacturer's serial number	D4C
Installation features	PANEL MOUNT
Maximum operating force	17.65 N
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Maximum pre-travel	1.8 mm
seal	IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	WIRE

Preview

Download Datasheet

View All

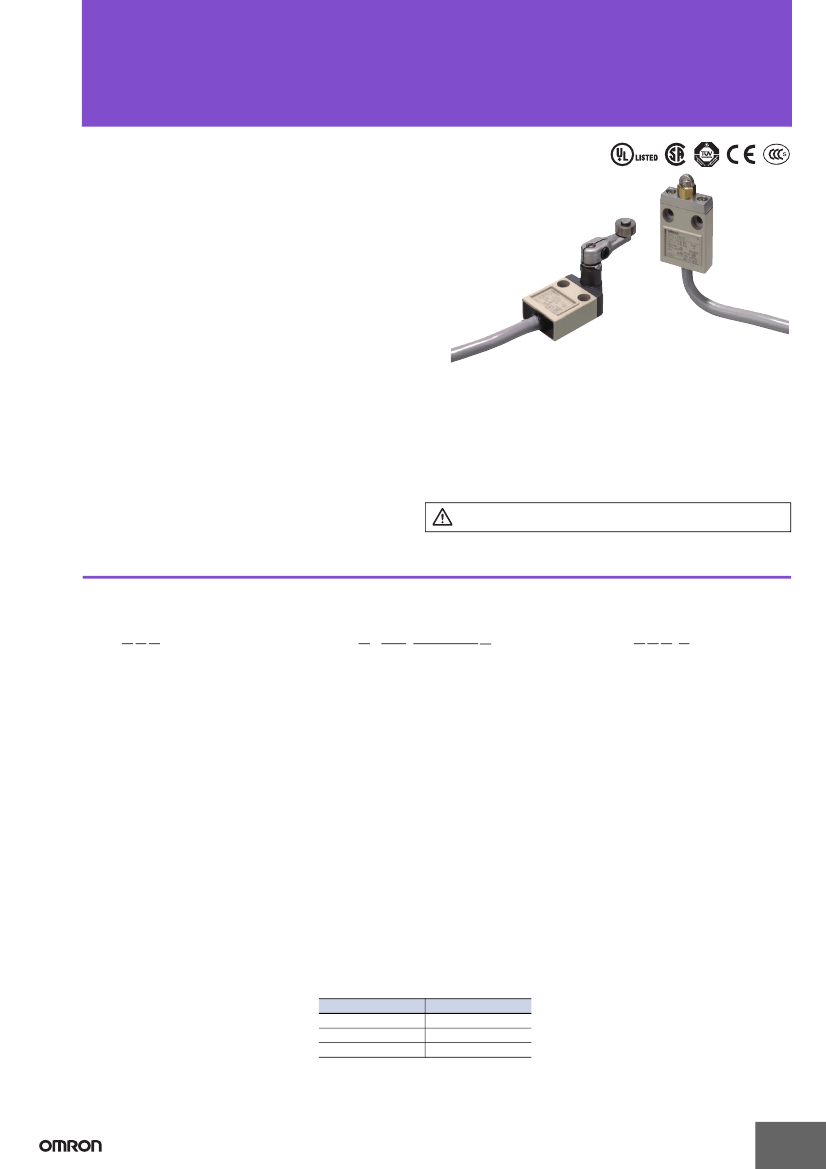

Enclosed Switch

D4C

Compact Limit Switch That's Also

Thin and Highly Sealed

•

Approved by EN, UL, CSA, and CCC (Chinese standard).

(Ask your OMRON representative for information on

approved models.)

•

Sealing characteristics that meet IEC IP67 degree of

protection.

•

Triple-sealed construction:

Plunger section sealed via nitrile rubber packing seal and

diaphragm; switch section sealed via nitrile rubber cap;

cable entrance sealed via encapsulating material.

•

Cable lengths of 3 and 5 m available on standard models.

Models also available with UL and CSA-certified cables.

•

Multiple mounting possible with Switches with Plungers.

•

Models with red LED indicators added to series for easy

confirmation of operation.

(Set by default to light for non-operation.)

•

VCTF cables with CE marking.

(Applicable only to standard models.)

CSM_D4C_DS_E_2_1

Be sure to read

Safety Precautions

on page 13 to 14 and

Safety Precautions for All Limit Switches.

Model Number Structure

Model Number Legend

(Not all combinations are possible. Ask your OMRON representative for details.)

Standard Models

Pre-wired Models

Weather-resistant Models

D4C-@@@

(1)(2)(3)

(1) Rated Current

1: 5 A at 250 VAC, 4 A at 30 VDC

2: 5 A at 125 VAC (with LED indicator)

3: 4 A 30 VDC (with LED indicator)

4: 0.1 A at 125 VAC, 0.1 A at 30 VDC

5: 0.1 A at 125 VAC (with LED indicator)

6: 0.1 A at 30 VDC (with LED indicator)

D4C-@0@@-@@@@@@

(1)

(2)

(3)

(4)

(1) Rated Current

1: 1 A at 125 VAC, 1 A at 30 VDC

(Without operation indicator)

2: 1 A at 125 VAC (with operation indicator)

3: 1 A at 30 VDC (with operation indicator)

D4C-@@@-P

(1)(2)(3) (4)

(1) Rated Current

1: 5 A at 250 VAC, 4 A at 30 VDC

2: 5 A at 125 VAC (with LED indicator)

3: 4 A at 30 VDC (with LED indicator)

4: 0.1 A at 125 VAC, 0.1 A at 30 VDC

(2) Actuator

01: Pin plunger

02: Roller plunger

31: Sealed plunger

32: Sealed roller plunger

24: Roller lever (high-sensitivity model)

(2) Cable Specifications

2: VCTF oil-resistant cable (3 m)

3: VCTF oil-resistant cable (5 m)

(2) Cable Specifications

2: VCTF oil-resistant cable (3 m)

3: VCTF oil-resistant cable (5 m)

4: VCTF (3 m)

5: VCTF (5 m)

6: SJT(O) (3 m)

7: SJT(O) (5 m)

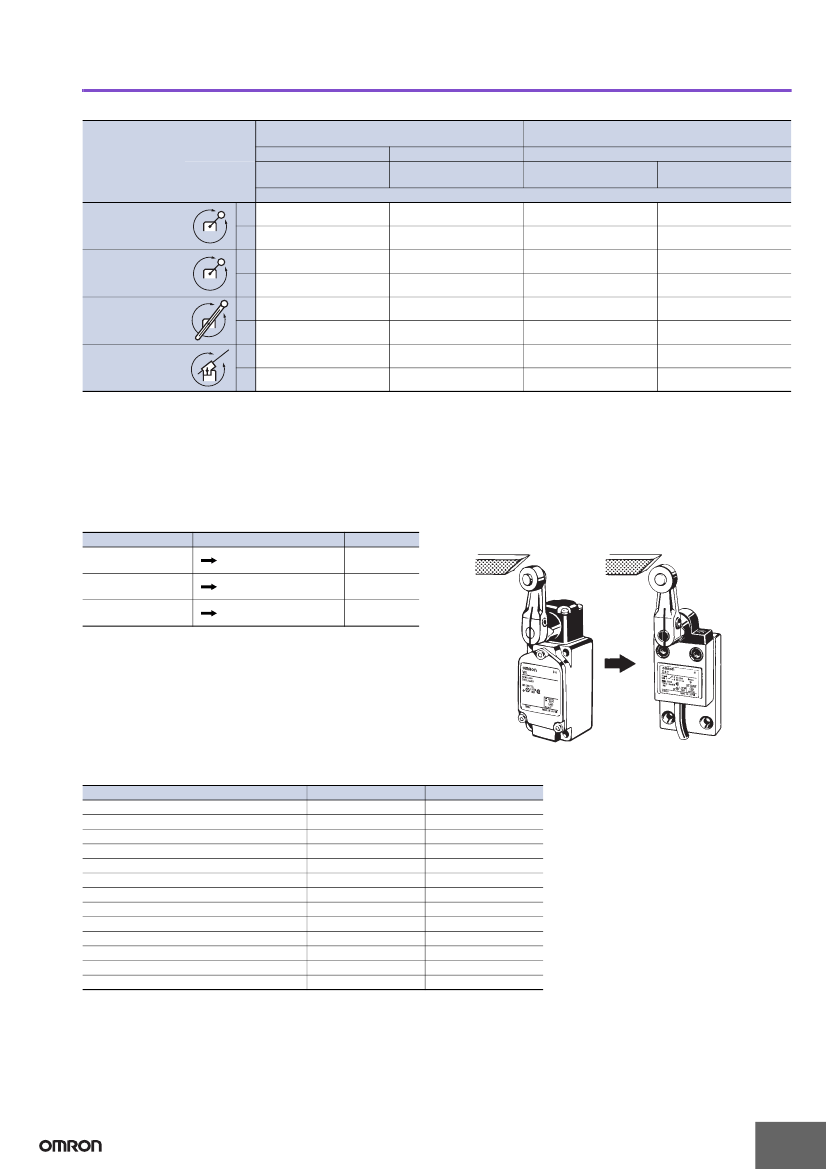

(3) Actuator

20: Roller lever

24: Roller lever (high-sensitivity model)

27: Adjustable roller lever

29: Adjustable rod lever

(3) Wiring Specifications

DK1EJ: Pre-wired models

(3 conductors: DC specification)

AK1EJ: Pre-wired models

(3 conductors: AC specification)

M1J: Connector models for ASI devices

(2 conductors: NO wiring)

(3) Actuator

01: Pin plunger

02: Roller plunger

03: Crossroller plunger

20: Roller lever

24: Roller lever (high-sensitivity model)

31: Sealed pin plunger

32: Sealed roller plunger

33: Sealed crossroller

50: Plastic rod

60: Center roller lever

(4) Structure

P: Weather-resistant

(4) Cable length

03: 0.3 m

Wiring Specifications

Internal switch

COM

Connector
