FVXO-HC72BR-180

Description
HCMOS Output Clock Oscillator
CategoryPassive components    oscillator
File Size382KB,15 Pages
ManufacturerIDT (Integrated Device Technology)
Environmental Compliance
Download Datasheet Parametric Compare View All

FVXO-HC72BR-180 Overview

HCMOS Output Clock Oscillator

FVXO-HC72BR-180 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompli
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION
Maximum control voltage2.5 V
Minimum control voltage
maximum descent time2.5 ns
Frequency Adjustment - MechanicalNO
Frequency offset/pull rate50 ppm
linearity10%
Installation featuresSURFACE MOUNT
Number of terminals6
Nominal operating frequency180 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeHCMOS
Output load15 pF
Package body materialCERAMIC
Encapsulate equivalent codeDILCC6,.2
physical size7.5mm x 5.2mm x 1.4mm
longest rise time2.5 ns
Maximum slew rate37 mA
Maximum supply voltage2.625 V
Minimum supply voltage2.375 V
Nominal supply voltage2.5 V
surface mountYES
maximum symmetry55/45 %
Base Number Matches1
Model: FVXO-HC72 SERIES
HCMOS 7 x 5mm 2.5V VCXO
Features
X
TREMELY
Low Jitter
Low Cost
X
PRESS
Delivery
Frequency Resolution to six decimal places
Absolute Pull Range (APR) of ±50ppm
-20 to +70°C or -40 to +85°C operating temperatures
Tri-State Enable / Disable Feature
Industry Standard Package, Footprint & Pin-Out
Fully RoHS compliant
Gold over Nickel Termination Finish
Serial ID with Comprehensive Traceability
V
DD
Enable / Disable
Freq: 0.75 MHz to 180MHz
Rev. 03/12/2008
Applications
ANY application requiring an oscillator
SONET
Ethernet
Storage Area Network
Broadband Access
Microprocessors / DSP / FPGA
Industrial Controllers
Test and Measurement Equipment
Fiber Channel
X
PRESS
O
ASICs
GND
FOX
OUTPUT
For more information -- Click on the drawing
Contents
page
Description
The Fox X
PRESS
O Crystal Oscillator is a
breakthrough in configurable Frequency Control
Solutions. X
PRESS
O utilizes a family of
proprietary ASICs, designed and developed by
Fox, with a key focus on noise reduction
technologies.
The 3
rd
order Delta Sigma Modulator reduces
noise to the levels that are comparable to
traditional Bulk Quartz and SAW oscillators.
The ASICs family has ability to select the output
type, input voltages, and temperature
performance features.
With the X
PRESS
lead-time, low cost, low noise,
wide frequency range, excellent ambient
performance, XpressO is an excellent choice
over the conventional technologies.
Finished X
PRESS
O parts are 100% final tested.
Model Selection & Part Number Guide
2

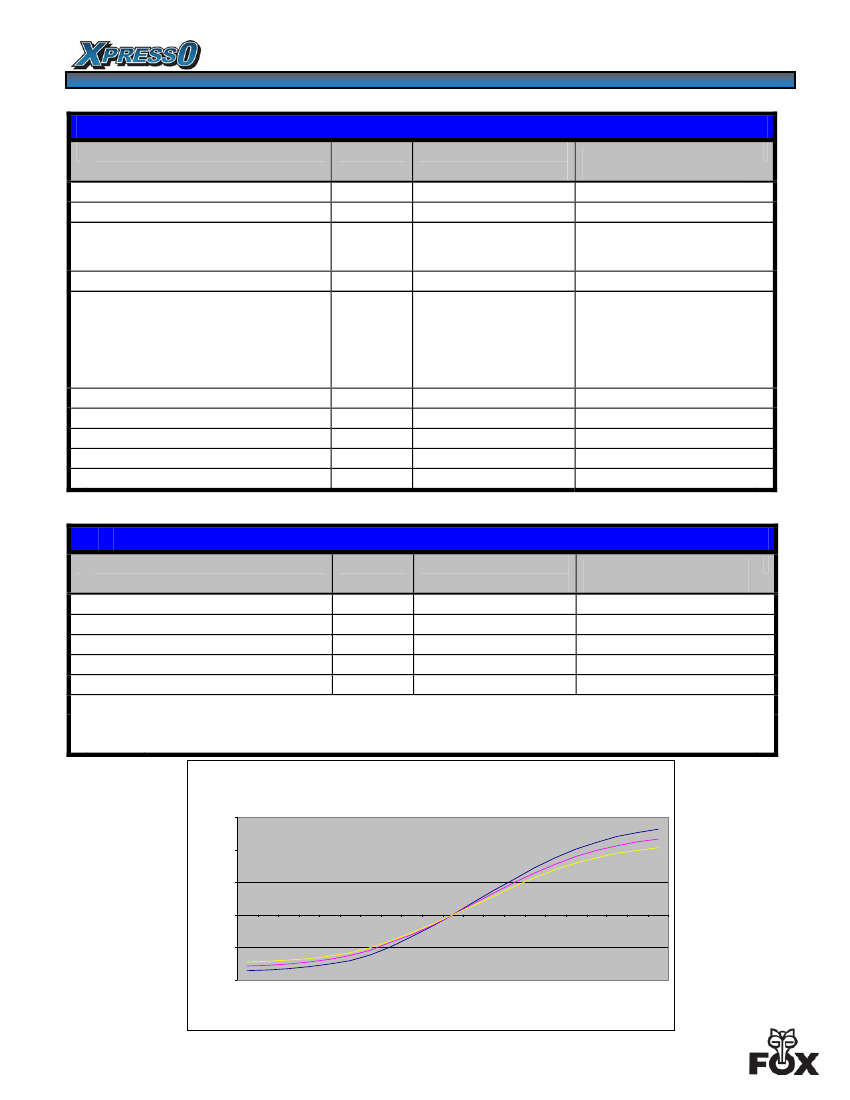

Electrical Characteristic
3
Absolute Maximums
4

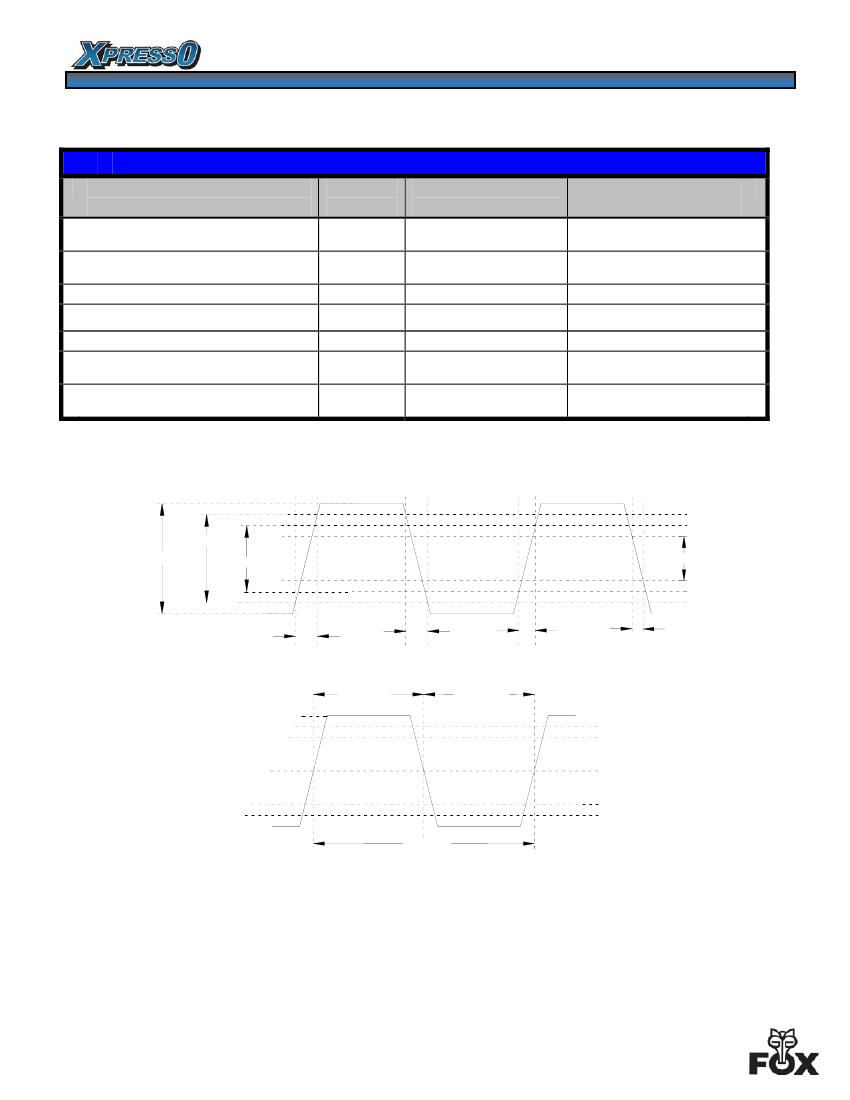

Output Wave Characteristics
4

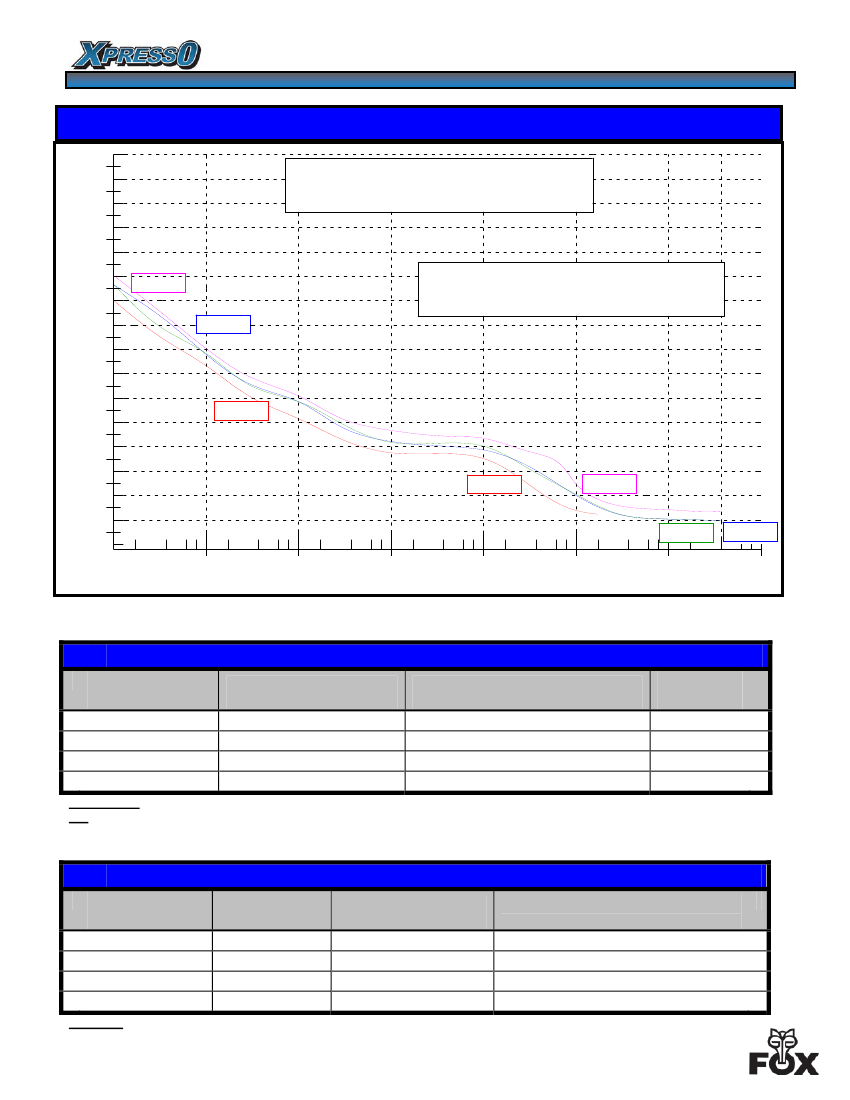

Phase Noise
5
Jitter
5
Pin Assignment
6
Recommended Circuit
6
Reflow
6
Mechanical Drawing and Pad Layout
7
Tape and Reel Specification
8
Label
8
Traceability – LOT Number & Serial Identification 9
RoHS Material Declaration
10
SGS Report
11 & 12
Mechanical Test
13
Burn-In Test
13
MTTF / FITS calculations
14
15
Other X
PRESS
O Links
Fox Contact Information
15
Page 1 of 15
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554 http://www.foxonline.com
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
Taiwan
Tel: +886.2.22073427 Fax +886.2.22073486 |
Japan
Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
