Model: FVXO-PC53 SERIES
LVPECL 5 x 3.2mm 3.3V V C X O
Features
X
TREMELY
Low Jitter
Low Cost
X
PRESS
Delivery
Frequency Resolution to six decimal places
Absolute Pull Range (APR) of ±50ppm
-20 to +70°C or -40 to +85°C operating temperatures
Tri-State Enable / Disable Feature
Industry Standard Package, Footprint & Pin-Out
Fully RoHS compliant
Gold over Nickel Termination Finish
Serial ID with Comprehensive Traceability
V
C
V
DD
Enable / Disable
Freq: 0.75 MHz to 1.35GHz
Rev. 12/12/2007
Applications
•
•
•
•
•
•
•
•
•
Frequency
Control
Circuit
X
PRESS
O
ASICs
GND
FOX
OUTPUT
ANY application requiring an oscillator
SONET
Ethernet
Storage Area Network
Broadband Access
Microprocessors / DSP / FPGA
Industrial Controllers
Test and Measurement Equipment
Fiber Channel
For more information -- Click on the drawing
Contents
Description
The Fox X
PRESS
O Crystal Oscillator is a
breakthrough in configurable Frequency Control
Solutions. X
PRESS
O utilizes a family of
proprietary ASICs, designed and developed by
Fox, with a key focus on noise reduction
technologies.
The 3
rd
order Delta Sigma Modulator reduces
noise to the levels that are comparable to
traditional Bulk Quartz and SAW oscillators.
The ASICs family has ability to select the output
type, input voltages, and temperature
performance features.
With the X
PRESS
lead-time, low cost, low noise,
wide frequency range, excellent ambient
performance, XpressO is an excellent choice
over the conventional technologies.
Finished X
PRESS
O parts are 100% final tested.
Model Selection & Part Number Guide
2
Electrical Characteristic
3
Absolute Maximums
3
Output Wave Characteristics
4
Phase Noise
5
Jitter
5
Pin Assignment
6
Recommended Circuit
6
Reflow
6
Mechanical Drawing and Pad Layout
7
Tape and Reel Specification
8
Label
8
Traceability – LOT Number & Serial Identification 9
RoHS Material Declaration
10
SGS Report
11 & 12
Mechanical Test
13
Burn-In Test
13
MTTF / FITS calculations
14
15
Other X
PRESS
O Links
Fox Contact Information
15
page
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554 http://www.foxonline.com
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
Taiwan
Tel: +886.2.22073427 Fax +886.2.22073486 |
Japan
Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
Page 1 of 15
FVXO-PC53
Series
Model Selection Guide & Fox Part Number
STEP #1:
Customer selects the Model Description and provides to Fox Customer Service
Model Description
FVXO – P C 5 3 B R – 644.53125
Frequency (in MHz)
Resolutions to 6 places
past the decimal point
C
= Ceramic
H
=
HCMOS
Q
= Quartz
L
= LVDS
P
= LVPECL
X
= HCMOS
(comp 2
nd
Output)
5
= 5 x 3.2mm
7
= 7 x 5mm
3
= 3.3 V
2
= 2.5 V
R
= -40°C to +85°C
B
= ± 50-ppm Absolute Pull Range
blank
= -20°C to +70°C
STEP #2:
The Fox Customer Service team provides a customer specific Part Number
for use on their Bill Of Materials (BOM).
Fox Part Number
The 1
st
Field
(The assigned Fox Part Number must be on the BOM – not the above Model Description)
(This will ensure receipt of the proper part)
Product Code #
793 = FVXO–HC5
792 = FVXO–HC7
797 = FVXO–LC5
794 = FVXO–LC7
795 = FVXO–PC5
796 = FVXO–PC7
7 9 5 – 644.53125 – 1
The 3
rd
Field
The 2
nd
Fox Internally Generated Number
The Customer’s Frequency
Field
(If any specification changes,
the last digits change)
(The same specs for a different customer
also changes the last digits)
This example,
FVXO-PC53BR-644.53125
= Voltage Controlled, LVPECL Output, Ceramic, 5 x 3.2mm Package, 3.3V,
±50 PPM Absolute Pull Range, -40 to +85°C Temperature Range, at 644.53125 MHz
Absolute Maximum Ratings
(Useful life may be impaired.
Input Voltage
Operating Temperature
Storage Temperature
Junction Temperature
ESD Sensitivity
For user guidelines only, not tested)
(unless otherwise noted)
Parameters
Symbol
V
DD
T
AMAX
T
STG
HBM
Condition
Maximum Value
–0.5V to +5.0V
–55°C to +105°C
–55°C to +125°C
150°C
1 kV
Human Body Model
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
Page
2 of 15
FVXO-PC53
Series

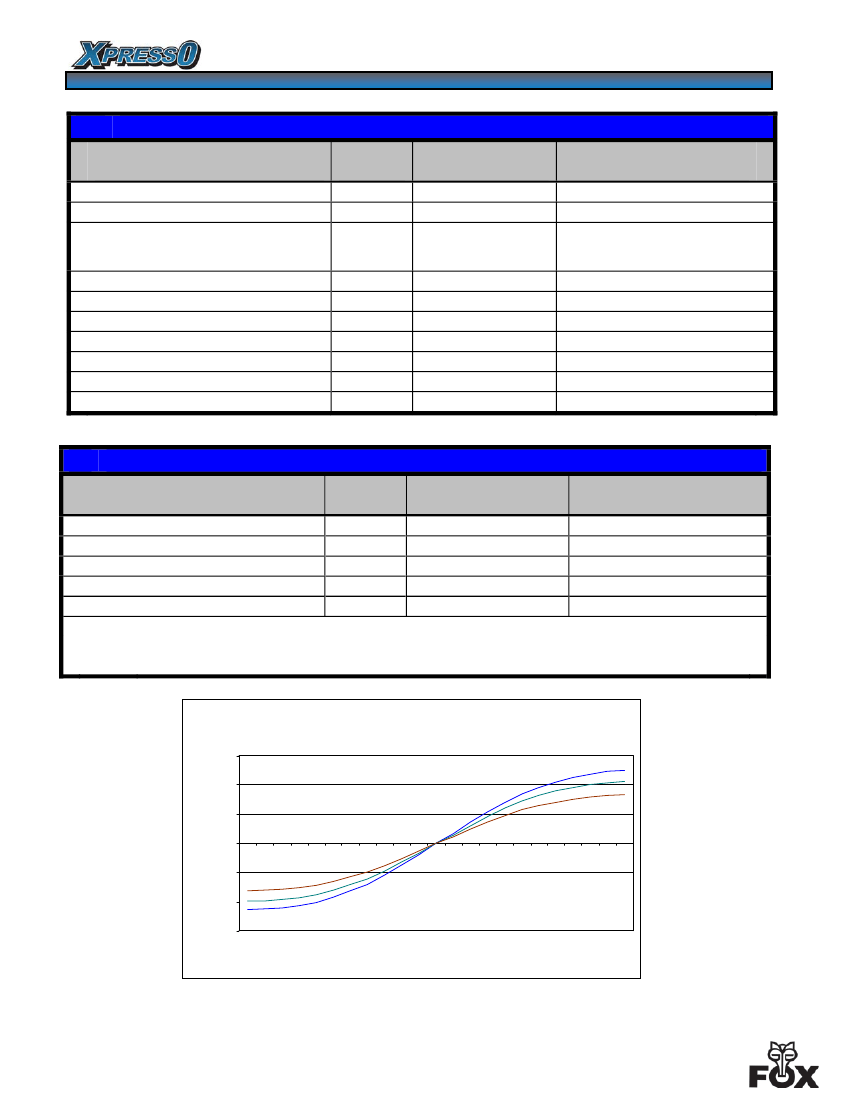

Electrical Characteristics
Frequency Range
Absolute Pull Range
Note 1
Temperature Range
Supply Voltage
Input Current
(@ Standard Load)
Output Load
Start-Up Time
Output Enable / Disable Time
Moisture Sensitivity Level
Termination Finish
Parameters
Symbol
F
O
APR
T
O
T
STG
V
DD
I
DD
T
S
MSL
Condition
Standard operating
Optional operating
Storage
Standard
Standard Load
Standard
(unless otherwise noted)
Maximum Value
JEDEC J-STD-20
0.750 MHz to 1.35 GHz
± 50 ppm MIN
-20°C to +70°C
-40°C to +85°C
-55°C to +125°C
3.3 V ± 5%
120 mA
50 Ohms into V
DD
-2V
DC
. T
YP.
10 mS
100 nS
1
Au
Note 1 – Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, aging, shock and vibration.
Frequency Control (V
C
) Input
--
Parameters
Control Voltage Tuning Slope
2
Control Voltage Linearity
Control Voltage Tuning Range
Modulation Bandwidth
Nominal Control Voltage
1
pin # 1
Symbol
L
VC
V
C
BW
V
CNOM
Condition
0V to V
DD
(unless otherwise noted)
Maximum Value
40 ~ 75 ppm/V Typ
± 10%
0V ~ 3.3V
10 kHz
1.65V
2
NOTES:
1
2
Actual slope is affected by frequency and accuracy settings.
For an example of linearity, see the graph below.
(The middle line represents the default Fox factory setting)
@ 25°C --
(range of typical responses)
FVXO Oscillator Pull
Range of possible Tuning Slopes – depending on frequency and stability
150.0
100.0
Pull From Vc=1.65V (PPM)
50.0
0.0
-50.0
-100.0
-150.0
0.00
0.30
0.60
0.90
1.20
1.50
1.80
2.10
2.40
2.70
3.00
3.30
Vc
=
Voltage Applied to Pin # 1
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
Page
3 of 15
FVXO-PC53
Series
Output Wave Characteristics
Low Output Voltage
High Output Voltage
Typical Complementary Difference
Output Symmetry
(See Drawing Below)
Output Enable
(PIN # 2)
Voltage
Output Disable
(PIN # 2)
Voltage
Cycle Rise Time
(See Drawing Below)
Cycle Fall Time
(See Drawing Below)
Parameters
Symbol
V
OL
V
OH
V
P-P
V
IH
V
IL
T
R
T
F
0.75 MHz to 1.35 GHz
0.75 MHz to 1.35 GHz
0.75 MHz to 1.35 GHz
@ 50% V
P-P
Level
Condition
(unless otherwise noted)
Maximum Value
1.305V ~ 1.65V
2.055V ~ 2.405V
0.750 V
P-P
Typ
45% ~ 55%
> 70% V
DD
< 30% V
DD
400 pS
(20%~80%)
400 pS
(80%~20%)
0.75 MHz to 1.35 GHz
0.75 MHz to 1.35 GHz
Rise Time / Fall Time Measurements
OUTPUT 2
T
R
T
F
2.055V ~ 2.405V
20% to 80%
OUTPUT 1
1.305V ~ 1.65V
Oscillator Symmetry
Ideally, Symmetry should be 50/50 for 1/2 period -- Other expressions are 45/55 or 55/45
OUTPUT 2
50% V
DD
2.055V ~ 2.405V
OUTPUT 1
1/2 Period
Period
1.305V ~ 1.65V
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
Page
4 of 15
FVXO-PC53
Series

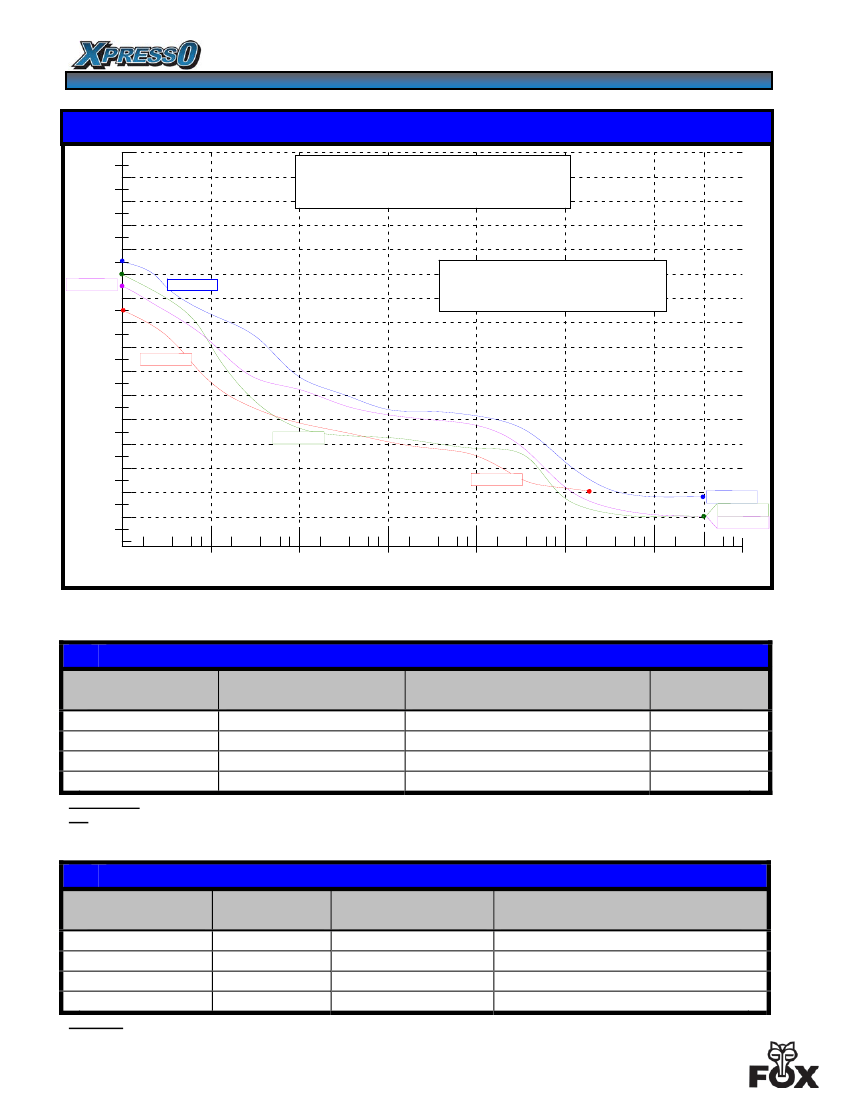

Phase Noise
0 dBc
-10dBc
-20dBc
-30dBc
-40dBc
212.5 MHz
(dBc / Hz) vs. offset frequency
Phase Noise Graph
-50dBc
-60dBc
622.08 MHz
Data Collected using HP 3048A
FOUR frequencies matching
the below jitter measurements
-70dBc
-80dBc
-90dBc
-100dBc
-110dBc
-120dBc
-130dBc
-140dBc
-150dBc
-160dBc
156.25MHz
62.5 MHz
62.5 MHz
622.08 MHz
156.25MHz
212.5 MHz
10
100
Offset Frequency
1k
10k
(10Hz to 40MHz)
100k
1M
10M
40M
Jitter is frequency dependent. Below are typical values at select frequencies.
LVPECL Phase Jitter & Time Interval Error (TIE)
Frequency
62.5 MHz
156.25 MHz
212.5 MHz
622.08MHz
(12kHz to 20MHz)
Phase Jitter
1.01
0.86
1.05
0.94
(Sigma of Jitter Distribution)
TIE
3.1
3.5
3.6
3.5
pS RMS
pS RMS
pS RMS
pS RMS
Units
Phase Jitter
is integrated from HP3048 Phase Noise Measurement System; measured directly into 50 ohm input; V
DD
= 3.3V.
TIE
was measured on LeCroy LC684 Digital Storage Scope, directly into 50 ohm input, with Amherst M1 software; V
DD
= 3.3V.
Per
MJSQ
spec (Methodologies for Jitter and Signal Quality specifications)
LVPECL Random & Deterministic Jitter Composition
Frequency
62.5 MHz
156.25 MHz
212.5 MHz
622.08 MHz
Random (Rj)
(pS RMS)
Deterministic (Dj)
(pS P-P)
Total Jitter (Tj)
(14 x Rj) + Dj
26.2 pS
27.7 pS
26.1 pS
26.8 pS
1.27
1.29
1.22
1.21
8.1
9.3
8.6
9.6
Rj and Dj
, measured on LeCroy LC684 Digital Storage Scope, directly into 50 ohm input, with Amherst M1 software.
Per
MJSQ
spec (Methodologies for Jitter and Signal Quality specifications)
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
Page
5 of 15
