CAN0004WM: DescriptionVaristor, 18V, 0.015J, Surface Mount, CHIP, 0612; CategoryPassive components The resistor; File Size166KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

CAN0004WM Overview

Varistor, 18V, 0.015J, Surface Mount, CHIP, 0612

CAN0004WM Parametric

Parameter Name	Attribute value
Maker	AVX
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Circuit maximum DC voltage	18 V
Circuit RMS maximum voltage	14 V
Maximum energy absorption capacity	0.015 J
JESD-609 code	e0
Manufacturer's serial number	CAN
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH
Resistor type	VARISTOR
surface mount	YES
Terminal surface	TIN LEAD
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

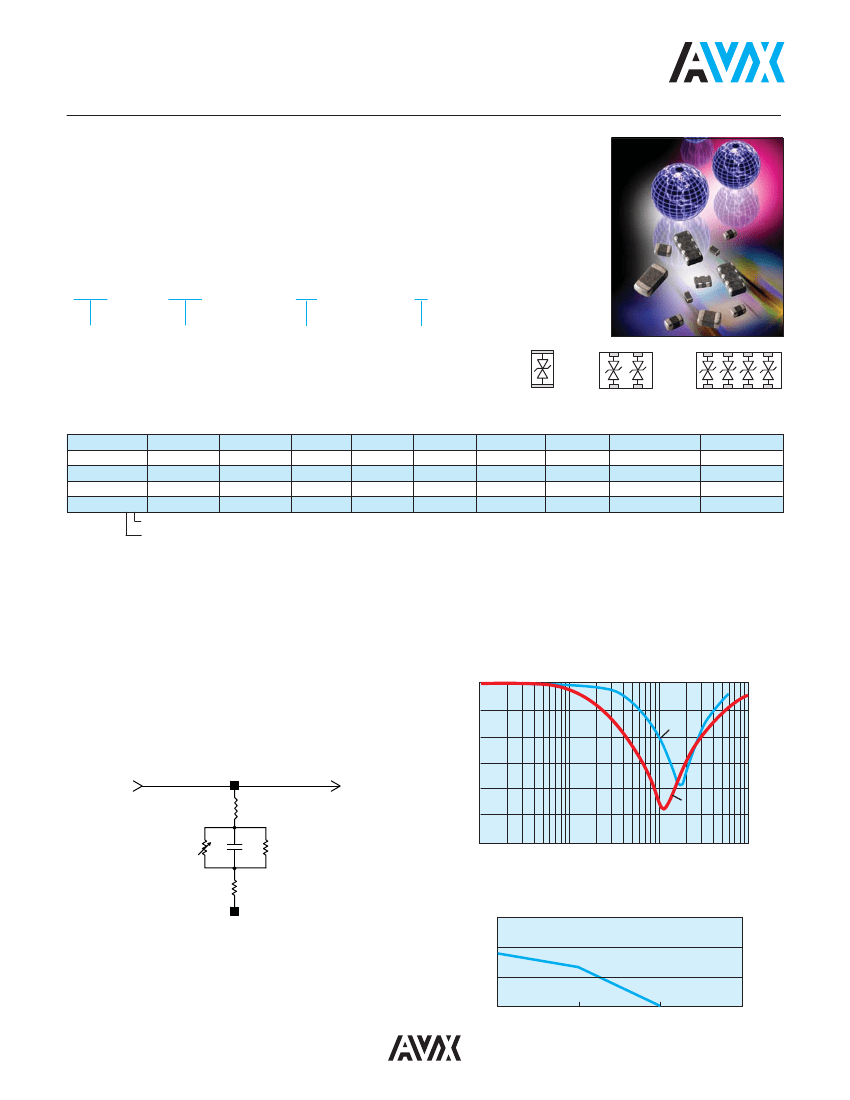

CAN BUS Varistor

GENERAL DESCRIPTION

The CAN BUS varistor is a zinc oxide (ZnO) based ceramic semiconductor device with non-

linear voltage-current characteristics (bi-directional) similar to back-to-back Zener diodes and an

EMC capacitor in parallel (see equivalent circuit model). They have the added advantage of

greater current and energy handling capabilities as well as EMI/RFI attenuation. Devices are

fabricated by a ceramic sintering process that yields a structure of conductive ZnO grains

surrounded by electrically insulating barriers, creating varistor like behavior.

HOW TO ORDER

CAN

Style

Controlled

Area

Network

Varistor

Series

0001

Case Size

0001 = 0603 Discrete

0002 = 0405 2-Element

0004 = 0612 4-Element

0005 = 0402 Discrete

Packaging Code

(Reel Size)

D = 7" reel (1,000 pcs.)

R = 7" reel (4,000 pcs.)

T = 13" reel (10,000 pcs.)

W = 7" reel (10,000 pcs.)

Termination

P = Ni/Sn Alloy

(Plated)

M = Ni/Sn Pb

(Plated)

PERFORMANCE CHARACTERISTICS

AVX Part No.

CAN0001_ _

CAN0002_ _

CAN0004_ _

CAN0005_ _

(DC)

≤18

(AC)

≤14

120

100

21.6

5µa

0.015

0.020

0402, 0603

Discrete

Cap.

15pF ±30%

0405

Array

Case Size

0603

0405

0612

0402

0612

Array

Elements

Termination Finish Code

Packaging Code

(DC)

(AC)

DC Working Voltage (V)

AC Working Voltage (V)

Typical Breakdown Voltage (V @ 1mA

)

Clamping Voltage (V @ I

)

Test Current for V

(A, 8x20µS)

Cap

Temp Range

Maximum Leakage Current at the Working Voltage (µA)

Transient Energy Rating (J, 10x1000µS)

Peak Current Rating (A, 8x20µS)

Maximum Capacitance (pF) @ 1 MHz and 0.5Vrms

-55ºC to +125ºC

Curve

EQUIVALENT CIRCUIT MODEL

Discrete MLV Model

PCB

Trace

To Device

Requiring

Protection

-5

(dB)

S21

-10

-15

-20

-25

CAN0005

-30

100

1000

Frequency (MHz)

10000

Ron

Typical Pulse Rating Curve

Peak Power (W)

10000

1000

100

1000

10000

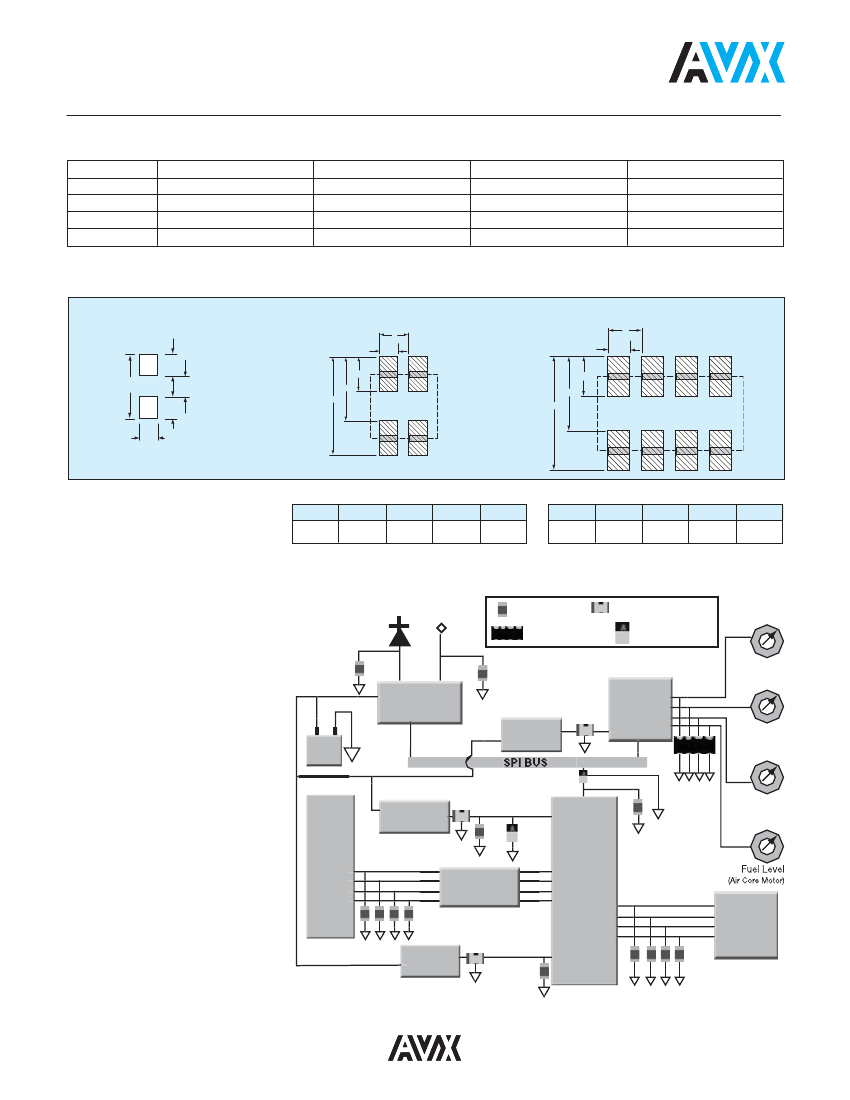

Solder Pad

Where: R

≥

Voltage Variable resistance (per VI curve)

defined by voltage rating and energy level

turn on resistance

parallel body inductance

Pulse Duration (µS)
