DN2W20TTEB: DescriptionDiode Termination Array, 18-Line, ROHS COMPLIANT, PLASTIC, SOIC-20; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size109KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance; Related ProductsFound3parts with similar functions to DN2W20TTEB

Download Datasheet Parametric View All

DN2W20TTEB Overview

Diode Termination Array, 18-Line, ROHS COMPLIANT, PLASTIC, SOIC-20

DN2W20TTEB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	compli
ECCN code	EAR99
Differential output	NO
Interface integrated circuit type	DIODE BUS TERMINATION ARRAY
JESD-30 code	R-XDSO-G20
JESD-609 code	e3
length	12.7 mm
Humidity sensitivity level	1
Number of functions	1
Number of signal lines	18
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.6 mm
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	3
Base Number Matches	1

Preview

Download Datasheet

View All

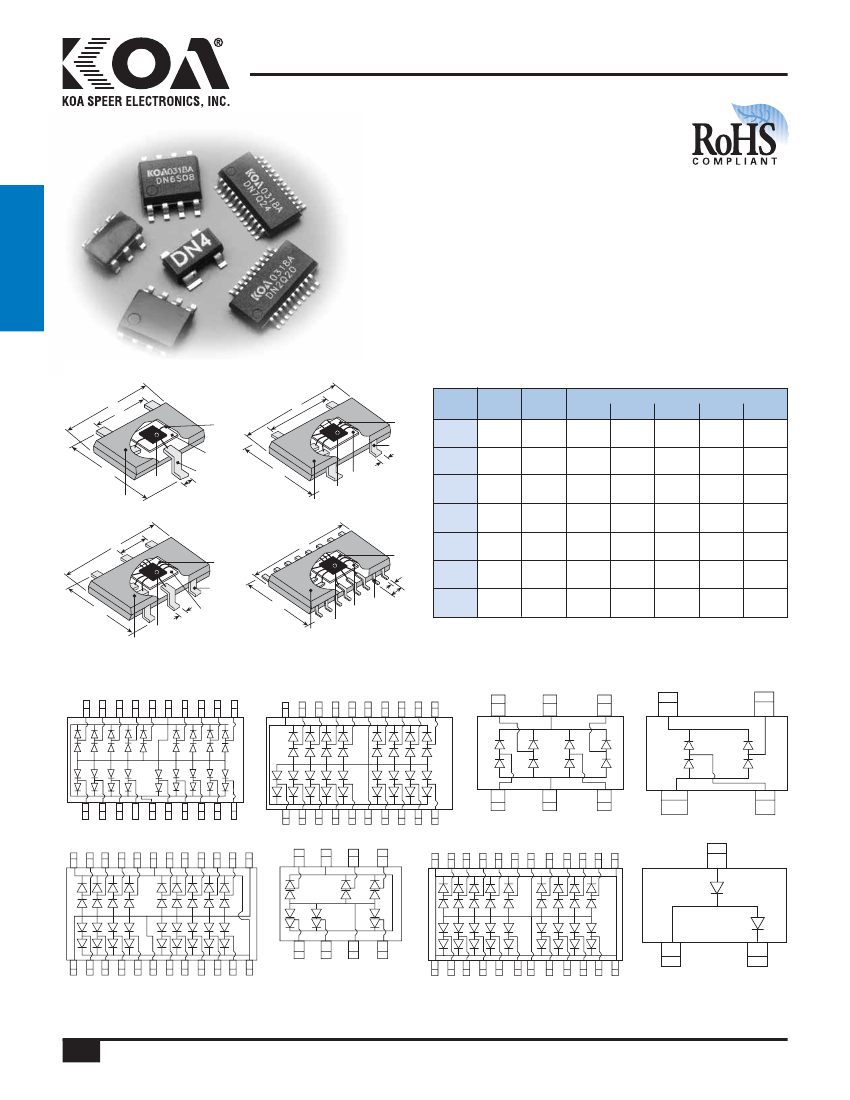

DN(X)

diode terminator network

EU

features

•

Fast reverse recovery time

•

Fast turn on time

Low capacitance

•

SMD packages

16 kV IEC61000-4-2 capable

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

circuit

protection

applications

•

Signal termination

•

Signal conditioning

dimensions and construction

S03

L

P

Bonding

Wire

Die

Pad

W

Molded

Resin

Si

Wafer

Lead

d

Molded

Resin

W

Die

Si Pad

Wafer

•

ESD suppression

•

Transient suppression

S14

L

p

Bonding

Wire

Lead

d

Package Total

Code Power

S03

S14

S06

N08

225mw

400mw

1200mw

1000mw

Pins

3

4

6

8

20

24

Dimensions

inches

(mm)

L ±0.2 W ±0.2 p ±0.1

Pkg Ht

d ±0.05

±0.2

.115

(2.92)

.115

(2.92)

.115

(2.92)

.190

(4.83)

.500

(12.7)

.341

(8.66)

.341

(8.66)

.091

(2.30)

.091

(2.30)

.110

(2.80)

.236

(5.99)

.408

(10.36)

.236

(5.99)

.236

(5.99)

.075

(1.91)

.075

(1.91)

.037

(0.95)

.050

(1.27)

.050

(1.27)

.025

(0.635)

.025

(0.635)

.037

(0.95)

.037

(0.95)

.037

(0.95)

.063

(1.60)

.084

(2.40)

.063

(1.60)

.063

(1.60)

.017

(0.43)

.017

(0.43)

.017

(0.43)

.016

(0.41)

.016

(0.41)

.010

(0.25)

.010

(0.25)

S06

L

p

N08, W20,

Q20, Q24

Bonding

Wire

Lead

L

Bonding

Wire

d

p

Lead

W20

Q20

Q24

W

Si

Wafer

Molded

Resin

W

d

Die

Pad

Die

Pad

Si

Wafer

Molded

Resin

circuit schematic

1

DNA:

20 pins

DN2:

20 pins

1

DN3:

6 pins

1

DN4:

4 pins

1

DN5:

24 pins

1

DN6:

8 pins

1

DN7:

24 pins

1

DN8

For further information on packaging, please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

3/03/08

208

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
