DN2W20LTEB: DescriptionDiode Termination Array, 18-Line, PDSO20, PLASTIC, SOIC-20; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size92KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Related ProductsFound3parts with similar functions to DN2W20LTEB

Download Datasheet Parametric Compare View All

DN2W20LTEB Overview

Diode Termination Array, 18-Line, PDSO20, PLASTIC, SOIC-20

DN2W20LTEB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	_compli
ECCN code	EAR99
Differential output	NO
Interface integrated circuit type	DIODE BUS TERMINATION ARRAY
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.7 mm
Humidity sensitivity level	1
Number of functions	1
Number of signal lines	18
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.6 mm
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

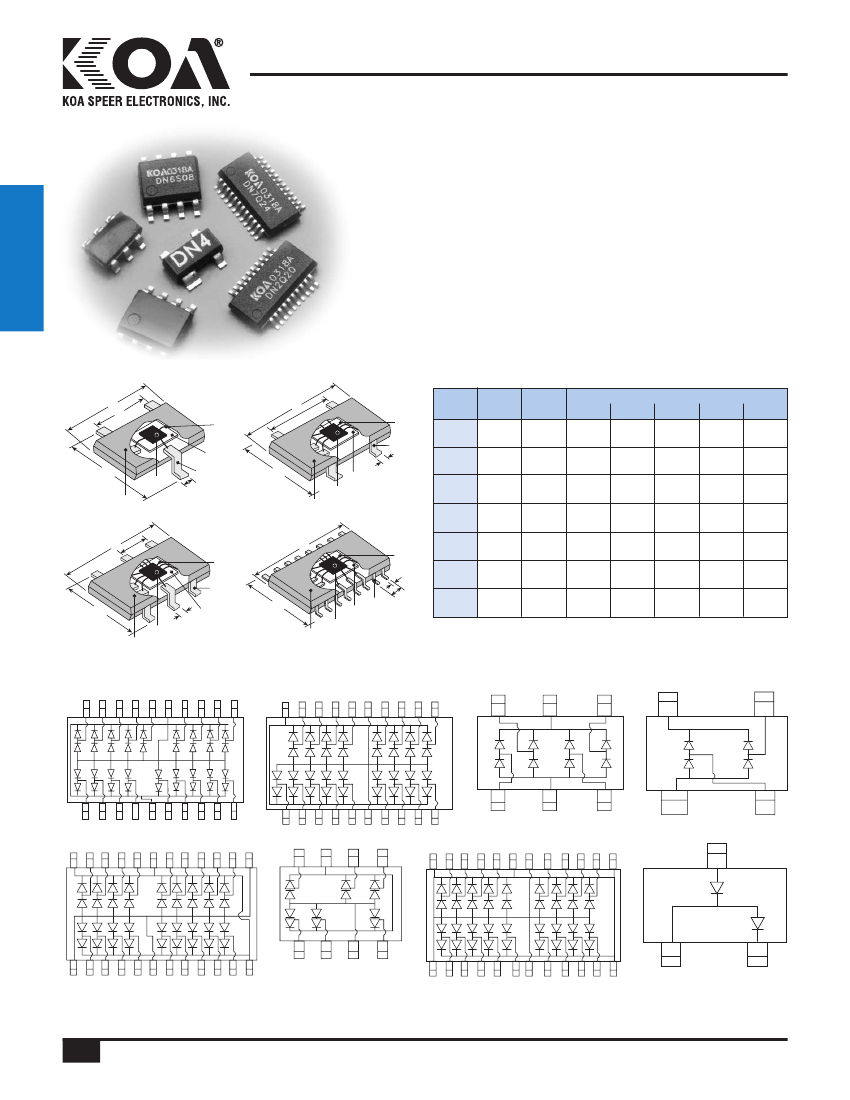

DN(X)

diode terminator network

features

•

Fast reverse recovery time

Fast turn on time

Low capacitance

SMD packages

16 kV IEC61000-4-2 capable

circuit

protection

applications

•

Singal termination

•

Signal conditioning

dimensions and construction

S03

L

p

Bonding

Wire

Die

Pad

W

Molded

Resin

Si

Wafer

Lead

d

Molded

Resin

W

Die

Si Pad

Wafer

•

ESD suppression

•

Transient suppression

S14

L

p

Bonding

Wire

Lead

d

Package Total

Code Power

S03

S14

S06

N08

225mw

400mw

1200mw

1000mw

Pins

3

4

6

8

20

24

Dimensions

inches

(mm)

L ±0.2 W ±0.2 p ±0.1

Pkg Ht

d ±0.05

±0.2

.115

(2.92)

.115

(2.92)

.115

(2.92)

.190

(4.83)

.500

(12.7)

.341

(8.66)

.341

(8.66)

.091

(2.30)

.091

(2.30)

.110

(2.80)

.236

(5.99)

.408

(10.36)

.236

(5.99)

.236

(5.99)

.075

(1.91)

.075

(1.91)

.075

(1.91)

.050

(1.27)

.050

(1.27)

.025

(0.635)

.025

(0.635)

.037

(0.95)

.037

(0.95)

.037

(0.95)

.063

(1.60)

.084

(2.40)

.063

(1.60)

.063

(1.60)

.017

(0.43)

.017

(0.43)

.017

(0.43)

.016

(0.41)

.016

(0.41)

.010

(0.25)

.010

(0.25)

S06

L

p

N08, W20,

Q20, Q24

Bonding

Wire

Lead

L

Bonding

Wire

d

p

Lead

W20

Q20

Q24

W

Si

Wafer

Molded

Resin

W

d

Die

Pad

Die

Pad

Si

Wafer

Molded

Resin

circuit schematic

1

DN2:

20 pins

DN2:

20 pins

1

DN3:

6 pins

1

DN4:

4 pins

1

DN5:

24 pins

1

DN6:

8 pins

1

DN7:

24 pins

1

DN8

For further information on packaging, please refer to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

1/12/05

154

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.

DN2W20LTEB Related Products

	DN2W20LTEB	DKF203M5	DKF3032	DN5Q24LTE	DN2Q20LTE	DN6N08LTE	DKF3035	DKF303M5
Description	Diode Termination Array, 18-Line, PDSO20, PLASTIC, SOIC-20	NTC Diode Thermometrics Thermistors	NTC Diode Thermometrics Thermistors	Diode Termination Array, 18-Line, PDSO24, PLASTIC, QSOP-24	Diode Termination Array, 18-Line, PDSO20, PLASTIC, QSOP-20	Diode Termination Array, 6-Line, PDSO8, PLASTIC, SOIC-8	NTC Diode Thermometrics Thermistors	NTC Diode Thermometrics Thermistors
