FFTP-13-D-18.00-01-S-N-R datasheet, PDF

Datasheet> All Categories > The connector> The connector> FFTP-13-D-18.00-01-S-N-R

FFTP-13-D-18.00-01-S-N-R: DescriptionInterconnection Device; CategoryThe connector The connector; File Size145KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

FFTP-13-D-18.00-01-S-N-R Overview

Interconnection Device

FFTP-13-D-18.00-01-S-N-R Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

REVISION K

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. ALL ASSEMBLIES TO BE 100 % ELECTRONICALLY TESTED

FOR SHORTS AND OPENS.

3. ALL ASSEMBLIES TO BE 100 % HI-POT TESTED AT 630V.

4. TO BE MEASURED FROM SCORE LINE.

5. PARTS TO BE LAYER PACKAGED.

6. SI DATA AVAILABLE FOR STANDARD LENGTHS ONLY.

7. MAX CABLE LENGTH AVAILABLE WITHOUT FLAT:

RIBBONIZED SECTION IS 18.61 INCHES. CONTACT

SAMTEC FOR NUMBER OF FLAT SECTIONS IF LONGER

LENGTH IS REQUIRED.

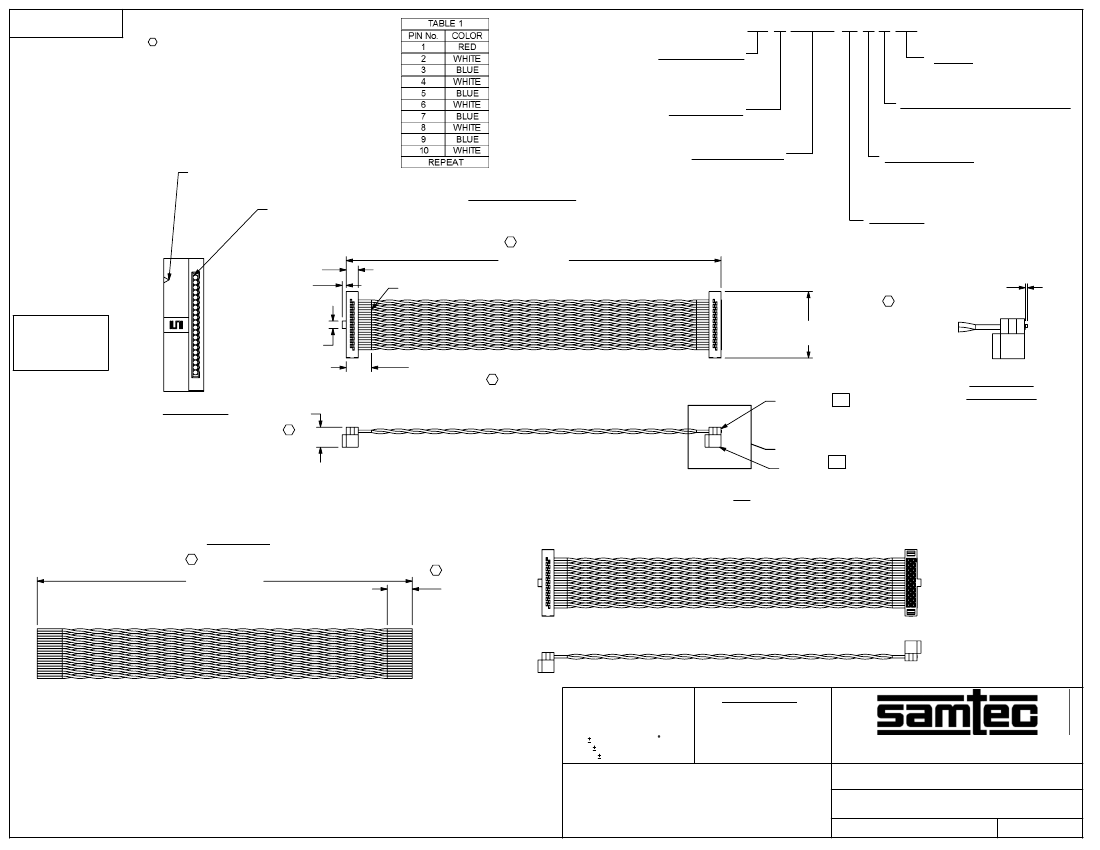

FFTP-XX-X-XX.XX-01-X-X-X

No OF POSITIONS

-02 THRU -25

OPTION

-R: REVERSED CONNECTOR

(SEE FIG 2)

STANDARD POLARIZATION NOTCH

-N: POLARIZATION NOTCH

(NOT AVAILABLE IN -02 THRU -04)

(LEAVE BLANK FOR -02 THRU -04)

PLATING OPTIONS

-LEAVE BLANK FOR STANDARD, USE

C-67-L

-S: USE C-67-S

-F: USE C-67-F

LEAD STYLE

END ASSEMBLY

-D: DOUBLE END (SEE FIGS 1 & 2)

ASSEMBLY LENGTH

ONLY AVAILABLE IN THESE LENGTHS

- 3.85" (USE CBTP-68-30-7/38-025-2)

- 8.77" (USE CBTP-68-30-7/38-025-1)

-18.00" (USE CBTP-68-30-7/38-025-4)

NOTCH DENOTES

FIRST POSITION

RED WIRE TO SIDE

OF 1ST POS INDICATOR

FFTP-10-D-3.85-01-X-N

-D: DOUBLE END

FIG 1

.120 REF

.040 REF

XX.XX ±.225

SCORE LINE

(NO OF POS x .050) + .165

REF

.253

- .100

(TYP)

(SEE NOTE 4)

+.150

.010 MAX

CABLE OVERHANG

DO NOT

SCALE FROM

THIS PRINT

.075

REF

SCALE 2:1

.200

- .003

+.006

FFC-XX-D

DETAIL 'A'

SCALE 2 : 1

'A'

FFS-XX-D

IN PROCESS

REVERSED CONNECTOR

FFTP-10-D-X.XX-01-X-N-R

(SAME AS FIG 1 EXCEPT AS SHOWN)

-R

FIG 2

XX.XX±.125

(SEE TABLE 1)

.250

- .100

+.150

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 1:1

INSULATOR: CELANEX 3314, COLOR: BLACK

CONTACT OR TERMINAL: PHOS BRONZE

WIRE: 30 AWG, 7/38, TINNED, TWISTED PAIR WITH PVC

INSULATOR

F:\DWG\MISC\MKTG\FFTP-XX-X-XX.XX-01-X-X-X-MKT.SLDDRW

DESCRIPTION:

DWG. NO.

.050 X .050 C/L TWISTED PAIR FEMALE IDC ASSEMBLY

BY:

LENNY K

FFTP-XX-X-XX.XX-01-X-X-X

3/16/07

SHEET
