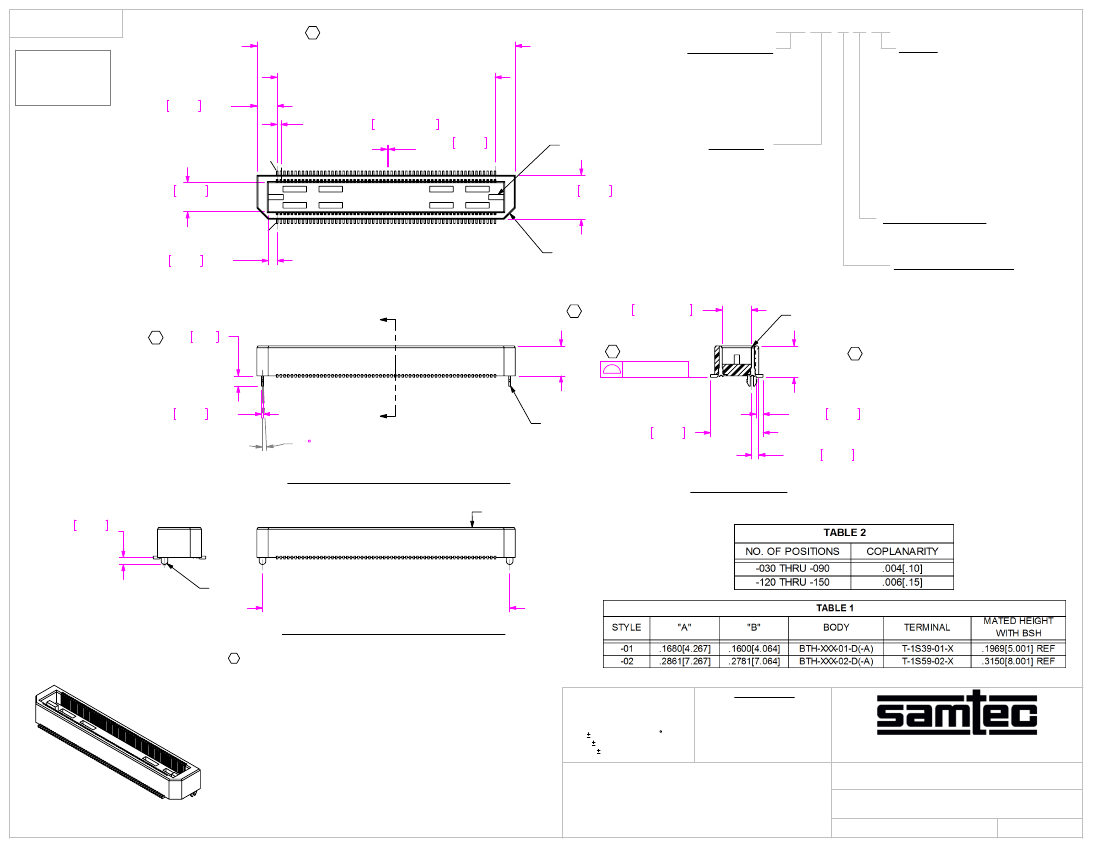

REVISION AP
DO NOT
SCALE FROM
THIS PRINT
.1082 2.749 REF
C
(No OF POS x .01969[0.5000]) + .1968[5.000] REF
(No OF POSITIONS -1) x .01969[0.5000]
BTH-XXX-XX-X-D-XX
No OF POSITIONS
030, ***050, 060, 090,
*120, *150
(PER ROW)
LEAD STYLE -02 ONLY: 030 - 150
MULTIPLES OF 10
*SEE NOTE 7
SEE NOTE 10
LEAD STYLE
-01: .1680[4.267]
-02: .2861[7.264]
(030 -150 POSITIONS AVAILABLE)
-03: .4042[10.267]
-04: .6000[15.240]
-05: .7180[18.237]
-06: .8360[21.234]
-09: .5224[13.269]
*** = 50 POS. ONLY AVAILABLE FOR
-01 AND -02 LEAD STYLE
(REF ASP-65267-02), NOT
TOOLED FOR -03 LEAD STYLE
T-1SXX-XX-X
+.003[0.08]
"A"
-.001[0.03]
C
(SEE NOTE 3)
.0197±.0030 0.500±0.076 TYP
01
.0080 0.203
REF
.1550 3.937 REF
(SEE NOTE 9)
02
.2350 5.969
REF
OPTION
-A: ALIGNMENT PINS
(USE BTH-XXX-XX-D-A FOR
STYLES -01 & -02)(FOR STYLES
-03 THRU -09, SEE TABLE 4 &
FIG 4, SHEET 3)
-LC: LOCKING CLIPS (SEE NOTE 8)"
(USE LC-08-TM-01)
-K: POLYIMIDE FILM
(USE K-DOT-.276-.375-.005, SEE FIG 2)
(AVAILABLE ON STYLES -01
THRU -04 & -09 ONLY)
-TR: TAPE & REEL (120 POS MAX)
[N/A ON -05 THRU -06]
ROW SPECIFICATION
-D: DOUBLE (USE BTH-XXX-XX-D
& BTHH-XXX-XX-D)
PLATING SPECIFICATION
-F: 3µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-L: 10µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-C: 50µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
.0470 1.194 REF
BTH-XXX-XX-D
"A"
C
.055 1.40
C
.155±.003 3.94±0.076
C
SEE TABLE 2
"B" REF
.0100 0.254 REF
"A"
2 MAX SWAY
(EITHER DIRECTION)
LC-08-TM-01
.0370 0.939 REF
.2800 7.112
.0372 0.945 REF
-LC: LOCKING CLIP OPTION SHOWN
.0375 0.952
REF
BTH-XXX-XX-D-A
SECTION "A"-"A"
R
(No OF POS. x .01969[.5000]) + .1368[3.475] REF
NOTES:
-A: ALIGNMENT PIN OPTION SHOWN
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 6 OZ FOR STYLES -01 & -02
8 OZ FOR STYLES -03 THRU -09
3. MAXIMUM VARIANCE: .002[0.05]
4. LEAD STYLES -03 THRU -09: TOP BODY (BTH)
CANNOT HAVE -A OPTION.
5. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.
6. NOTE DELETED.
7. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS,PLEASE
CONTACT SAMTEC INTERCONNECT PROCESSING GROUP.
8. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE
–LC OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT.
SAMTEC RECOMMENDS MANUAL PLACEMENT FOR ALL
ASSEMBLIES WITH THE –LC OPTION.
9. PIN CAN EXTEND PAST THE WALL: .003 [0.08].
10. FEATURE PRESENT ONLY ON -01 LEAD STYLE.
11. GATE PAD PRESENT ON BTH-XXX-02-D-X ONLY.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[0.3]
2
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
MATERIAL:
DECIMALS
ANGLES
DO NOT SCALE DRAWING
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
SHEET SCALE: 1.875:1
INSULATOR: BLACK LCP
FLAMMABILITY RATING: UL 94V-O
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\BTH-XXX-XX-X-D-XX-MKT.SLDDRW
.5mm DOUBLE ROW TERMINAL ASSEMBLY
DWG. NO.
BTH-XXX-XX-X-D-XX
5/28/1999
SHEET
1
OF
3
BY:
DEAN P
REVISION AP
C

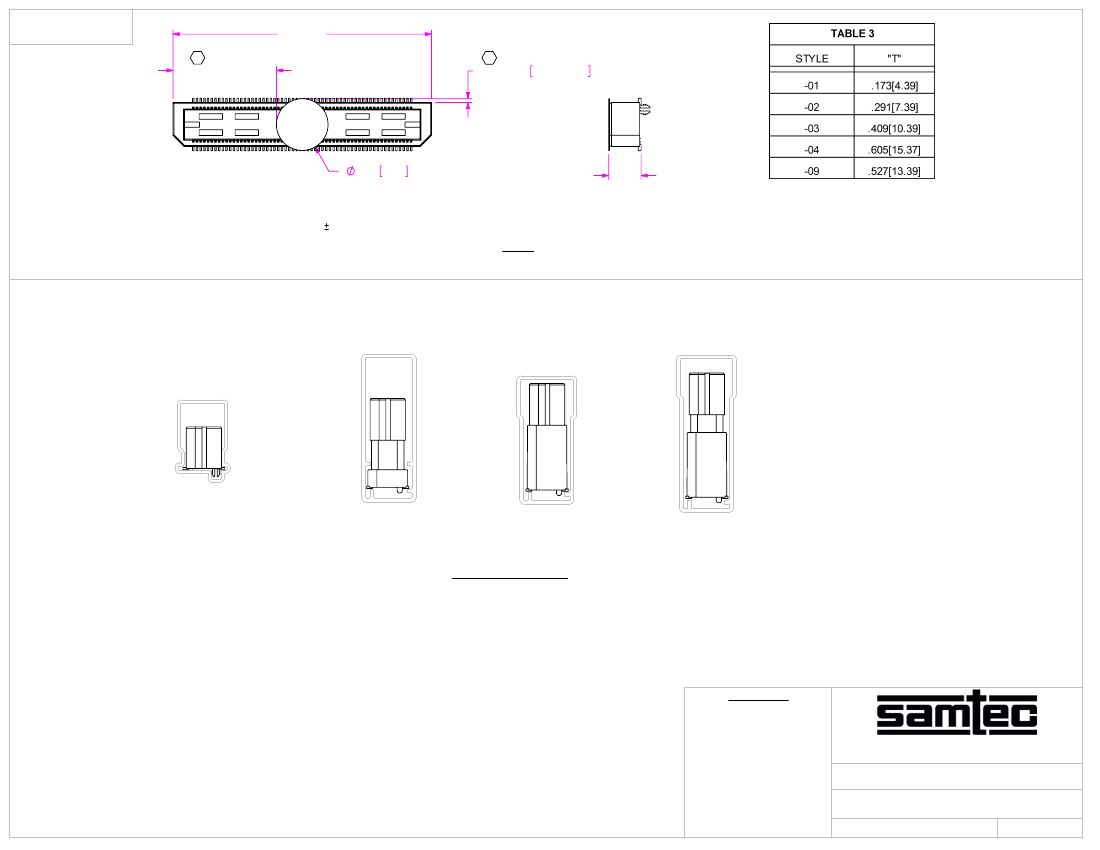

"S"±.020[0.51]
"R" REF
C
.020±.020 0.52±0.508
.276 7.00 REF
"T"
NOTE: "R" = (No OF POSITIONS x .01969[0.5000]) + .1968[5.000]
"S" = (("R" - .276[7.01]) / 2) .020[0.51]
-K: POLYIMIDE FILM PAD OPTION
FIG 2
[STYLES -01 & -02]
[STYLES -03, -04, & -09]
[STYLE -05]
[STYLE -06]
TUBE: PT-1-24-01-78
PLUG: TP-03
TUBE: PT-1-24-01-98
PLUG: TP-26
TUBE: PT-1-24-02-105
PLUG: TP-07
TUBE: PT-1-24-01-105
PLUG: TP-26
(PARTS TO HAVE POSITIOIN #01 LOADED IN SAME DIRECTION AS ARROW)
PACKAGING VIEW
F:\DWG\MISC\MKTG\BTH-XXX-XX-X-D-XX-MKT.SLDDRW
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.875:1
.5mm DOUBLE ROW TERMINAL ASSEMBLY
BTH-XXX-XX-X-D-XX
5/28/1999
SHEET
2
OF
3
BY:
DEAN P
REVISION AP

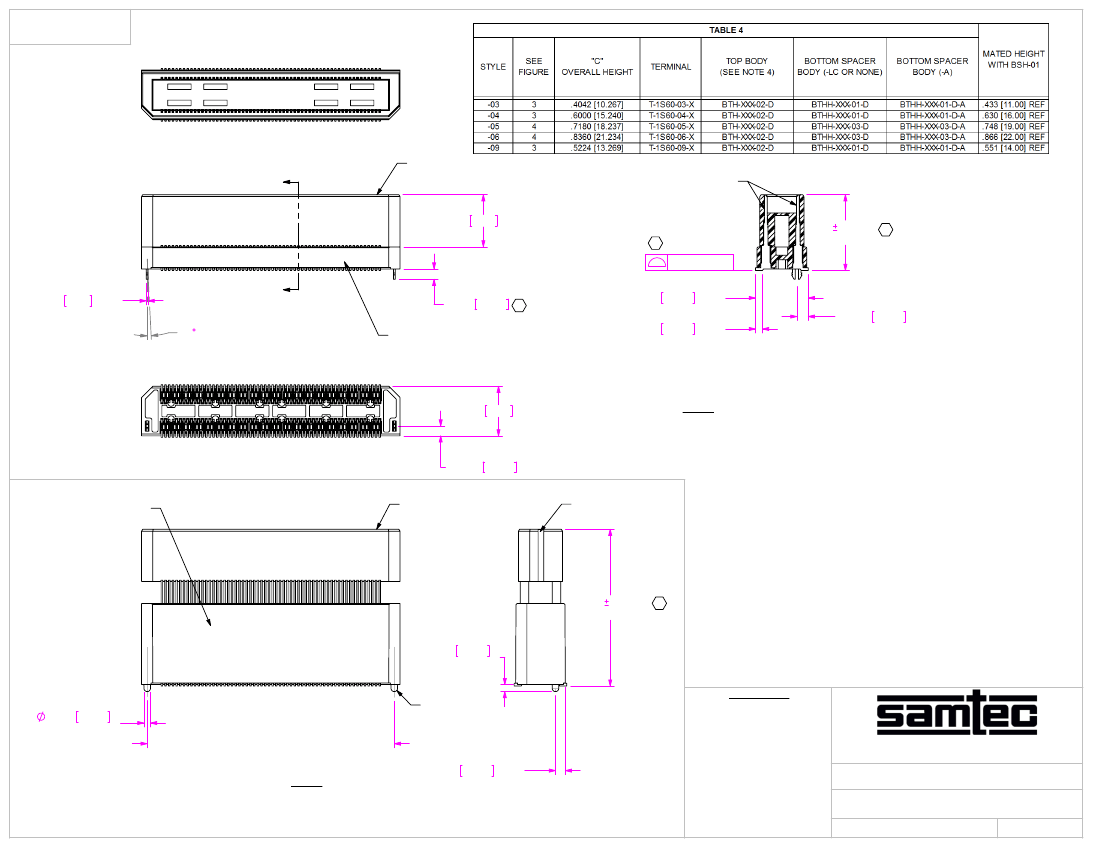

01
02
BTH-XXX-02-D (SEE NOTE 4)
"B"
.278 7.06 REF
C
SEE TABLE 2
(SEE SHEET 1)
.055 1.397
C
2 MAX SWAY
(TYP)
BTHH-XXX-01-D
.2810 7.137 REF
.0370 0.940 REF
.0605 1.537 REF
T-1S60-XX-X
C
.003[0.08]
C
.001[0.03]
(SEE NOTE 3)
.010 0.25 REF
"B"
.265 6.73 REF
BTH-060-03-X-D-LC SHOWN
(STYLES -03, -04, & -09)
(DIIFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
.0525 1.334
BTHH-XXX-03-D-A
BTH-XXX-02-D (SEE NOTE 4)
SEE NOTE 11
"C"
.001[0.03]
C
(SEE NOTE 3)
.0375 0.953
REF
F:\DWG\MISC\MKTG\BTH-XXX-XX-X-D-XX-MKT.SLDDRW
.003[0.08]
.0350 0.889
REF
R
(No OF POS x .01969[0.50000]) + .1368[3.475] REF
-A: ALIGNMENT PIN OPTION
BTH-060-06-X-D-A SHOWN
[STYLES -05 & -06]
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 4
.0525 1.334 REF
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.533333
.5mm DOUBLE ROW TERMINAL ASSEMBLY
BTH-XXX-XX-X-D-XX
5/28/1999
SHEET
3
OF
3
BY:
DEAN P
