DAM15PK127 datasheet, PDF - EEWORLD Datasheet

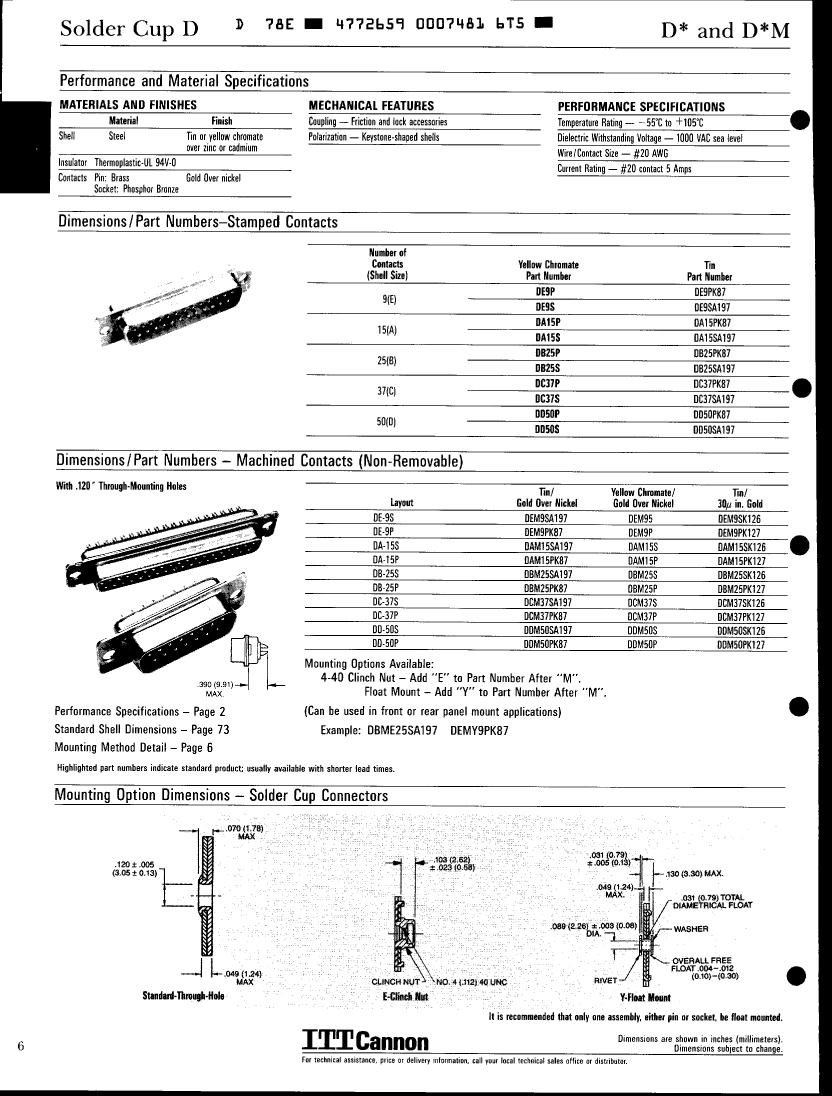

DAM15PK127: DescriptionD Type Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size397KB，4 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

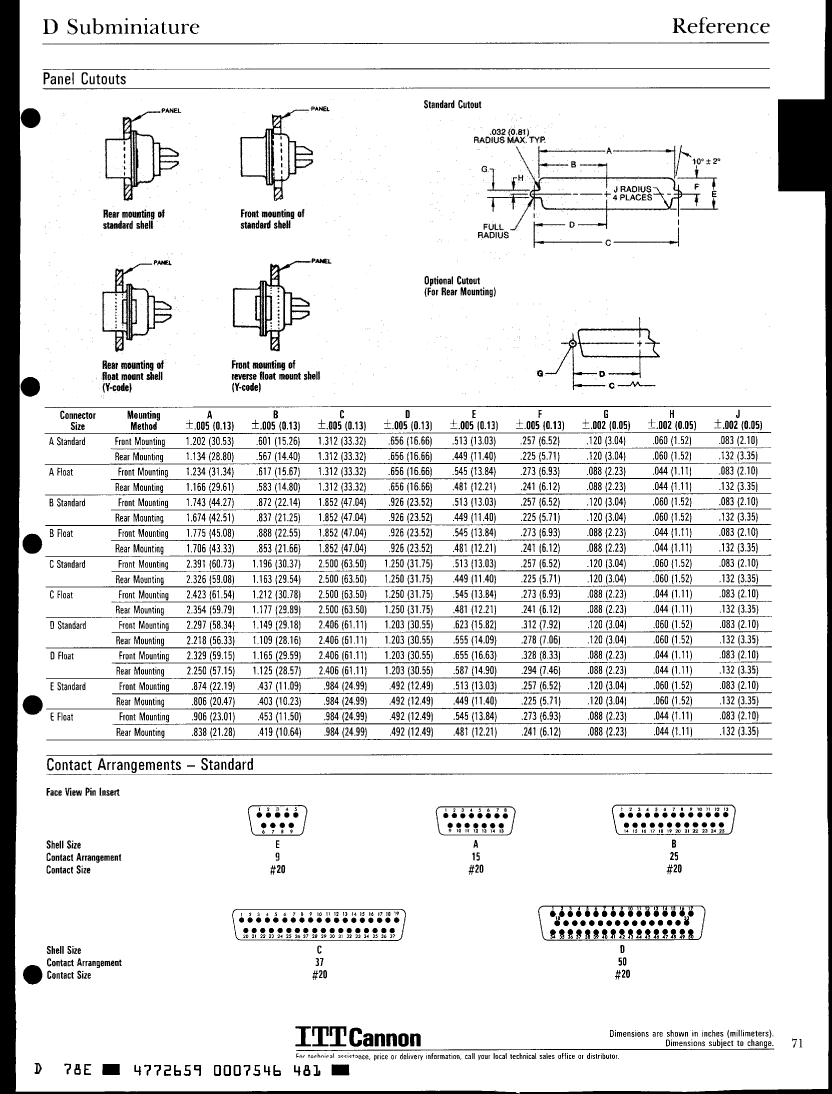

DAM15PK127 Overview

D Type Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99

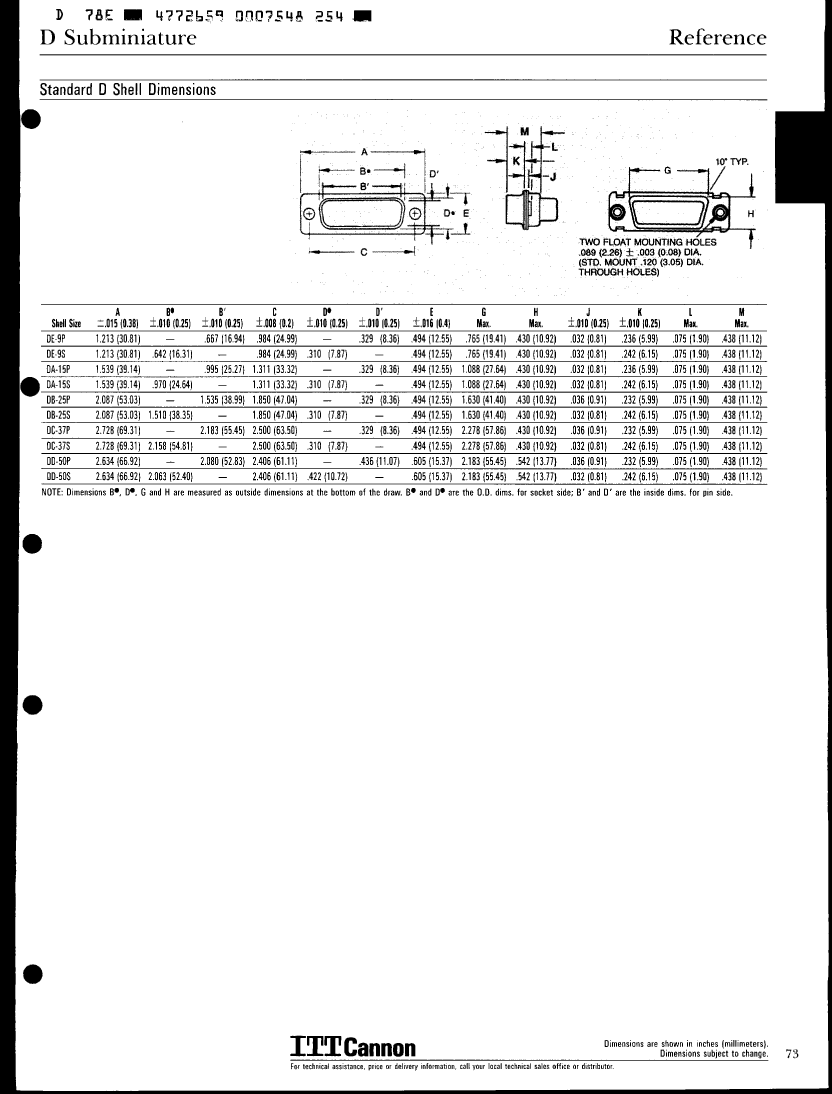

body width	0.494 inch
subject depth	0.39 inch
body length	1.539 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
insulator material	POLYESTER
JESD-609 code	e4
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch

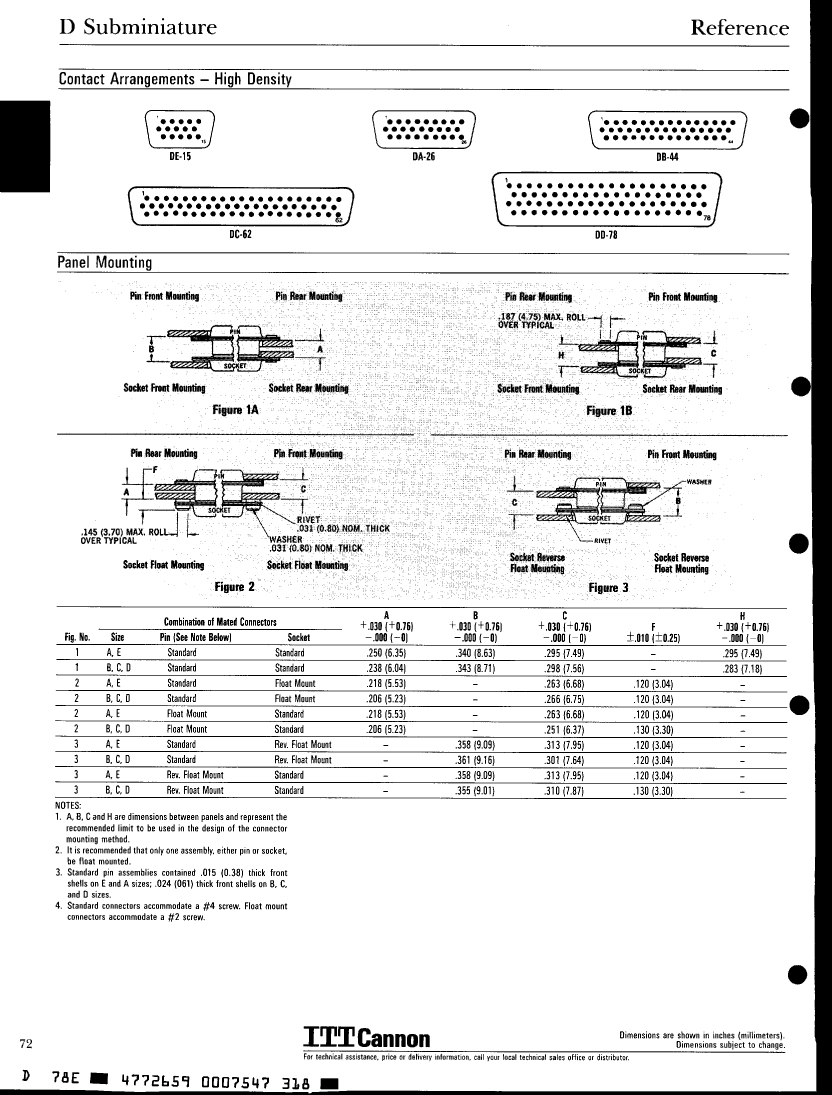

Installation option 1	HOLE .112-.124
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER LUG
Total number of contacts	15
Maximum wire diameter	20 AWG
Minimum wire diameter	20 AWG
Base Number Matches	1
