FC1-25-01-T-LC-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> FC1-25-01-T-LC-TR

FC1-25-01-T-LC-TR: DescriptionCard Edge Connector, 25 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,; CategoryThe connector The connector; File Size509KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FC1-25-01-T-LC-TR Overview

Card Edge Connector, 25 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,

FC1-25-01-T-LC-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	ROHS COMPLIANT
body width	0.109 inch
subject depth	0.208 inch
body length	1.076 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	DUAL PRONG
Dielectric withstand voltage	450VAC V
Durability	25 Cycles
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Plug contact pitch	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	25

Preview

Download Datasheet

View All

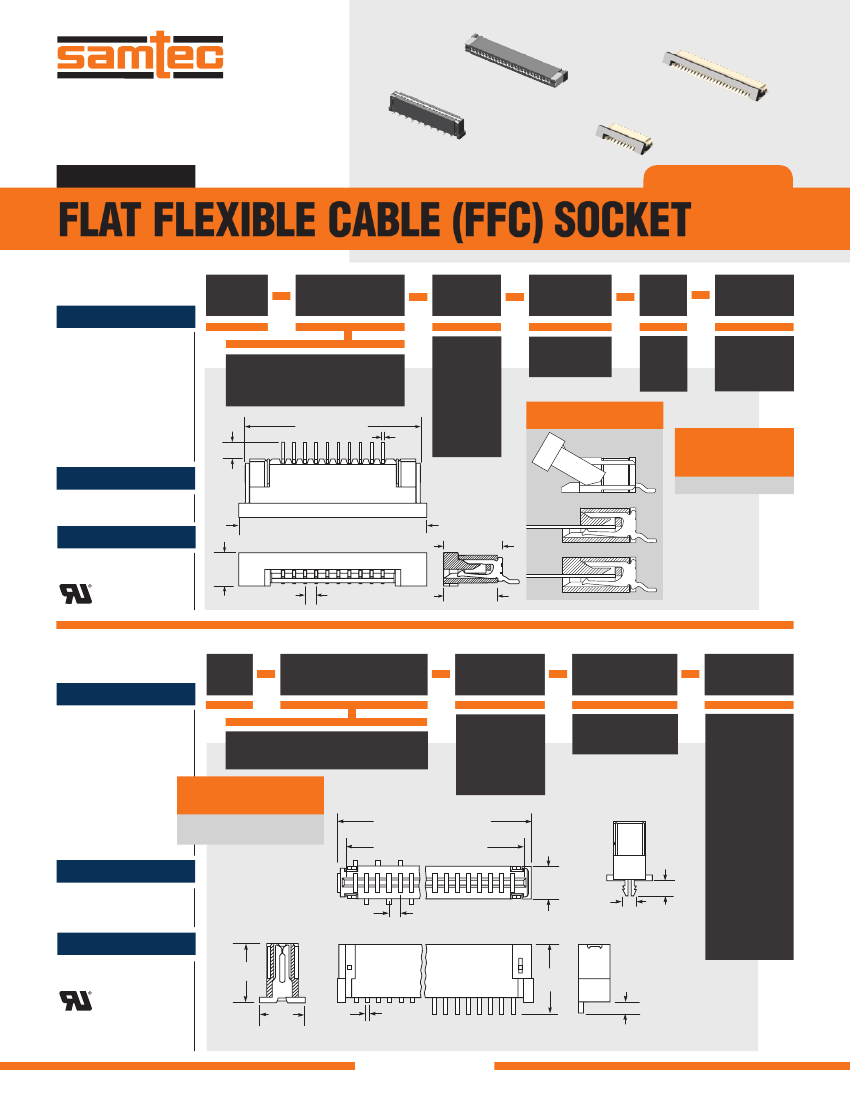

F-219

FC1–25–02–T–WT

ZF1–25–01–T–WT

FC1–20–01–T

ZF1–10–01–T–WT

(1.00 mm) .0394"

ZF1, FC1 SERIES

FLAT FLEXIBLE CABLE (FFC) SOCKET

Mates with:

ZF1

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?ZF1

Insulator Material:

Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn over 40 µ" (1.02 µm) Ni

Weld Tab:

Phosphor Bronze

Operating Temp Range:

-55 °C to +105 °C

RoHS Compliant:

Yes

NO. OF

POSITIONS

LEAD

STYLE

PLATING

OPTION

–WT

= Weld

Tab

OPTION

–05, –10, –15,

–16, –20, –25, –30

(1.50)

.059

(No. of pins x (1.00) .03937)

+ (5.85) .230

= Contact

Bottom

–01

–02

= Matte Tin

–T

= Tape & Reel

Packaging

–TR

(0.25)

.010

= Contact

Top

(10 positions

only)

APPLICATION

ALSO

AVAILABLE

(MOQ Required)

• Other positions

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

(No. of pins x (1.00) .03937) + (7.00) .276

(5.30) .209

(3.00)

.118

(1.00)

.03937

(4.9) .19

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

Note:

Some lengths,

styles and options

are non-standard,

non-returnable.

Mates with:

FC1

SPECIFICATIONS

NO. OF

POSITIONS

LEAD

STYLE

PLATING

OPTION

OPTIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?FC1

Insulator Material:

Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn over 50 µ" (1.27 µm) Ni

ALSO AVAILABLE

Operating Temp Range:

(MOQ Required)

-55 °C to +105 °C

• Low insertion force

Max Cycles:

25 with FJ

contacts available

RoHS Compliant:

Yes

–05, –10, –15, –20 & –25

= Vertical

– 01

– 02

= Tin

–T

= Horizontal

= Locking Clip

(Manual

placement

required)

(–01 only)

–LC

(No. of pins x (1.00) .03937)

+ (2.33) .092

(No. of pins x (1.00) .03937)

+ (1.00) .03937

(2.77)

.109

(1.00) .03937

(1.40)

.055

(1.42)

.056

= Weld Tab

(–02 only)

–WT

–K

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

= (4.00 mm) .158"

DIA Polyimide film

Pick & Place Pad

(–01 only)

– LC OPTION

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

= Tape & Reel

Packaging

(5.18)

.204

(6.35)

.250

(4.09)

.161

(0.30) .012

(1.19)

.047

–TR

– 01

– 02

Note:

Some lengths,

styles and options

are non-standard,

non-returnable.

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
