FC1-25-02-TM

Description
Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket,
CategoryThe connector    The connector
File Size197KB,2 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

FC1-25-02-TM Overview

Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket,

FC1-25-02-TM Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSAMTEC
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typeSOCKET
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationMATTE TIN
Contact completed and terminatedMatte Tin (Sn)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Plug informationNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts25
REVISION AA
DO NOT
SCALE FROM
THIS PRINT
C

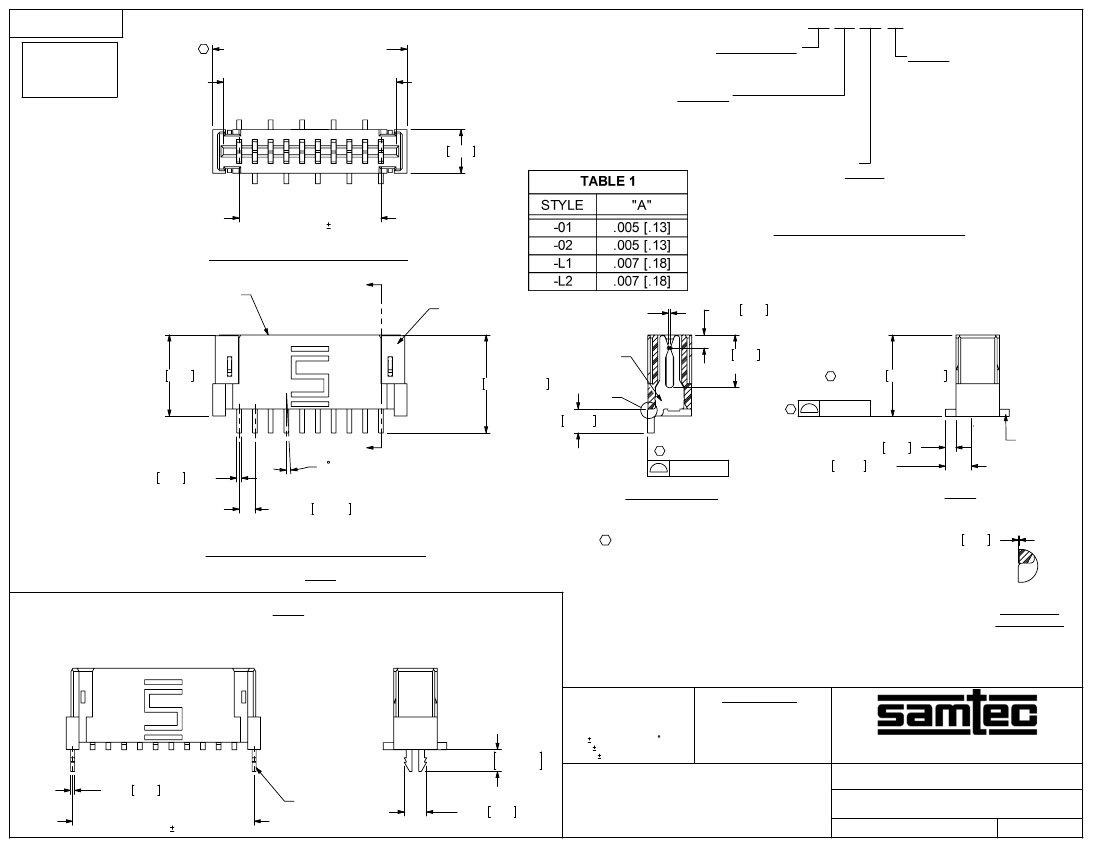

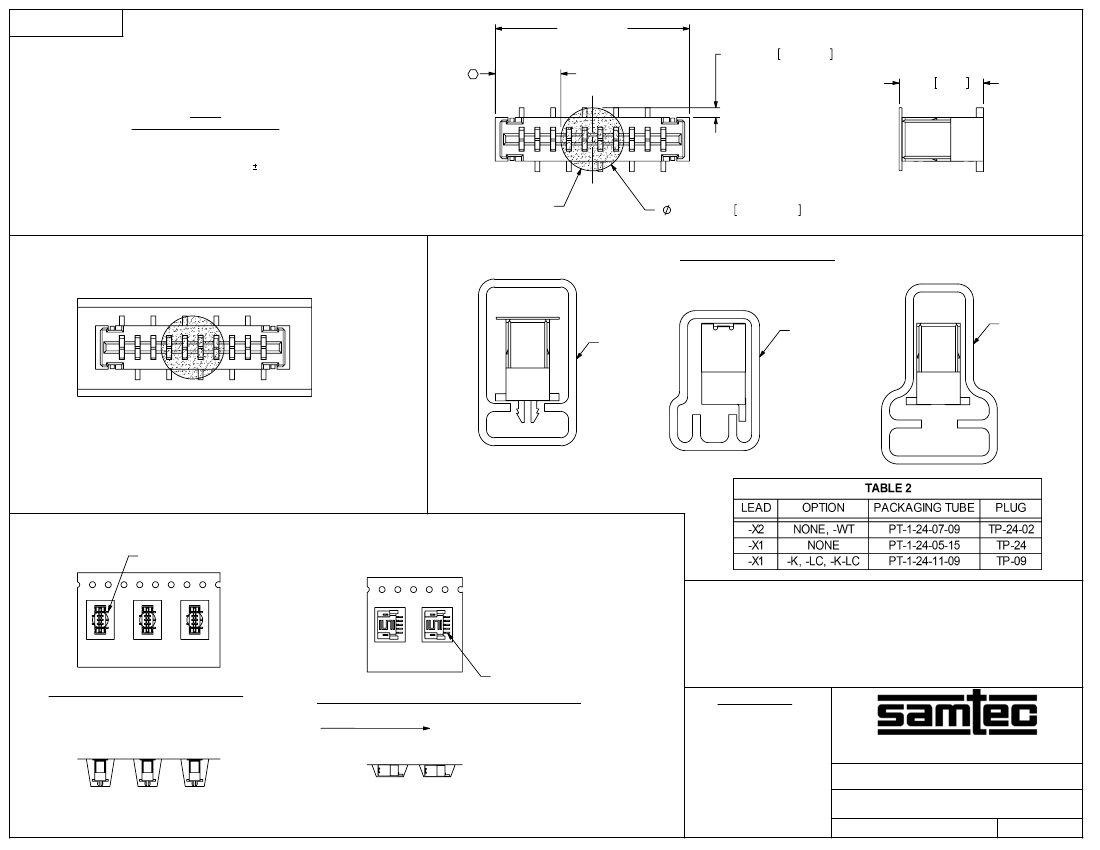

FC1-XX-XX-XX-XX
(No OF POS x .03937[1.0000])
+ .092 [2.34] REF
(No OF POS x .03937[1.0000])
+ .03937[1.0000] REF
01
03
.109 2.77 REF
No OF POSITIONS
-05 THRU -25
(SEE NOTE 8 )
LEAD STYLE
-01 VERTICAL (SEE FIG 2, C-136-01-X)
-02 HORIZONTAL (SEE FIG. 1) (C-136-02-X)
-L1 VERTICAL (LOW INSERTION FORCE) (C-136-03-X)
-L2 HORIZONTAL (LOW INSERTION FORCE) (C-136-04-X)
PLATING
OPTIONS
-WT: WELD TAB (LEAD
STYLE -02 & -L2 ONLY)
-LC: LOCKING CLIP (SEE FIG 3)
(LEAD STYLE -01 & -L1 ONLY)
(SEE NOTE 9)
-K: POLYIMIDE FILM PAD
(LEAD STYLE -01 & -L1 ONLY)
(SEE NOTE 7)
-TR: TAPE & REEL
02
{(NO OF POS - 1 ) x
.03937 [1.0000]} .002 [.05]
-T: MATTE TIN CONTACT AND TAIL
-TM: MATTE TIN CONTACT AND TAIL
RECOMMENDED CABLE WIDTH
-01 / -L1 [VERTICAL LEAD STYLES]
FC1-XX-S
"B"
WT-10-01-XX
"A" REF
C-136-02-XX
OR
C-136-04-XX
.203 5.16
.2450±.0030 6.223±0.076
{(NO. OF POSITIONS x .03937 [1.0000])
+ .040 [1.00] +/- .010 [.25] }
.033 0.84 REF
.132 3.35
REF
C
.204±.003 5.182±0.08
'A'
.060 1.524 REF
01
.012 0.30 REF
"B"
2 MAX SWAY
(TYP)
(SEE NOTE 6)
.03937 1.0000 (TO BE MEASURED AT THE TAIL TIP)
C
C
.004[.10]
.026 0.67
C-136-01-XX
OR
C-136-03-XX
.004 [0.10]
.065 1.638 REF
SECTION "B"-"B"
NOTES:
-01 /-L1: VERTICAL
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
FIG 2
-02 / -L2 [HORIZONTAL LEAD STYLES]
FIG 1
FIG 3
-LC OPTION
SAME AS FIG. 2 EXCEPT AS SHOWN
C
.001 0.03
1.
REPRESENTS A CRITICAL DIMENSION.
2. NOTE DELETED
3. BURR ALLOWANCE: .0015[.038] MAX.
4. MAXIMUM CUT FLASH: .010 [.25].
5. MINIMUM PUSHOUT FORCE: .5 LB.
6. TAIL SWAY MUST BE IN SAME DIRECTION
DETAIL 'A'
ON ALL CONTACT TAILS.
SCALE 8 : 1
7. KAPTON PAD (-K) AVAILABLE ON ALL POSITIONS FOR LEAD STYLE
-01 & -L1 (SEE FIG. 4).
8. -05 THRU -10 POSITIONS ARE 2 PARTS PER AND REQUIRE MULTI-CUTTING.
9. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION IS NOT
COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL
PLACEMENT FOR ALL ASSEMBLIES WITH THE –LC OPTION.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.055
- .000
1.40
.010 0.25 REF
{(NO OF POS x .03937 [1.0000])
+ .059 [1.50]} .005 [.13]
LC-06-TM
+.010
+0.25
0.00
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.508]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.056 1.42 REF
HOUSING: BLACK LCP
CONTACT: PHOSPHOR BRONZE
WELD TABS: BRASS
F:\DWG\MISC\MKTG\FC1-XX-XX-XX-XX-MKT.SLDDRW
1MM SOCKET
FC1-XX-XX-XX-XX
3/1/1999
SHEET
1
OF
2
BY:
G. PURVIS
