September 30, 2009
Datasheet No – PD 97421
IRS2301S
HIGH AND LOW SIDE DRIVER
Features
•
•
•
•
•
•
•
•
•
•
Product Summary
600V Max
5V – 20V
120mA / 250mA
220ns / 200ns
50ns
Floating channel designed for bootstrap operation
V
OFFSET
Fully operational to +600V
Tolerant to negative transient voltage – dV/dt immune
V
OUT
Gate drive supply range from 5V to 20V
I
o+
& I
o-
(min)
Undervoltage lockout for both channels
3.3V, 5V and 15V input logic compatible
t
ON
& t
OFF
(typical)
Matched propagation delay for both channels
Delay Matching
Outputs in phase with inputs
Lower di/dt gate driver for better noise immunity
Leadfree, RoHS compliant
Package Options
Typical Applications
o
Appliance motor drives
o
Servo drives
o
Micro inverter drives
o
General purpose three phase inverters
8-Lead SOIC
IRS2301S

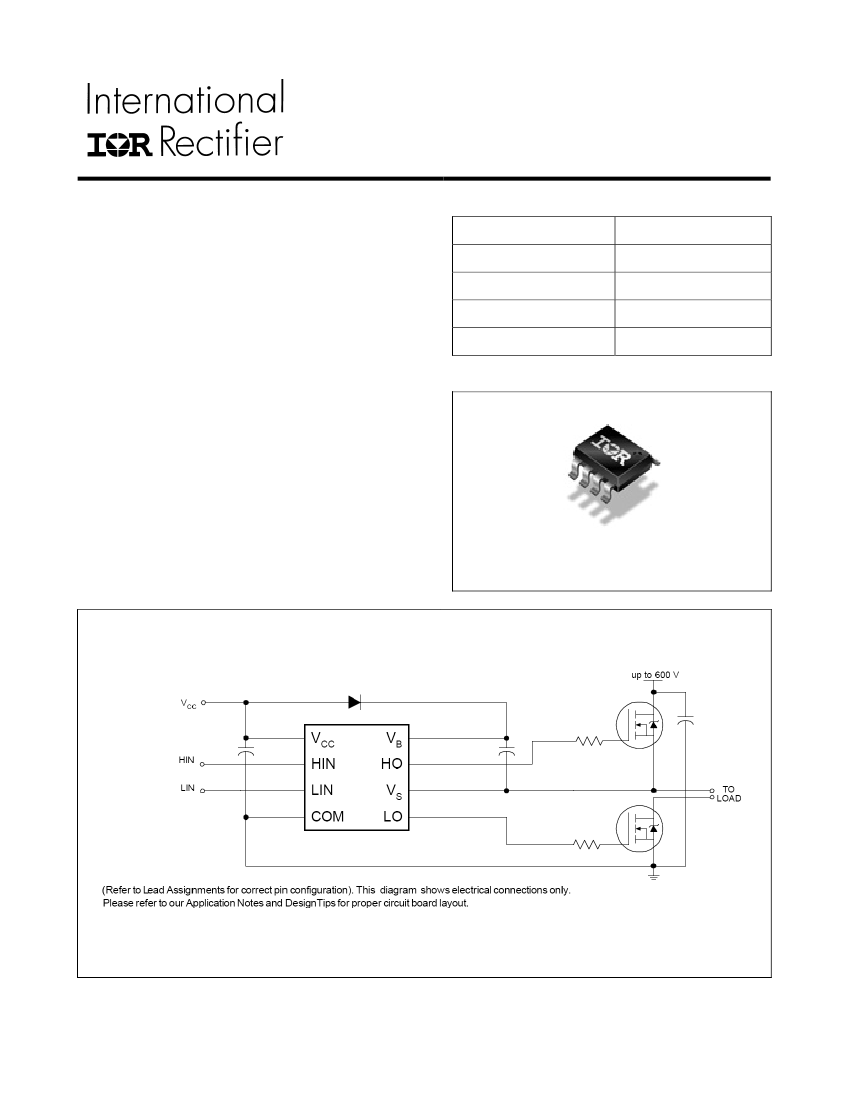

Typical Connection Diagram
www.irf.com
© 2009 International Rectifier
1
IRS2301S
Table of Contents
Typical Connection Diagram
Description
Feature Comparison
Qualification Information
Absolute Maximum Ratings
Recommended Operating Conditions
Dynamic Electrical Characteristics
Static Electrical Characteristics
Functional Block Diagram
Input/output Timing Diagram
Lead Definitions
Lead Assignments
Application Information and Additional Details
Package Details
Tape and Reel Details
Part Marking Information
Ordering Information
Page
1
3
3
4
5
5
6
6
7
8
9
9
10
11
12
13
14
www.irf.com
© 2009 International Rectifier
2
IRS2301S
Description
The IRS2301S is a high voltage, high speed power MOSFET and IGBT driver with independent high- and low-
side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized
monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic.
The output drivers feature a high pulse current buffer stage. The floating channel can be used to drive an N-
channel power MOSFET or IGBT in the high-side configuration which operates up to 600V.
www.irf.com
© 2009 International Rectifier
3
IRS2301S
Qualification Information
†
Qualification Level
Industrial
††
Comments: This family of ICs has passed JEDEC’s
Industrial qualification. IR’s Consumer qualification level
is granted by extension of the higher Industrial level.
MSL2
†††
260°C
(per IPC/JEDEC J-STD-020)
Class B
(per JEDEC standard JESD22-A115)
Class 2
(per EIA/JEDEC standard EIA/JESD22-A114)
Class I, Level A
(per JESD78)
Yes
Moisture Sensitivity Level
Machine Model
ESD
Human Body Model
IC Latch-Up Test
RoHS Compliant
†
††
†††
Qualification standards can be found at International Rectifier’s web site
http://www.irf.com/
Higher qualification ratings may be available should the user have such requirements. Please contact
your International Rectifier sales representative for further information.
Higher MSL ratings may be available for the specific package types listed here. Please contact your
International Rectifier sales representative for further information.
www.irf.com
© 2009 International Rectifier
4
IRS2301S
Absolute Maximum Ratings
Absolute Maximum Ratings indicate sustained limits beyond which damage to the device may occur. All voltage
parameters are absolute voltages referenced to COM. The thermal resistance and power dissipation ratings are
measured under board mounted and still air conditions.
Symbol
V
B
V
S
V
HO
V
CC
V
LO
V
IN
dV
S
/dt
P
D
Rth
JA
T
J
T
S
T
L
Definition
High-side floating absolute voltage
High-side floating supply offset voltage
High-side floating output voltage
Low-side and logic fixed supply voltage
Low-side output voltage
Logic input voltage (HIN & LIN)
Allowable offset supply voltage transient
Package power dissipation @ TA
≤
25°C
Thermal resistance, junction to ambient
Junction temperature
Storage temperature
Lead temperature (soldering, 10 seconds)
Min.
-0.3
V
B
- 25
V
S
- 0.3
-0.3
-0.3
COM -0.3
—
—
—
—
-50
—
Max.
625
V
B
+ 0.3
V
B
+ 0.3
25
V
CC
+ 0.3
V
CC
+ 0.3
50
0.625
200
150
150
300
°C
V
Units
V/ns
W
°C/W
Recommended Operating Conditions
The input/output logic timing diagram is shown in Fig. 1. For proper operation the device should be used within
the recommended conditions. The V
S
offset rating is tested with all supplies biased at 15V differential.
Symbol
Definition
Min.
V
B
High-side floating supply absolute voltage
V
S
+ 5
V
S
High-side floating supply offset voltage
†1
V
HO
High-side floating output voltage
V
S
V
CC
Low-side and logic fixed supply voltage
5
V
LO
Low-side output voltage
0
V
IN
Logic input voltage (HIN & LIN)
COM
T
A
Ambient temperature
-40
†: Logic operational for V
S
of -5 V to +600 V. Logic state held for V
S
of -5 V to – V
BS.
(Please refer to the Design Tip DT97 -3 for more details).
Max.
V
S
+ 20
600
V
B
20
V
CC
V
CC
125
Units
V
°C
www.irf.com
© 2009 International Rectifier
5
