LH530800A-YN datasheet, PDF - EEWORLD Datasheet

LH530800A-YN: DescriptionMASK ROM, 128KX8, 500ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32; Categorystorage storage; File Size115KB，6 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

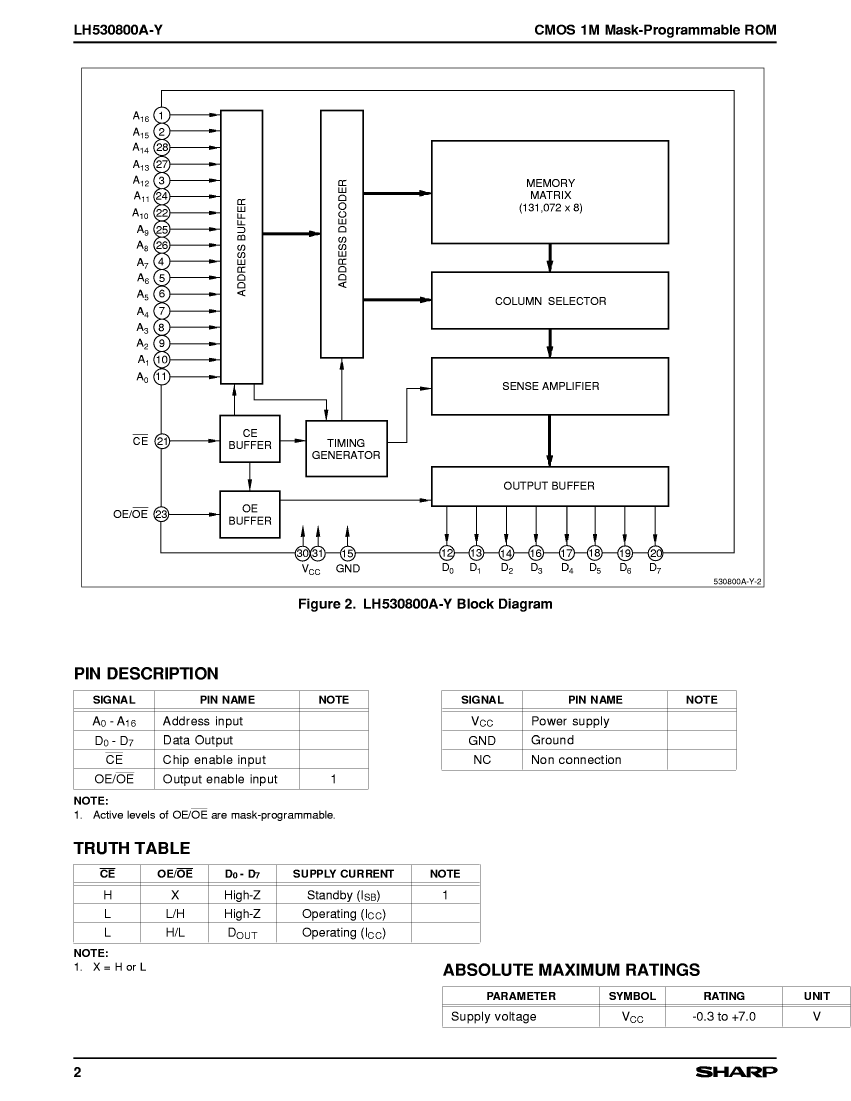

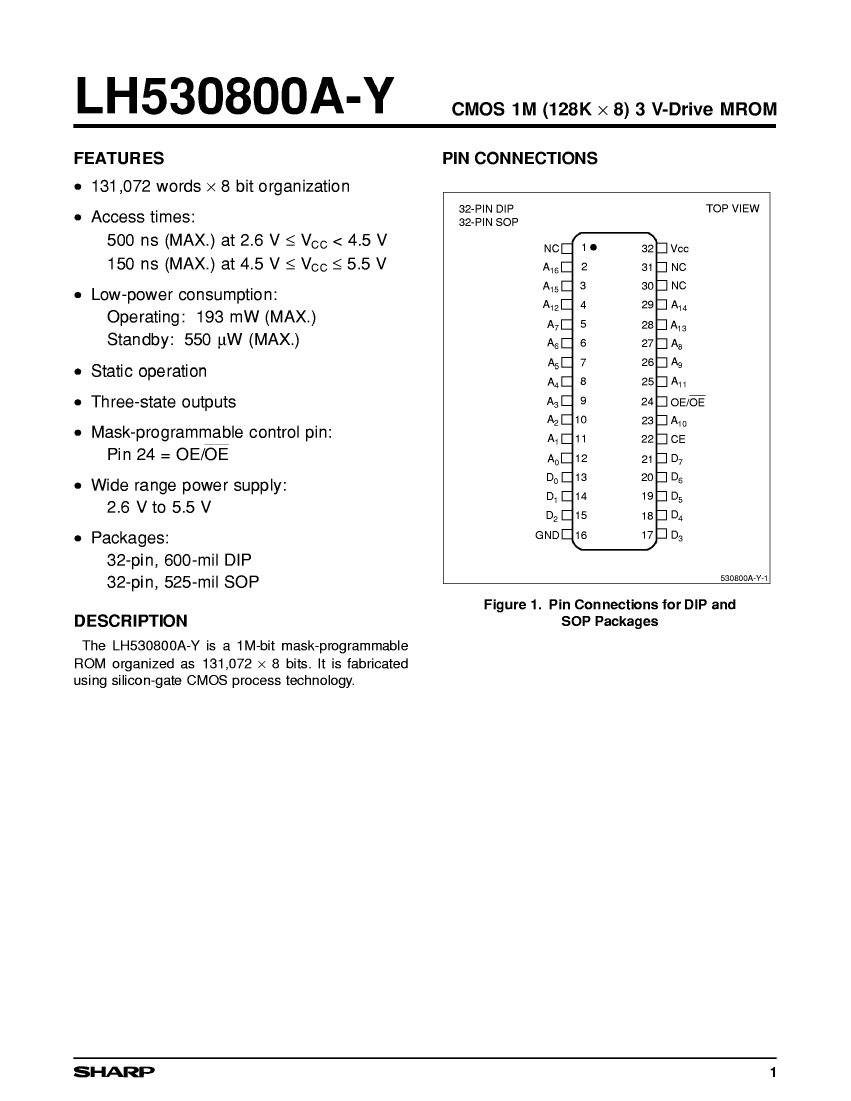

LH530800A-YN Overview

MASK ROM, 128KX8, 500ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32

Parameter Name	Attribute value
Maker	SHARP

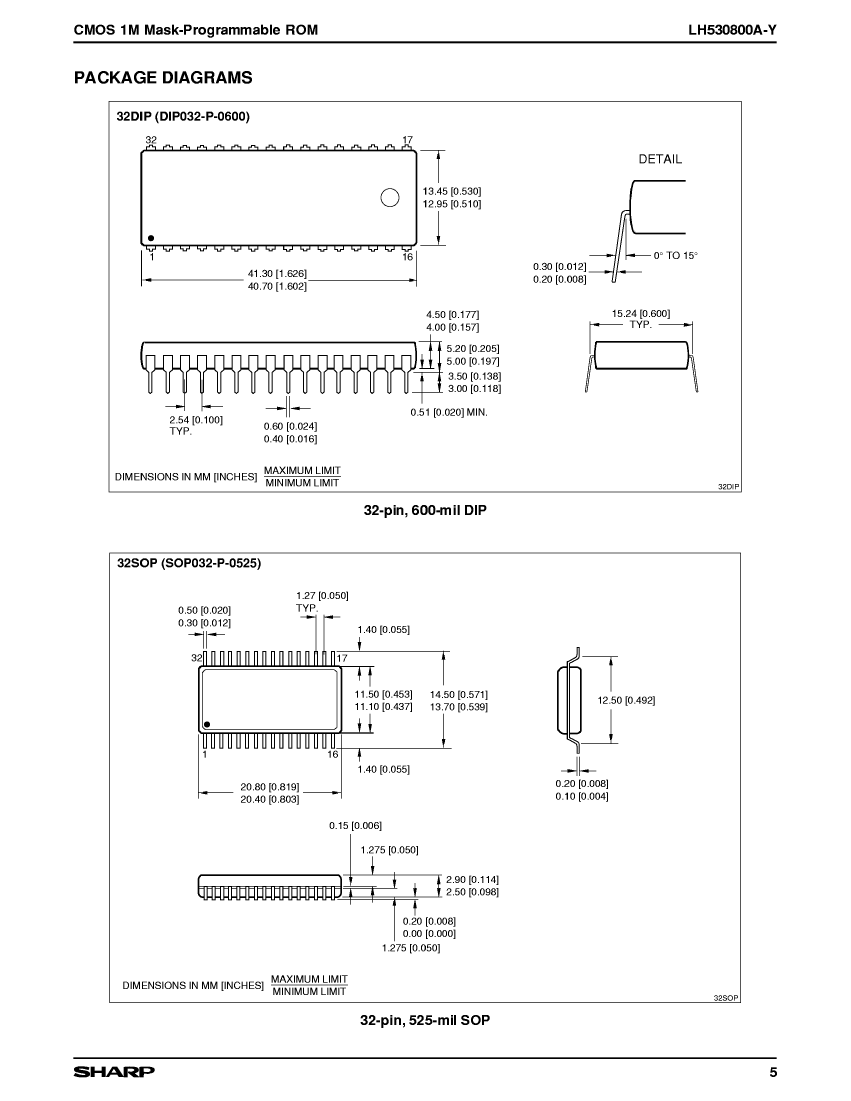

package instruction	0.525 INCH, PLASTIC, SOP-32
Reach Compliance Code	unknown

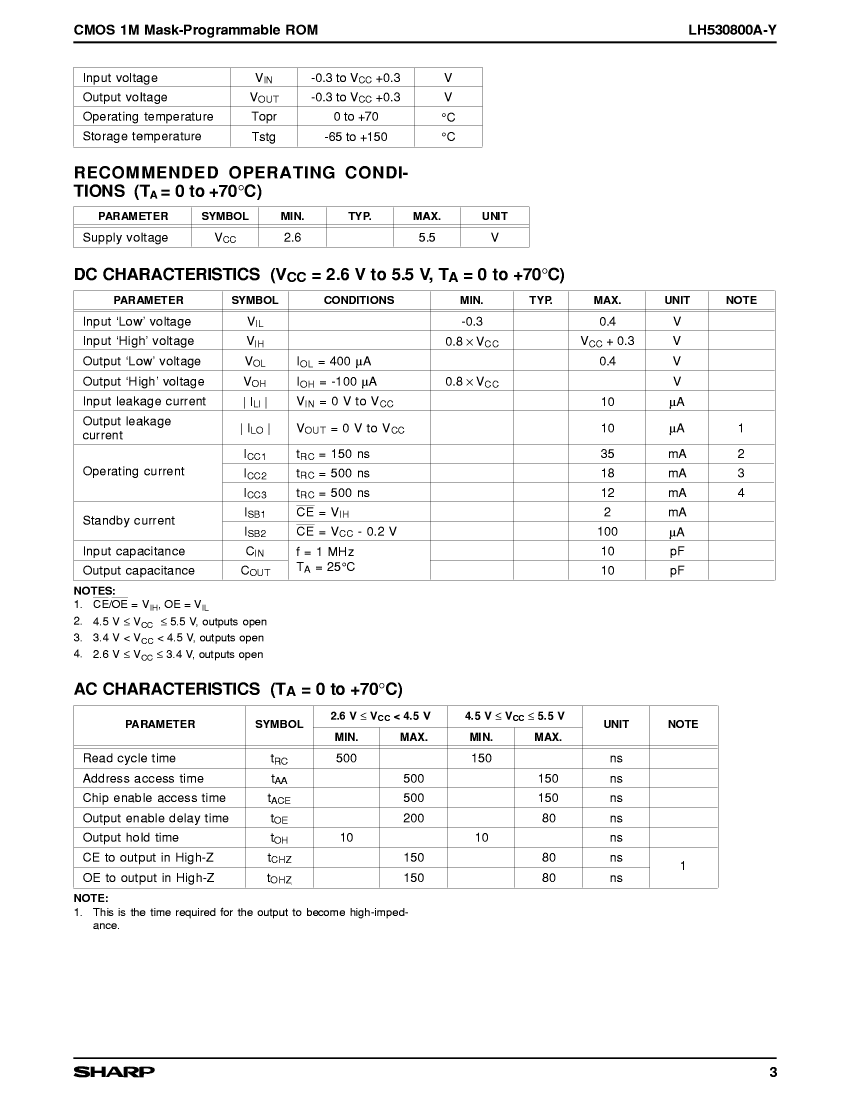

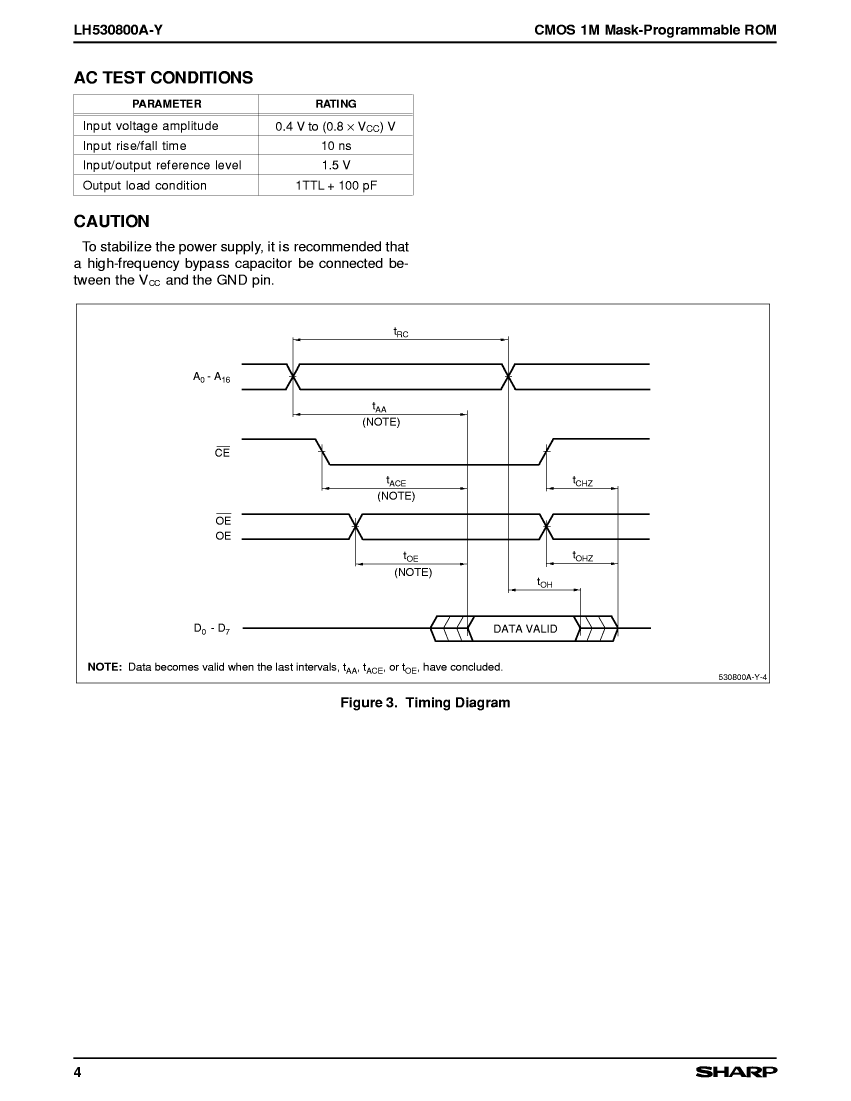

Maximum access time	500 ns
JESD-30 code	R-PDSO-G32
length	20.6 mm
memory density	1048576 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.6 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	11.3 mm

	LH530800A-YN	LH530800A-YD
Description	MASK ROM, 128KX8, 500ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32	MASK ROM, 128KX8, 500ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32
Maker	SHARP	SHARP
package instruction	0.525 INCH, PLASTIC, SOP-32	0.600 INCH, PLASTIC, DIP-32
Reach Compliance Code	unknown	unknown
Maximum access time	500 ns	500 ns
JESD-30 code	R-PDSO-G32	R-PDIP-T32
length	20.6 mm	41 mm
memory density	1048576 bit	1048576 bit
Memory IC Type	MASK ROM	MASK ROM
memory width	8	8
Number of functions	1	1
Number of terminals	32	32
word count	131072 words	131072 words
character code	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	128KX8	128KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.1 mm	5.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.6 V	2.6 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	11.3 mm	15.24 mm
