PC755BVZFU300LD datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PC755BVZFU300LD

PC755BVZFU300LD: DescriptionRISC Microprocessor, 32-Bit, 300MHz, CMOS, PBGA360, 25 X 25 MM, 2.77 MM HEIGHT, 1.27 MM PITCH, PLASTIC, FCBGA-360; CategoryThe embedded processor and controller Microcontrollers and processors; File Size169KB，2 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

PC755BVZFU300LD Overview

RISC Microprocessor, 32-Bit, 300MHz, CMOS, PBGA360, 25 X 25 MM, 2.77 MM HEIGHT, 1.27 MM PITCH, PLASTIC, FCBGA-360

PC755BVZFU300LD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	BGA
package instruction	BGA, BGA360,19X19,50
Contacts	360
Reach Compliance Code	unknown
ECCN code	3A001.A.3
Address bus width	32
bit size	32
boundary scan	YES
maximum clock frequency	100 MHz
External data bus width	64
Format	FLOATING POINT
Integrated cache	YES
JESD-30 code	S-PBGA-B360
JESD-609 code	e0
length	25 mm
low power mode	YES
Number of terminals	360
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA360,19X19,50
Package shape	SQUARE
Package form	GRID ARRAY
power supply	1.8/3.3 V
Certification status	Not Qualified
Maximum seat height	2.77 mm
speed	300 MHz
Maximum supply voltage	2.1 V
Minimum supply voltage	1.9 V
Nominal supply voltage	2 V
surface mount	YES
technology	CMOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
width	25 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC

Preview

Download Datasheet

View All

PC745B/PC755BFS - Rev.1 – 01/11

PC745B AND PC755B PowerPC

Microprocessors

Fact Sheet

PC745B and PC755B PowerPC microprocessors are high-performance, low-power, 32-bit implementations of the

PowerPC Reduced Instruction Set Computer (RISC) architecture, specially enhanced for embedded applications. The

PC755B and PC745B microprocessors differ only in that the PC755B features an enhanced, dedicated L2-cache

interface with on-chip L2-tags. Both are software compatible with the PowerPC603e microprocessor family and the

PC745B is pin-compatible as well. Both PC745B and PC755B are fully JTAG compliant.

PC745B and PC755B Main Features

Six independent execution units

2 Integer Units sharing 32 General Purpose Registers

Floating Point Unit using a 32-entry FPR file

Branch Processing Unit : 4 instructions fetched per clock

Load/Store Unit

System Register Unit

32-Kbytes, physically addressed, Instruction and Data caches

8-way set associative Instruction and Data caches

Dedicated L2-cache with on-chip L2 tags (PC755B only)

Separate Instruction and Data MMUs

Virtual memory support up to 4 Petabytes (2

)

Completion

Real memory support up to 4 Gigabytes (2

)

Unit

128-entry instruction and data TLBs

Cache and MMU support

Dispatch

Unit

Branch

Unit

Integer

Unit

Gen Gen

Reg Re-

File name

Load/

Store

Unit

FPU

Reg

File

Floating

Point

Unit

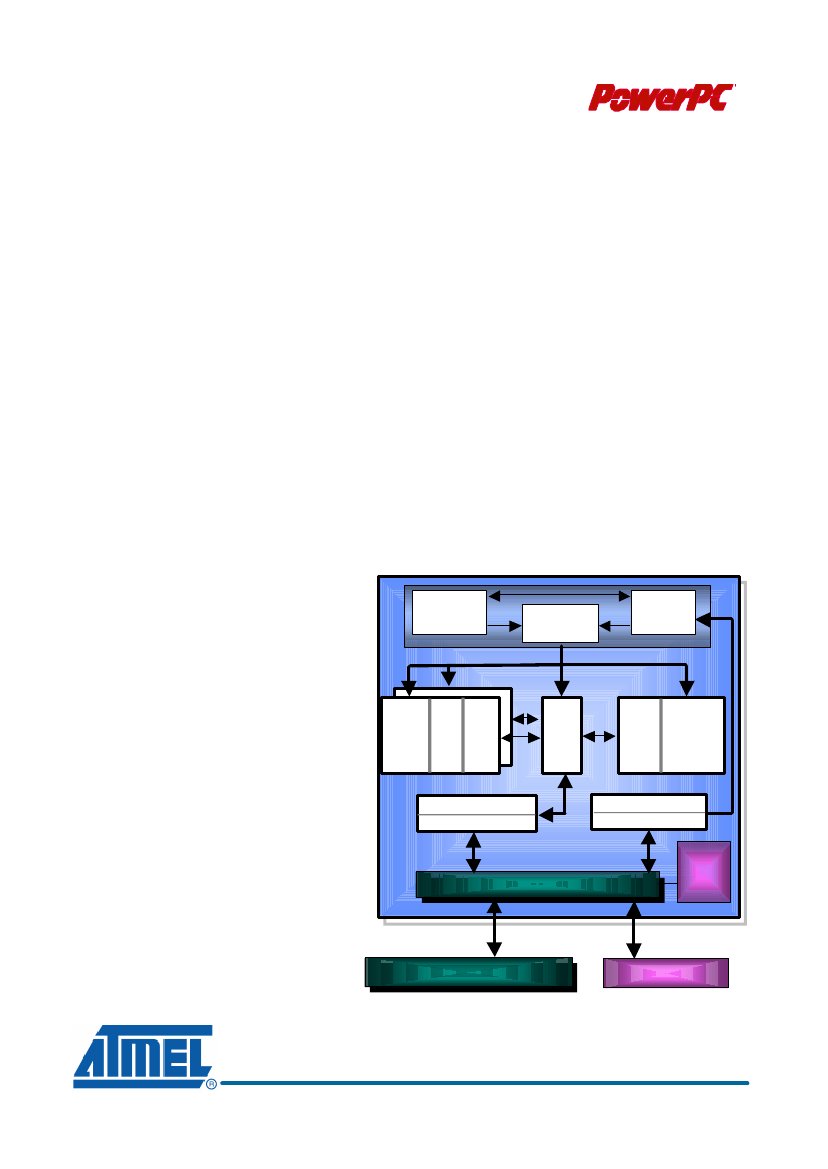

D MMU

Data Cache

I MMU

Inst. Cache

Bus Interface Unit

PC755BVZFU300LD Related Products

	PC755BVZFU300LD	PC745BVZFU300LE	PC745BVZFU300LD	PC755BMZFU300LD	PC755BVZFU300LE	PC755BMZFU350LD	PC755BVZFU350LD	PC745BMZFU300LD	PC755BMZFU400LE
Description	RISC Microprocessor, 32-Bit, 300MHz, CMOS, PBGA360, 25 X 25 MM, 2.77 MM HEIGHT, 1.27 MM PITCH, PLASTIC, FCBGA-360	RISC Microprocessor, 32-Bit, 300MHz, CMOS, PBGA255, 21 X 21 MM, 2.80 MM HEIGHT, 1.27 MM PITCH, PLASTIC, FCBGA-255	RISC Microprocessor, 32-Bit, 300MHz, CMOS, PBGA255, 21 X 21 MM, 2.80 MM HEIGHT, 1.27 MM PITCH, PLASTIC, FCBGA-255	RISC Microprocessor, 32-Bit, 300MHz, CMOS, PBGA360, 25 X 25 MM, 2.77 MM HEIGHT, 1.27 MM PITCH, PLASTIC, FCBGA-360	RISC Microprocessor, 32-Bit, 300MHz, CMOS, PBGA360, 25 X 25 MM, 2.77 MM HEIGHT, 1.27 MM PITCH, PLASTIC, FCBGA-360	RISC Microprocessor, 32-Bit, 350MHz, CMOS, PBGA360, 25 X 25 MM, 2.77 MM HEIGHT, 1.27 MM PITCH, PLASTIC, FCBGA-360	RISC Microprocessor, 32-Bit, 350MHz, CMOS, PBGA360, 25 X 25 MM, 2.77 MM HEIGHT, 1.27 MM PITCH, PLASTIC, FCBGA-360	RISC Microprocessor, 32-Bit, 300MHz, CMOS, PBGA255, 21 X 21 MM, 2.80 MM HEIGHT, 1.27 MM PITCH, PLASTIC, FCBGA-255	RISC Microprocessor, 32-Bit, 400MHz, CMOS, PBGA360, 25 X 25 MM, 2.77 MM HEIGHT, 1.27 MM PITCH, PLASTIC, FCBGA-360
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA
package instruction	BGA, BGA360,19X19,50	BGA, BGA255,16X16,50	BGA, BGA255,16X16,50	BGA, BGA360,19X19,50	BGA, BGA360,19X19,50	BGA, BGA360,19X19,50	BGA, BGA360,19X19,50	BGA, BGA255,16X16,50	BGA, BGA360,19X19,50
Contacts	360	255	255	360	360	360	360	255	360
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.2.C	3A001.A.3	3A001.A.2.C	3A001.A.3	3A001.A.2.C	3A001.A.2.C
Address bus width	32	32	32	32	32	32	32	32	32
bit size	32	32	32	32	32	32	32	32	32
boundary scan	YES	YES	YES	YES	YES	YES	YES	YES	YES
maximum clock frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
External data bus width	64	64	64	64	64	64	64	64	64
Format	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT
Integrated cache	YES	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	S-PBGA-B360	S-PBGA-B255	S-PBGA-B255	S-PBGA-B360	S-PBGA-B360	S-PBGA-B360	S-PBGA-B360	S-PBGA-B255	S-PBGA-B360
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	25 mm	21 mm	21 mm	25 mm	25 mm	25 mm	25 mm	21 mm	25 mm
low power mode	YES	YES	YES	YES	YES	YES	YES	YES	YES
Number of terminals	360	255	255	360	360	360	360	255	360
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA
Encapsulate equivalent code	BGA360,19X19,50	BGA255,16X16,50	BGA255,16X16,50	BGA360,19X19,50	BGA360,19X19,50	BGA360,19X19,50	BGA360,19X19,50	BGA255,16X16,50	BGA360,19X19,50
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
power supply	1.8/3.3 V	1.8/3.3 V	1.8/3.3 V	1.8/3.3 V	1.8/3.3 V	1.8/3.3 V	1.8/3.3 V	1.8/3.3 V	1.8/3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.77 mm	2.8 mm	2.8 mm	2.77 mm	2.77 mm	2.77 mm	2.77 mm	2.8 mm	2.77 mm
speed	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz	350 MHz	350 MHz	300 MHz	400 MHz
Maximum supply voltage	2.1 V	2.1 V	2.1 V	2.1 V	2.1 V	2.1 V	2.1 V	2.1 V	2.1 V
Minimum supply voltage	1.9 V	1.8 V	1.9 V	1.9 V	1.8 V	1.9 V	1.9 V	1.9 V	1.9 V
Nominal supply voltage	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	BALL	BALL	BALL	BALL	BALL	BALL	BALL	BALL	BALL
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
width	25 mm	21 mm	21 mm	25 mm	25 mm	25 mm	25 mm	21 mm	25 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
Maker	Atmel (Microchip)	-	-	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
