REVISION CP
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
C1
2. MINIMUM PUSHOUT FORCE: .5 LB.
3. COPLANARITY: .004[0.10] = POS 05 THRU 26
.006[0.15] = POS 27 THRU 50
4. TUBE ALL POSITIONS. PARTS TO BE TUBED WITH
NOTCH GOING WITH ARROW.
5. PINS CAN BE ORIENTED IN ANY DIRECTION;
BOTH ROWS MUST FACE SAME WAY.
6. SEE NOTCH FOR PROPER ORIENTATION.
7. MAXIMUM PIN HEIGHT VARIATION: .003[0.08].
8. DUE TO HIGH AMOUNT OF INSERTION FORCE
NEEDED, THE -LC OPTION IS NOT COMPATIBLE WITH
AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL
PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.
SFM-1XX-XX-XXX-D-XXX
No OF POSITIONS
ALL POSITIONS AVAILABLE
-02 THRU -50
(USE BODY: SFM-XX-D-XX-X)
LEAD STYLE
-01: THROUGH HOLE
(USE CONTACT: C-44-01-XXX)
(SEE FIG. 1, SHT. 1)
-02: SURFACE MOUNT
(USE CONTACT: C-44-02-XXX)
(SEE FIG. 2, SHT. 2)
-03: STRAIGHT MODIFIED
(USE CONTACT: C-44-03-XXX)
(SEE FIG. 1, SHT. 1)
-L1: THROUGH HOLE (LOW INSERTION)
(USE CONTACT: C-61-01-XXX)
(SEE FIG. 1, SHT. 1)
-L2: SURFACE MOUNT (LOW INSERTION)
(USE CONTACT: C-61-02-XXX)
(SEE FIG. 2, SHT. 2)
-L3: STRAIGHT MODIFIED (LOW INSERTION)
(USE CONTACT: C-61-03-XXX)
(SEE FIG. 1, SHT. 1)
-T1: THROUGH HOLE (PHOS BRONZE)
(USE CONTACT: C-119-01-XXX)
(SEE FIG. 1, SHT. 1)
-T2: SURFACE MOUNT (PHOS BRONZE)
(USE CONTACT: C-119-02-XXX)
(SEE FIG. 2, SHT. 2)
OPTIONS
(LEAVE BLANK FOR STANDARD
AND USE SFM-XX-D)
-N: NO POLARIZATION NOTCH
(USE SFM-XX-D-XX-N)
-A: ALIGNMENT PIN (USE SFM-XX-D-A-X)
(SEE FIG. 4, SHT 2)
-LC: LOCKING CLIP (SEE FIG. 6, SHT. 3 & NOTE 8)
(AVAILABLE ON ALL LEADS)
-P: PICK AND PLACE PAD
(SEE FIG. 5, SHT 2)
-TR: TAPE & REEL (SEE SHT 4)
(NOT AVAILABLE WITH -SD OPTION)
-K: POLYIMIDE FILM PAD (.005[0.13]
THICKNESS WITH SILICONE ADHESIVE)
(SEE FIG. 3, SHT. 2) (USE K-500-300)
-SN: SOLDER NAIL FOR .062 BOARD
(SFM-XX-D-SN AND WT-27-01-T)
(AVAILABLE WITH LEAD STYLE -02, -L2 & -T2)
(NOT AVAILABLE WITH -A & -LC)
-SN2: SOLDER NAIL FOR .093 BOARD
(SFM-XX-D-SN AND WT-27-02-T)
(AVAILABLE WITH LEAD STYLE -02, -L2 & -T2)
(NOT AVAILABLE WITH -A & -LC)
**-SD: SCREW DOWN FOR .062 BOARD
(ONLY AVAILABLE WITH -01 & -02 LEAD STYLE)
(NOT AVAILABLE WITH OPTIONS -N, -A, -LC,
-RA, -SA, -WT, -RE1, -RE2, SN, OR SN2
(SFM-XX-D-SD, CPS-RR-XX-XX-X & ACCRT-01)
(SEE FIG. 8, SHT. 3)
(** = NOT RELEASED FOR PRODUCTION)
BODY SPECIFICATION
-D: DOUBLE ROW
PLATING SPECIFICATION
CP
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA,
TIN/LEAD (90/10+/-5%) TAIL
(ONLY AVAILABLE ON -02 OR -L2 LEADSTYLES)
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
DO NOT
SCALE FROM
THIS PRINT
*: DIMENSIONS N/A FOR -N OPTION
*.145 3.68 REF
*.020 0.51 REF
*.080 2.03 REF
.120 3.05 REF
.050 1.27 REF
02
C
L
C
L
01
.050 1.27 REF
(NO. OF POS x .050[1.27]) + .015[0.38] REF
"A"
C
L
(NO. OF POS x .050[1.27]) + .155[3.94] REF
SFM-XX-D-XX-X
C-XX-01-XXX
(SEE NOTE 5)
.110 2.79 REF
.180 4.57 REF
"A"
(SEE TABLE 1)
.015 0.38 REF
C2
C
L
2 MAX SWAY (TYP)
.050 1.27
C4
"A"
C3
"B" REF
1 MAX SWAY (TYP)
(NO. OF POS x .050[1.27]) - .050[1.27] REF
.005 0.13 REF
SECTION "A"-"A"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.

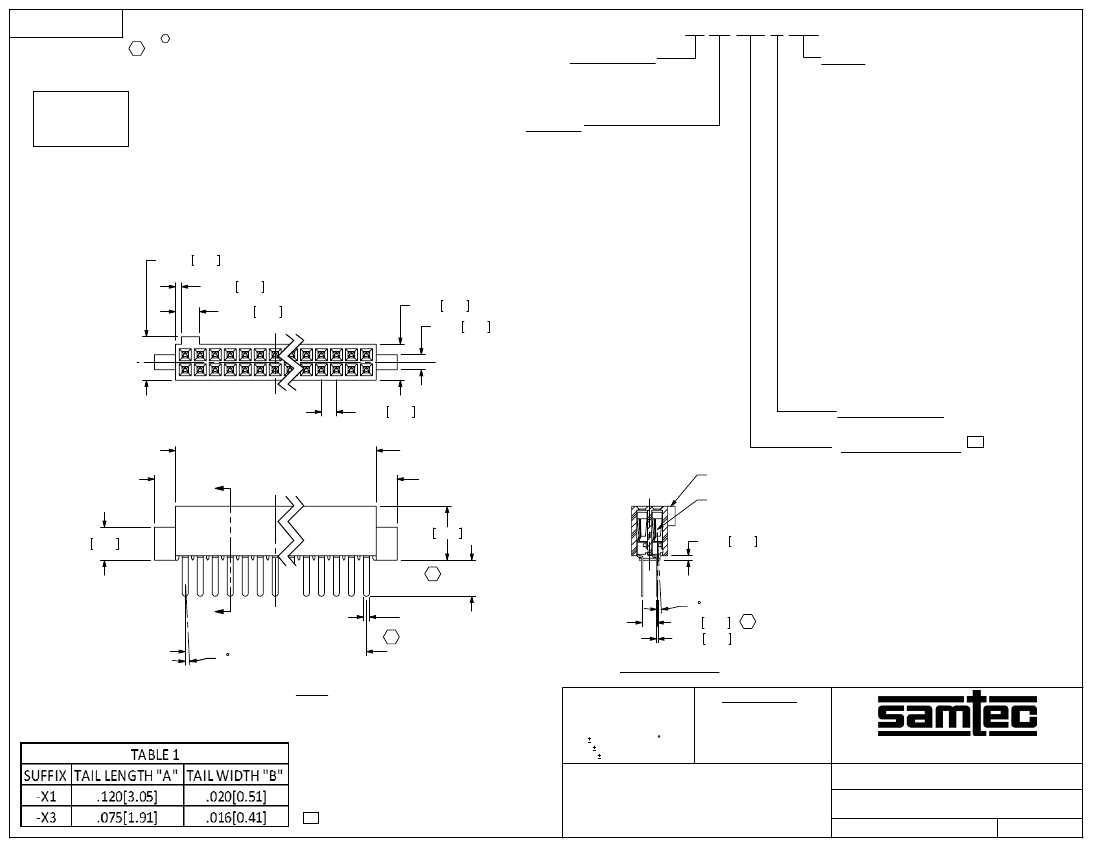

THROUGH HOLE/STRAIGHT MODIFIED
FIG 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
INSULATOR: LCP, COLOR: BLACK
CONTACT: TIGER EYE = BeCu
TIGER EYE LITE = PHOSPHOR BRONZE
.050 x .050 SOCKET STRIP DOUBLE ROW ASSEMBLY
CP
F:\DWG\MISC\MKTG\SFM-1XX-XX-XXX-D-XXX-MKT.SLDDRW
BY:
JORDAN
SFM-1XX-XX-XXX-D-XXX
12/11/89
SHEET
1
OF
4
REVISION CP
C-XX-02-XXX
02
(NO. OF POS x .050[1.27]) - .050[1.27] REF
(TOL ACCUM ±.005[0.13] OVER 50 POS)
"S"
(SEE NOTE)
C7
"R"
(SEE NOTE)
.019±.010 0.48±0.254
C5
01
2 MAX SWAY (TYP)
.1575±.0050 4.000±0.127
.190 4.83
-K: POLYIMIDE FILM PAD
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 3
"B"
SFM-XX-D-XX-X
C6
NOTE: "R" = USED MEASURED DIMENSION REF
"S" = {("R" - .1575[4.000])/2}±.020[0.51]
+.002
+0.051
.185
- .005
4.70
- 0.127
(SEE NOTE 7)
4°
SEE NOTE 2
2°
.161 4.09 REF
"B"
SEE NOTE

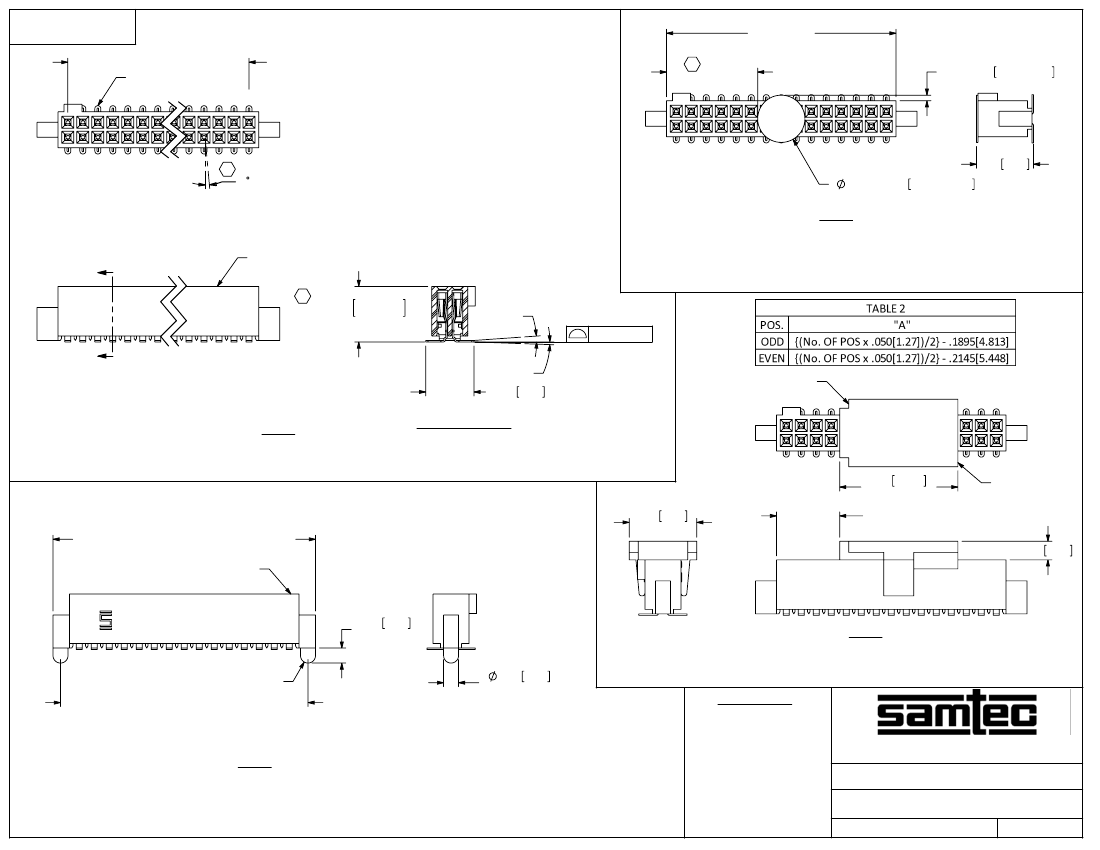

-X2: SURFACE MOUNT
(SAME AS FIG 1, DIFFERENT AS SHOWN)
.394 10.01
REF
.225 5.72
REF
FIG 2
SECTION "B"-"B"
PPP-02
"A"±.010[0.25] (SEE TABLE 2)
.062 1.57
(NO. OF POS x .050[1.91]) + .125[3.18] REF
SFM-XX-D-A-X
.050 1.27
REF
.050 1.27
REF
R REF
(NO. OF POS x .050[1.91]) + .075[0.38] REF
-P: PICK AND PLACE PAD
(PAD TO BE ORIENTED A SHOWN FOR 5-12 POSITION PARTS)
(FOR 13-50 POSITION PARTS, PAD MAY BE ORIENTED IN EITHER DIRECTION)
(SAME AS FIG 1, DIFFERENT AS SHOWN)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 5
-A: ALIGNMENT PIN
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 4
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
.050 x .050 SOCKET STRIP DOUBLE ROW ASSEMBLY
F:\DWG\MISC\MKTG\SFM-1XX-XX-XXX-D-XXX-MKT.SLDDRW
BY:
JORDAN
SFM-1XX-XX-XXX-D-XXX
12/11/89
SHEET
2
OF
4
REVISION CP

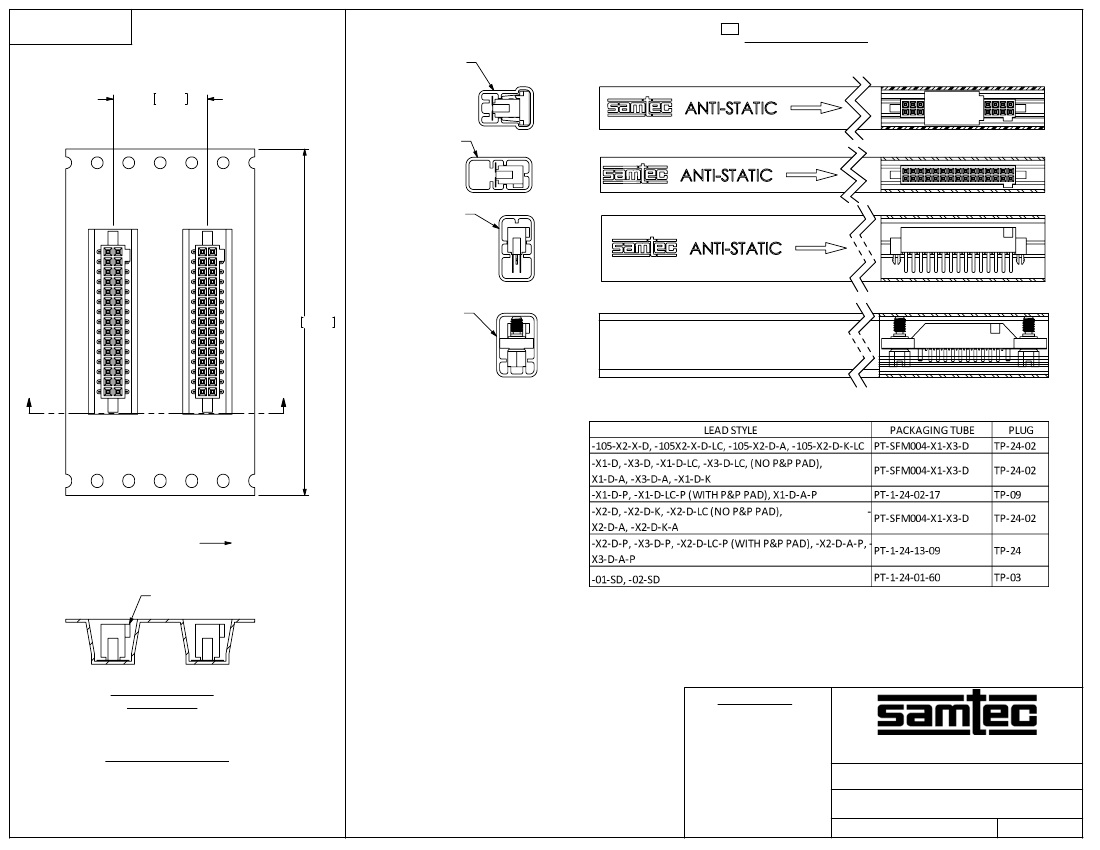

SFM-XX-D-LC-X
(NO OF POS x .050[1.27] + .360[9.14]
.218 5.52
REF
.010 0.25 REF
.065 1.65 REF
.056 1.42 REF
(NO OF POS x .050[1.27] + .075[1.91] REF
02
LC-05-TM
01
-LC: LOCKING CLIP
(SAME AS FIG 1, DIFFERENT AS SHOWN)
(AVAILABLE IN ALL LEADS)
CPS-RR-M2-01-X
FIG 6
'E'
C8

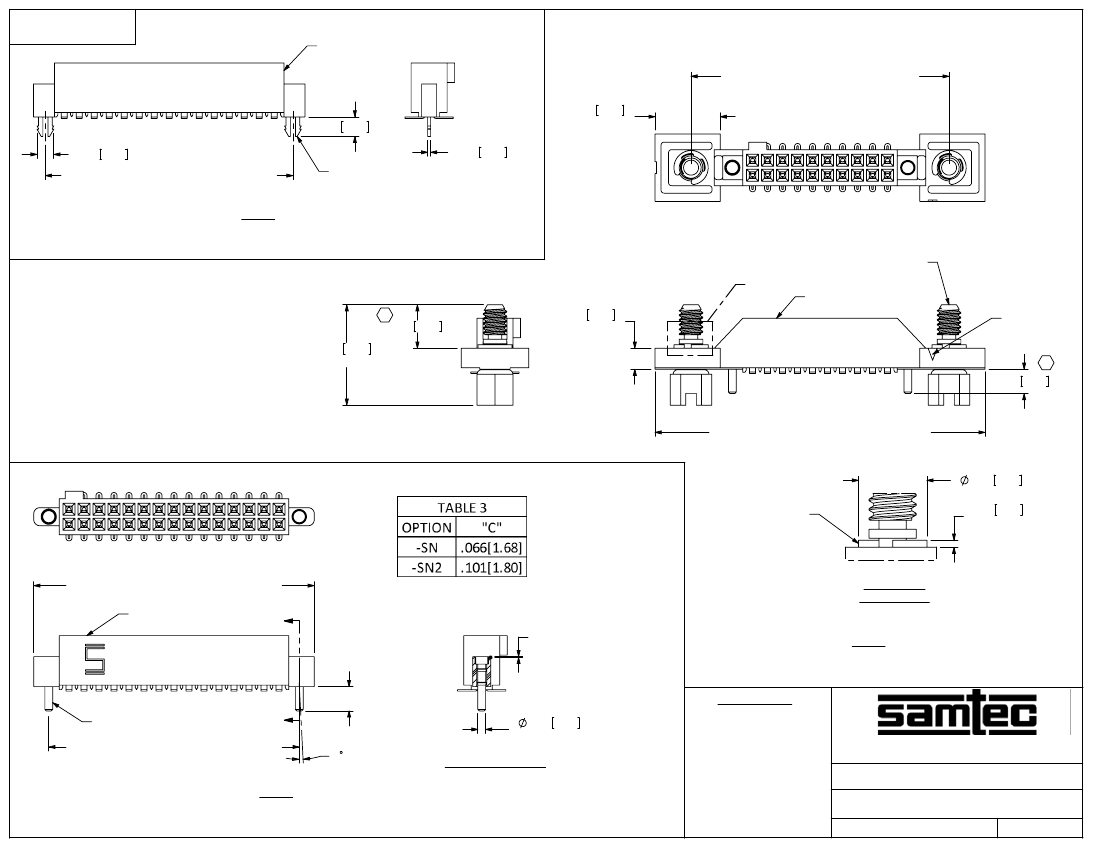

SFM-XX-D-SD
POSITION 1
INDICATOR
C9
.145 3.68
.070 1.78
REF
.335 8.50
REF
.081 2.06
(NO OF POS x .050[1.27] + .600[15.24] REF
.114 2.90 REF
ACCRT-01
.012 0.30
REF
(NO OF POS x .050[1.27] + .185[4.70] REF
DETAIL 'E'
SCALE 6 : 1
FLUSH TO .005[0.13] ABOVE
SFM-XX-D-SN
"C"
-SD: SCREW DOWN
(SAME AS FIG 7, DIFFERENT AS SHOWN)
(NOT RELEASED FOR PRODUCTION)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 8
"C" REF
WT-27-XX-T
"C"
2 MAX SWAY (TYP)
(NO OF POS x .050[1.27] + .085[1.27] REF
.026 0.66
REF
SECTION "C"-"C"
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
-SNX: SOLDER NAIL
(SAME AS FIG 1, DIFFERENT AS SHOWN)
F:\DWG\MISC\MKTG\SFM-1XX-XX-XXX-D-XXX-MKT.SLDDRW
FIG 7
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
.050 x .050 SOCKET STRIP DOUBLE ROW ASSEMBLY
SFM-1XX-XX-XXX-D-XXX
12/11/89
SHEET
3
OF
4
BY:
JORDAN
