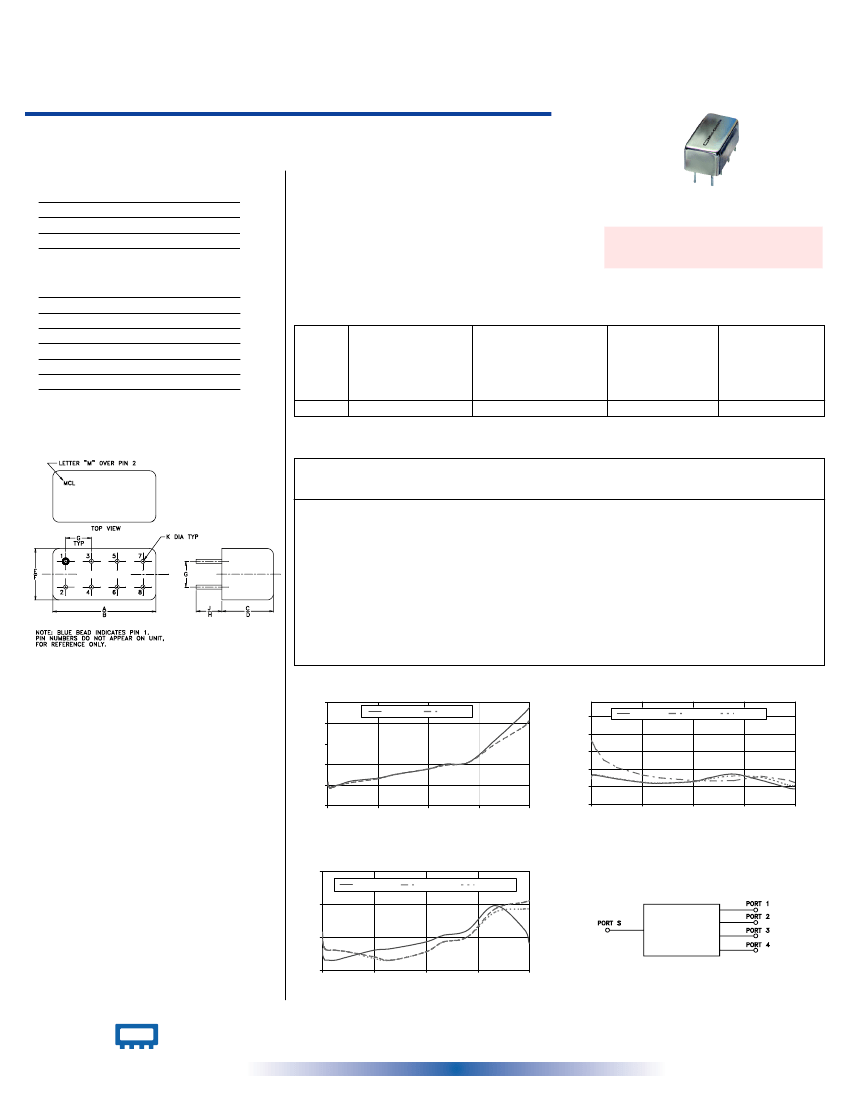

PSC-4-5+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PSC-4-5+

PSC-4-5+: DescriptionCombiner, 1MHz Min, 800MHz Max, 2.5dB Insertion Loss-Max, ROHS COMPLIANT, CASE A01, 8 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size97KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

PSC-4-5+ Overview

Combiner, 1MHz Min, 800MHz Max, 2.5dB Insertion Loss-Max, ROHS COMPLIANT, CASE A01, 8 PIN

PSC-4-5+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	ROHS COMPLIANT, CASE A01, 8 PIN
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ISOLATION-MIN (DB):17
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	26.99 dBm
Maximum insertion loss	2.5 dB
JESD-609 code	e2
Maximum operating frequency	800 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin/Silver (Sn/Ag)
Maximum voltage standing wave ratio	1.42

Preview

Download Datasheet

View All

Plug-In

Power Splitter/Combiner

4 Way-0° 50Ω

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

-55°C to 100°C

.5W max.

0.250W max.

PSC-4-5+

PSC-4-5

1 to 800 MHz

Features

•

wideband, 1 to 800 MHz.

low insertion loss, 0.6 dB typ.

good isolation, 24 dB typ.

rugged welded construction

CASE STYLE: A01

PRICE: $49.70 ea. QTY (1-9)

Applications

Pin Connections

SUM PORT

PORT 1

PORT 2

PORT 3

PORT 4

GROUND

CASE GROUND

3,5,6

-f

1-800

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The + suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications.

• VHF/UHF

• communication systems

• instrumentation

Splitter Electrical Specifications

FREQ.

RANGE

(MHz)

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 6 dB

Typ. Max. Typ. Max.

0.6

1.5

1.3

2.5

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.2

Max.

0.5

Max.

0.6

Typ. Min. Typ. Min. Typ. Min. Typ. Max.

0.4

0.8

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U = upper range [f

/2 to f

]

Outline Drawing

Freq.

(MHz)

Insertion Loss

(dB)

S-1 S-2

S-3 S-4

6.46

6.40

6.36

6.35

6.37

6.41

6.48

6.53

6.60

6.71

6.80

6.84

7.28

7.78

7.90

6.44

6.38

6.35

6.34

6.36

6.41

6.45

6.52

6.61

6.73

6.83

6.89

7.35

7.85

8.00

6.45

6.39

6.36

6.34

6.35

6.40

6.45

6.52

6.60

6.71

6.78

6.84

7.20

7.53

7.65

6.46

6.39

6.36

6.34

6.35

6.40

6.46

6.54

6.62

6.81

6.94

6.95

7.32

7.56

7.64

Typical Performance Data

Amp.

Unbal.

(dB)

0.02

0.04

0.01

0.02

0.01

0.03

0.02

0.10

0.16

0.11

0.15

0.32

0.36

Isolation

(dB)

1-2

1-3

3-4

27.74

28.98

29.67

29.78

29.50

28.65

27.08

24.70

24.06

25.29

27.97

30.36

26.13

20.67

20.29

52.72

53.04

51.87

50.48

47.13

40.22

35.01

29.75

27.88

25.96

25.73

25.86

28.98

26.01

24.44

27.19

28.83

29.94

30.10

29.91

29.02

27.31

24.96

24.25

25.05

27.25

29.12

28.19

22.67

22.44

VSWR VSWR VSWR VSWR VSWR

1.00

2.00

6.39

10.00

20.00

50.00

100.00

200.00

267.00

400.00

467.00

560.00

667.00

778.00

800.00

1.13

1.09

1.07

1.06

1.08

1.12

1.13

1.17

1.21

1.24

1.39

1.25

1.16

1.22

1.17

1.14

1.13

1.12

1.11

1.08

1.06

1.11

1.17

1.20

1.37

1.41

1.42

1.22

1.17

1.14

1.13

1.12

1.11

1.08

1.07

1.12

1.18

1.21

1.38

1.42

1.23

1.17

1.14

1.13

1.12

1.11

1.07

1.06

1.11

1.17

1.20

1.35

1.37

1.23

1.17

1.14

1.13

1.12

1.11

1.08

1.07

1.11

1.16

1.20

1.35

1.38

PSC-4-5

INSERTION LOSS

INSERTION LOSS (dB)

PSC-4-5

ISOLATION

ISOLATION (dB)

1-2(dB)

1-3(dB)

3-4(dB)

Outline Dimensions (

inch

)

.770 .800

19.56 20.32

.200

5.08

.20

5.08

.385 .400

9.78 10.16

.14

3.56

.031

0.79

.370 .400

9.40 10.16

grams

5.2

8.0

S-1(dB)

7.6

7.2

6.8

6.4

6.0

200

400

FREQUENCY (MHz)

PSC-4-5

VSWR

1.6

#S-VSWR

1.4

VSWR

#1-VSWR

#3-VSWR

600

800

S-3(dB)

200

400

FREQUENCY (MHz)

600

800

electrical schematic

1.2

1.0

200

400

FREQUENCY (MHz)

600

800

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. A

M98898

PSC-4-5

HY/TD/CP

060711

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified
