PA1020F datasheet, PDF - EEWORLD Datasheet

PA1020F: DescriptionWide Band Low Power Amplifier, 5MHz Min, 250MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size161KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

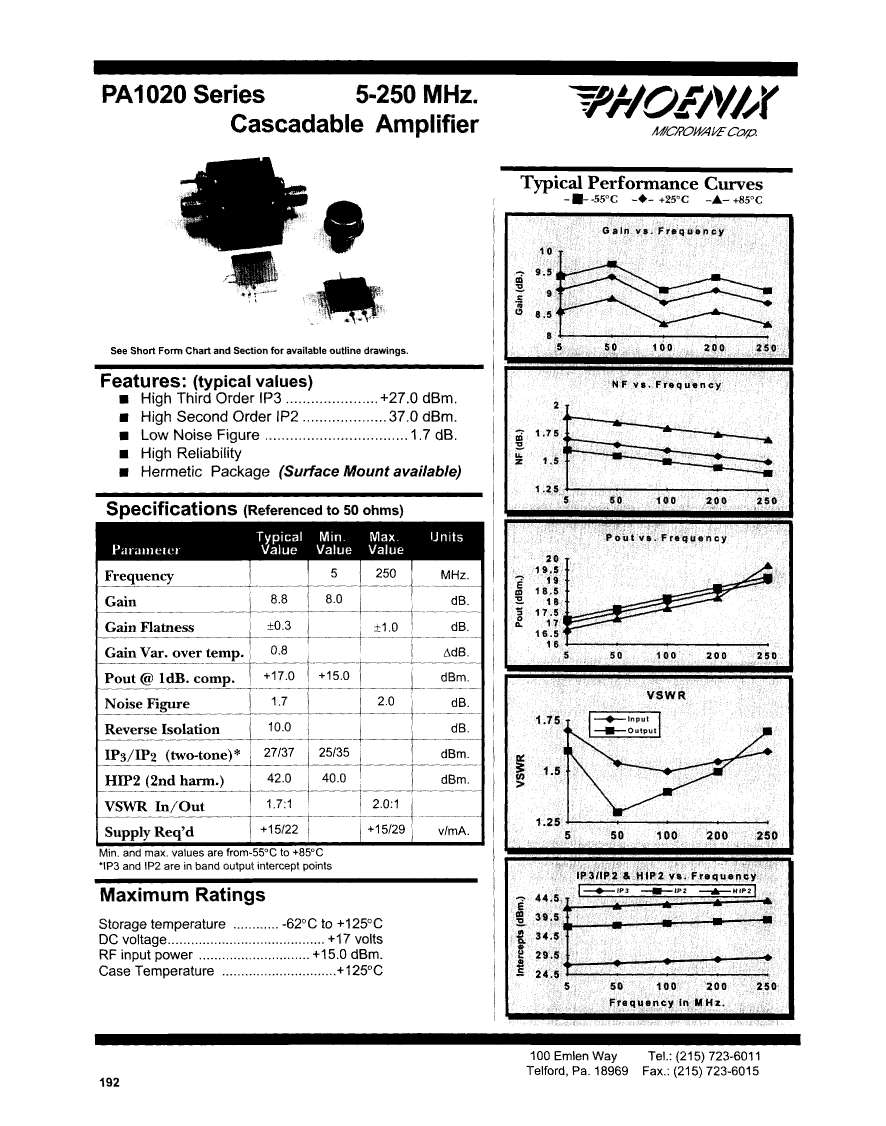

PA1020F Overview

Wide Band Low Power Amplifier, 5MHz Min, 250MHz Max,

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	15 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

	PA1020F	PA1020C	PA1020CS	PA1020MH	PA1020FH
Description	Wide Band Low Power Amplifier, 5MHz Min, 250MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 250MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 250MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 250MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 250MHz Max,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	15 dBm	15 dBm	15 dBm	15 dBm	15 dBm
Maximum operating frequency	250 MHz	250 MHz	250 MHz	250 MHz	250 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2	2
Base Number Matches	-	1	1	1	-
