Only One Name Means ProTek’Tion™
PF1206S Series
Slow blow chiP FuSeS

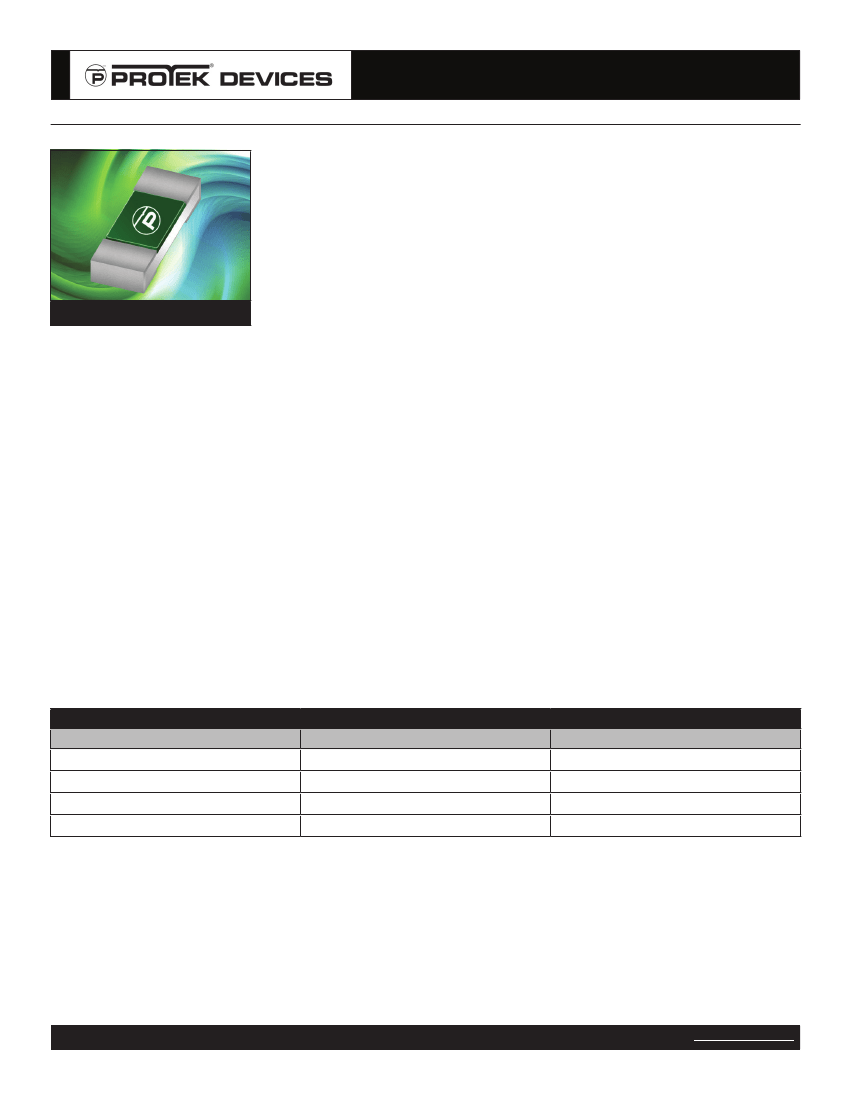

DeScRiPtion
The PF1206S Series are slow blow, high inrush chip fuses that are designed to protect consumer electronics, comput-
ers and telecommincations equipment and devices from the risk of fire or shock caused by over-currents.
The PF1206S Series is available in a rugged ceramic and glass package. These devices have excellent environmental
performance.
FuSe
FeatuReS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
High Inrush Current Withstanding Capability
Compatible with Reflow and Wave Solder
Excellent Environmental Performance
RoHS & REACH Compliant
Halogen-Free Material
Life Test: MIL-STD-202, Method 108D
Humidity Bias: MIL-STD-202, Method 103
Moisture Resistance Test: MIL-STD-202, Method 106G
Thermal Shock: MIL-STD-202, Method 107G
Terminal Strength: AEC-Q200-006
Board Flex: AEC-Q200-005
Vibration: MIL-STD-202, Method 204C
Mechanical Shock: MIL-STD-202, Method 213C
Solderability: ANSI/J-STD-002
Resistance to Solder Heat: MIL-STD-202, Method 210B
Resistance to Solvents Test: MIL-STD-202, Method 216
aPPlicationS
•
•
•
•
•
Telecommications Equipment - DSL/Cable Modems
SMART Phones and other Handheld Devices
Computers - Laptops, Desktops, Servers
Computer Peripherials - Printers, LCD Panels, Scanners
Consumer Electronics - DVD Player, MP3/MP4 Players
Mechanical chaRacteRiSticS
•
•
•
•
Ceramic and Glass Package
Approximate Weight: 0.009 grams
Lead-Free
Soldering Method
Wave Soldering: 260°C, 10s Max
Reflow Soldering: 260°C, 30s Max
electRical chaRacteRiSticS
aMPeRe Rating
1A-7A
1A-7A
1A-7A
1A-7A
% oF aMP Rating
100%
200%
300%
800%
oPening tiMe
4 Hours Minimum
1 ~ 120 Seconds
0.1 ~ 3 Seconds
0.002 ~ 0.05 Seconds
05424.R0 6/13
Page 1
www.protekdevices.com
05424
Only One Name Means ProTek’Tion™
PF1206S Series
tyPical Device chaRacteRiSticS
electRical SPeciFicationS
PaRt
nuMbeR
MaRking
coDe
cuRRent
Rating
aMPS
PF1206S1
PF1206S1.25
PF1206S1.5
PF1206S2
PF1206S2.5
PF1206S3
PF1206S3.5
PF1206S4
PF1206S4.5
PF1206S5
PF1206S5.5
PF1206S6
PF1206S7
noteS
H
J
K
N
O
P
R
S
X
T
D
Y
U
1.00
1.25
1.50
2.00
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00
7.00
voltage
Rating
Dc
63
63
63
63
32
32
32
32
32
32
24
24
24
inteRRuPting
Rating
(note 1)
Dc
aMPS
50
50
50
50
50
50
50
50
50
50
60
60
60
tyPical
ReSiStance
(note 2)
ohMS
0.42
0.25
0.21
0.13
0.08
0.05
0.036
0.03
0.025
0.02
0.016
0.013
0.012
tyPical
Melt i
2
t
(note 3)
Dc (a
2
s)
0.10
0.22
0.25
0.59
0.88
1.10
1.55
2.30
3.55
5.40
6.20
8.10
9.88
1. DC Interrupting Rating - measured at rated voltage, time constant of less than 50 microseconds, battery source.
2. DC Cold Resistance - measured at 10% of rated current.
3. Typical Melting I2t - measured with a battery bank at rated DC voltage and at 0.001 second clear time, time constant of calirated circuit less than 50 microseconds. Device designed to
carry rated current for four hours minimum. An operating current of 75% or less of rated current is recommended, with further derating required at elevated ambient temperatures.
05424.R0 6/13
Page 2
www.protekdevices.com
05424

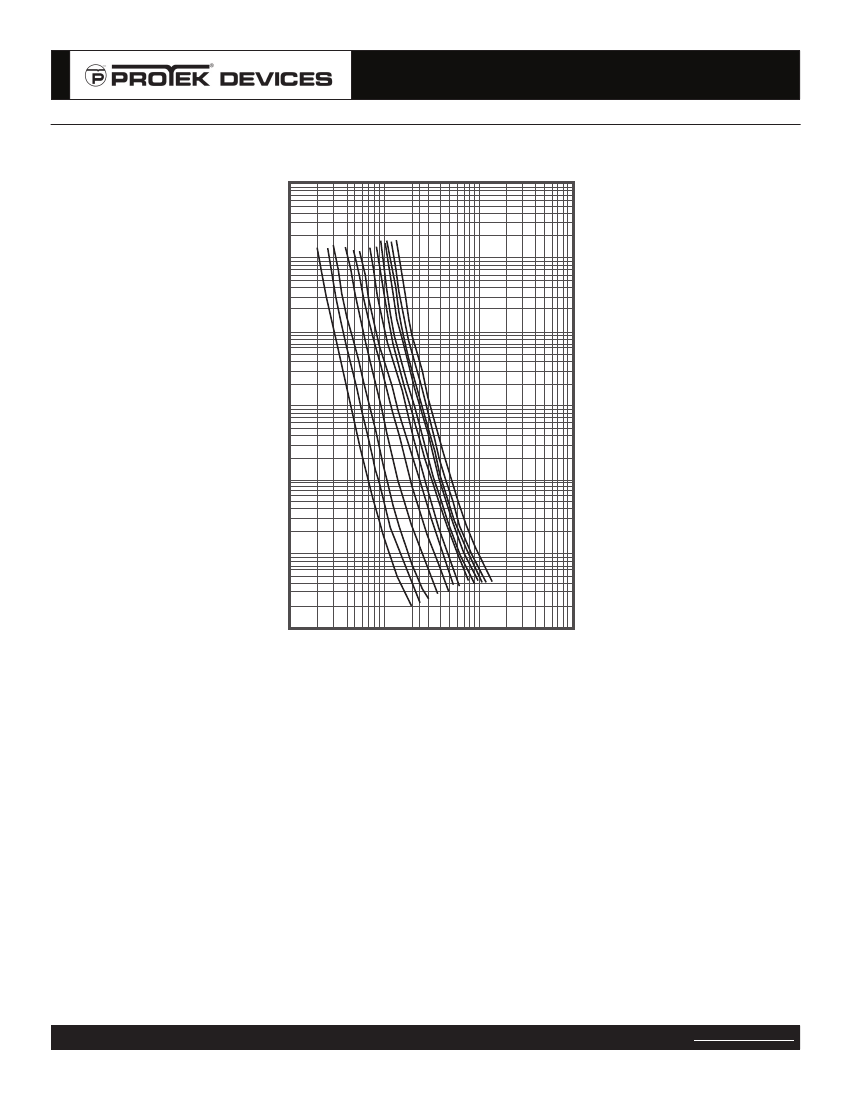

Only One Name Means ProTek’Tion™
PF1206S Series
taPe anD Reel
10 Pitches Cumulative
Tolerance on tape ± 0.2
E
t
D
P2
P0
Top Cover
Tape
K0
A0
B0
F
W
P
User Direction of Feed
SPeciFicationS
Reel Dia.
178mm (7”)
1.
2.
3.
4.
taPe
wiDth
8mm
a0
b0
k0
D
e
F
w
P0
P2
P
tmax
0.25
1.50 ± 0.10 3.09 ± 0.10 0.51 ± 0.10 1.50 ± 0.10 1.75 ± 0.10 3.50 ± 0.05 8.00 ± 0.30 4.00 ± 0.10 2.00 ± 0.05 4.00 ± 0.10
noteS
Dimensions are in millimeters.
Surface mount product is taped and reeled in accordance with EIA-481.
Suffix - T7 = 7” Reel - 3,000 pieces per 8mm tape.
Marking on Part - marking code.
baSe PaRt nuMbeR
(xx = voltage)
PF1206Sxx
oRDeRing inFoRMation
leaDFRee SuFFiX
N/A
taPe SuFFiX
-T7
Qty/Reel
3,000
Reel SiZe
7”
tube Qty
N/A
This device is only available in a Lead-Free configuration.
05424.R0 6/13
Page 5
www.protekdevices.com
