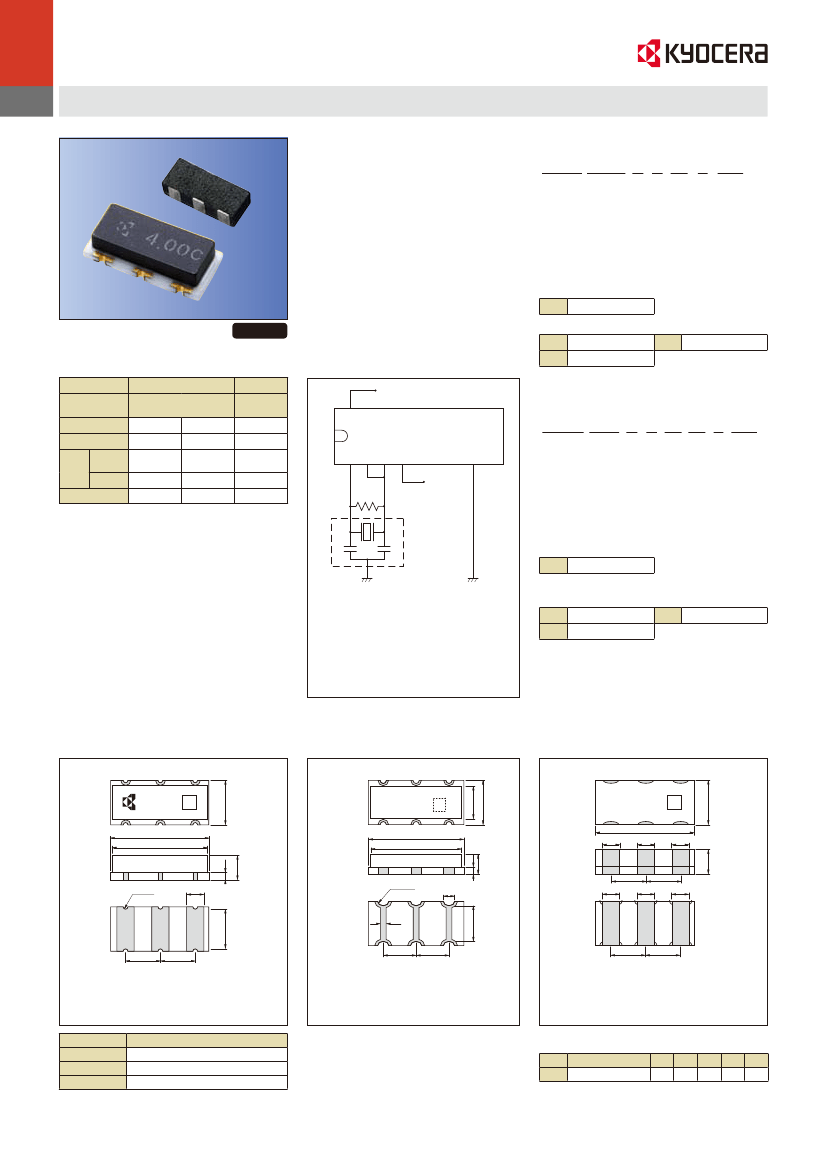

MHz Band Ceramic Chip Resonators (SMD)
PBRV/ PRQV Frequency Tight Tolerance Series
for Automotive Applications
Features
• Improved frequency tolerance for CAN-
BUS application of automotive
• AEC-Q200
How to Order (PBRV)
PBRV 15.00 H R 10 Y 000
Series (PBRV: Automotive)
Frequency (MHz)
Type (H, M)
Packing R: Reel
(Null): Bulk
Frequency Tolerance at 25°C
10
±0.1%
−40°C
to 85°C
−40°C
to 150°C
Y
−40°C
to 125°C
Operating Temperature
X
Z
RoHS Compliant
Specifications
PBRV-H/ M
PRQV-C
PRQV-
PBRV-HR/
Part Number
MR 10Y
CR15 Y
Operating Temperature Range
−40
to
+125°C −40
to
+125°C −40
to
+125°C
Frequency Range
4.0 to 7.9MHz 8.0 to 20.0MHz 8.0 to 20.0MHz
Initial+
±0.2%
±0.25%
Frequency Temperature
±0.3%
Tolerance
±0.1%
±0.1%
±0.05%
Aging
±0.3%
±0.3%
Total Frequency Tolerance
±0.4%
∗
Please refer to the specification sheet of each product for
information including detail dimensions.
∗
Aging characteristics is specified at 25°C for the period of
10 years.
Test Circuit
Series
Unique Code
How to Order (PRQV)
PRQV 8.00 C R 15 10 Y 000
Series (PRQV: Automotive)
Frequency (MHz)
Type (C)
Packing R: Reel
(Null): Bulk
Frequency Tolerance at 25°C
15
=
=
=
=
=
=
=
=
Ω
=
=
Ω
=
=
Ω
=
±0.15%
Built-in Capacitance 10pF: 10
Operating Temperature
X
Z
−40°C
to 85°C
−40°C
to 150°C
Y
−40°C
to 125°C
Unique Code
Dimensions
PBRV-H
(Unit: mm)
PBRV-M
(Unit: mm)
PRQV
(Unit: mm)
3.4
XXXX
7.4
6.7
XXX
4.5
4.1
2.0 max.
1.6
2.0
XXX
c
3.2
d
c
1.2 max.
e
a
1
e
b
2
6-R0.2
1
2
3-1.2
3
1
6-R0.45
2
0.4
3.0
6-0.3
3
a
3
1.7
2.5
2.5
1.5
1.5
e
e
Standard Tol.:
±0.3
Termination: Ni+Au Flash Plating
1. 3 Input, Output (No polarity)
Standard Tol.:
±0.2
Termination: Ni+Au Flash Plating
1. 3 Input, Output (No polarity)
Standard Tol.:
±0.15
Termination: Ni Sn Plating
#
1
2
3
Pin #
Input
Ground
Output
1.0 max.
0.6
0.4
1.3
(Unit: mm)
Type Frequency (MHz) a
b
c
d
e
C
8.00 to 20.00 0.4 0.4 0.6 0.4 1.2
