Product specification
Surface mount zener diode
FEATURES
MMSZ5229AS-MMSZ5262AS
Pb
Planar die construction.
Lead-free
200mW power dissipation.
Ideally Suited for Automated Assembly Processes.
Pb free product : 99% Sn above can meet RoHS environment
substance request.
APPLICATIONS
Zener diode.
Ultra-small surface mount package.
SOD-323
ORDERING INFORMATION
Type No.
MMSZ5229AS-MMSZ5262AS
□
□:
none is for Lead Free package;
“G” is for Halogen Free package.
Marking
See table 2
Package Code
SOD-323
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Characteristic
Power Dissipation
Operating Junction and StorageTemperature
Range
Symbol
P
d
T
stg
Value
200
-50 to +150
Unit
mW
℃
ZDM0506A
www.gmesemi.com
1
Product specification
Surface mount zener diode
MMSZ5229AS-MMSZ5262AS
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Type Number
Type
Code
Nom(V)
MMSZ5229AS
MMSZ5230AS
MMSZ5231AS
MMSZ5232AS
MMSZ5234AS
MMSZ5235AS
MMSZ5236AS
MMSZ5237AS
MMSZ5239AS
MMSZ5240AS
MMSZ5241AS
MMSZ5242AS
MMSZ5243AS
MMSZ5244AS
MMSZ5245AS
MMSZ5246AS
MMSZ5248AS
MMSZ5250AS
MMSZ5251AS
MMSZ5252AS
MMSZ5254AS
MMSZ5255AS
MMSZ5256AS
MMSZ5257AS
MMSZ5258AS
MMSZ5259AS
MMSZ5260AS
MMSZ5261AS
MMSZ5262AS
D4
D5
E1
E2
E4
E5
F1
F2
F4
F5
H1
H2
H3
H4
H5
J1
J3
J5
K1
K2
K4
K5
M1
M2
M3
M4
M5
N1
N2
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
14
15
16
18
20
22
24
27
28
30
33
36
39
43
47
51
Zener Voltage Range
V
z
@I
ZT
Min(V)
4.21
4.61
5.00
5.49
6.08
6.66
7.35
8.04
8.92
9.80
10.78
11.76
12.74
13.72
14.70
15.68
17.64
19.60
21.56
23.52
26.46
27.44
29.40
32.34
35.28
38.22
42.14
46.06
49.98
Max(V)
4.39
4.79
5.20
5.71
6.32
6.94
7.65
8.36
9.28
10.20
11.22
12.24
13.26
14.28
15.30
16.32
18.36
20.40
22.44
24.48
27.54
28.56
30.60
33.66
36.72
39.78
43.86
47.94
52.02
Test
Current
I
ZT
mA
20
20
20
20
20
20
20
20
20
20
20
20
9.5
9
8.5
7.8
7.0
6.2
5.6
5.2
5.0
4.5
4.2
3.8
3.4
3.2
3.0
2.7
2.5
22
19
17
11
7
5
6
8
10
17
22
30
13
15
16
17
21
25
29
33
41
44
49
58
70
80
93
105
125
Maximum Zener
Impedance
Z
ZT@
I
ZT
Z
ZK@
I
ZK
=0.25mA
Ω
2000
1900
1600
1600
1000
750
500
500
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
700
700
800
900
1000
1000
Maximum Reverse
Leakage Current
I
R
μA
5.0
5.0
5.0
5.0
5.0
3.0
3.0
3.0
3.0
3.0
3.0
2.0
1.0
0.5
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
@V
R
V
1.0
2.0
2.0
3.0
4.0
5.0
6.0
6.0
6.5
8.0
8.4
9.1
9.9
10.5
11
12
14
15
17
18
21
21
23
25
27
30
33
36
39
ZDM0506A
www.gmesemi.com
2
Product specification
Surface mount zener diode
MMSZ5229AS-MMSZ5262AS

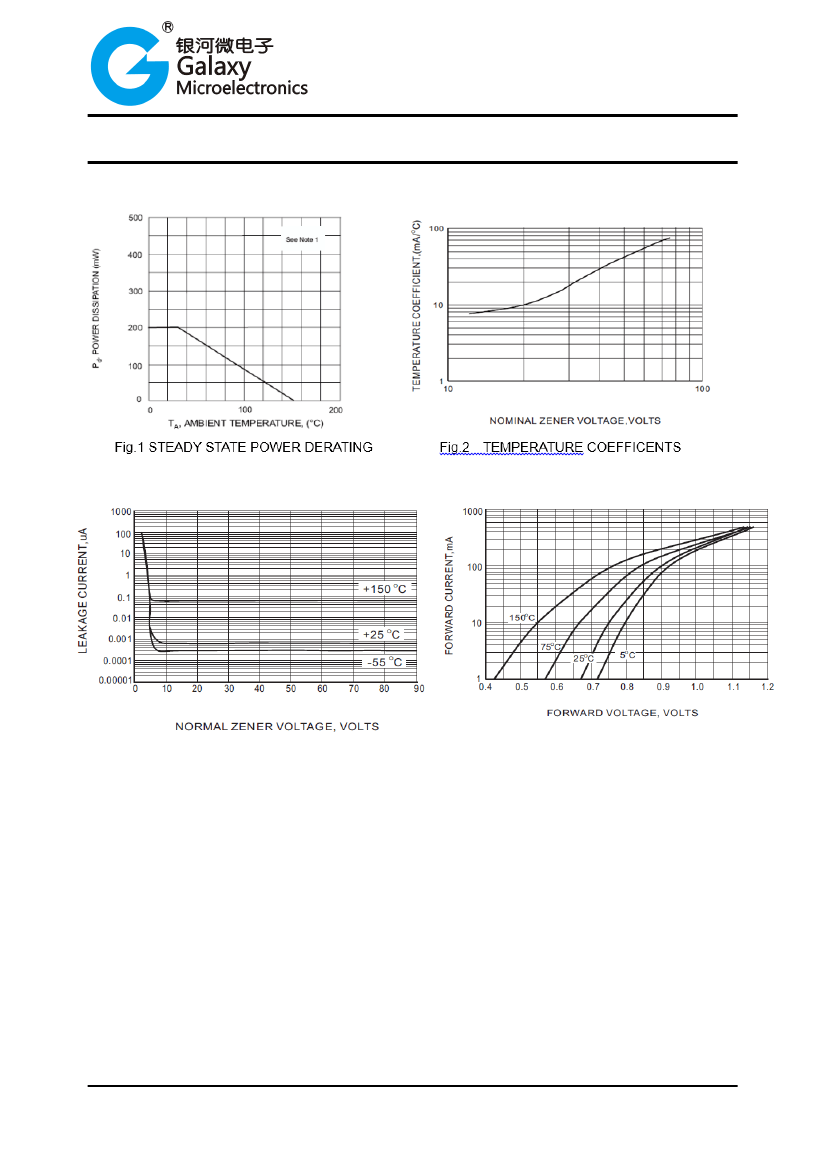

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Fig.3 TYPICALLEAKAGE CURRENT
Fig.4 TYPICALL FORWARD VOLTAGE
ZDM0506A
www.gmesemi.com
3
Product specification
Surface mount zener diode
PACKAGE OUTLINE
Plastic surface mounted package
MMSZ5229AS-MMSZ5262AS
SOD-323
K
A
C
SOD-323
Dim
A
B
B
Min
1.60
1.20
0.80
0.25
0.22
0.02
0.05
2.55
Max
1.80
1.40
0.90
0.35
0.42
0.10
0.15
2.75
D
C
D
E
H
E
J
H
J
K
All Dimensions in mm
SOLDERING FOOTPRINT
0.63
0.83
1.60
2.85
Unit：mm
PACKAGE
INFORMATION
Package
SOD-323
Shipping
3000/Tape&Reel
Device
MMSZ5229AS-MMSZ5262AS
ZDM0506A
www.gmesemi.com
4
