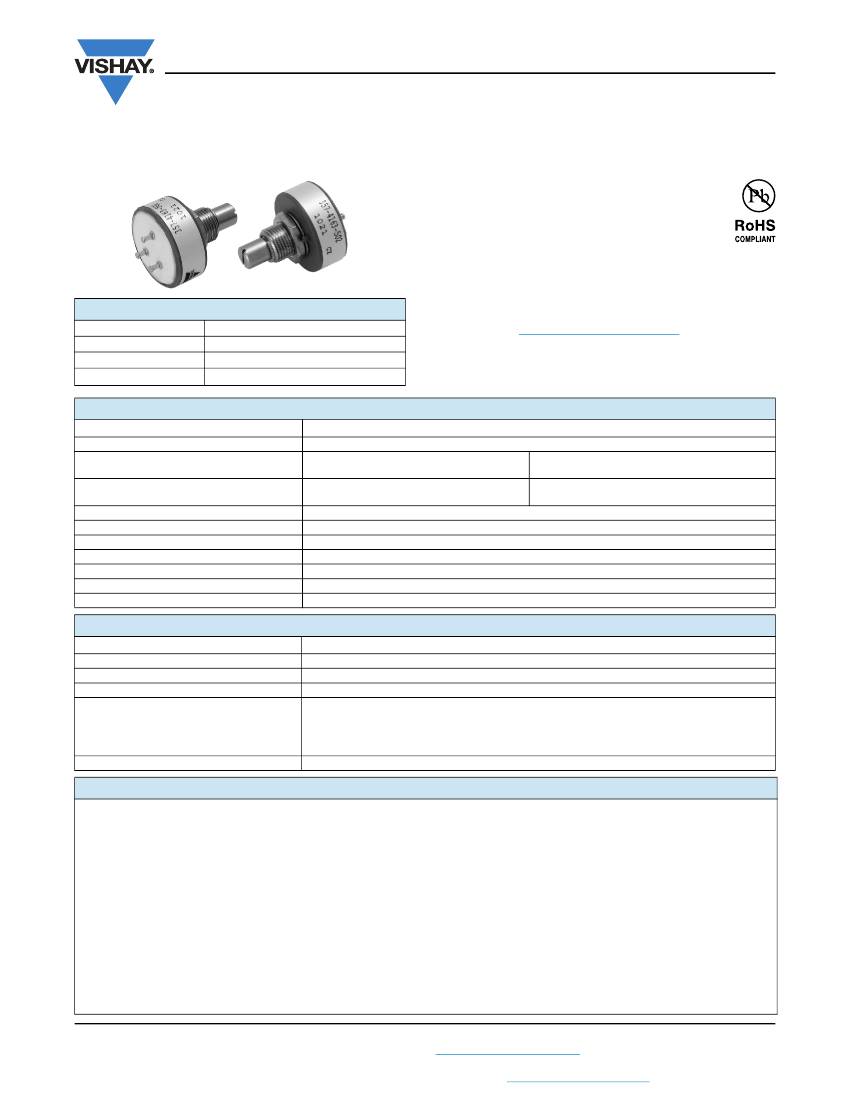

Model 357
www.vishay.com
Vishay Spectrol
(22.2 mm) Conductive Plastic
Potentiometer, Bushing Mount Type
FEATURES
•
7
/
8
" diameter single turn
• Compact size, advanced design technology
• Offer a cost effective solution to your
potentiometer requirements
• Suitable model for all industrial applications
7
/ "
8
QUICK REFERENCE DATA
Sensor type
Output type
Market appliance
Dimensions
ROTATIONAL, conductive plastic
Output by turrets
Industrial
7
/ "
8
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
(22.2 mm)
ELECTRICAL SPECIFICATIONS
PARAMETER
Resistance
Tolerance
Linearity (independent)
Output smoothness
TCR
Power rating
Electrical travel
End voltage
Dielectric withstanding voltage
Insulation resistance
STANDARD
± 20 %
STANDARD
± 2.0 %
Standard range, 1 k to 50 k
SPECIAL TO
± 10 %
SPECIAL
± 1.0 %
0.1 % maximum
± 600 ppm/°C maximum
1.0 W at 70 °C derated to 0 W at 125 °C
340° ± 3°
0.5 % maximum
1000 V
RMS
, 60 Hz
1000 M, 500 V
DC
MECHANICAL SPECIFICATIONS
PARAMETER
Rotation
Mounting
Operating torque maximum
Shaft tolerance maximum
Runout
End play
Radial play
Weight
360° continuous (optional mechanical stops 340° ± 3°)
3/8 - 32 UNEF - 2A
Starting and running 3.68 mNm (0.5 oz. - in)
0.13 mm (0.005")
0.25 mm (0.010")
0.13 mm (0.005")
17.5 g (0.62 oz.)
ORDERING INFORMATION/DESCRIPTION
357
MODEL
B
STYLE
0
FEATURES
Non turn pin and
continuous rotation
No non turn pin and
continuous rotation
Non turn pin, with
stops on rotation
No non turn pin
with stops on
rotation
10K
OHMIC
VALUE
20 %
TOLERANCE ON
OHMIC VALUE
A
BO50
LINEARITY PACKAGING
Box of 50
pieces
0 P 22
SHAFT TYPE
Shaft diameter
0
= 6.0 mm or
1
= 6.35 mm (1/4")
Shaft type
P
= Plain
S
= Slotted FMF (from
mounting face)
Range from
12 mm to 75 mm in
1 mm increments
e4
LEAD
FINISH
Bushing
0
1
From 1K
to 50 K
± 10 %
or
± 20 %
X: ± 2 %
A: ± 1 %
2
3
Revision: 17-Apr-13
Document Number: 57059
1
For technical questions, contact:
sferprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Model 357
www.vishay.com
Vishay Spectrol
203
M
TOLERANCE ON OHMIC VALUE
M: ± 20 %/K: ± 10 %
X
LINEARITY
X: ± 2 %
B25
PACKAGING
Box of 50 pieces
1S22
SHAFT TYPE
SAP PART NUMBERING GUIDELINES
357B
MODEL
2
FEATURES
OHMIC VALUE
203 = 20K

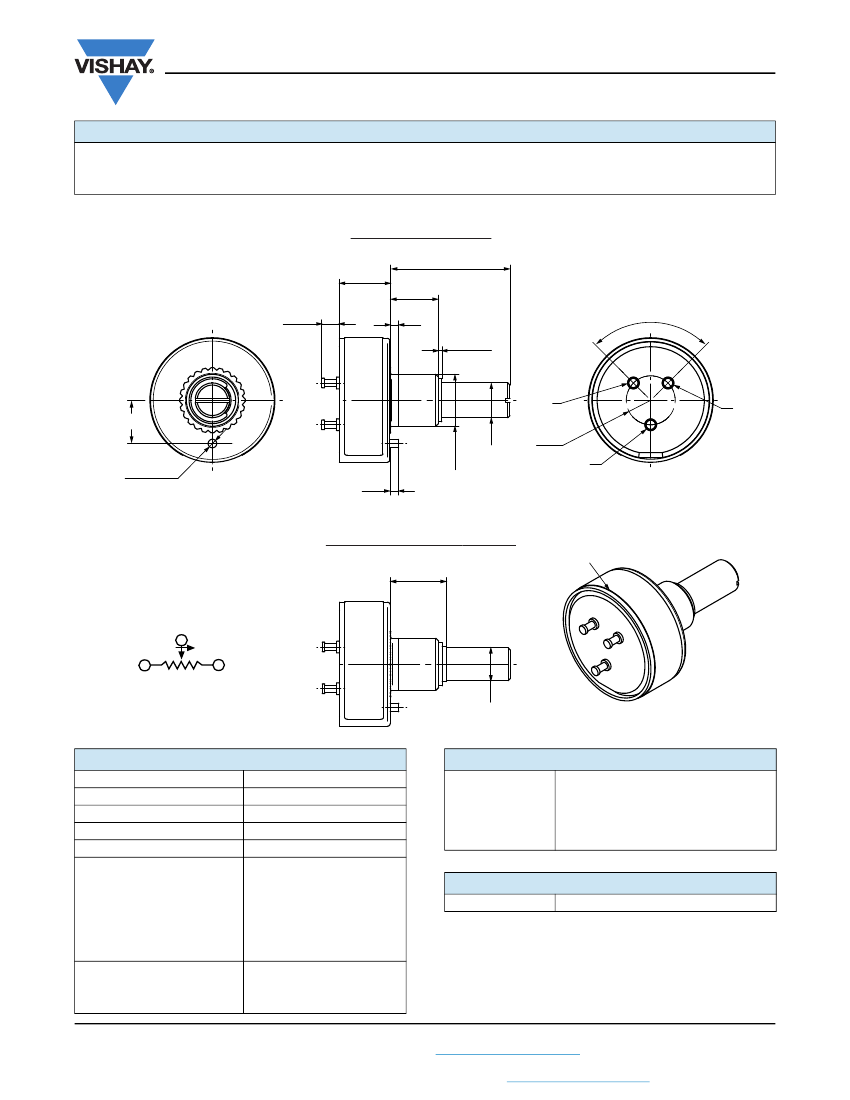

DIMENSIONS
in millimeters
Ø 6.35 mm SHAFT VERSION
22
9.4
8.8
3 x 3.2
1.5
0.64 ± 0.2
90°
1
7.92 ± 0.2
R 4.5
Ø 6.345
- 0.05
Ø 1.57 ± 0.1
1.57
2
3/8-32 UNEF-2A
0
3
Ø 6.0 mm SHAFT VARIATION: METRIC
IDENTIFICATION LABEL
10.3
2
1
SIGNAL
3
SCHEMATIC
Ø 6
-0
0.05
TOLERANCES: LINEAR ± 0.50
ANGULAR ± 2°
ENVIRONMENTAL SPECIFICATIONS
Vibration
Shock
Load Life
Storage temperature range
Life
Materials
Housing
Bushing
Rear lid
Shaft
Terminals
Bushing mount hardware
Lockwasher internal tooth
Panel nut
Revision: 17-Apr-13
Steel, nickel plated
Brass nickel plated
Thermoplastic housing
Brass, nickel plated
Alumina
Stainless steel
Turret type, solder plated
15
g,
10 Hz to 2000 Hz
50
g
1000 h
- 55 °C to + 125 °C
5 000 000 shaft revolutions
MARKING
Unit
Indentification
Manufacturer’s name and model number,
resistance value and tolerance, linearity
specification date code and terminal
identification.
Example of a marking for a standard part:
357-0-0-1S22-103
RESISTANCE VALUE
Ohms
1K, 2K, 5K, 10K, 20K, 50K
Document Number: 57059
2
For technical questions, contact:
sferprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
