LCGDF5T23HC

Description
SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 7.64mm, PANEL MOUNT, ROHS COMPLIANT
CategoryMechanical and electronic products    switch
File Size397KB,4 Pages
ManufacturerC&K
Environmental Compliance
Download Datasheet Parametric Compare View All

LCGDF5T23HC Online Shopping

Suppliers Part Number Price MOQ In stock
LCGDF5T23HC - - View Buy Now

LCGDF5T23HC Overview

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 7.64mm, PANEL MOUNT, ROHS COMPLIANT

LCGDF5T23HC Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerC&K
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time8 weeks
Actuator stroke7.64 mm
Actuator typeSIMULATED ROLLER, LOW FORCE
body width6.1 mm
body height9.32 mm
Body length or diameter19.84 mm
center contact materialSILVER
Center contact platingGOLD
Contact (AC) maximum rated R load1A@125VAC
Maximum contact current (AC)1 A
Maximum contact current (DC)1 A
Contact (DC) maximum rated R load1A@30VDC
contact timeSNAP ACTION
Maximum contact voltage (AC)125 V
Maximum contact voltage (DC)30 V
Dielectric withstand voltage1000VRMS V
Electrical life6000 Cycle(s)
Insulation resistance1000000000 Ω
Installation featuresPANEL MOUNT
Maximum operating force0.15 N
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Maximum pre-travel6.4 mm
surface mountNO
Switch actionMOMENTARY
switch functionSPDT
Switch typeSNAP ACTING/LIMIT SWITCH
Terminal materialCOPPER ALLOY
Termination typeQUICK CONNECT
LC Series
Subminiature Precision Snap-acting Switches
Features/Benefits
Compact design
Long life and high electrical capacity
Quick connect, wire lead or PC mounting
Wide variety of actuator styles
UL61058-1
Typical Applications
Motorized equipment
Sump pump
Thermostatic controls
Specifications
CONTACT RATING: From low level* to 10.1 AMPS @ 250 V AC.
ELECTRICAL LIFE: 100,000 cycles
INSULATION RESISTANCE: 1,000 M
ohm
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: –17ºF to 185ºF (–25ºC to 85ºC).
OPERATING FORCE: From 142 to 170 grams at actuator button.
Forces are less at free end of lever actuators; (see OPERATING
FORCE and ACTUATOR option sections).
MOUNTING: 2-56 screws, torque 2.3 in/lbs max.
* Low Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max. @
20 V AC or DC max.
Materials
SWITCH HOUSING: Thermoplastic polyester or high temperature
thermoplastic (PTS) (UL 94V-0).
ACTUATOR BUTTON: Thermoplastic polyester (UL 94V-0).
SPRING: Copper alloy.
PIVOT: Copper alloy.
MOVABLE CONTACTS: Fine silver for ratings greater than 1 AMP
@ 125 V AC. Fine silver with 24K gold plate for 1 AMP @
125 V AC or less.
STATIONARY CONTACTS: Fine silver welded on copper alloy for
ratings greater than 1 AMP @ 125 V AC. Gold alloy welded
on copper alloy for ratings less than 1 AMP @ 125 V AC.
TERMINALS: Copper alloy.
TERMINAL SEAL: Epoxy.
J
Snap-acting
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages J-33 through J-35. For additional options not shown in catalog, consult Customer Service Center.
L
C
Series
LC
SP, Mom.
Operating Force
GG
5 oz./142 grams
GD
3.3 oz./94 grams
GH
6 oz./170 grams
Electrical Rating
X1
UL 61058-1 (see chart)
V6
UL 61058-1 (see chart)
V7
UL 61058-1 (see chart)
F5
UL 1054 (see chart)
L9
UL 1054 (see chart)
M1
UL 1054 (see chart)

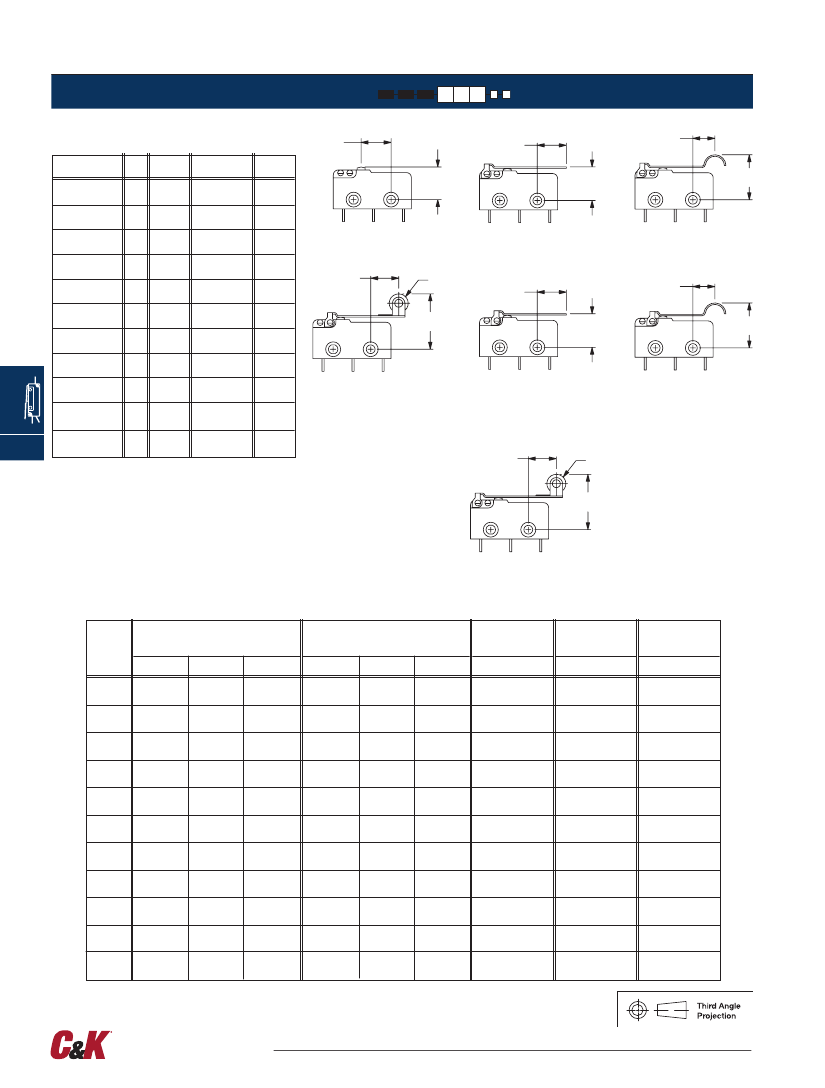

Actuator
P00
Pin plunger
A10
.28” lever roller, high force
A15
.51” lever roller, high force
A20
.39” lever roller, low force
A25
.61” lever roller, low force
T10
.29” lever, high force
T13
.22” simulated roller, high force
T15
.57” lever, high force
T20
.38” lever, low force
T23
.32” simulated roller, low force
T25
.67” lever, low force

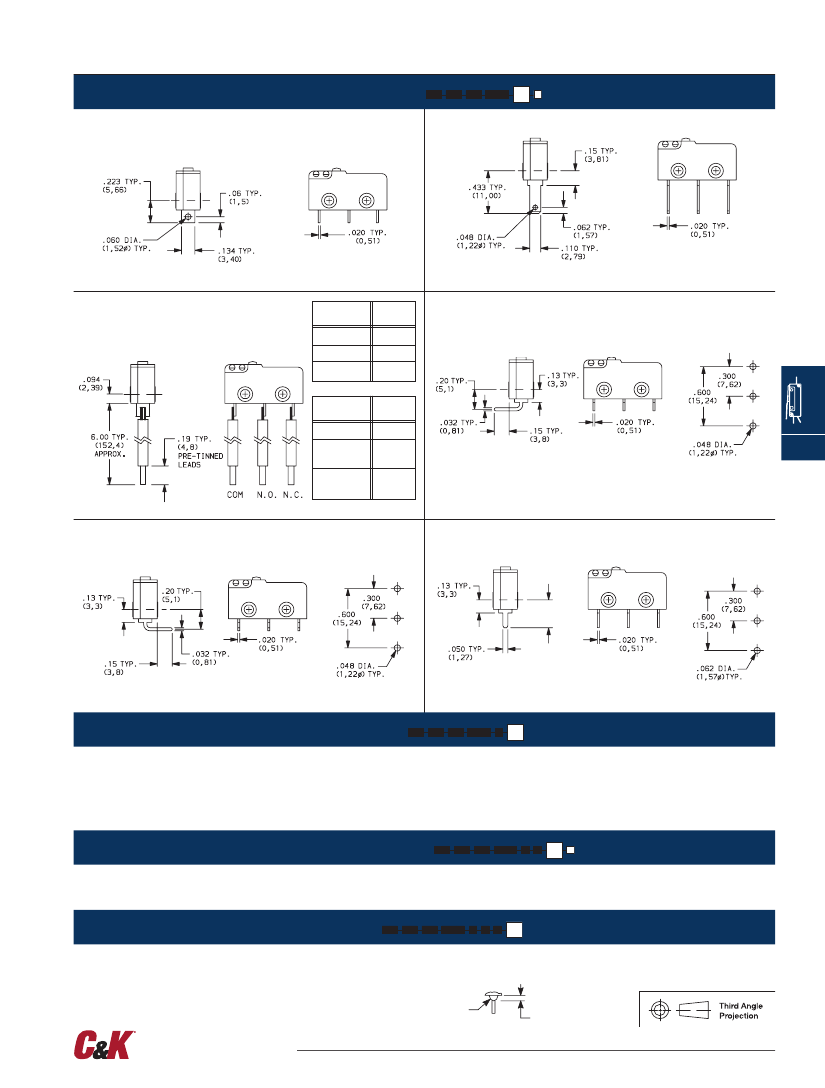

Terminations
E
Solder
H
.110” quick connect
J
Wire lead
L
Left formed PC thru-hole
R
Right formed PC thru-hole
S
PC Thru-hole
Circuitry
C
SPDT
W
SPST N.C.
Y
SPST N.O.
Electrical Life
NONE
6,000 operations
U*
Extended 100,000 operations
Seal
NONE
(STD.) No seal
E
Epoxy seal

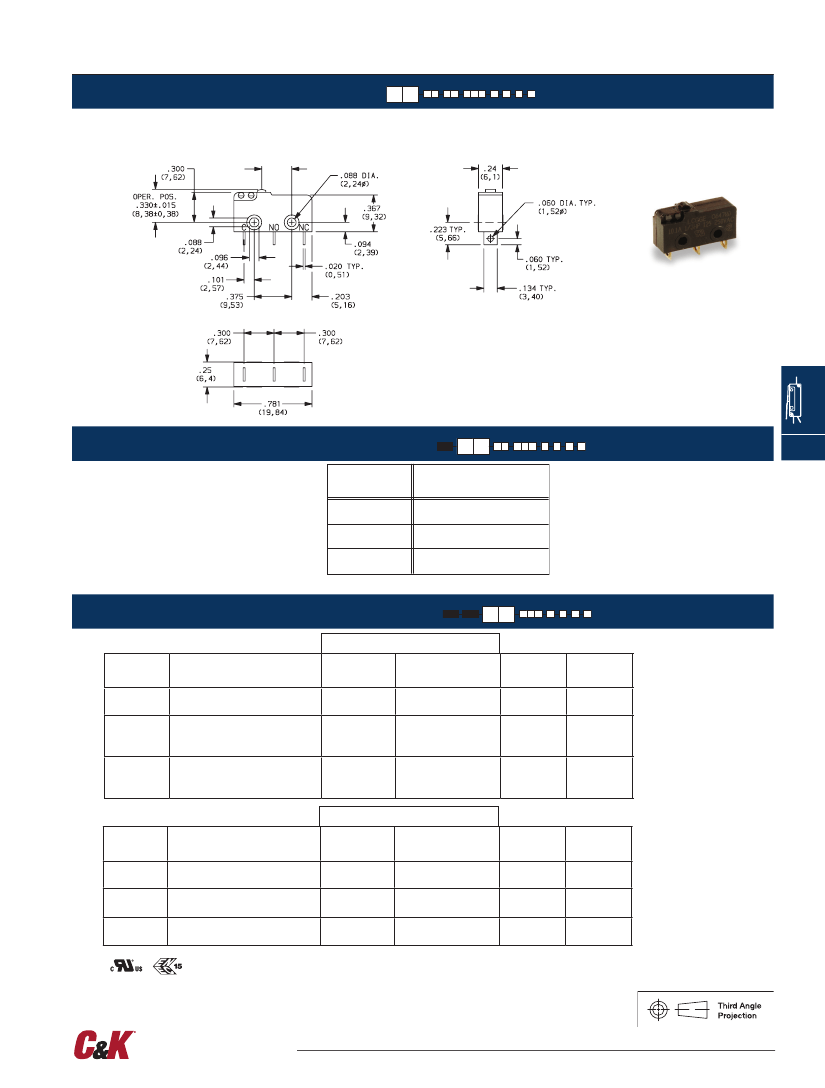

Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
* Extended operations only available on Electrical Rating options F5, L9 and M1
J–32
www.ckswitches.com

LCGDF5T23HC Related Products

LCGDF5T23HC LCGGF5T10ECE
Description SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 7.64mm, PANEL MOUNT, ROHS COMPLIANT SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 4.3mm, PANEL MOUNT, ROHS COMPLIANT
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Maker C&K C&K
package instruction ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Factory Lead Time 8 weeks 8 weeks
Actuator stroke 7.64 mm 4.3 mm
Actuator type SIMULATED ROLLER, LOW FORCE LEVER, HIGH FORCE
body width 6.1 mm 6.1 mm
body height 9.32 mm 9.32 mm
Body length or diameter 19.84 mm 19.84 mm
center contact material SILVER SILVER
Center contact plating GOLD GOLD
Contact (AC) maximum rated R load 1A@125VAC 1A@125VAC
Maximum contact current (AC) 1 A 1 A
Maximum contact current (DC) 1 A 1 A
Contact (DC) maximum rated R load 1A@30VDC 1A@30VDC
contact time SNAP ACTION SNAP ACTION
Maximum contact voltage (AC) 125 V 125 V
Maximum contact voltage (DC) 30 V 30 V
Dielectric withstand voltage 1000VRMS V 1000VRMS V
Electrical life 6000 Cycle(s) 6000 Cycle(s)
Insulation resistance 1000000000 Ω 1000000000 Ω
Installation features PANEL MOUNT PANEL MOUNT
Maximum operating force 0.15 N 0.47 N
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -25 °C -25 °C
Maximum pre-travel 6.4 mm 3.56 mm
surface mount NO NO
Switch action MOMENTARY MOMENTARY
switch function SPDT SPDT
Switch type SNAP ACTING/LIMIT SWITCH SNAP ACTING/LIMIT SWITCH
Terminal material COPPER ALLOY COPPER ALLOY
Termination type QUICK CONNECT SOLDER
