DM2M36SJ6-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> DM2M36SJ6-10

DM2M36SJ6-10: DescriptionEDO DRAM Module, 2MX36, 10ns, CMOS, PSMA72; Categorystorage storage; File Size1MB，21 Pages; ManufacturerRamtron International Corporation (Cypress Semiconductor Corporation); Websitehttp://www.cypress.com/

Download Datasheet Parametric Compare View All

DM2M36SJ6-10 Overview

EDO DRAM Module, 2MX36, 10ns, CMOS, PSMA72

DM2M36SJ6-10 Parametric

Parameter Name	Attribute value
Maker	Ramtron International Corporation (Cypress Semiconductor Corporation)
package instruction	SIMM, SSIM72
Reach Compliance Code	unknown
Maximum access time	10 ns
I/O type	COMMON
JESD-30 code	R-PSMA-N72
memory density	75497472 bit
Memory IC Type	EDO DRAM MODULE
memory width	36
Number of terminals	72
word count	2097152 words
character code	2000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX36
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	24.257 mm
self refresh	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

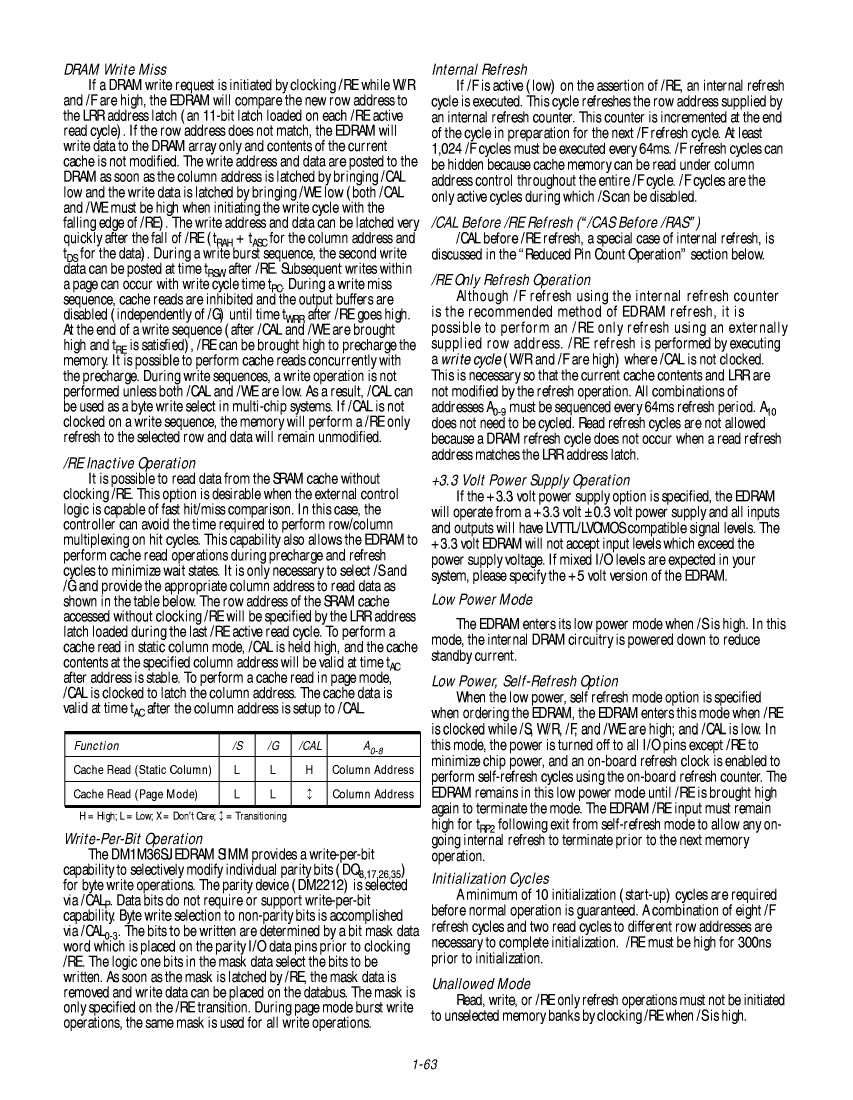

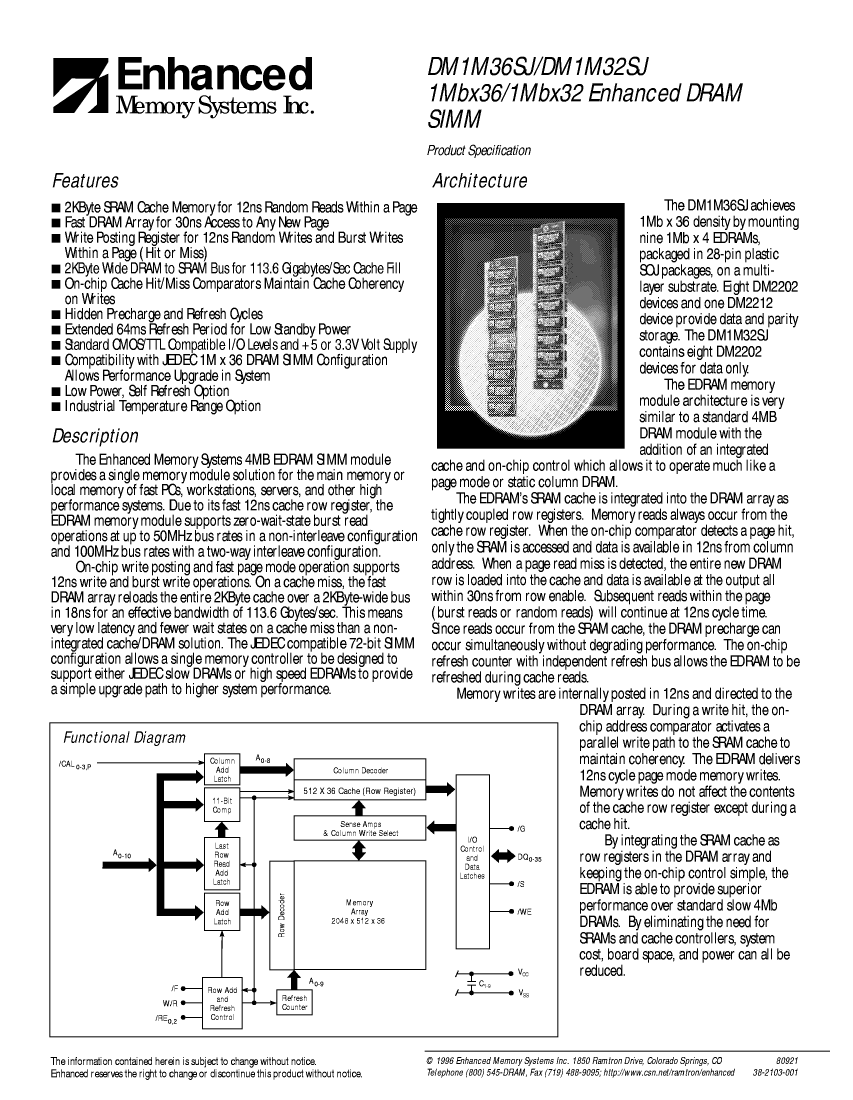

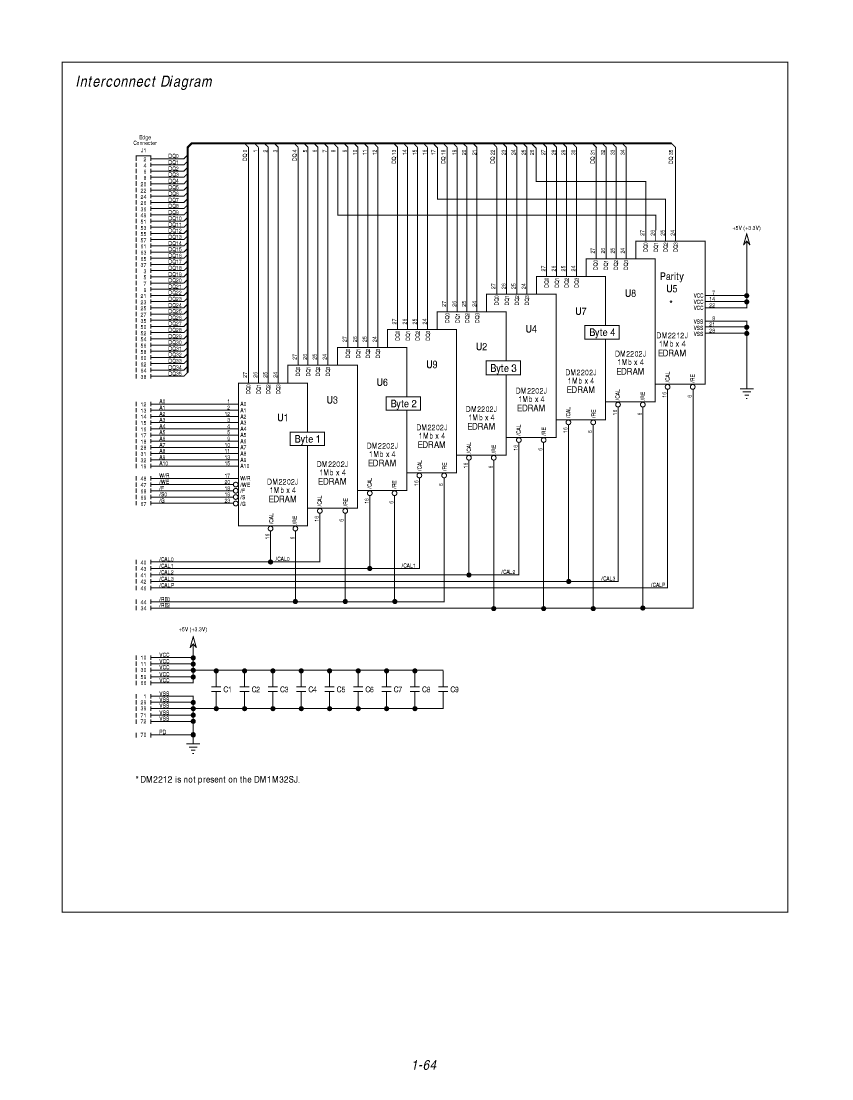

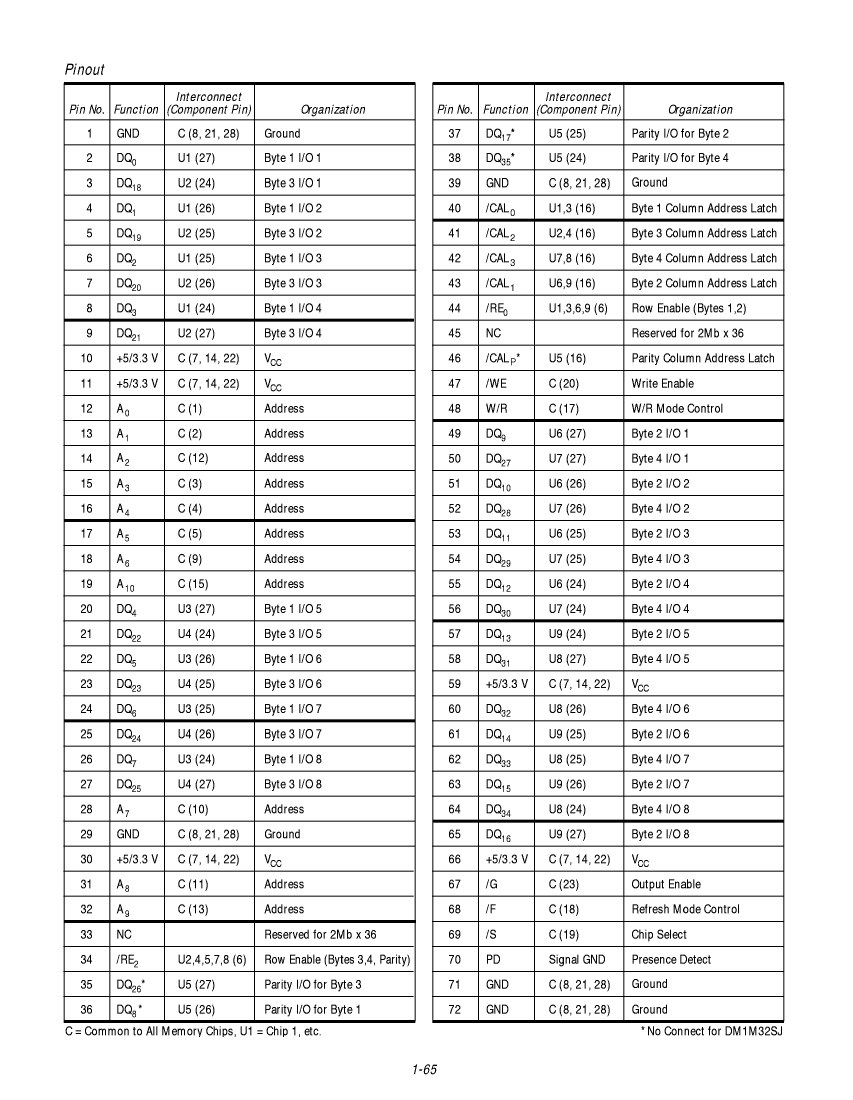

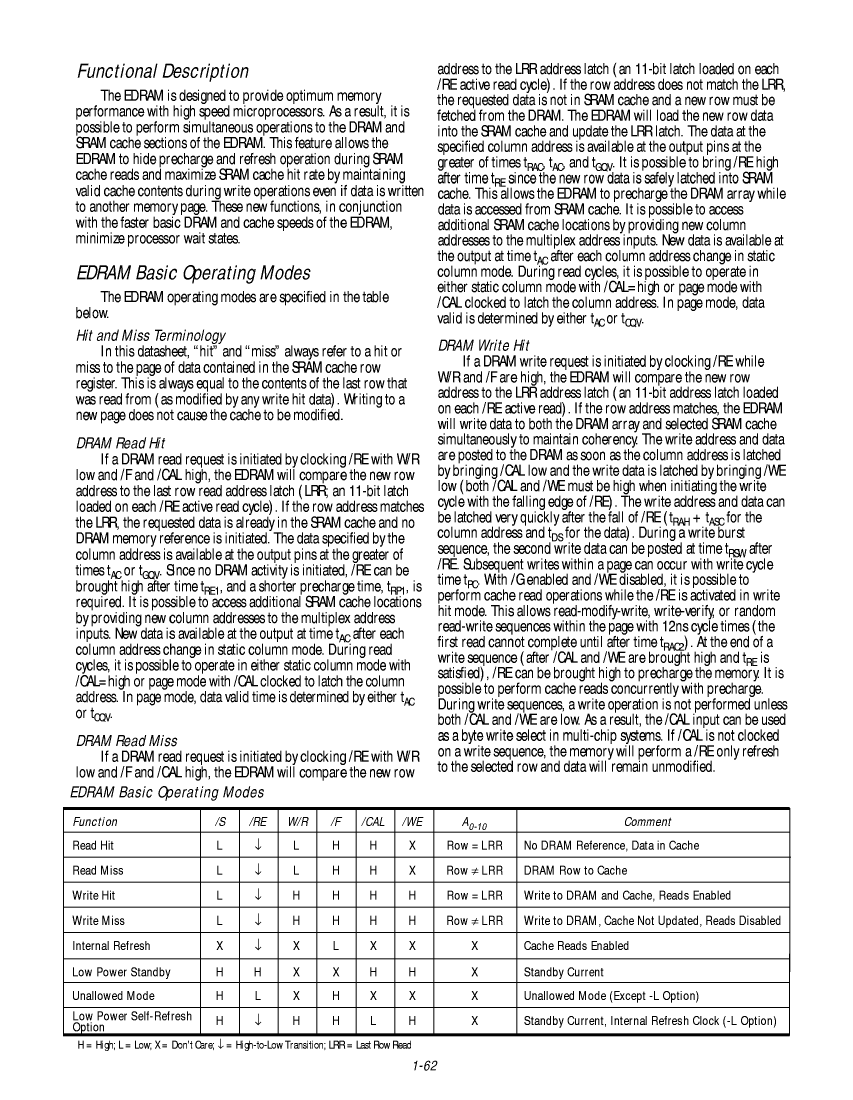

Preview

Download Datasheet

View All

DM2M36SJ6-10 Related Products

	DM2M36SJ6-10	DM1M32SJ6-10	DM2200J-10	DM2242J2-10	DM1M32SJ-10	DM2252J2-10	DM4M32SJ6-10
Description	EDO DRAM Module, 2MX36, 10ns, CMOS, PSMA72	EDO DRAM Module, 1MX32, 10ns, CMOS, PSMA72	Cache DRAM, 4MX1, 10ns, CMOS, PDSO28	EDO DRAM, 1MX4, 10ns, CMOS, PDSO32	Cache DRAM Module, 1MX32, 10ns, CMOS, PSMA72	EDO DRAM, 1MX4, 10ns, CMOS, PDSO28	EDO DRAM Module, 4MX32, 10ns, CMOS, PSMA72
Maker	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)
package instruction	SIMM, SSIM72	SIMM, SSIM72	SOJ, SOJ28,.34	SOJ, SOJ32,.34	SIMM, SSIM72	SOJ, SOJ28,.34	SIMM, SSIM72
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns
I/O type	COMMON	COMMON	SEPARATE	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PSMA-N72	R-PSMA-N72	R-PDSO-J28	R-PDSO-J32	R-PSMA-N72	R-PDSO-J28	R-PSMA-N72
memory density	75497472 bit	33554432 bit	4194304 bit	4194304 bit	33554432 bit	4194304 bit	134217728 bit
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE	CACHE DRAM	EDO DRAM	CACHE DRAM MODULE	EDO DRAM	EDO DRAM MODULE
memory width	36	32	1	4	32	4	32
Number of terminals	72	72	28	32	72	28	72
word count	2097152 words	1048576 words	4194304 words	1048576 words	1048576 words	1048576 words	4194304 words
character code	2000000	1000000	4000000	1000000	1000000	1000000	4000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2MX36	1MX32	4MX1	1MX4	1MX32	1MX4	4MX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIMM	SIMM	SOJ	SOJ	SIMM	SOJ	SIMM
Encapsulate equivalent code	SSIM72	SSIM72	SOJ28,.34	SOJ32,.34	SSIM72	SOJ28,.34	SSIM72
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	SMALL OUTLINE	SMALL OUTLINE	MICROELECTRONIC ASSEMBLY	SMALL OUTLINE	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024	1024
self refresh	NO	NO	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	J BEND	J BEND	NO LEAD	J BEND	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	DUAL	DUAL	SINGLE	DUAL	SINGLE
Maximum seat height	24.257 mm	24.257 mm	-	-	24.257 mm	-	35.56 mm
