BP200-0UR-014V datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BP200-0UR-014V

Preview

BP200-0UR-014V: DescriptionSingle Color LED, Ultra Red, T-1 3/4, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size70KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

BP200-0UR-014V Overview

Single Color LED, Ultra Red, T-1 3/4, 5mm,

BP200-0UR-014V Parametric

Parameter Name	Attribute value
Maker	LEDtronics
Reach Compliance Code	unknown
color	ULTRA RED
Configuration	SINGLE
Nominal luminous intensity	115 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	14.7 mm
method of packing	BULK
peak wavelength	660 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	3.048 mm
perspective	120 deg

Preview

Download Datasheet

View All

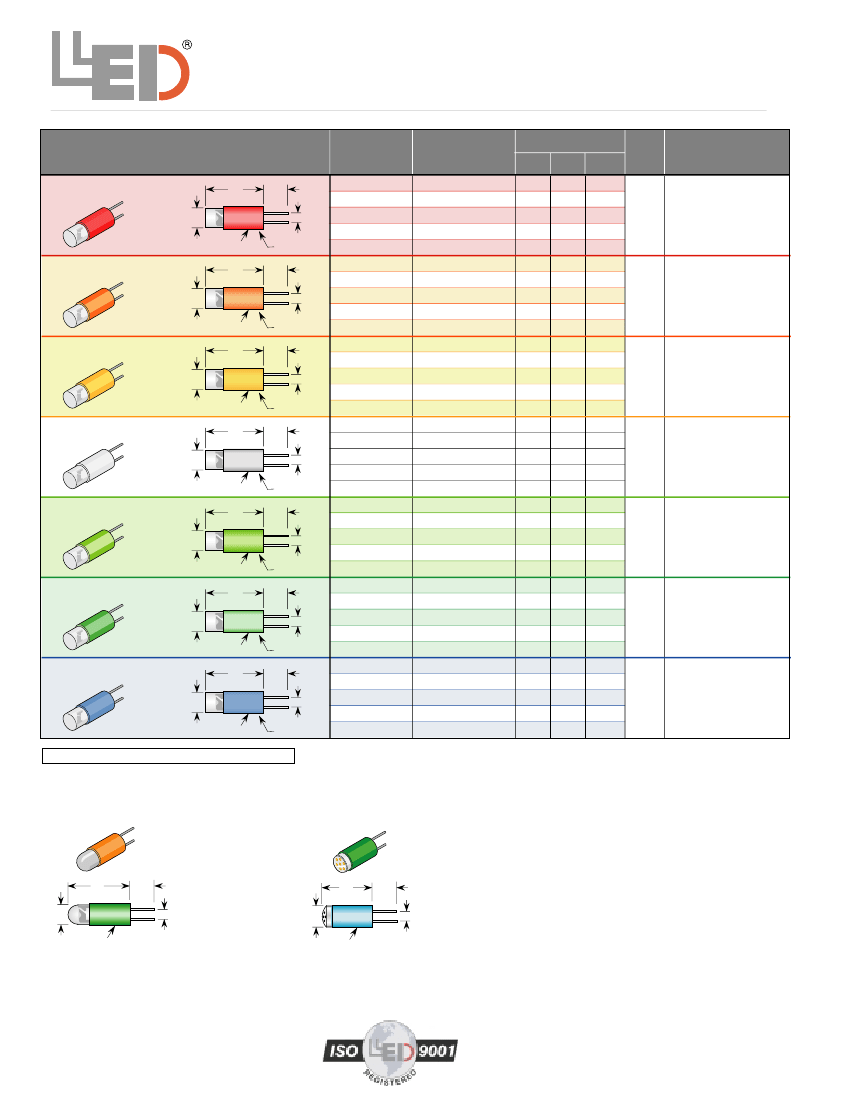

T1-3/4 (5mm) Midget Bi-Pin Based LEDs

Subminiature Packages

660nm Ultra Red

GaAIAs/GaAIAs

.20

Replaces

Incandescent

.58

.25

Part Number

BPF200-0UR-005V

BPF200-0UR-012V

BPF200-0UR-014V

BPF200-0UR-024V

BPF200-0UR-028V

BPF200-0UO-005V

BPF200-0UO-012V

BPF200-0UO-014V

BPF200-0UO-024V

BPF200-0UO-028V

BPF200-0UY-005V

BPF200-0UY-012V

BPF200-0UY-014V

BPF200-0UY-024V

BPF200-0UY-028V

BPF200-0CW-005V

BPF200-0CW-012V

BPF200-0CW-014V

BPF200-0CW-024V

BPF200-0CW-028V

BPF200-0UG-005V

BPF200-0UG-012V

BPF200-0UG-014V

BPF200-0UG-024V

BPF200-0UG-028V

BPF200-0AG-005V

BPF200-0AG-012V

BPF200-0AG-014V

BPF200-0AG-024V

BPF200-0AG-028V

BPF200-0PB-005V

BPF200-0PB-012V

BPF200-0PB-014V

BPF200-0PB-024V

BPF200-0PB-028V

Electrical-Optical

Characteristics (Ta = 25ºC)

Voltage Current Intensity

V typ mA typ

mcd

Angle

of

Illumi-

nation

Special Features

Contact Polarity

V = DC only

7328

7371

.120

5V

12V

12/14V

24V

28V

5V

12V

12/14V

24V

28V

5V

12V

12/14V

24V

28V

5V

12V

12/14V

24V

28V

5V

12V

12/14V

24V

28V

5V

12V

12/14V

24V

28V

5V

12V

12/14V

24V

28V

20

15

20

15

20

15

20

15

115

85

130

98

116

75

160

58

44

400

125

120º

+

BPF200

.25 Dia

Positive

.25

7330,7382

7327,7387

7328

7371

7330,7382

7327,7387

7328

7371

7330,7382

7327,7387

7328

7371

7330,7382

7327,7387

7328

7371

7330,7382

7327,7387

7328

7371

Replace BPF200 With

BP200 Narrow (15º) Beam

Intensity 1.6K mcd/52 Ft.Cd

@20 mA

Contact Polarity

V = DC only

Replace BPF200 With

BP200 Narrow (15º) Beam

Intensity 3.5K mcd@20 mA

Contact Polarity

V = DC only

Replace BPF200 With

BP200 Narrow (15º) Beam

Intensity 3.2K mcd@20 mA

Contact Polarity

V = DC only

Replace BPF200 With

BP200 Std. (50º) Beam

Intensity 750 mcd/75 Ft. cd

Contact Polarity

V = DC only

Replace BPF200 With

BP200 Narrow (12-15º)

Beam Intensity 1K mcd@

20 mA

Contact Polarity

V = DC only

Replace BPF200 With

BP200 Narrow (15º) Beam

Intensity 7Kmcd/250 Ft.Cd

Contact Polarity

V = DC only

Replace BPF200 With

BP200 Std. (15º) Beam

Intensity 2K mcd/60 Ft.Cd

612nm Super Orange

InGaAIP

.20

.58

+

.25 Dia

.120

BPF200

Positive

.58

.25

595nm Super Yellow

InGaAIP

.20

+

.25 Dia

.120

BPF200

Positive

.58

.25

8000K Cool White

SiC/GaN

.20

+

.25 Dia

.120

BPF200

Positive

570nm Lime Green

InGaAIP

.20

.58

.25

+

.25 Dia

.120

BPF200

Positive

.25

525nm Aqua Green

SiC/GaN

.20

.58

.120

7330,7382

7327,7387

7328

7371

7330,7382

7327,7387

+

.25 Dia

Positive

.25

BPF200

470nm Super Blue

SiC/GaN

.20

.58

.120

+

.25 Dia

Positive

BPF200

All dimensions in inches. For millimeters multiply by 25.4

.6

2

.20

.25

.5

5

.120

.23

.25

+

.25 Dia

.120

+

.25 Dia

Series:

BP200

PN Example:

BP200-0AG-014V

Series:

BP203

PN Example:

BP203-1UB-014V

THE FUTURE OF LIGHT

LEDTRONICS,

INC.

23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505

Fax: (310) 534-1424

E-mail: webmaster@ledtronics.com

Website: www.ledtronics.com

Log # 122G Rev 08-2000

BP200-0UR-014V Related Products

	BP200-0UR-014V	BP200-0CW-014V	BP200-0PB-028V	BP200-0CW-012V	BP200-0PB-024V	BP200-0UY-028V	BP200-0UO-012V
Description	Single Color LED, Ultra Red, T-1 3/4, 5mm,	Single Color LED, White, T-1 3/4, 5mm,	Single Color LED, Super Blue, T-1 3/4, 5mm,	Single Color LED, White, T-1 3/4, 5mm,	Single Color LED, Super Blue, T-1 3/4, 5mm,	Single Color LED, Super Yellow, T-1 3/4, 5mm,	Single Color LED, Super Orange, T-1 3/4, 5mm,
Maker	LEDtronics	LEDtronics	LEDtronics	LEDtronics	LEDtronics	LEDtronics	LEDtronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
color	ULTRA RED	WHITE	SUPER BLUE	WHITE	SUPER BLUE	SUPER YELLOW	SUPER ORANGE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal luminous intensity	115 mcd	160 mcd	125 mcd	160 mcd	125 mcd	75 mcd	130 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	14.7 mm	14.7 mm	14.7 mm	14.7 mm	14.7 mm	14.7 mm	14.7 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	3.048 mm	3.048 mm	3.048 mm	3.048 mm	3.048 mm	3.048 mm	3.048 mm
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
peak wavelength	660 nm	-	470 nm	-	470 nm	595 nm	612 nm

Recommended Resources

Motor forward and reverse control wiring diagram (2)

Touch switch circuit using 555 time base circuit

TV touch preselect switch

A SONY color TV remote control

Homemade gunshot simulation generator circuit

OTL circuit with input transformer
