BL-HG6B534B-TRB
●
Features:
1. Emitted Color : Green, and Super Blue
2. Lens Appearance : Water Clear
3. Multi-color type.
4. 3.2x1.0x2.0mm(1204)standard package
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
7. Compatible with automatic placement
equipment.
8. This product doesn’t contain restriction
Substance, comply ROHS standard.
●
Package Dimensions:
3.2(.126)±0.2
1.3(.051) 0.6(.024)
1
Green
Green
3,4
2
Super Blue
1
3
1.0(.039)±0.2
2
4
0.4(.016)
0.3(.012)
Super Blue
4-R0.25(.010)
2.0(.079)
For reflow soldeving
For upright
1.5(.059)
mounting
1.5(.059)
2.0(.079)
2.0(.079)±0.2
1.0(.039)
0.5(.020)
For right anoge mounting
Cathode Mark
1.5(.059)
2.0(.079)
1.5(.059)
Cathode
0.6(.024)
0.6(.024)
Cathode
0.8(.02)
●
Applications:
1.
Automotive : Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting : LCDs, Key pads advertising.
Status indicators : Comsumer & industrial
electronics.
1.2(.047)
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ± 0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
*1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Green
120
30
100
5
-25℃~80℃
-30℃~85℃
See Page6
Super Blue
100
30
100
Unit
mW
mA
mA
V
-
-
-
*1
Condition for IFp is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page 1 of 8
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HG6B534B-TRB
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Viewing Angle
Symbol
Vf
Iv
I
R
λp
λd
Δλ
2θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Color
Green
Super Blue
Green
Super Blue
Green
Super Blue
Green
Super Blue
Green
Super Blue
Green
Super Blue
Green
Super Blue
Min.
Typ.
3.2
3.2
180
50
-
525
470
-
30
30
100
Max.
3.6
3.6
-
1
-
535
470
-
-
Unit
V
mcd
µA
nm
nm
nm
deg
94
28
-
-
520
465
-
-
●

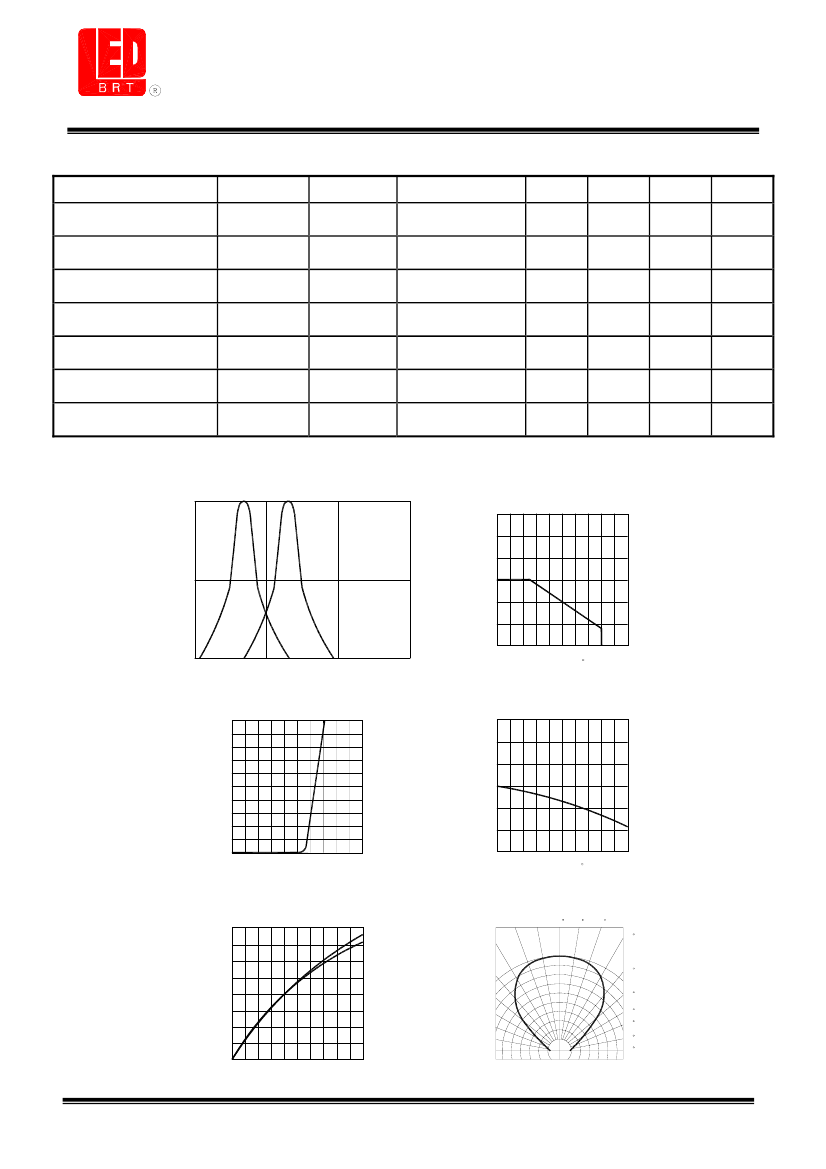

Typical Electro-Optical Characteristics Curves
Fig.1 Relative intensity vs. wavelength
(B)
1.0
(G)
60
Fig.2 Forward current derating curve
vs. ambient temperature
50
Relative radiant intensity
Forward Current (mA)
40
0.5
30
20
10
0
0
400
500
600
700
20
40
60
80
100
Ambient temperature Ta( C)
Wavelength (nm)
Fig.4 Relative luminous intensity vs.
ambient temperature
3.0
Fig.3 Forward current vs. forward voltage
50
(G,B)
40
Relative luminous intensity
2.5
(Normalized @ 20mA)
Forward current (mA)
2.0
30
1.5
20
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta( C)
A
Fig.5 Relative luminous intensity vs. forward current
2.0
RADIATION DIAGRAM
0
10
20
30
(B)
Relative luminous intensity (@20mA)
1.5
RELATIVE RADIANT INTENSITY
(G)
40
1.0
0.9
0.8
0.7
80
90
0.5
0.3
0.1
0.2
0.4
0.6
50
60
70
1.0
0.5
0
5
10
20
30
40
50
Forward current (mA)
Ver.1.0 Page 2 of 8
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HG6B534B-TRB
●

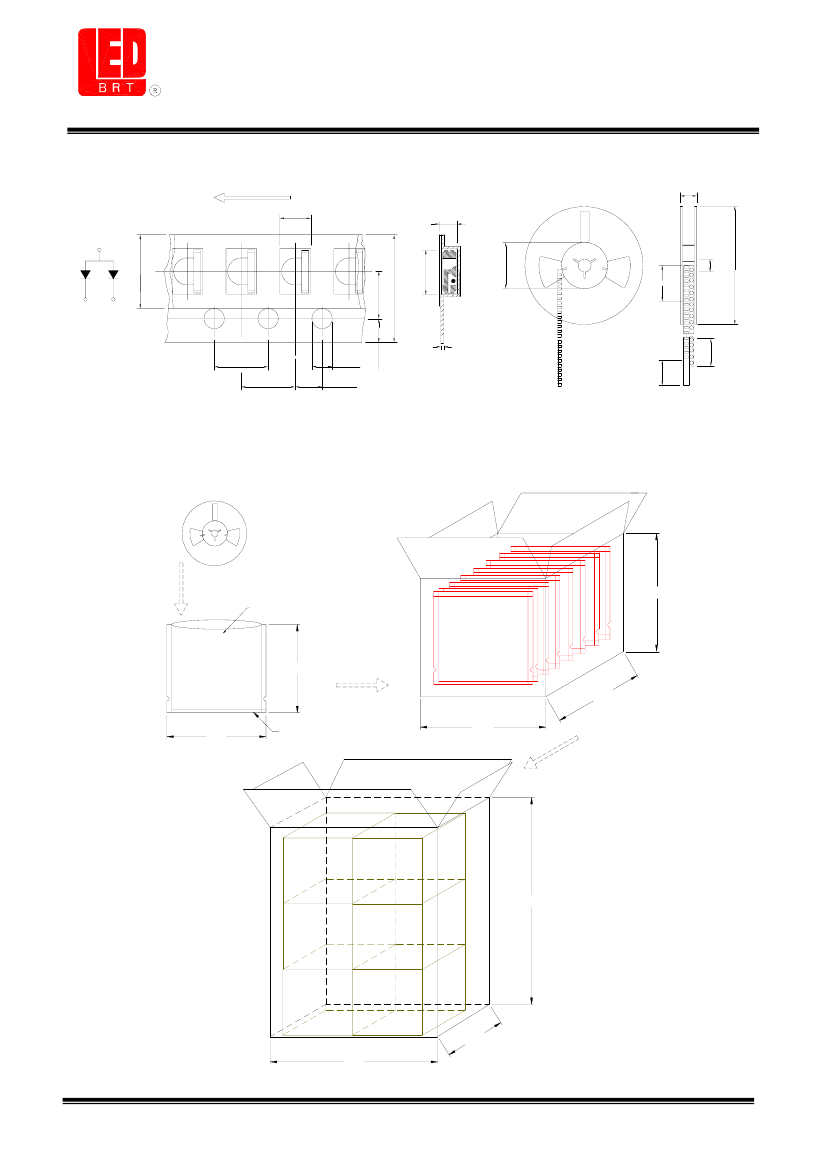

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
2.3 ± 0.1
ANODE
START
END
17.2± 1.2
1.3 ± 0.1
71.0±0.1
13.0± 0.5
Super Blue
CATHODE
5.3 ± 0.05
8.0 ± 0.3
3.3 ± 0.1
CATHODE
3.5 ± 0.05
Green
TRAILER
1.75 ± 0.1
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
LEADER
4.0 ± 0.1
4.0 ± 0.1
1.5±0.1
2.0±0.05
●
Package Method:(unit:mm)
12 bag/box
3000 pcs/reel
200
Bar Code Label
245
220
185
220
Aluminum Foil Bag
645
6 box/carton
210
470
Ver.1.0 Page 3 of 8
179±1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HG6B534B-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( G 6 ) ( A t 2 0 m A )
BIN CODE
Min. (mcd)
Q
R
S
T
94
140
210
317
Max. (mcd)
140
210
317
475
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 5 % .
C o l o r B i n L i m i ts ( G 6 ) ( A t 2 0 m A )
BIN CODE
Min. (nm)
6
7
8
520
525
530
Max. (nm)
525
530
535
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 n m .
V
F
B i n L i m i ts ( G 6 ) ( A t 2 0 m A )
BIN CODE
H
J
K
L
Min. (mcd)
2.8
3.0
3.2
3.4
Max. (mcd)
3.0
3.2
3.4
3.6
To l e r a n c e f o r e a c h B i n l i m i t i s ± 0 . 1 v.
Ver.1.0 Page 4 of 8
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HG6B534B-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( B 5 ) ( A t 2 0 m A )
BIN CODE
Min. (mcd)
M
N
P
Q
28
42
63
94
Max. (mcd)
42
63
94
140
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 5 % .
C o l o r B i n L i m i ts ( B 5 ) ( A t 2 0 m A )
BIN CODE
Min. (nm)
4
465
Max. (nm)
470
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 n m .
V
F
B i n L i m i ts ( B 5 ) ( A t 2 0 m A )
BIN CODE
G
H
J
K
Min.(v)
2.8
3.0
3.2
3.4
Max.(v)
3.0
3.2
3.4
3.6
To l e r a n c e f o r e a c h B i n l i m i t i s ± 0 . 1 v.
●
B IN:
x x x-x x x
V
F
BIN CODE(B5)
Color BIN CODE(B5)
Intensity BIN CODE(B5)
V
F
BIN CODE(G6)
Color BIN CODE(G6)
Intensity BIN CODE(G6)
Ver.1.0 Page 5 of 8
