BL-R1132F datasheet, PDF - EEWORLD Datasheet

BL-R1132F: DescriptionSingle Color LED, Red, Diffused, 5mm, L-075, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size245KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-R1132F Overview

Single Color LED, Red, Diffused, 5mm, L-075, 2 PIN

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	L-075, 2 PIN
Reach Compliance Code	unknown
color	RED
Configuration	SINGLE
Maximum forward current	0.04 A
Lens type	DIFFUSED
Nominal luminous intensity	0.8 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	10.3 mm
method of packing	BULK
peak wavelength	655 nm
shape	RECTANGULAR
size	5 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	125 deg

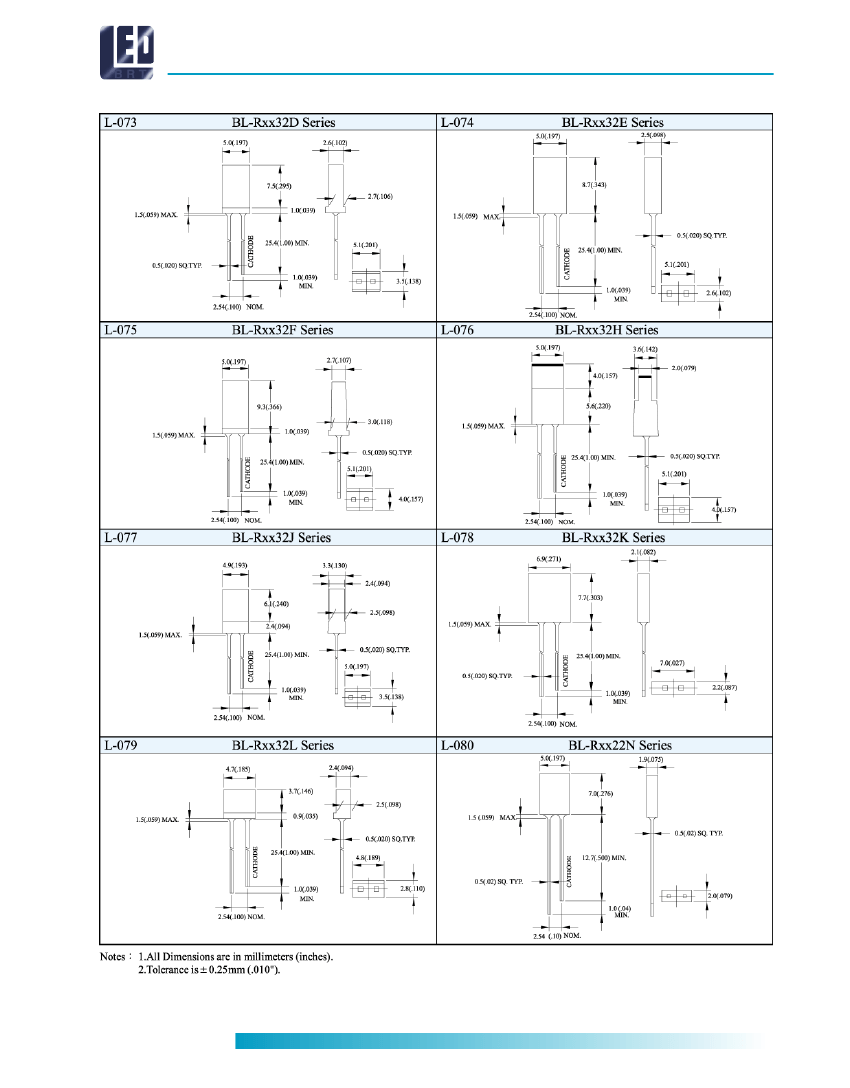

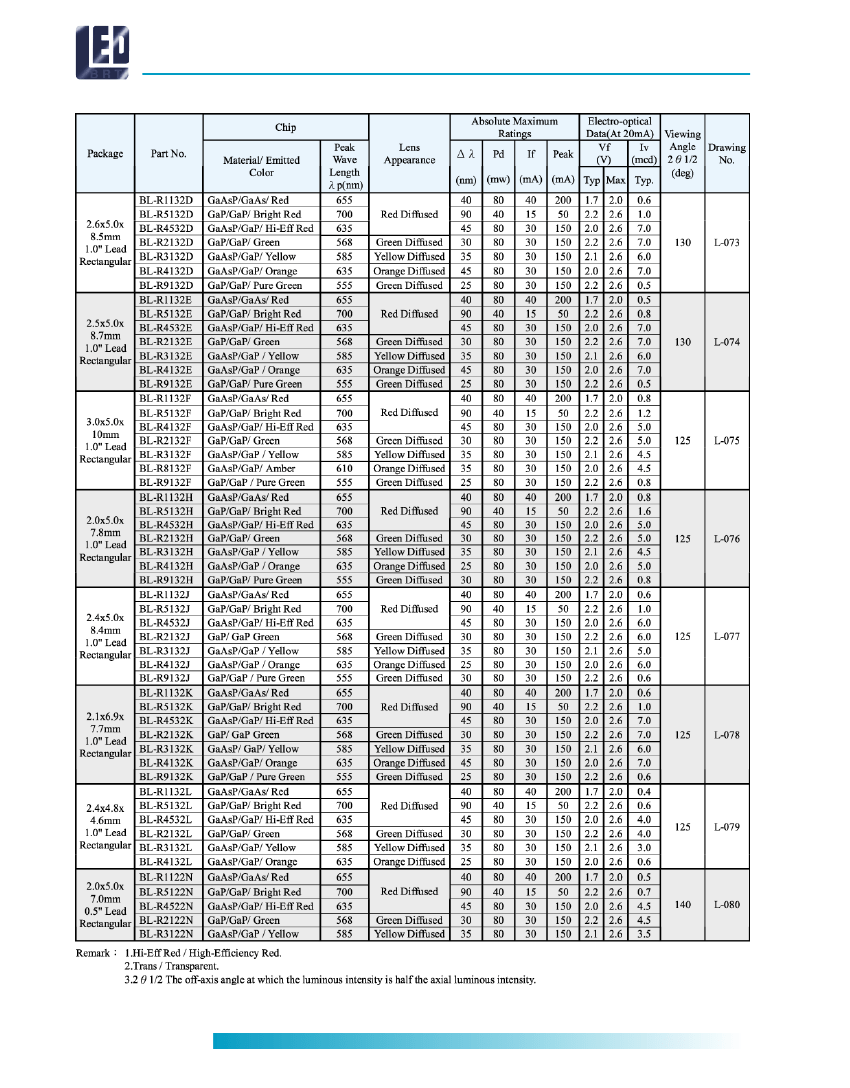

Standard LED Lamps

BL-R Series

Rectangular Types

AMERICAN BRIGHT

60

w w w. a m e r i c a n b r i g h t l e d . c o m

.

BL-R1132F Related Products

	BL-R1132F	BL-R1132J	BL-R1132H	BL-R1132D	BL-R1132K	BL-R1132L
Description	Single Color LED, Red, Diffused, 5mm, L-075, 2 PIN	Single Color LED, Red, Diffused, 4.9mm, L-077, 2 PIN	Single Color LED, Red, Diffused, 5mm, L-076, 2 PIN	Single Color LED, Red, Diffused, 5mm, L-073, 2 PIN	Single Color LED, Red, Diffused, 6.9mm, L-078, 2 PIN	Single Color LED, Red, Diffused, 4.7mm, L-079, 2 PIN
package instruction	L-075, 2 PIN	L-077, 2 PIN	L-076, 2 PIN	L-073, 2 PIN	L-078, 2 PIN	L-079, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
color	RED	RED	RED	RED	RED	RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	0.8 mcd	0.6 mcd	0.8 mcd	0.6 mcd	0.6 mcd	0.4 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	10.3 mm	8.5 mm	9.6 mm	7.5 mm	7.7 mm	4.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	655 nm	655 nm	655 nm	655 nm	655 nm	655 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	5 mm	4.9 mm	5 mm	5 mm	6.9 mm	4.7 mm
surface mount	NO	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	125 deg	125 deg	125 deg	130 deg	125 deg	125 deg
Maker	BRIGHT	BRIGHT	BRIGHT	-	-	BRIGHT
Base Number Matches	-	1	1	1	1	-
