MDJ-004-FS-PG datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MDJ-004-FS-PG

Preview

MDJ-004-FS-PG: DescriptionCircular DIN Connector, 4 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Parametric Compare View All

MDJ-004-FS-PG Overview

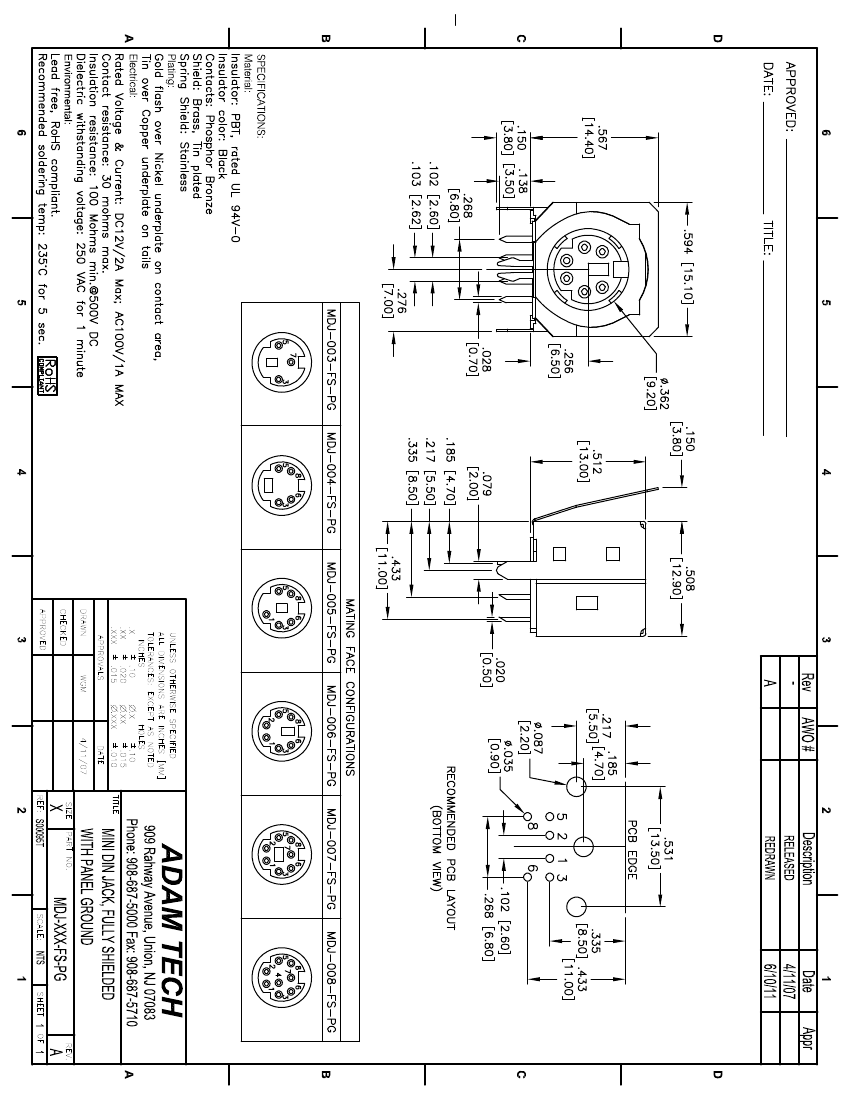

Circular DIN Connector, 4 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle

MDJ-004-FS-PG Parametric

Parameter Name	Attribute value
Maker	Adam Tech
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.567 inch
subject depth	0.508 inch
body length	0.594 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER COPPER
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	250VAC V
Durability	5000 Cycles
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MDJ
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	FLASH inch
polarization key	POLAR PIN POSITION
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	BRASS
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

MDJ-004-FS-PG Related Products

	MDJ-004-FS-PG	MDJ-006-FS-PG	MDJ-008-FS-PG	MDJ-003-FS-PG	MDJ-005-FS-PG
Description	Circular DIN Connector, 4 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle	Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle	Circular DIN Connector, 8 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle	Circular DIN Connector, 3 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle	Circular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle
Maker	Adam Tech	Adam Tech	Adam Tech	Adam Tech	Adam Tech
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.567 inch	0.567 inch	0.567 inch	0.567 inch	0.567 inch
subject depth	0.508 inch	0.508 inch	0.508 inch	0.508 inch	0.508 inch
body length	0.594 inch	0.594 inch	0.594 inch	0.594 inch	0.594 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	YES	YES	YES
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Durability	5000 Cycles	5000 Cycles	5000 Cycles	5000 Cycles	5000 Cycles
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MDJ	MDJ	MDJ	MDJ	MDJ
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Rated current (signal)	2 A	2 A	2 A	2 A	2 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN
Shell material	BRASS	BRASS	BRASS	BRASS	BRASS
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	6	8	3	5
