DDA123JU-7: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 2-Element, PNP, Silicon, PLASTIC PACKAGE-6; CategoryDiscrete semiconductor The transistor; File Size200KB，7 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

DDA123JU-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DDA123JU-7	-	-	View	Buy Now

DDA123JU-7 Overview

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 2-Element, PNP, Silicon, PLASTIC PACKAGE-6

DDA123JU-7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	SMALL OUTLINE, R-PDSO-G6
Contacts	6
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 21.36
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	80
JESD-30 code	R-PDSO-G6
JESD-609 code	e0
Humidity sensitivity level	1
Number of components	2
Number of terminals	6
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

Preview

Download Datasheet

View All

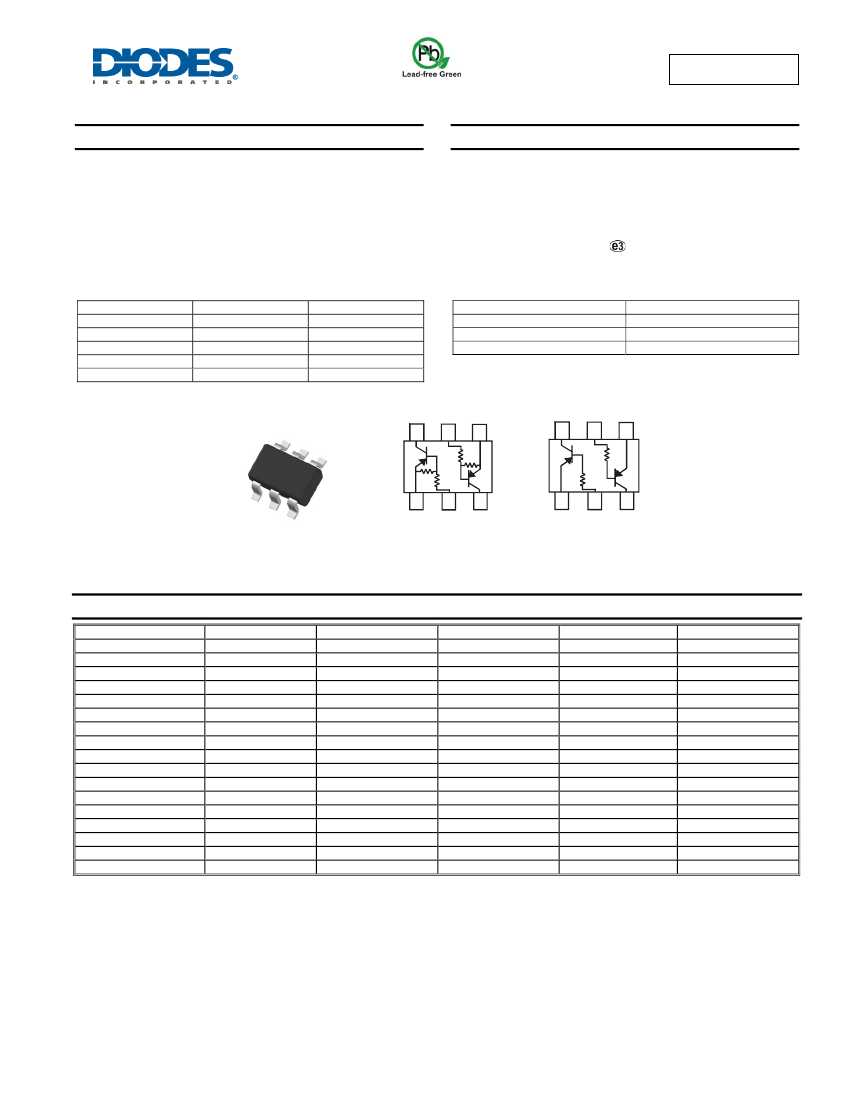

DDA(xxxx)U

PNP PRE-BIASED SMALL SIGNAL DUAL SURFACE MOUNT TRANSISTOR

Features



Epitaxial Planar Die Construction

Complementary NPN Types Available (DDC)

Built-In Biasing Resistors

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Mechanical Data



Case: SOT363

Case Material: Molded Plastic, “Green” Molding Compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.006 grams (approximate)

Part Number

DDA124EU

DDA144EU

DDA114YU

DDA123JU

DDA114EU

R1 (NOM)

22KΩ

47KΩ

10KΩ

2.2KΩ

10KΩ

R2 (NOM)

22KΩ

47KΩ

10KΩ

Part Number

DDA113TU

DDA143TU

DDA114TU

R1 Only

1KΩ

4.7KΩ

10KΩ

SOT363

R1, R2

Top View

Device Schematic

R1 Only

Ordering Information

(Notes 4 & 5)

Product

DDA124EU-7-F

DDA124EUQ-7-F

DDA124EUQ-13-F

DDA144EU-7-F

DDA144EUQ-7-F

DDA114YU-7-F

DDA114YUQ-7-F

DDA123JU-7-F

DDA114EU-7-F

DDA114EUQ-7-F

DDA113TU-7-F

DDA143TU-7-F

DDA143TUQ-7-F

DDA143TUQ-13-F

DDA114TU-7-F

DDA114TUQ-7-F

DDA114TUQ-13-F

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

Marking

P17

P20

P14

P06

P13

P01

P07

P12

Reel size (inches)

Tape width (mm)

Quantity per reel

3,000

10,000

3,000

10,000

3,000

10,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

DDA(xxxx)U

Document number: DS30346 Rev. 11 - 2

1 of 7

www.diodes.com

November 2013
