UPD4992GS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UPD4992GS

UPD4992GS: DescriptionReal Time Clock, 0 Timer(s), CMOS, PDSO20, 0.300 INCH, PLASTIC, SOP-20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size219KB，16 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD4992GS Overview

Real Time Clock, 0 Timer(s), CMOS, PDSO20, 0.300 INCH, PLASTIC, SOP-20

UPD4992GS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
package instruction	0.300 INCH, PLASTIC, SOP-20
Reach Compliance Code	compliant
maximum clock frequency	6.67 MHz
External data bus width	8
Information access methods	PARALLEL, DIRECT ADDRESS
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Number of terminals	20
Number of timers
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum slew rate	0.006 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.4 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.6 mm
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK

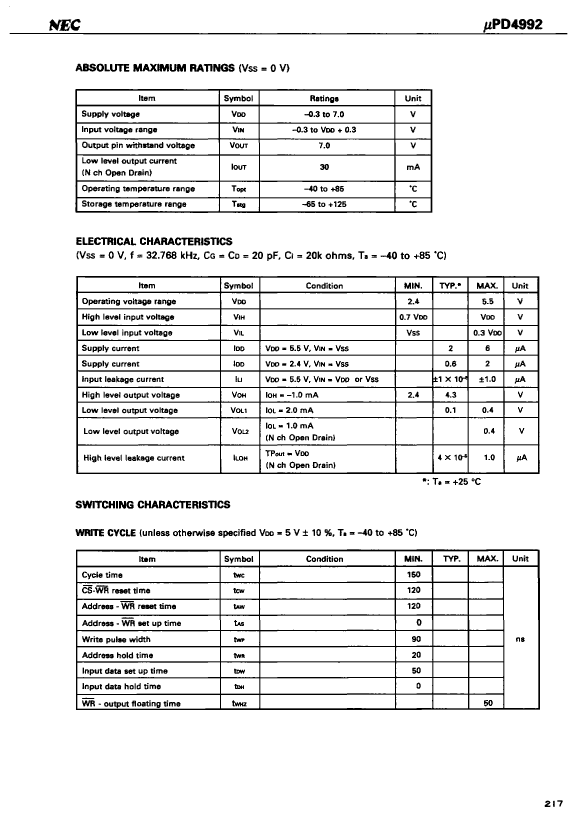

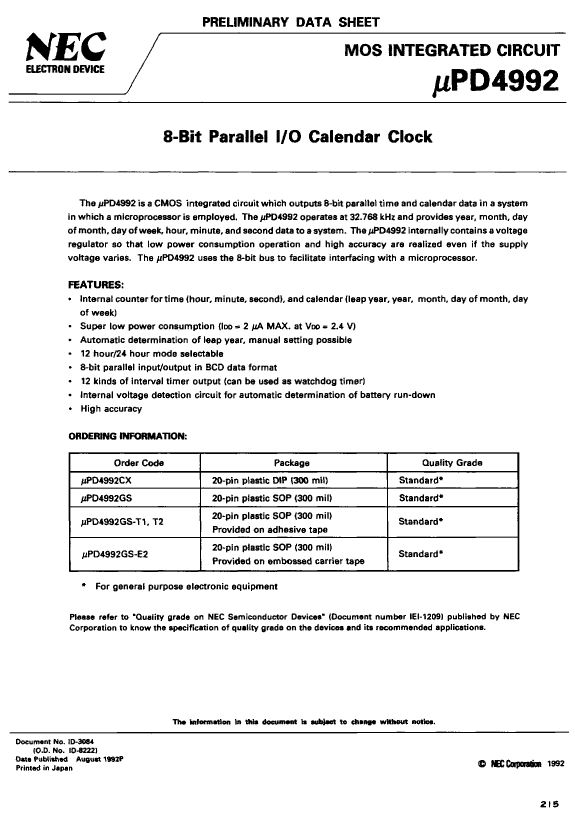

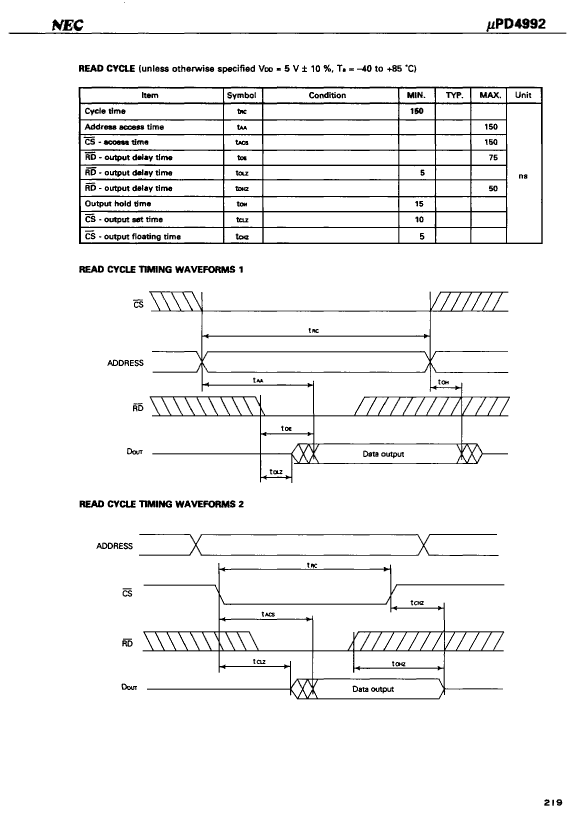

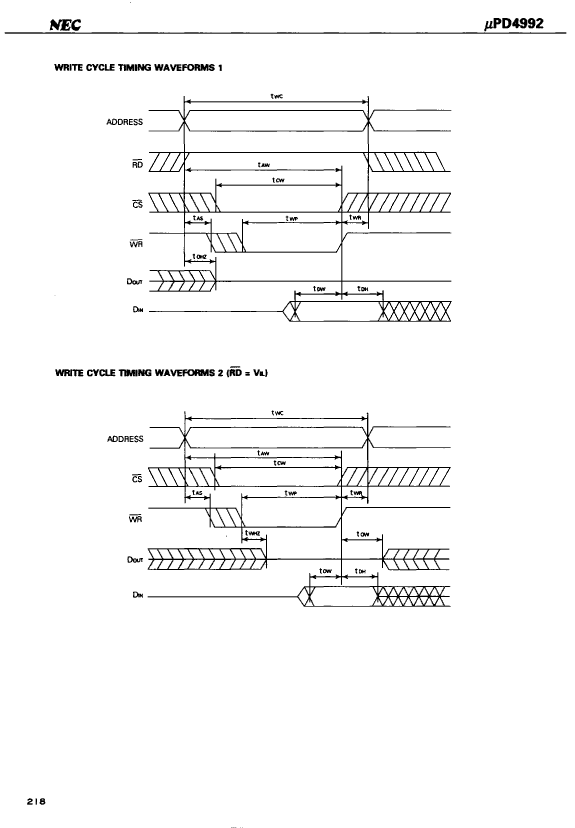

Preview

Download Datasheet

View All

UPD4992GS Related Products

	UPD4992GS	UPD4992GS-E2	UPD4992GS-T2	UPD4992GS-T1	UPD4992CX
Description	Real Time Clock, 0 Timer(s), CMOS, PDSO20, 0.300 INCH, PLASTIC, SOP-20	Real Time Clock, 0 Timer(s), CMOS, PDSO20, 0.300 INCH, PLASTIC, SOP-20	Real Time Clock, 0 Timer(s), CMOS, PDSO20, 0.300 INCH, PLASTIC, SOP-20	Real Time Clock, 0 Timer(s), CMOS, PDSO20, 0.300 INCH, PLASTIC, SOP-20	Real Time Clock, 0 Timer(s), CMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	0.300 INCH, PLASTIC, SOP-20	0.300 INCH, PLASTIC, SOP-20	0.300 INCH, PLASTIC, SOP-20	0.300 INCH, PLASTIC, SOP-20	0.300 INCH, PLASTIC, DIP-20
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
maximum clock frequency	6.67 MHz	6.67 MHz	6.67 MHz	6.67 MHz	6.67 MHz
External data bus width	8	8	8	8	8
Information access methods	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0	e0
Number of terminals	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.8 mm	1.8 mm	1.8 mm	1.8 mm	5.08 mm
Maximum slew rate	0.006 mA	0.006 mA	0.006 mA	0.006 mA	0.006 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.4 V	2.4 V	2.4 V	2.4 V	2.4 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	5.6 mm	5.6 mm	5.6 mm	5.6 mm	7.62 mm
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK
length	12.8 mm	12.8 mm	12.8 mm	12.8 mm	-
