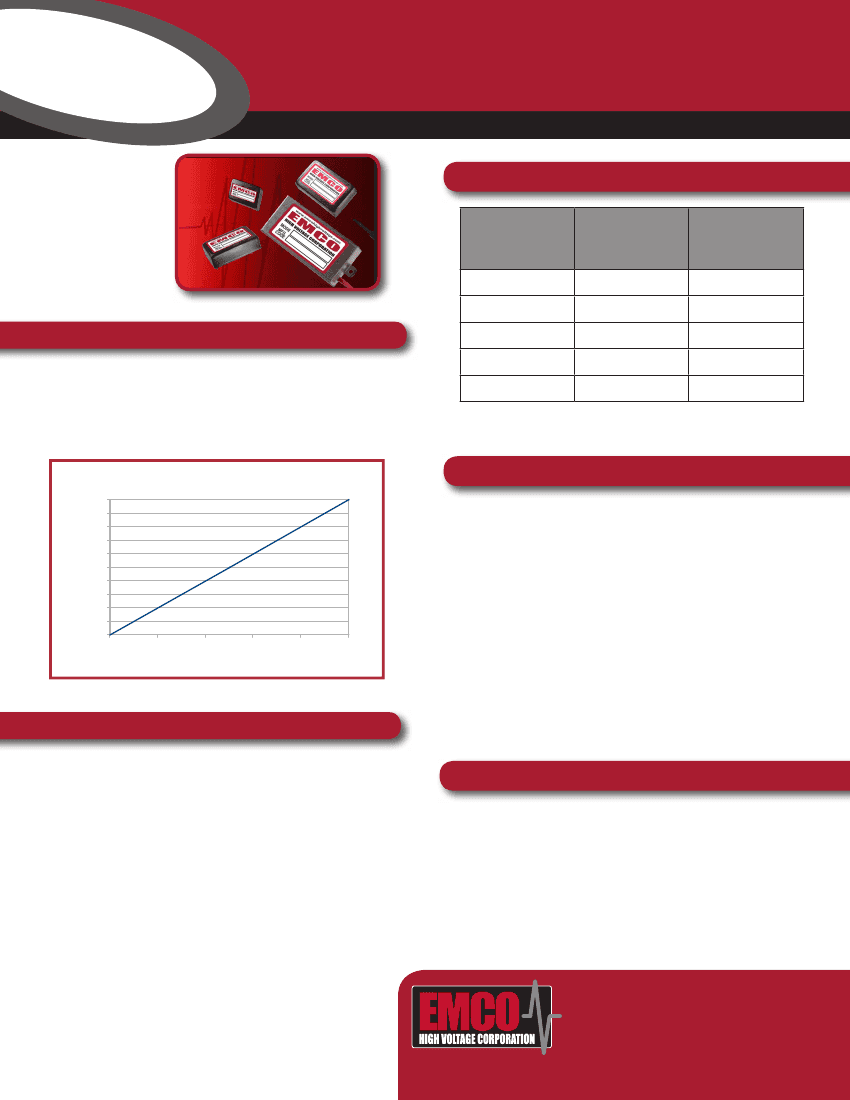

PRECISION REGULATED, LOW RIPPLE HIGH VOLTAGE DC TO DC CONVERTERS
0 to +/-200V through 0 to +/-2000VDC @ 1 Watt
PRODUCT SELECTION TABLE
MODEL
CA02
CA05
CA SERIES
OUTPUT
VOLTAGE
(POSITIVE OR NEGATIVE)
0 to 200V
0 to 500V
0 to 1,000V
0 to 1,250V
0 to 2,000V
MAXIMUM
OUTPUT
CURRENT*
1
0 to 5 mA
0 to 2 mA
0 to 1mA
0 to 0.8 mA
0 to 0.5 mA
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
Precision regulated, very low noise, high performance high voltage
power supplies are fully programmable (0 to 100%) and feature high
voltage monitor readback, on-board precision reference, wide input
voltage range and protection against arcs and short circuits all in a
miniature, shielded case.
CA10
CA12
CA20
Complete List of Models on page 2
Programming Voltage vs Output Voltage
100
90
FEATURES
• Very Low Ripple, as low as 5PPM!
• Precision Regulated
• Miniature Shielded Case, 1 cubic inch
• 0 to 100% Programmable output
• Voltage Monitor/ Readback
• High Stability, typically<25ppm/°C
• Wide Input Voltage Range
• Arc, Short Circuit Protected
12 Vin; indefinite
5 Vin; short duration, up to 1 minute
• Very Low EMI/RFI
• Precision On board Reference
• External Voltage or Potentiometer Programming
• Accessible Calibration Adjustment
• Sealed To Withstand Immersion Cleaning Processes
• Designed to meet the requirements of UL1950
• Proven Reliability, MTBF: >2.10 million hrs per Bellcore TR-332
• UL94-V0 Compliant Epoxy
Output Voltage (0 to 100%)
80
70
60
50
40
30
20
10
0
0
20
40
60
80
100
Programming Voltage (0 to 100% )
APPLICATIONS
Photomultiplier Tubes
Avalanche Photodiodes
Solid State Detectors
Electrophoresis
EO Lenses
Piezo Devices
Capacitor Charging
OPTIONS
• Available with a 5VDC input voltage
• Extended Operating Temperature: -55°C to +70°C
• Storage Temperature of Extended Temperature option: -55°C to +95°C
• Low Out-gassing Epoxy (NASA approved per ASTM E-595-93)
• RoHS versions available (R suffix)
PAGE 1 OF 8
4709BO
www.emcohighvoltage.com
e-mail: sales@emcohighvoltage.com
phone: (209) 267-1630, fax (209) 267-0282
70 Forest Products Rd, Sutter Creek, CA 95685 USA
CA SERIES
ELECTRICAL SPECIFICATIONS
*
CA02 - CA20 (200V
to 2000V)
2
OUTPUT
VOLTAGE
MODEL
MAXIMUM
OUTPUT
CURRENT*
1
0 to 5 mA
0 to 5 mA
0 to 2 mA
0 to 2 mA
0 to 1 mA
0 to 1mA
0 to 0.8 mA
0 to 0.8 mA
0 to 0.5 mA
0 to 0.5 mA
0 to 5 mA
0 to 5 mA
0 to 2 mA
0 to 2 mA
0 to 1 mA
0 to 1 mA
0 to 0.8 mA
0 to 0.8 mA
0 to 0.5 mA
0 to 0.5 mA
RIPPLE
P-P
FULL-LOAD*
3
<0.01 %
<0.01 %
<0.01 %
<0.01 %
<0.001 %
<0.001 %
<0.0005 %
<0.0005 %
<0.001 %
<0.001 %
<0.01 %
<0.01 %
<0.005 %
<0.005 %
<0.001 %
<0.001 %
<0.001 %
<0.001 %
<0.001 %
<0.001 %
REGULATION
LOAD
0 TO 100%*
3
<0.05 %
<0.05%
<0.01 %
<0.01 %
<0.005 %
<0.005 %
<0.005 %
<0.005 %
<0.01 %
<0.01 %
<0.01 %
<0.005 %
<0.003 %
<0.005 %
<0.005 %
<0.005 %
<0.005 %
<0.005 %
<0.005 %
<0.001 %
LINE
11.5 TO 15.5V*
3
<0.01 %
<0.01%
<0.01%
<0.01 %
<0.001 %
<0.001 %
<0.001 %
<0.001 %
<0.01 %
<0.01 %
<0.01 %
<0.003 %
<0.002 %
<0.002 %
<0.001 %
<0.001 %
<0.001 %
<0.001 %
<0.003 %
<0.001 %
FREQUENCY*
3
12 VDC INPUT MODELS
0 to +200V
0 to -200V
0 to +500V
0 to -500V
0 to +1,000V
0 to -1,000V
0 to +1,250V
0 to -1,250V
0 to +2,000V
0 to -2,000V
0 to +200V
0 to -200V
0 to +500V
0 to -500V
0 to +1,000V
0 to -1,000V
0 to +1,250V
0 to -1,250V
0 to +2,000V
0 to -2,000V
CA02P
CA02N
CA05P
CA05N
CA10P
CA10N
CA12P
CA12N
CA20P
CA20N
CA02P-5
CA02N-5
CA05P-5
CA05N-5
CA10P-5
CA10N-5
CA12P-5
CA12N-5
CA20P-5
CA20N-5
80 - 180 kHz
80 - 230 kHz
200 - 400 kHz
100 - 250 kHz
80 - 250 kHz
100 - 250 kHz
80 - 250 kHz
80 - 250 kHz
80 - 250 kHz
100 - 250 kHz
100 - 250 kHz
100 - 250 kHz
100 - 250 kHz
87 - 350 kHz
100 - 250 kHz
100 - 250 kHz
150 - 300 kHz
150 - 300 kHz
45 - 250 kHz
100 - 250 kHz
5 VDC INPUT MODELS
INPUT CURRENT
CA02-CA12
VIN
NO-LOAD
FULL-LOAD
NO-LOAD
CA20
FULL-LOAD
5 VDC
12 VDC
< 65mA
<80 mA
<420mA
<220 mA
<155 mA
<100 mA
<550 mA
<220 mA
PAGE 2 OF 8
4709BO
www.emcohighvoltage.com
e-mail: sales@emcohighvoltage.com
phone: (209) 267-1630, fax (209) 267-0282
70 Forest Products Rd, Sutter Creek, CA 95685 USA
CA SERIES
ELECTRICAL SPECIFICATIONS*
2
CA02 - CA20 (200V to 2000V)
PARAMETER
INPUT VOLTAGE
STANDBY POWER
INPUT CAPACITANCE
PROGRAMMING VOLTAGE
SET POINT ACCURACY
GAIN ADJUST
LINEARITY
STABILITY
VOLTAGE MONITOR*
5
REFERENCE OUTPUT
TEMPCO
THERMAL SHOCK LIMIT
STANDARD TEMPERATURE RANGES
EXTENDED TEMPERATURE RANGES (-T OPTION)
VALUE
INPUT MODELS: +11.5 TO +15.5v (STANDARD)
5V INPUT MODELS: +4.75 TO +5.25V
<25mW*
3
440uF
12V INPUT MODELS: 0 TO +5V, <150uA
5V INPUT MODELS: 0 TO +2.048V <150uA
1%
1%
<0.5% (15% TO 100% VOUT)
<0.005%/HR*³
12V INPUT MODELS: 0 TO +5V = 0 TO 100% VOUT
5V INPUT MODELS: 0 TO +2.048V = 0 TO 100% VOUT
12V INPUT MODELS: +5V +/- 1% , UP TO 1 mA
5V INPUT MODELS: +2.048V +/- 1% , UP TO 1 mA
<25PPM/°C*³
1°C/10 SEC.
OPERATING: -10° TO +50°C (CASE)
STORAGE: -25° TO +95°C
OPERATING: -55 TO +70°C (CASE)
STORAGE: -55° TO +95°C
APPLICATION NOTES
Sequencing
As is the case for all active electronics, the user should apply power
prior to control inputs. For the CA Series, it is recommended to wait
at least 100msec after input power is applied before sending a voltage
programming.command.
Dynamic Response
In cases where the output voltage rises above the voltage programming
command then settles. To mitigate this effect, ramp the voltage program-
ming input at a slower rate until satisfactory results are achieved.
DETAILED PRODUCT DESCRIPTION
The CA Series of high performance, precision regulated, high voltage
power supplies offers improved performance and added features. Im-
provements in stability and ripple, along with an on board precision
reference, a voltage monitor and increased protection, enable these
modules to replace much larger, more expensive power supplies in
many applications. Each model is programmed from 0 to 100% of rat-
ed output via a DAC compatible high impedance programming input. A
voltage monitor is provided and is internally buffered to provide a low
impedance (up to 1 mA) signal to external circuitry. The precision, on
board reference can be used in conjunction with an external potenti-
ometer or voltage divider to program the high voltage output. Each unit
has an accessible potentiometer allowing for individual calibration after
installation. A quasi-sinewave oscillator, internal transformer shielding,
and an isolated steel case reduce EMI/RFI radiation to extremely low
levels. Suitable for photomultiplier tubes, avalanche photodiodes, preci-
sion EO lenses, piezo devices and other applications requiring precision,
low noise, high voltage in a miniature, pc or chassis mount, cost effective
package.
Also available with the CA Series are the CM Series adapter kits. For
more details, refer to pages 7 and 8.
Small quantities available from stock from our factory or our stocking dis-
tributor in Switzerland, Condatas AG. For large quantity requests please
consult our factory or our stocking distributor in Switzerland, Condatas
AG.
PAGE 3 OF 8
4709BO
www.emcohighvoltage.com
e-mail: sales@emcohighvoltage.com
phone: (209) 267-1630, fax (209) 267-0282
70 Forest Products Rd, Sutter Creek, CA 95685 USA
CA SERIES

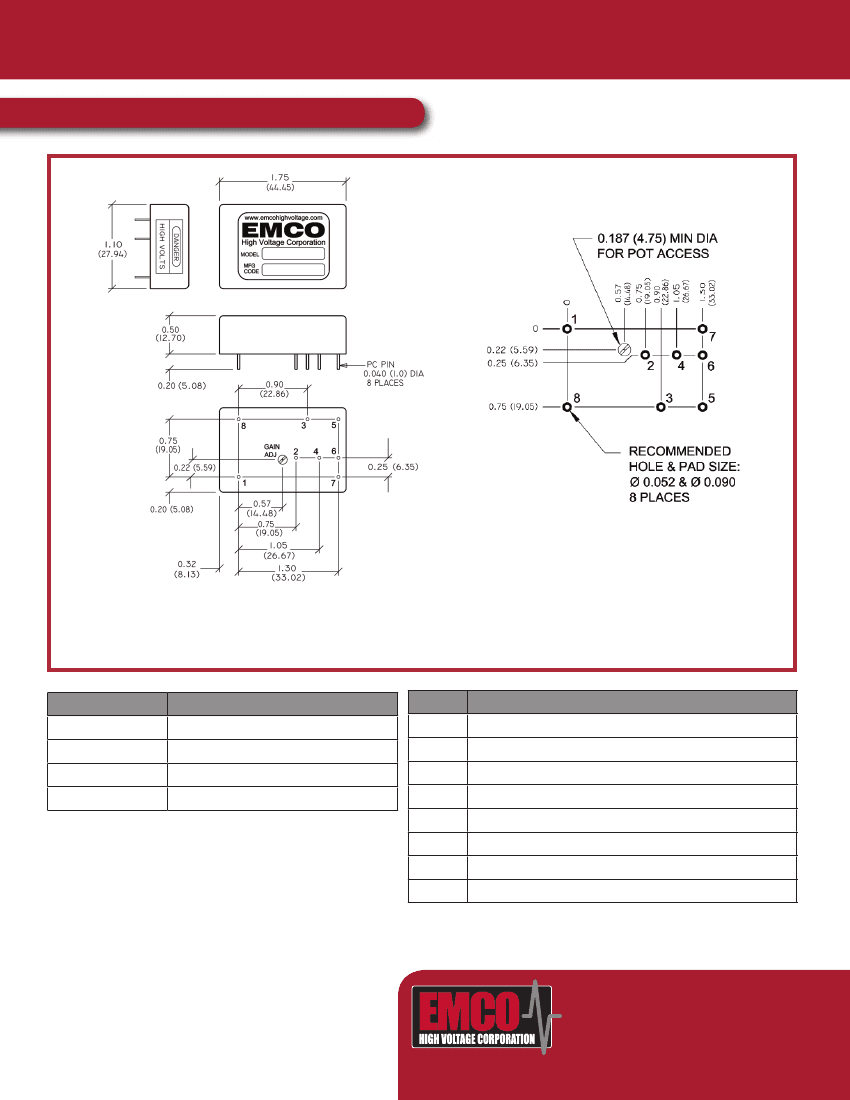

MECHANICAL SPECIFICATIONS CA
PCB LAYOUT
COMPONENT SIDE
SEALED TO WITHSTAND IMMERSION CLEANING PROCESSES
DIMENSIONS ARE IN INCHES (METRIC EQUIVALENTS PARENTHESIS)
DIMENSIONAL TOLERANCES: .XX +- 0.02 (0.51MM), .XXX +- 0.005 ( 0.127MM)
PARAMETER
WEIGHT
VOLUME
DIMENSIONS
CASE MATERIAL
VALUE
1.4 OZ. (36.9 GRAMS)
0.96 CUBIC INCHES (15.77 CUBIC CENTIMETERS)
1.75L (44.45L) x 1.10W (27.94W) x 0.50H (12.70H)
ZINC PLATED STEEL
PIN #
1
2
3
4
5
6
7
8
FUNCTION
OUTPUT VOLTAGE
PROGRAMMING VOLTAGE INPUT
GROUND
VOLTAGE REFERENCE OUTPUT
CASE GROUND
*4
INPUT VOLTAGE
VOLTAGE MONITOR
OUTPUT RETURN
PAGE 4 OF 8
4709BO
www.emcohighvoltage.com
e-mail: sales@emcohighvoltage.com
phone: (209) 267-1630, fax (209) 267-0282
70 Forest Products Rd, Sutter Creek, CA 95685 USA
CA SERIES

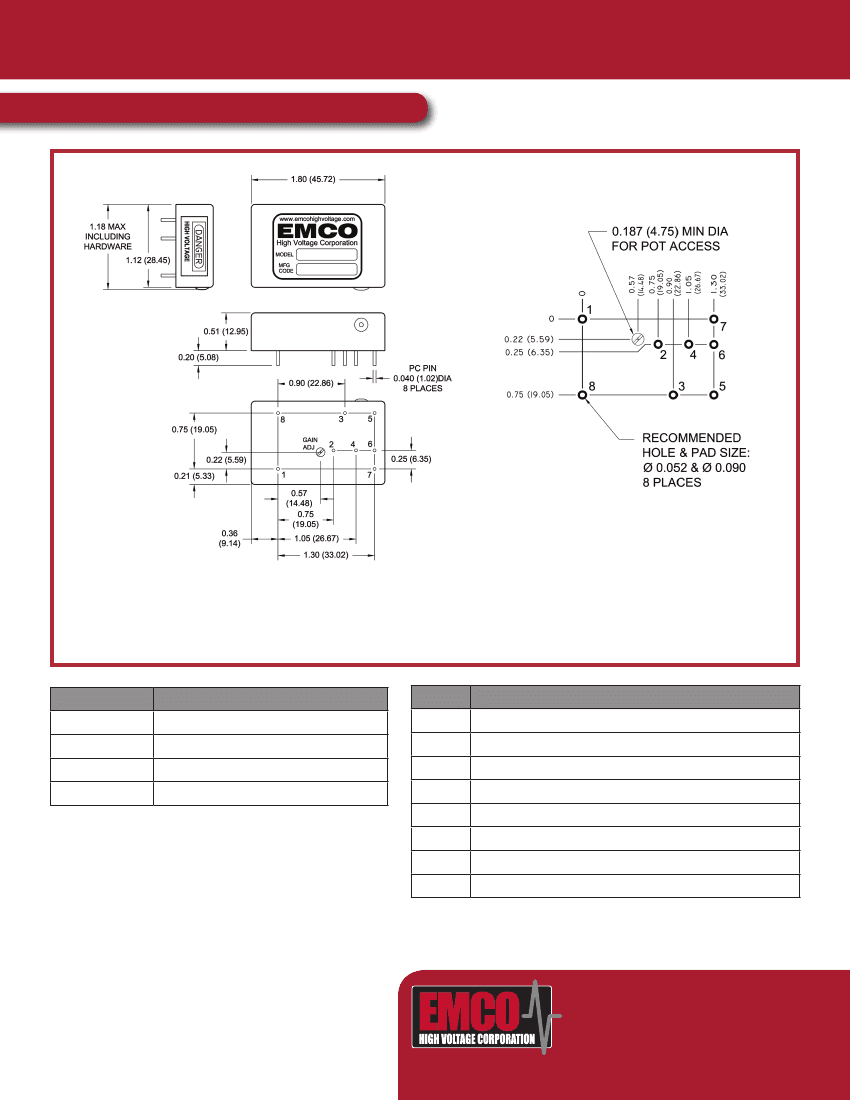

MECHANICAL SPECIFICATIONS CA-T
PCB LAYOUT
COMPONENT SIDE
SEALED TO WITHSTAND IMMERSION CLEANING PROCESSES
DIMENSIONS ARE IN INCHES (METRIC EQUIVALENTS PARENTHESIS)
DIMENSIONAL TOLERANCES: .XX +- 0.02 (0.51MM), .XXX +- 0.005 ( 0.127MM)
PARAMETER
WEIGHT
VOLUME
DIMENSIONS
CASE MATERIAL
VALUE
1.4 OZ. (36.9 GRAMS)
1.03 CUBIC INCHES (16.84 CUBIC CENTIMETERS)
1.80L (45.72L) x 1.12W (28.45W) x 0.51H (12.95H)
ALUMINUM
PIN #
1
2
3
4
5
6
7
8
FUNCTION
OUTPUT VOLTAGE
PROGRAMMING VOLTAGE INPUT
GROUND
VOLTAGE REFERENCE OUTPUT
CASE GROUND
*4
INPUT VOLTAGE
VOLTAGE MONITOR
OUTPUT RETURN
PAGE 5 OF 8
4709BO
www.emcohighvoltage.com
e-mail: sales@emcohighvoltage.com
phone: (209) 267-1630, fax (209) 267-0282
70 Forest Products Rd, Sutter Creek, CA 95685 USA
