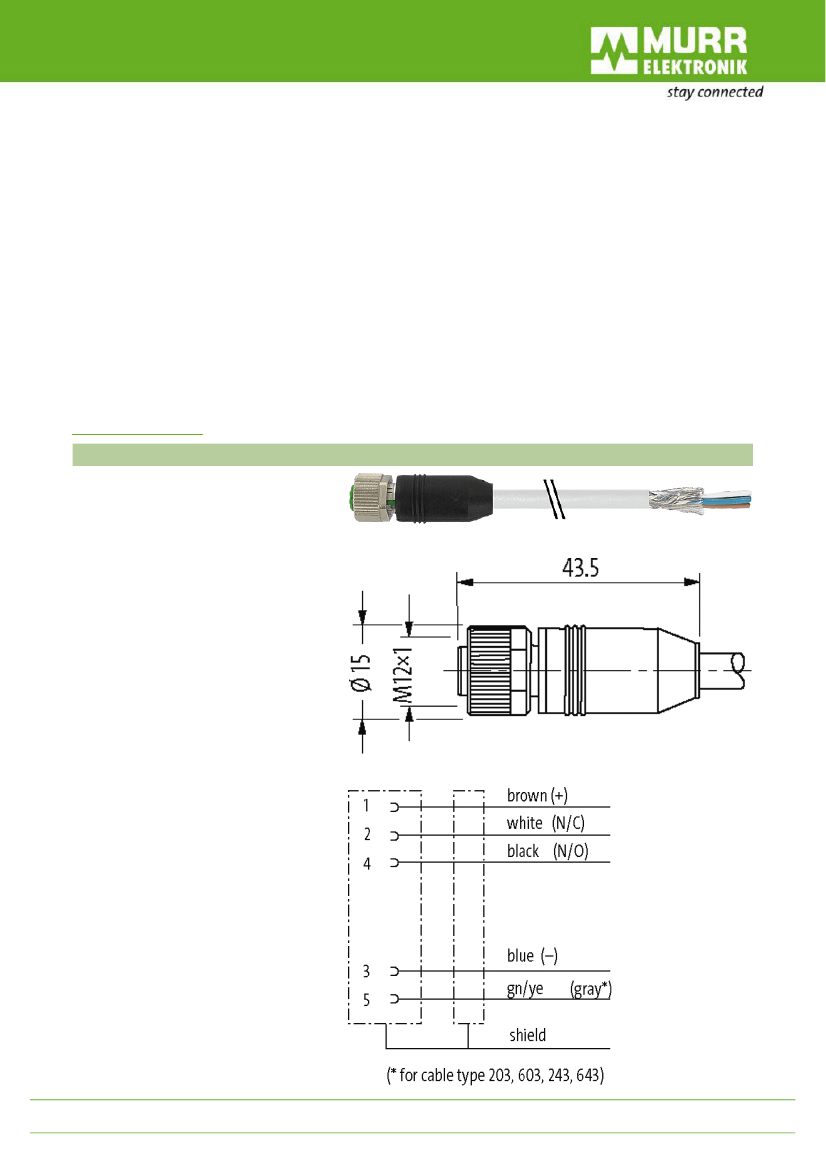

INT ERNET DAT A SHEET for Article Number 7000-13221-2030500
M12 FEMALE 0° SHIELDED
PVC 5X0.34 shielded GRAY, UL,CSA 5m
Female straight
M12, 5-pole
shielded
with cable sleeves
Plastic housings with good resistance against chemicals and oils. The resistance to
aggressive media should be individually tested for your application. Further details on
request. Further cable lengths on request.
Link t o Product
Illustra tio n
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-13221-2030500
Pro d uc t may d iffe r fro m Imag e
Appro va ls
* only for products with UL/CSA approved cable
cCSAus
Fo rm
Fo rm
Ca bles
No ./d iameter o f wires
Wire iso latio n
Material (jacket)
Outer Ø
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
Cab le id entificatio n
Cab le typ e
Ap p ro val (cab le)
Cab le weig ht [g /m]
Material (wire)
Resisto r (co re)
Sing le wire Ø (co re)
Co nstructio n (co re)
Diameter (co re)
AWG
Material (wire iso latio n)
5 × 0.34 mm²
PVC (b r, wh, b l, b k, g r)
PVC (UL/CSA)
5.6 mm ±5%
-30...+80 °C
-5...+80 °C
203
1 (PVC)
UL (AWM-Style 2464/1731), CSA
68,20
Cu wire, b are
max. 60
Ω/km
(20 °C)
0.15 mm
19 × 0.15 mm (multi-strand wire class 5)
5 × 0.34 mm²
similar to AWG 22
PVC
13221
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-13221-2030500
Material p ro p erty (wire iso latio n)
Sho re hard ness (wire iso latio n)
Wire-Ø incl. iso latio n
Co lo r/numb ering o f wires
Strand ing co mb inatio n
Shield
Material (jacket)
Material p ro p erty (jacket)
Sho re hard ness (jacket)
Outer-Ø (jacket)
Co lo r (jacket)
chemical resistance
No minal vo ltag e
T est vo ltag e
Current lo ad cap acity
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
Bend rad ius (fixed )
Jacket Co lo r
T ec hnic a l da ta
Op erating vo ltag e
Op erating vo ltag e (o nly UL listed )
Rated surg e vo ltag e
Op erating current p er co ntact
Material g ro up
Co d ing
Lo cking o f p o rts
Co mp ressio n g land
Pro tectio n
Lo cking material
Material
suitab le fo r co rrug ated tub e (internal Ø)
Genera l da ta
Stand ard s
Po llutio n Deg ree
Strip p ing leng th (jacket)
T emp erature rang e
Co m m erc ia l da ta
co untry o f o rig in
custo ms tariff numb er
CFC-, cad mium-, silico ne- and lead -free
59 ±5 D
1.25 mm ±5%
b r, b k, b l, wh, g r
5 wires twisted aro und central filler
yes
PVC
CFC-, cad mium-, silico ne- and lead -free
85 ±5 A
5.6 mm ±5%
g ray
g o o d resistance to o il, g aso line and chemicals
300 V AC
2 000 V AC
to DIN VDE 0298-4
-30...+80 °C
-5...+80 °C
10 × o uter Ø
g ray
max. 60 V AC/DC
max. 30 V AC/DC
1.5 kV
max. 4 A
IEC 60664-1, categ o ry I
A-co d ed
Screw thread M12 × 1 mm (reco mmend ed to rq ue 0.6 Nm) self-
securing
M12 (SW13)
IP65, IP66K, IP67 inserted and tig htened (EN 60529)
Zinc d ie casting , matte nickel p lated
PUR
witho ut
DIN EN 61076-2-101 (M12)
3
20 mm
-25...+85 °C, d ep end ing o n cab le q uality
CZ
85444290
