(RSC) RUGGEDISED SINGLEWAY CONNECTOR
GENERAL SPECIFICATION
Optical
Attenuation:
Typ 0.25dB (50/125µm fibre)
Repeatability:
Better than 0.2dB
Fibre types:
8, 50, 62.5, 85/125µm
100/140µm
200/230µm
200/280µm
200/300µm
Cable Types
Tight jacket kevlar reinforced
secondary buffered fibre
Materials
Shell:
Arcap
Ferrule:
Zirconia
Alignment sleeve: Zirconia
Seals:
Fluorosilicone
Mechanical
Temperature range: -65°C to +155°C*
*Cable and epoxy dependant
Mechanical endurance: not less than 500 matings
High performance ceramic ferrule connectors
Rugged construction incorporating environmental sealing
Manufactured in Arcap for corrosion resistance
Anti-vibration coupling mechanism
Singlemode and multimode capability
Fibre faces easily accessible for cleaning
Simplified connector termination
6 Keyway orientation options
Full range of ancillary components and tooling
MILITARY & AEROSPACE
LTD

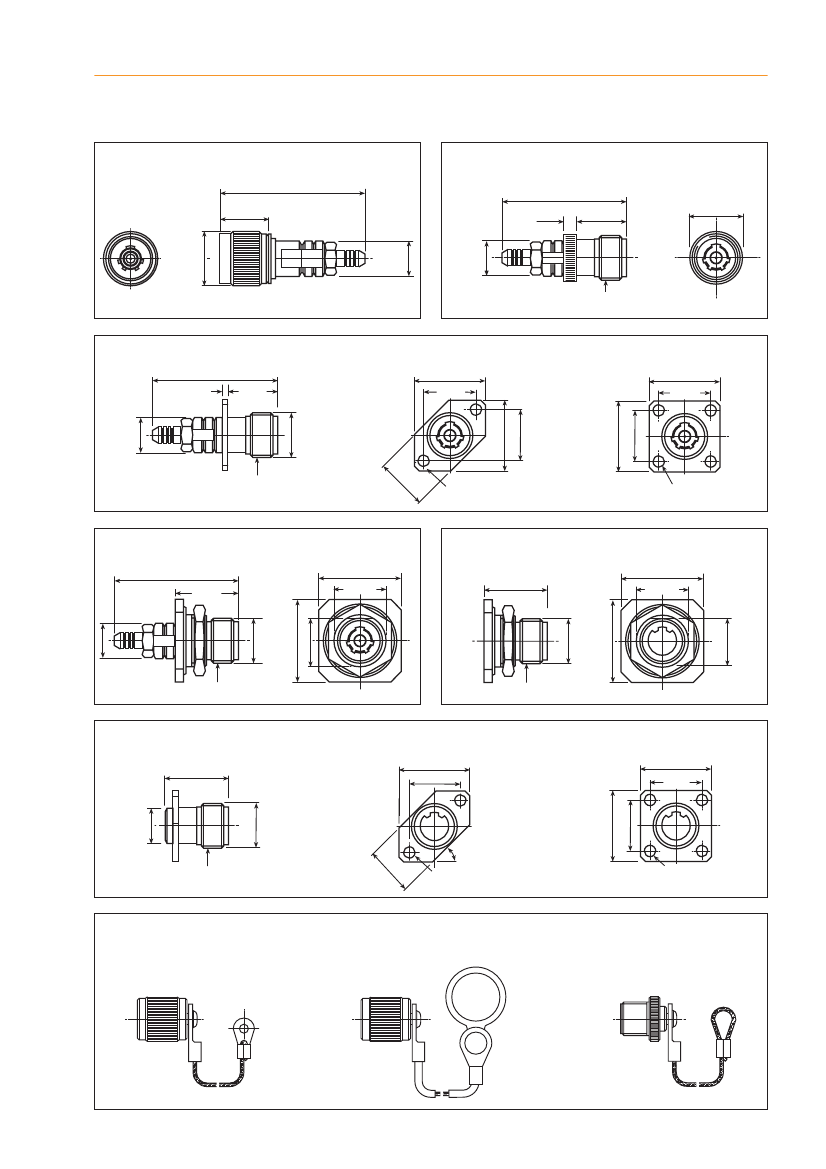

DIMENSIONAL SPECIFICATIONS
All dimensions in inches (except threads).
To complete part number for ordering see “How to order”
RSC06E
PLUG
1.457 max
0.499 max
Ø 0.356
max
RSC02E
FREE RECEPTACLE
1.233 max
0.116
0.492 max
Ø 0.511 max
Ø 0.511
max
Ø 0.356
max
Thread M11x1.0-6g
RSC20E/RSC00E
RECEPTACLES
1.233 max
0.05
0.492
Ø 0.432
max
RSC20E 2 Hole
MOUNTING
0.690
0.480
0.690
0.480
RSC00E 4 Hole
MOUNTING
0.690
0.480
0.690
0.480
4 holes Ø 0.122
0.825 A/F
Ø 0.502
Ø 0.432
max
0.825 A/F
0.470 max
0.690
0.480
0.690
0.480
4 holes Ø 0.122
Ø 0.356
max
Thread M11x1.0-6g
0.4
60
2 holes Ø 0.122
RSC07E
JAM NUT RECEPTACLE
1.236 max
0.606
Ø 0.432
max
0.825 A/F
0.470
0.825 A/F
Ø 0.502
0.606
RSC37E
DUMMY RECEPTACLE
Ø 0.356
max
Thread
M11x1.0-6g
Thread
M11x1.0-6g
RSC35E/RSC30E
DUMMY RECEPTACLES
0.642
RSC35E 2 Hole
MOUNTING
0.690
0.480
RSC30E 4 Hole
MOUNTING
Ø 0.356
Ø 0.432
45°
2 holes Ø 0.122
0.4
Thread M11x1.0-6g
60
RSC40E
PROCAP FOR RECEPTACLE CONNECTOR
RSC47E
PROCAP FOR JAM NUT RECEPTACLE
RSC50E
PROCAP FOR PLUG CONNECTOR
HOW TO ORDER
RSC
Series
Style
00 Bulkhead receptacle
02 Free receptacle
06 Plug
07 Jam nut receptacle
Shell Orientation:
N, A, B, C, D, E
Cable Type
100 Cable Dia
2.5mm O/D
180 Cable Dia
1.8mm O/D
200 Cable Dia
2.0mm O/D
300 Cable Dia
1.65mm O/D
400 Cable Dia
3.0mm O/D
500 Cable Dia
3.2mm O/D
600 Cable Dia
2.1mm O/D
700 Cable Dia*
1.6mm O/D
800 Cable Dia
3.7mm O/D
900 Cable Dia
5.0mm O/D
*Special Glass Braid
For other cable types consult Technical Sales
Example Part Number:
RSC06E–N–100
RSC plug ‘N’ orientation 2.5mm cable
½½E–
½
–½½½
RSC Essential Tooling
Part No.
RSC30E
RSC35E
RSC37E
RSC40E
RSC47E
RSC50E
454486
454487
454539
454481
454482
454483
454484
454335
451724
453228
454342
454779
454964
454775
453936
454257-2
454297
454299
456099SM-126
456099-126
456099-145
456099-176
456099-224
456099-232
454103-283
453800-305
Description and Use
Dummy Receptacles and Procaps
4 hole fixing dummy receptacle
2 hole fixing dummy receptacle
Jam nut fixing dummy receptacle
Procap for 2 and 4 hole receptacle
Procap for jam nut receptacle
Procap Plug connector
Termination Tools and Consumables
Polishing jig
Rubber Pads
Lapping film set
comprises:-
Coarse disk (10 off)
DR diamond disc
DM diamond disc
Polishing disc (10 off)
Fibre stripping tool
Spanners
Fibre cleaving tool
Crimp tool – Primary crimp
Crimp tool – Secondary crimp
Additional Optional Tooling
Priorspec Microscope (x220 Mag)
Priorspec RSC adaptor
Heater block
Consumable Materials
Epoxy Kit Type 353ND (2 gram sachet)
Syringe and Needle Kit
Scalpel Kit
Ferrules
Singlemode fibre size 8/125µm
Multimode fibre size 50, 62.5/125µm
Multimode fibre size 100/140µm
Multimode fibre size 100/172µm
Multimode fibre size 200/220µm
Multimode fibre size 200/230µm
Multimode fibre size 200/280µm Flat faced
Multimode fibre size 200/300µm
Notes
2 required
available separately
available separately
available separately
Hozan
2 required
Temperature curing
6 off each kit
must be ordered separately
must be ordered separately
must be ordered separately
must be ordered separately
must be ordered separately
must be ordered separately
must be ordered separately
must be ordered separately
Note: *Additional tooling may be required specific to cable types (consult technical sales)
*For comprehensive tooling and consumable listing refer to technical sales
Deutsch Limited reserves the right to alter specification without notice
CONNECTORS
(HR-RSC) RANGE
ADVANTAGES
s
s
s
(HR-RSC) HERMETIC RECEPTACLE
Compatible with the RSC plug connector
Leak rate <1x10
-6
cc/s
125°C temperature rating
HR-RSC-P-½-½½½
Thread M11x1.0-6g
Dimensions as for RSC receptacle unless otherwise requested
HOW TO ORDER
HR-RSC
Series
Ferrule Type
P Pigtail (*Note pigtail cable 900µm buffer only)
Shell Orientation:
N, A, B, C, D, E
Fibre Size:
125, 140, 280µm
Pigtail Length:
cms *for pigtail options only
–½
–½
–½½½
–½½½
Note: *For comprehensive tooling and consumable listing refer to technical sales
Deutsch Limited reserves the right to alter specification without notice
MILITARY & AEROSPACE
LTD
A step ahead in technology
Fibre Optic Group
Imberhorne Lane, East Grinstead
West Sussex RH19 1RW England
Telephone 01342 410033
Fax 01342 317661
Email mil.aero@deutsch.co.uk.
Data RSC 02/99
