FEATURES
* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
6A05
VOLTAGE RANGE
50 TO 1000 Volts
CURRENT
6.0 Amperes
THRU
6.0 AMP SILICON RECTIFIERS
6A10
VOLTAGE RANGE
50 TO 1000 Volts
CURRENT
6.0 Amperes
R-6
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Axial leads, solderable per MIL-STD-202,
method 208 guranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 1.65 grams
.360(9.1)
.340(8.6)
DIA.
1.0(25.4)
MIN.
.360(9.1)
.340(8.6)
.052(1.3)
.048(1.2)
DIA.
1.0(25.4)
MIN.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375"(9.5mm) Lead Length at Ta=60 C
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at 6.0A
Maximum DC Reverse Current
Ta=25 C
at Rated DC Blocking Voltage
Ta=100 C
Typical Junction Capacitance (Note 1)
Typical Thermal Resistance R
θ
JA (Note 2)
Operating and Storage Temperature Range T
J
, T
STG
NOTES:
6A05
50
35
50
6A1
100
70
100
6A2
200
140
200
6A4
400
280
400
6.0
400
0.95
10.0
400
100
10
-65
+150
6A6
600
420
600
6A8
800
560
800
6A10
1000
700
1000
UNITS
V
V
V
A
A
V
µA
µA
pF
C/W
C
1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2. Thermal Resistance from Junction to Ambient .375" (9.5mm) lead length.
1
126
ＧＡＯＭＩ ＸＩＮＧＨＥ ＥＬＥＣＴＲＯＮＩＣＳＣＯ．，ＬＴＤ． ＷＷＷ．ＳＤＤＺＧ．ＣＯＭ ＴＥＬ：０５３６－２２１０３５９ ＱＱ：４６４７６８０１７
星合电子
ＸＩＮＧＨＥ ＥＬＥＣＴＲＯＮＩＣＳ
6A05
THRU
6A10
6.0 AMP SILICON RECTIFIERS

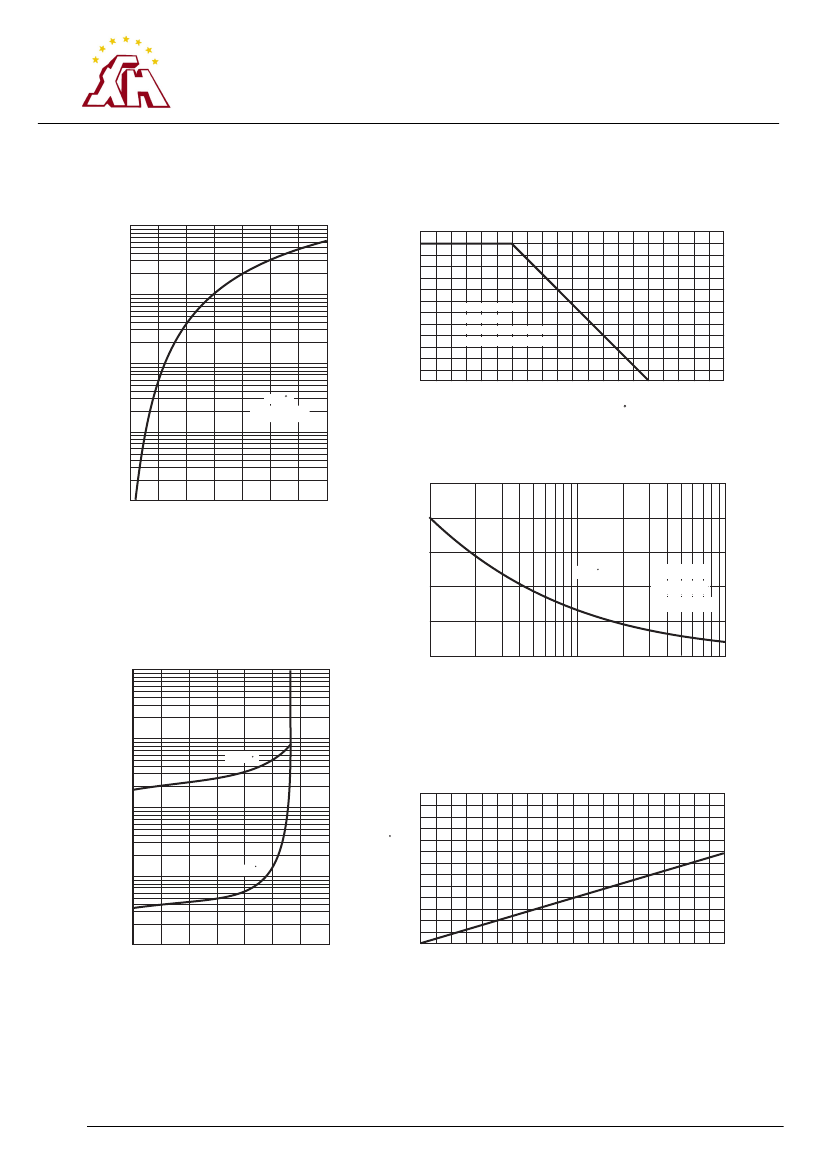

RATING AND CHARACTERISTIC CURVES (6A05 THRU 6A10)
FIG.1-TYPICAL FORWARD
CHARACTERISTICS
500
INSTANTANEOUS FORWARD CURRENT,(A)
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD CURRENT DERATING CURVE
6
5
4
3
2
1
0
Single Phase
Half Wave 60Hz
Resistive Or Inductive Load
0.375"(9.5mm) Lead Length
100
40
10
Tj=25 C
Pulse Width 300us
1% Duty Cycle
0
20
40
60
80
100
120
140
160
180
200
AMBIENT TEMPERATURE,( C)
1
FIG.4-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT,(A)
500
.6
.8
1.0
1.2
1.4
1.6
1.8
2.0
400
FORWARD VOLTAGE,(V)
300
Tj=25 C
8.3ms Single Half
Sine Wave
JEDEC method
200
100
FIG.3 - TYPICAL REVERSE
CHARACTERISTICS
100
0
1
5
10
50
100
NUMBER OF CYCLES AT 60Hz
10
REVERSE LEAKAGE CURRENT, (
µ
A)
Tj=100 C
FIG.5 - TYPICAL THERMAL RESISTANCE VS. LEAD LENGTH
1.0
THERMAL RESISTANCE, ( C/W)
25
20
15
10
5
.1
Tj=25 C
.01
0
20
40
60
80
100 120 140
0
.1
.2
.3
.4
.5
.6
.7
.8
.9
1.0
PERCENT OF RATED PEAK REVERSE VOLTAGE,(%)
EQUAL LEAD LENGTH TO HEAT SINK, INCHES
2
127
ＧＡＯＭＩ ＸＩＮＧＨＥ ＥＬＥＣＴＲＯＮＩＣＳＣＯ．，ＬＴＤ． ＷＷＷ．ＳＤＤＺＧ．ＣＯＭ ＴＥＬ：０５３６－２２１０３５９ ＱＱ：４６４７６８０１７
