HMC479MP86
/
479MP86E
v03.0810
SiGe HBT GAIN BLOCK
MMIC AMPLIFIER, DC - 5 GHz
Typical Applications
Features
P1dB Output Power: +18 dBm
Gain: 15 dB
Output IP3: +34 dBm
Cascadable 50 Ohm I/Os
Single Supply: +5V to +12V
Included in the HMC-DK001 Designer’s Kit
8
AMPLIFIERS - DRIVER & GAIN BLOCK - SMT
The HMC479MP86 / HMC479MP86E is an ideal RF/
IF gain block & LO or PA driver:
• Cellular / PCS / 3G
• Fixed Wireless & WLAN
• CATV, Cable Modem & DBS
• Microwave Radio & Test Equipment
Functional Diagram
General Description
The HMC479MP86 & HMC479MP86E are SiGe
Heterojunction Bipolar Transistor (HBT) Gain Block
MMIC SMT amplifiers covering DC to 5 GHz. This
Micro-P packaged amplifier can be used as a
cascadable 50 Ohm RF/IF gain stage as well as a LO
or PA driver with up to +21 dBm output power. The
HMC479MP86(E) offers 15 dB of gain with a +34 dBm
output IP3 at 850 MHz while requiring only 72 mA from
a single positive supply. The Darlington feedback pair
used results in reduced sensitivity to normal process
variations and excellent gain stability over temperature
while requiring a minimal number of external bias
components.
Electrical Specifi cations,
Vs= 8.0 V, Rbias= 51 Ohm, T
A
= +25° C
Parameter
DC - 1.0 GHz
1.0 - 2.0 GHz
2.0 - 3.0 GHz
3.0 - 4.0 GHz
4.0 - 5.0 GHz
DC - 5 GHz
DC - 1.0 GHz
1.0 - 2.0 GHz
2.0 - 4.0 GHz
4.0 - 5.0 GHz
DC - 1.0 GHz
1.0 - 3.5 GHz
3.5 - 5.0 GHz
DC - 5 GHz
0.5 - 1.0 GHz
1.0 - 2.5 GHz
2.5 - 4.0 GHz
4.0 - 5.0 GHz
0.5 - 1.0 GHz
1.0 - 2.5 GHz
2.5 - 4.0 GHz
4.0 - 5.0 GHz
DC - 2.0 GHz
2.0 - 5.0 GHz
Min.
12.5
11.5
10.5
9
7.5
Typ.
14.5
13
12
11
9.5
0.008
12
16
18
15
18
25
15
18
18.5
17
14
12
34
32
28
25
4.0
4.8
72
Max.
Units
dB
dB
dB
dB
dB
dB/ °C
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dB
dB
mA
Gain
Gain Variation Over Temperature
0.012
Input Return Loss
Output Return Loss
Reverse Isolation
Output Power for 1 dB Compression (P1dB)
16
13
11
9
Output Third Order Intercept (IP3)
(Pout= 0 dBm per tone, 1 MHz spacing)
Noise Figure
Supply Current (Icq)
Note: Data taken with broadband bias tee on device output.
100
8-1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price,
20 Alpha
to place orders: Analog Devices, Inc.,
For price, delivery and to place
nor for any
Hittite Microwave Corporation,
delivery, and
Road, Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use,
orders:
infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC479MP86
/
479MP86E
v03.0810
SiGe HBT GAIN BLOCK
MMIC AMPLIFIER, DC - 5 GHz

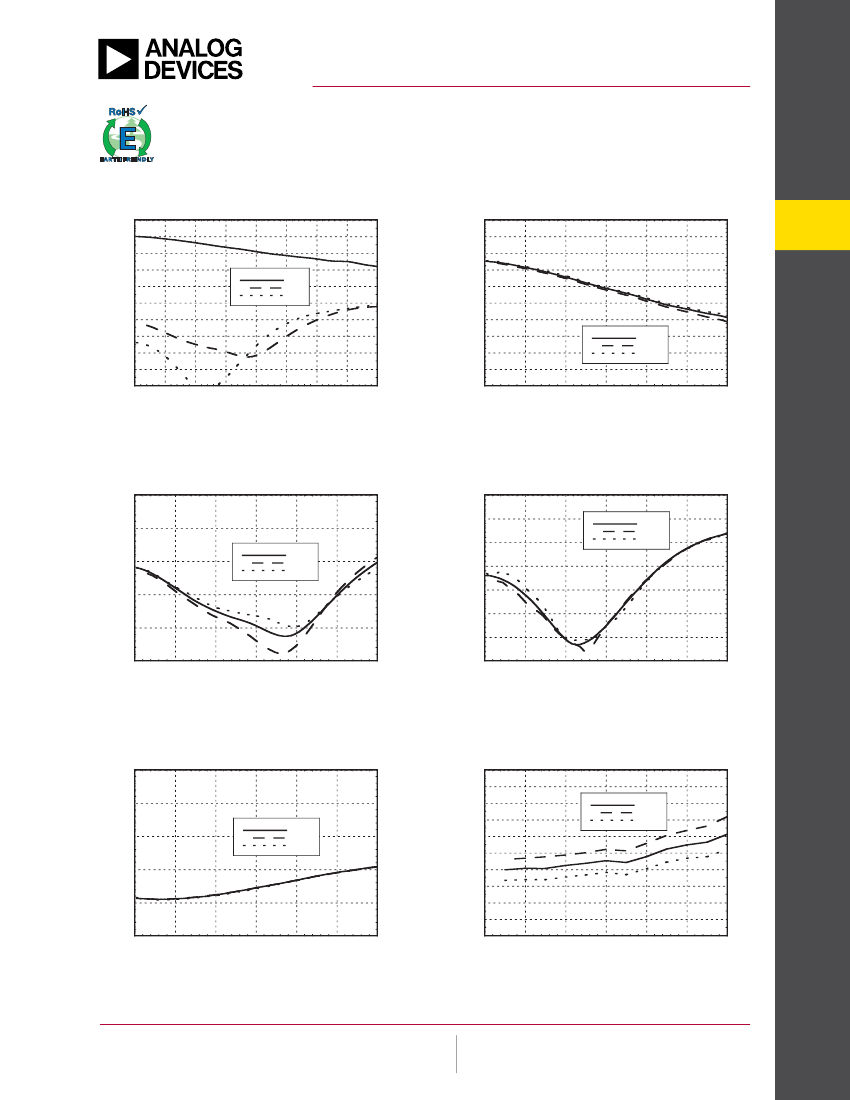

Broadband Gain & Return Loss
20
15
10
RESPONSE (dB)
5
0
-5
-10
-15
-20
-25
-30
0
1
2
3
4
5
6
7
8
FREQUENCY (GHz)
Gain vs. Temperature
20
18
16
GAIN (dB)
8
+25 C
+85 C
-40 C
S21
S11
S22
12
10
8
6
4
2
0
0
1
2
3
4
5
6
FREQUENCY (GHz)
Input Return Loss vs. Temperature
0
Output Return Loss vs. Temperature
0
-5
+25 C
+85 C
-40 C
-5
RETURN LOSS (dB)
RETURN LOSS (dB)
-10
-15
-20
-25
-30
-10
+25 C
+85 C
-40 C
-15
-20
-25
0
1
2
3
4
5
6
FREQUENCY (GHz)
-35
0
1
2
3
4
5
6
FREQUENCY (GHz)
Reverse Isolation vs. Temperature
0
Noise Figure vs. Temperature
10
9
REVERSE ISOLATION (dB)
-5
8
NOISE FIGURE (dB)
7
6
5
4
3
2
1
+25 C
+85 C
-40 C
+25 C
+85 C
-40 C
-10
-15
-20
-25
0
1
2
3
4
5
6
0
0
1
2
3
4
5
6
FREQUENCY (GHz)
FREQUENCY (GHz)
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price,
20 Alpha
to place orders: Analog Devices, Inc.,
For price, delivery and to place
nor for any
Hittite Microwave Corporation,
delivery, and
Road, Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use,
orders:
infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
8-2
AMPLIFIERS - DRIVER & GAIN BLOCK - SMT
14
HMC479MP86
/
479MP86E
v03.0810
SiGe HBT GAIN BLOCK
MMIC AMPLIFIER, DC - 5 GHz

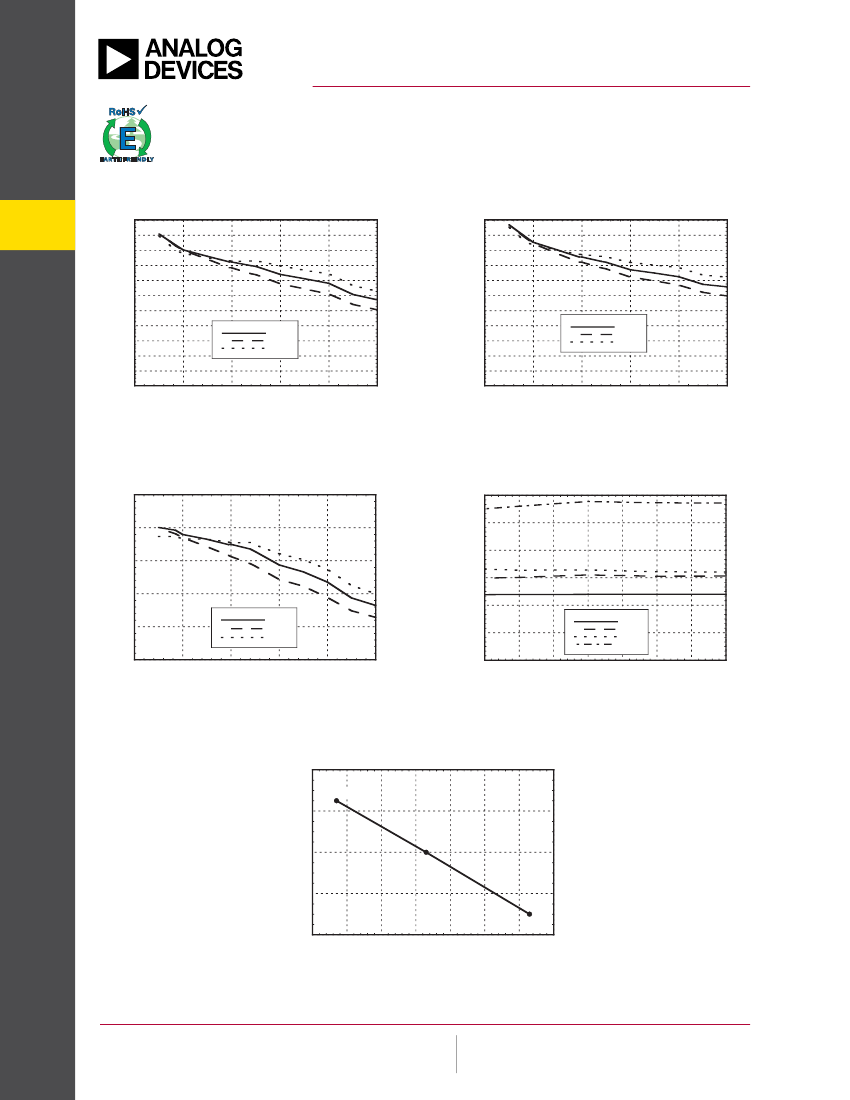

P1dB vs. Temperature
Psat vs. Temperature
22
20
18
16
Psat (dBm)
14
12
10
8
6
4
2
0
+25 C
+85 C
-40 C
8
AMPLIFIERS - DRIVER & GAIN BLOCK - SMT
P1dB (dBm)
22
20
18
16
14
12
10
8
6
4
2
0
0
1
2
3
4
5
FREQUENCY (GHz)
+25 C
+85 C
-40 C
0
1
2
3
4
5
FREQUENCY (GHz)
Output IP3 vs. Temperature
40
Gain, Power & OIP3 vs. Supply Voltage
for Constant Icc= 72 mA @ 850 MHz
Gain (dB), P1dB (dBm), Psat (dBm), IP3 (dBm)
36
30
24
18
12
6
0
5
6
7
8
Vs (V)
9
10
11
12
Gain
P1dB
Psat
IP3
35
IP3 (dBm)
30
25
+25 C
+85 C
-40 C
20
15
0
1
2
3
4
5
FREQUENCY (GHz)
Vcc vs. Icc Over Temperature for
Fixed Vs= 8V, R
BIAS
= 51 Ohms
80
+85 C
76
Icc (mA)
+25 C
72
68
-40 C
64
4
4.1
4.2
4.3
4.4
4.5
4.6
4.7
Vcc (V)
8-3
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price,
20 Alpha
to place orders: Analog Devices, Inc.,
For price, delivery and to place
nor for any
Hittite Microwave Corporation,
delivery, and
Road, Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use,
orders:
infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC479MP86
/
479MP86E
v03.0810
SiGe HBT GAIN BLOCK
MMIC AMPLIFIER, DC - 5 GHz
Absolute Maximum Ratings
Collector Bias Voltage (Vcc)
Collector Bias Current (Icc)
RF Input Power (RFIN)(Vcc = +4.3 Vdc)
Junction Temperature
Continuous Pdiss (T = 85 °C)
(derate 10.8 mW/°C above 85 °C)
Thermal Resistance
(junction to lead)
Storage Temperature
Operating Temperature
+6 Vdc
100 mA
+17 dBm
150 °C
0.702 W
92.6 °C/W
-65 to +150 °C
-40 to +85 °C
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
8
AMPLIFIERS - DRIVER & GAIN BLOCK - SMT
8-4

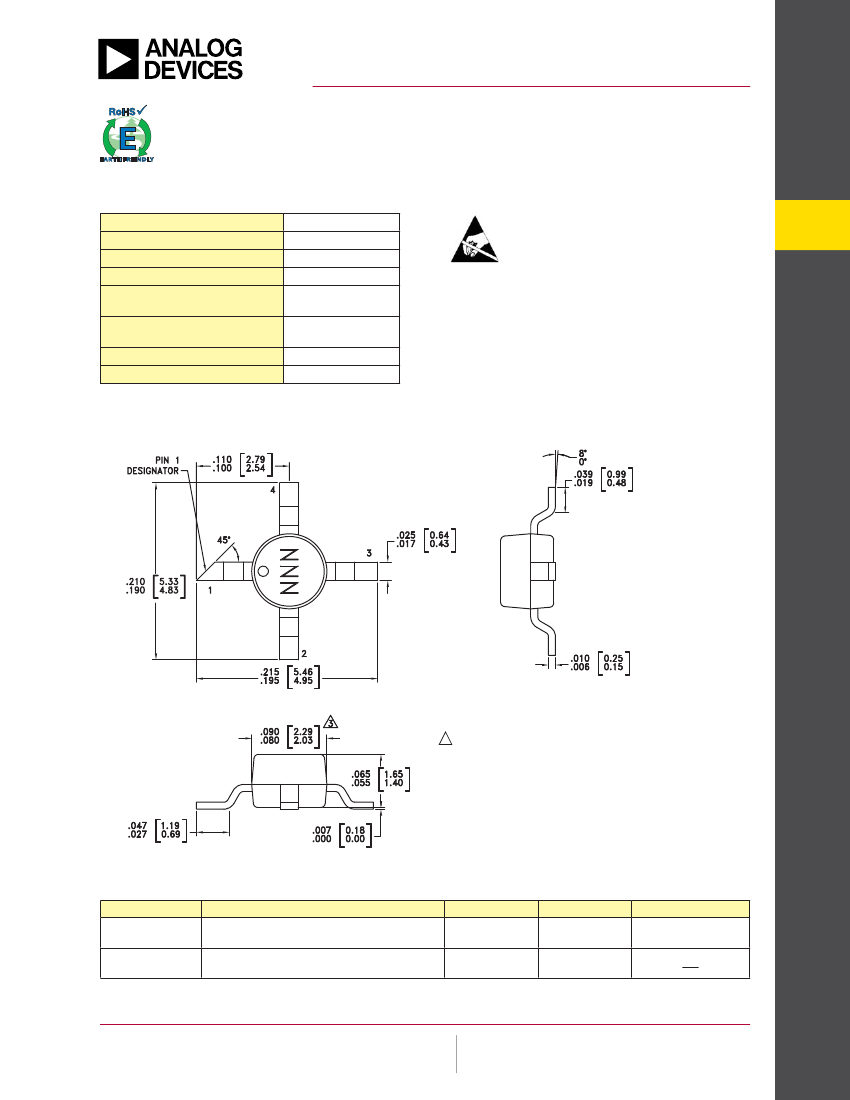

Outline Drawing
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS]
3. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE.
4. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND.
5. THE MICRO-P PACKAGE IS DIMENSIONALLY
COMPATIBLE WITH THE “MICRO-X PACKAGE”
Package Information
Part Number
HMC479MP86
HMC479MP86E
Package Body Material
Low Stress Injection Molded Plastic
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
Sn/Pb Solder
100% matte Sn
MSL Rating
MSL1
MSL1
[1]
Package Marking
479
479
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price,
20 Alpha
to place orders: Analog Devices, Inc.,
For price, delivery and to place
nor for any
Hittite Microwave Corporation,
delivery, and
Road, Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use,
orders:
infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC479MP86
/
479MP86E
v03.0810
SiGe HBT GAIN BLOCK
MMIC AMPLIFIER, DC - 5 GHz
Pin Descriptions
8
AMPLIFIERS - DRIVER & GAIN BLOCK - SMT
Pin Number
Function
Description
Interface Schematic
1
RFIN
This pin is DC coupled.
An off chip DC blocking capacitor is required.
3
RFOUT
RF output and DC Bias (Vcc) for the output stage.
2, 4
GND
These pins must be connected to RF/DC ground.

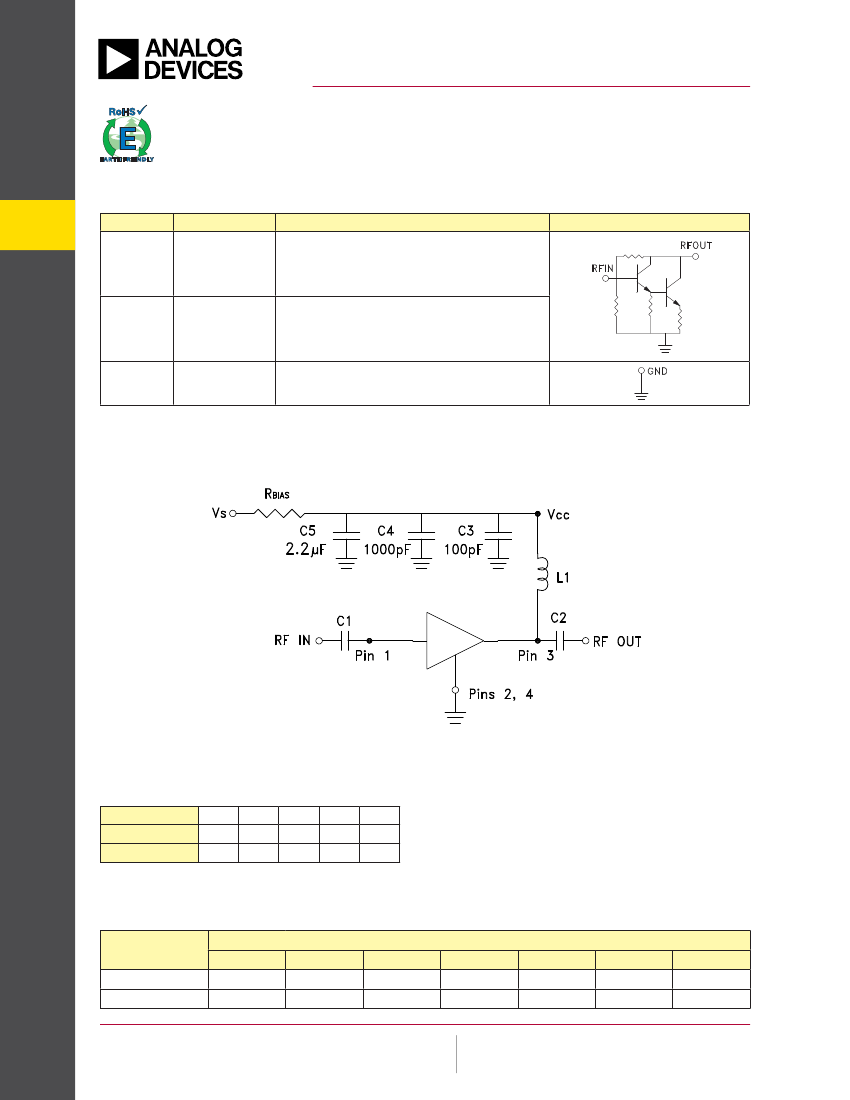

Application Circuit
Recommended Bias Resistor Values
for Icc= 72 mA, Rbias= (Vs - Vcc) / Icc
Supply Voltage (Vs)
R
BIAS
V
ALUE
R
BIAS
P
OWER
R
ATING
5V
13 Ω
1/8 W
6V
27 Ω
1/4 W
8V
51 Ω
1/2 W
10V
82 Ω
1/2 W
12V
110 Ω
1W
Note:
1. External blocking capacitors are required on
RFIN and RFOUT.
2. R
BIAS
provides DC bias stability over temperature.
Recommended Component Values for Key Application Frequencies
Frequency (MHz)
Component
50
L1
C1, C2
270 nH
0.01 μF
900
56 nH
100 pF
1900
18 nH
100 pF
2200
18 nH
100 pF
2400
15 nH
100 pF
3500
8.2 nH
100 pF
5000
6.8 nH
100 pF
8-5
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price,
20 Alpha
to place orders: Analog Devices, Inc.,
For price, delivery and to place
nor for any
Hittite Microwave Corporation,
delivery, and
Road, Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use,
orders:
infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
京公网安备 11010802033920号
EEWORLD
