MB16R12-08P(001) datasheet, PDF

Datasheet> All Categories > The connector> The connector> MB16R12-08P(001)

MB16R12-08P(001): DescriptionMIL Series Connector, 8 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

MB16R12-08P(001) Overview

MIL Series Connector, 8 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug

MB16R12-08P(001) Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-26482
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	MB16R
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	12
Termination type	CRIMP
Total number of contacts	8

Preview

Download Datasheet

View All

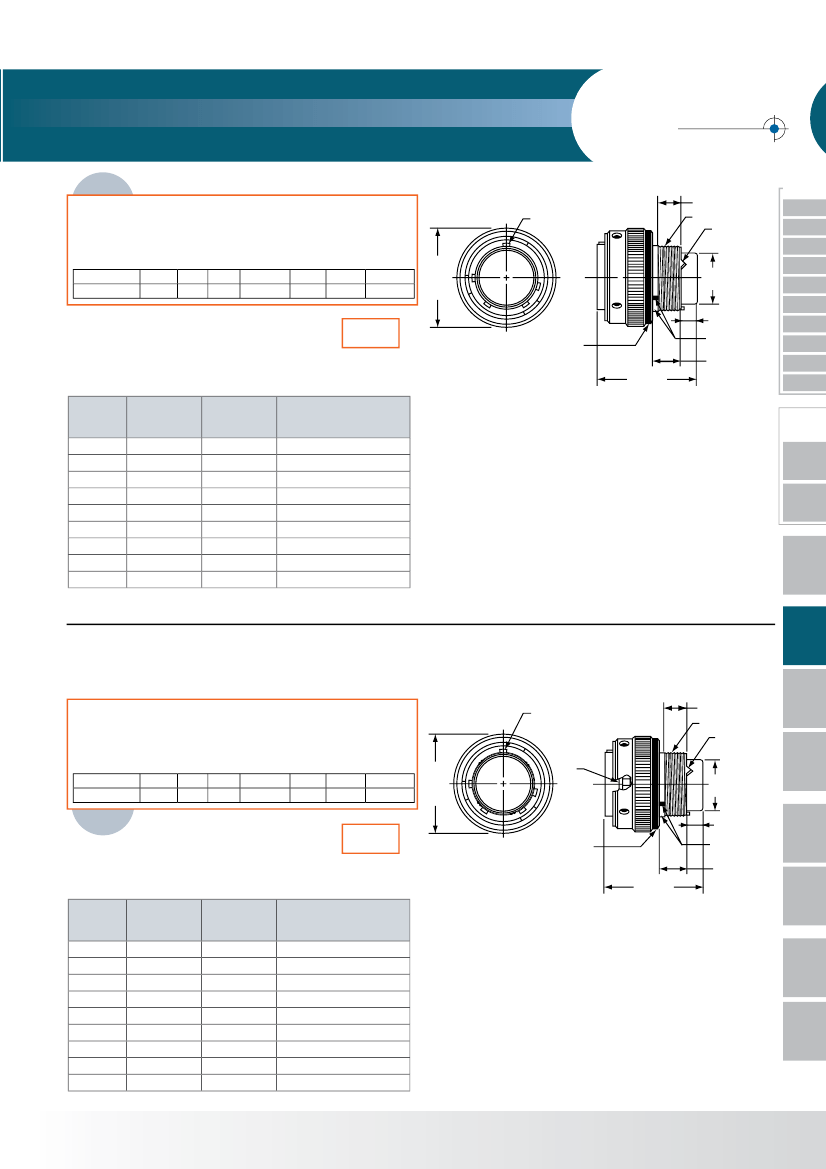

MS3476 (MB16) – MIL-DTL-26482, Series 2

Straight Plug

PART #

Amphenol

Aerospace

.290 Min. Full Thread

Master

Keyway

H Accessory Thread

3 Teeth

Equally Spaced

120

Apart

B Dia. Max

Grommet

38999

*To complete, see how to order page 338.

Connector Shell Service

Shell Size

Type

Style Class

& Insert

Arrg

Contact Alternate

Modification

Type Rotation

Number

of Insert

Military

Commercial

MB1

3476

X-X

(XXX)

A Dia.

Max.

Over

Knurl

MS3476

MB16

.190

Grommet

.130

Extension

Blue Color

Band

1.420 Max.

Fully Coupled

Indicators

.320 Min.

III

Dualok

SJT

ccessori

quacon

erm/Sea

PCB

Shell

Size

A Dia.

Max.

.782

.926

1.043

1.183

1.305

1.391

1.531

1.656

1.777

B Dia.

Max.

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

Accessory Thread

Class 2A

.5000-20 UNF

.6250-24 UNEF

.7500-20 UNEF

.8750-20 UNEF

1.0000-20 UNEF

1.0625-18 UNEF

1.1875-18 UNEF

1.3125-18 UNEF

1.4375-18 UNEF

HIgH

SPEED

Fiber

Optics

Contacts

Cables

Connecto

EMI Filter

Transient

All dimensions for reference only.

Matrix 2

26482

MS3475 (MB18) – MIL-DTL-26482, Series 2

Straight Plug

(With RFI Grounding Fingers)

PART #

*To complete, see how to order page 338.

Connector Shell Service

Shell Size

Type

Style Class

& Insert

Arrg

Contact Alternate

Modification

Type Rotation

Number

of Insert

Master

Keyway

.290 Min. Full Thread

H Accessory Thread

3 Teeth

Equally Spaced

120

Apart

A Dia.

Max.

Over

Knurl

RFI

Fingers

B Dia. Max

Grommet

83723 III

Matrix|Pyle

Pyle

26500

Military

Commercial

MB1

3475

X-X

(XXX)

Crimp Rear

Release

Matrix

MS3475

MB18

.190 Grommet

.130 Extension

Blue Color

Band

Fully Coupled

Indicators

.320 Min.

5015

22992

Class L

1.420 Max.

Shell

Size

A Dia.

Max.

.782

.926

1.043

1.183

1.305

1.391

1.531

1.656

1.777

B Dia.

Max.

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

Accessory Thread

Class 2A

.5000-20 UNF

.6250-24 UNEF

.7500-20 UNEF

.8750-20 UNEF

1.0000-20 UNEF

1.0625-18 UNEF

1.1875-18 UNEF

1.3125-18 UNEF

1.4375-18 UNEF

Back-

Shells

Options

Others

All dimensions for reference only.

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com

341

MB16R12-08P(001) Related Products

	MB16R12-08P(001)	MB16R20-41P(001)	MB16R22-41S(001)	MB16R22-21S(001)	MB16R20-39P(001)	MB16R22-21PW(001)
Description	MIL Series Connector, 8 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug	MIL Series Connector, 41 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug	MIL Series Connector, 41 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug	MIL Series Connector, 21 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug	MIL Series Connector, 39 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug	MIL Series Connector, 21 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-DTL-26482	STANDARD: MIL-DTL-26482	STANDARD: MIL-DTL-26482	STANDARD: MIL-DTL-26482	STANDARD: MIL-DTL-26482	STANDARD: MIL-DTL-26482
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact point gender	MALE	MALE	FEMALE	FEMALE	MALE	MALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Environmental characteristics	ENVIRONMENT/FLUID RESISTANT	ENVIRONMENT/FLUID RESISTANT	ENVIRONMENT/FLUID RESISTANT	ENVIRONMENT/FLUID RESISTANT	ENVIRONMENT/FLUID RESISTANT	ENVIRONMENT/FLUID RESISTANT
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	MB16R	MB16R	MB16R	MB16R	MB16R	MB16R
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	12	20	22	22	20	22
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	8	41	41	21	39	21
